Siirry sivupalkkiinSiirry alaosaanHTZ-17021 – 240K

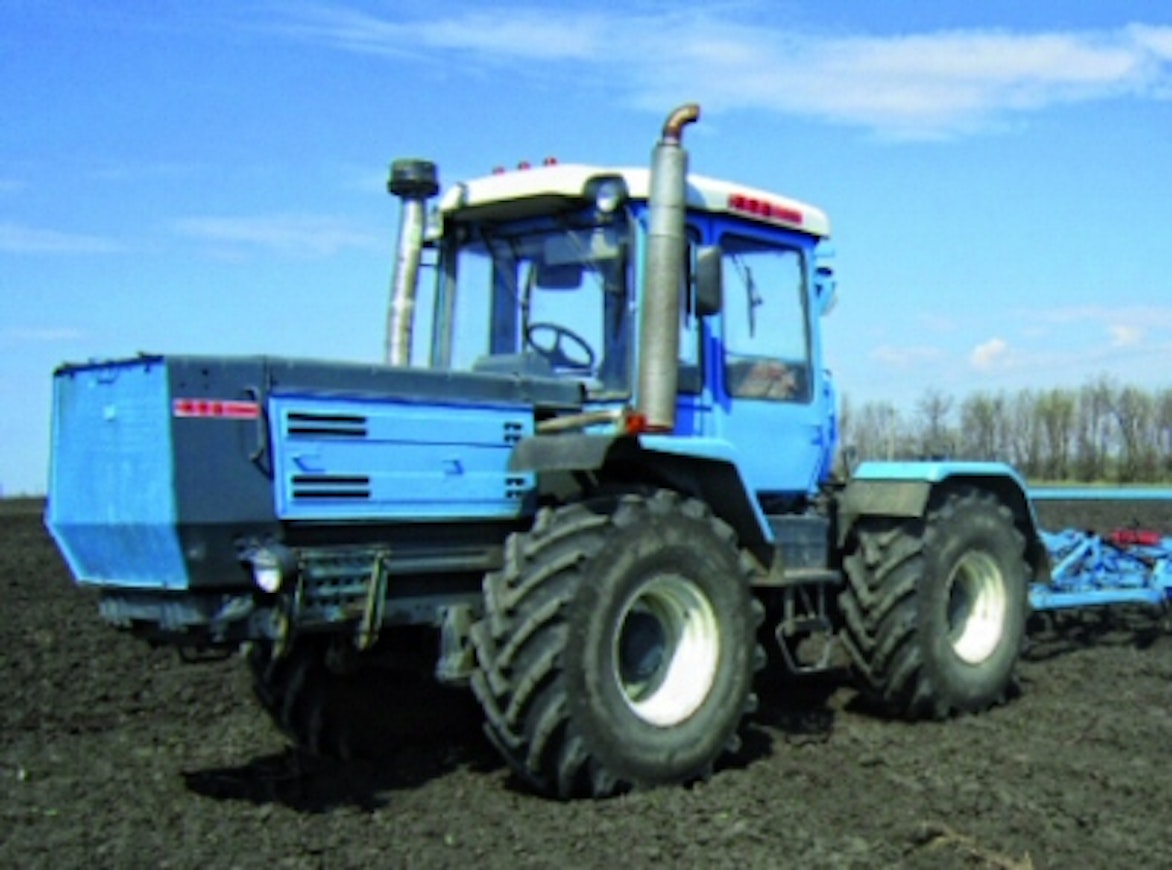

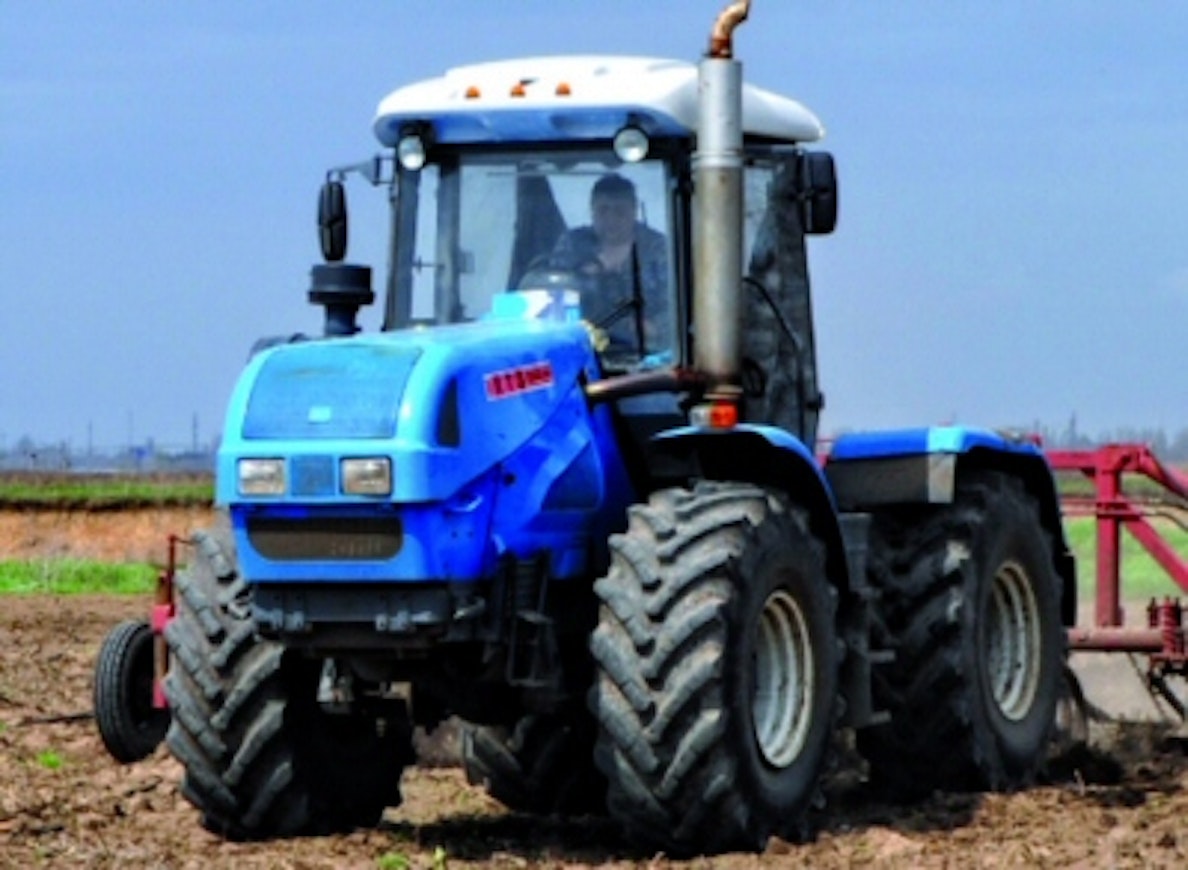

In 1997, a frame-steered tractor developed from the T-150K, the HTZ-17221, was introduced. The cab was positioned further back than before, exactly in the center of the axles. The noise level was reduced by replacing the control rods with cables. The power take-off was engaged pneumatically. For the first time, the steering wheel was adjustable. There were hardly any technical differences. The drawbars were stronger than before, and the tow hook had been improved. In 2005, Deutz engines became an alternative to the YaMZ engine. In 2006, a model equipped with a plastic hood and a new cab was introduced; it was initially called the HTZ-17222 and later renamed HTZ-17221-09. In 2010, the power was increased to 180 horsepower, and alongside it came the 210/240-horsepower HTZ-17221-21, which was later called the HTZ-240K. The 240-horsepower model had a 14.9-liter YaMZ V8 engine. The 210-horsepower version had either an MTZ or Deutz engine. In 2013, updated hydraulics with a 90-liter reservoir and a 16+8 transmission were introduced. In 2015, the HTZ-246K equipped with a Volvo Penta engine was unveiled.
In addition to the frame-steered models, HTZ’s lineup included the slightly lighter rigid-frame 160 series, tracked tractors T-150 and HTZ-181, and the smaller successors of the T-25 model, HTZ-2511 and HTZ-3510-3522.
This is an automated translation. Please report any issues in the translation.
| Model | HTZ-17221 | HTZ-17221 | HTZ-17021 | HTZ-240K | HTZ-240K |
|---|---|---|---|---|---|
| Imported to Finland | No | No | No | No | No |
| Years | 1997-2010 | 2010- | 2005- | 2010- | 2010- |
| Engine model | YaMZ-236D-3 | YaMZ-236D | Deutz BF6M1013E | YaMZ-238 | Deutz BF6M1013E |
| Cyl/Turbo/Intercooler | V6T | V6T | 6TI | V8T | 6TI |
| Displacement | 11150 cm³ | 11150 cm³ | 7146 cm³ | 14866 cm³ | 7146 cm³ |
| Bore x stroke | 130×140 mm | 130×140 mm | 108×130 mm | 130×140 mm | 108×130 mm |
| Rated power | 175/2100 hp DIN/rpm | 180/2100 hp DIN/rpm | 180/2200 hp DIN/rpm | 240/2100 hp DIN/rpm | 210/2200 hp DIN/rpm |
| Torque | - | - | - | - | - |
| Gears | 12+4 | 16+8 | 16+8 | 16+8 | 16+8 |
| Powershift gears | 4-step | 4-step | 4-step | 4-step | 4-step |
| Speeds in km/h | 3,7-29,6 | 3,8-40,0 | 3,8-42,4 | 3,6-40,0 | 3,8-41,9 |
| Lift controls | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 5000 kg | 5000 kg | 5000 kg | 5000 kg | 5000 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | drum brakes | drum brakes | drum brakes | drum brakes | drum brakes |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 13.2 | 13.4 | 13.4 | 13.4 | 13.4 |
| Front tyres 4WD | 23.1R26 | 23.1R26 | 23.1R26 | 23.1R26 | 23.1R26 |
| Rear tyres 4WD | 23.1R26 | 23.1R26 | 23.1R26 | 23.1R26 | 23.1R26 |
| Weight 4WD | 8900 kg | 8620 kg | 8490 kg | 8910 kg | 8480 kg |
| Height with cab | 346 cm | 346 cm | 346 cm | 346 cm | 346 cm |
| Length (2WD/4WD) | 640 cm | 640 cm | 640 cm | 640 cm | 640 cm |
| Wheelbase (2WD/4WD) | 286 cm | 286 cm | 286 cm | 286 cm | 286 cm |
| Fuel tank | 430 l | 430 l | 430 l | 430 l | 430 l |
| Solid cab | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock |
