<p>The frame-controlled T-125 from the Kharkiv factory was introduced in 1962. The engine was a 130-horsepower 11-liter inline six-cylinder. Starting was done by using an electric starter to activate an auxiliary engine that started the main engine. There were 16 forward gears and 4 reverse gears. The brakes were air-operated drum brakes, and the clutch was air-assisted. The two-person cabin had heating and ventilation, as well as openable front windows. The primary drive axle was at the front, and the rear axle could be engaged when needed. The front axle was suspended. The tow hook was hydraulic. Later models had a more angular design.</p>
<p>This is an automated translation. Please report any issues in the translation.</p>

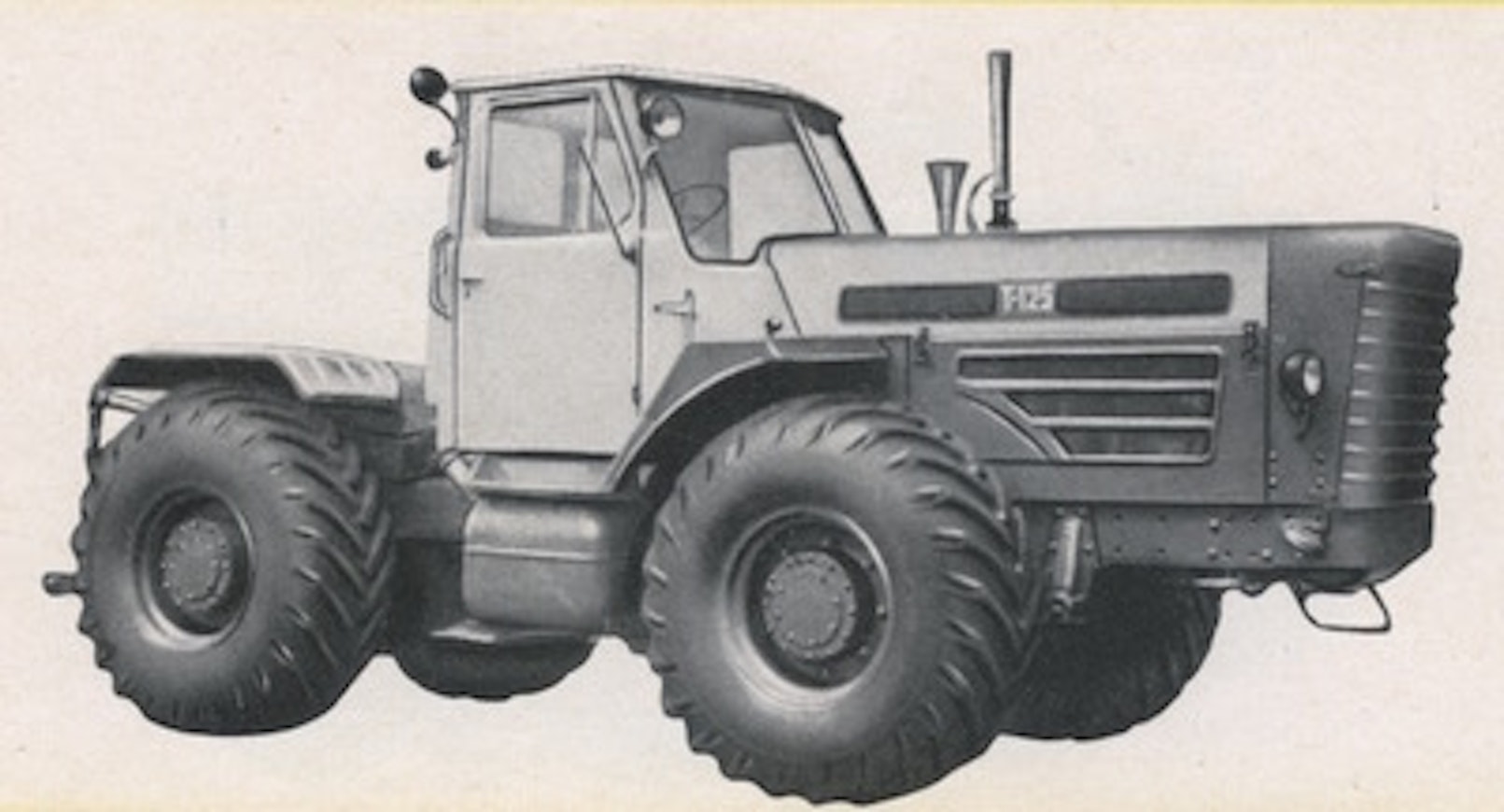

The frame-controlled T-125 from the Kharkiv factory was introduced in 1962. The engine was a 130-horsepower 11-liter inline six-cylinder. Starting was done by using an electric starter to activate an auxiliary engine that started the main engine. There were 16 forward gears and 4 reverse gears. The brakes were air-operated drum brakes, and the clutch was air-assisted. The two-person cabin had heating and ventilation, as well as openable front windows. The primary drive axle was at the front, and the rear axle could be engaged when needed. The front axle was suspended. The tow hook was hydraulic. Later models had a more angular design.

This is an automated translation. Please report any issues in the translation.

Harkov T-125

Malli

Hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

First year sold

Last year sold

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Power

Power speed

Rated power hp/rpm DIN

Rated power

Rated speed

Max power hp/rpm DIN

Max power

Max speed

Rated power hp/rpm ISO

Max power hp/rpm ISO

Max power hp/rpm

Rated power hp/rpm ECE

Max power	hp/rpm ECE

Rated power hp/rpm SAE

Rated power hp/rpm PTO

Rated power hp/rpm engine pulley

Rated power hp/rpm

Torque Nm/rpm

Torque Nm/rpm ECE

Torque Nm/rpm ISO

Torque Nm/rpm SAE

Torque Nm/rpm DIN

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

Sylinterien lukumäärä

Iskutilavuus

Iskusuhde

Suurin vääntömomentti, Nm

Suurin vääntömomentti, r/min

Vääntömomentin nousu

Polttonesteen kulutus suurimman tehon pisteessä

Kytkimen tyyppi

Ajovoimanotto

Nopeus eteenpäin moottorin nimellisnopeudella, pienin

Nopeus eteenpäin moottorin nimellisnopeudella, suurin

Jarrut

Hydrauliikan suurin paine

Hydrauliikan suurin tuotto

Nostolaitehydrauliikan hallinta

Ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

Nostovoima (kN=100 kg)

Hydrauliikan tyyppi

Kääntöympyrän halkaisija ilman ohjausjarrua

Eturenkaat

Takarenkaat

Kokonaismassa säiliöt täynnä vakiovarustein

Etuakselipaino

Taka-akselipaino

Suurin korkeus (ohjaamon ylimpään kohtaan)

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Lukijan kuvat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Subscribe

Paywall

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Harkov T-125
Options
Manufacturer name	Harkov
Imported to Finland	No
Years	1962-67
First year sold	1962
Last year sold	1967
Engine model	SMD-60 (AM-03)
Cyl/Turbo/Intercooler	6
Displacement	11150 cm³
Bore x stroke	130×140 mm
Rated power hp/rpm DIN	130/1700
Rated power	130
Rated speed	1700
Gears	16+4
Speeds in km/h	0,7-25,2
Lift controls	mech.
PTO speeds	545/1000
Brakes	drum brakes
Steering	power
Front tyres 4WD	18.4-24
Rear tyres 4WD	18.4-24
Weight 4WD	6450 kg
Height with cab	260 cm
Length (2WD/4WD)	518 cm
Wheelbase (2WD/4WD)	286 cm
Fuel tank	330 l
Solid cab	x
