<p>The DT-24 was a Soviet general-purpose tractor manufactured by the Vladimirets and Tashkent tractor factories between 1955 and 1958. The engine was a water-cooled 2-cylinder swirl chamber diesel, started with gasoline using a rotary valve operated by hand on the side of the tractor. It had 5+2 gears, and in the last year, a model DT-24-2M with a 6+2 transmission was also available. There were 3- and 4-wheeled versions in production, with the 3-wheeled version continuing production even after the introduction of its successor, the T-28, in 1958. An optional accessory was a sunshade. The tractor was painted green or red.</p>
<p>This is an automated translation. Please report any issues in the translation.</p>

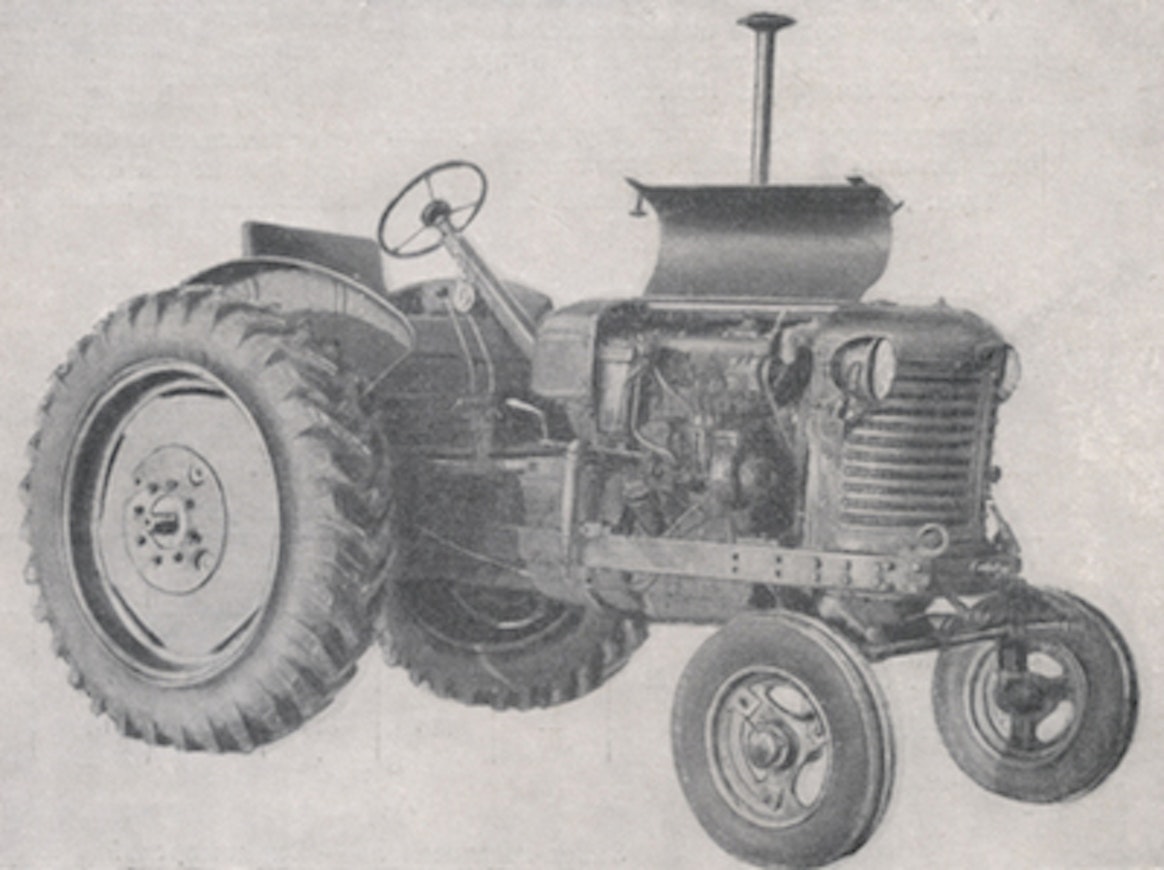

The DT-24 was a Soviet general-purpose tractor manufactured by the Vladimirets and Tashkent tractor factories between 1955 and 1958. The engine was a water-cooled 2-cylinder swirl chamber diesel, started with gasoline using a rotary valve operated by hand on the side of the tractor. It had 5+2 gears, and in the last year, a model DT-24-2M with a 6+2 transmission was also available. There were 3- and 4-wheeled versions in production, with the 3-wheeled version continuing production even after the introduction of its successor, the T-28, in 1958. An optional accessory was a sunshade. The tractor was painted green or red.

This is an automated translation. Please report any issues in the translation.

Belarus DT-24

Malli

Hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

First year sold

Last year sold

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Power

Power speed

Rated power hp/rpm DIN

Rated power

Rated speed

Max power hp/rpm DIN

Max power

Max speed

Rated power hp/rpm ISO

Max power hp/rpm ISO

Max power hp/rpm

Rated power hp/rpm ECE

Max power	hp/rpm ECE

Rated power hp/rpm SAE

Rated power hp/rpm PTO

Rated power hp/rpm engine pulley

Rated power hp/rpm

Torque Nm/rpm

Torque Nm/rpm ECE

Torque Nm/rpm ISO

Torque Nm/rpm SAE

Torque Nm/rpm DIN

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

Sylinterien lukumäärä

Iskutilavuus

Iskusuhde

Suurin vääntömomentti, Nm

Suurin vääntömomentti, r/min

Vääntömomentin nousu

Polttonesteen kulutus suurimman tehon pisteessä

Kytkimen tyyppi

Ajovoimanotto

Nopeus eteenpäin moottorin nimellisnopeudella, pienin

Nopeus eteenpäin moottorin nimellisnopeudella, suurin

Jarrut

Hydrauliikan suurin paine

Hydrauliikan suurin tuotto

Nostolaitehydrauliikan hallinta

Ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

Nostovoima (kN=100 kg)

Hydrauliikan tyyppi

Kääntöympyrän halkaisija ilman ohjausjarrua

Eturenkaat

Takarenkaat

Kokonaismassa säiliöt täynnä vakiovarustein

Etuakselipaino

Taka-akselipaino

Suurin korkeus (ohjaamon ylimpään kohtaan)

DT-24

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Lukijan kuvat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Subscribe

Paywall

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Belarus DT-24
Options
Manufacturer name	Belarus
Imported to Finland	No
Years	1955-58
First year sold	1955
Last year sold	1958
Engine model	D24
Cyl/Turbo/Intercooler	2
Displacement	3068 cm³
Bore x stroke	125×125 mm
Rated power hp/rpm DIN	24/1400
Rated power	24
Rated speed	1400
Gears	5+2
Speeds in km/h	4,7-18,9
Lift controls	mech.
PTO speeds	540
Brakes	drum brakes
Steering	mech.
Front tyres 2WD	6.50-16
Rear tyres 2WD	12.4-38
Weight 2WD	(2490) kg
Height with cab	231 cm
Length (2WD/4WD)	355 cm
Wheelbase (2WD/4WD)	226 cm
