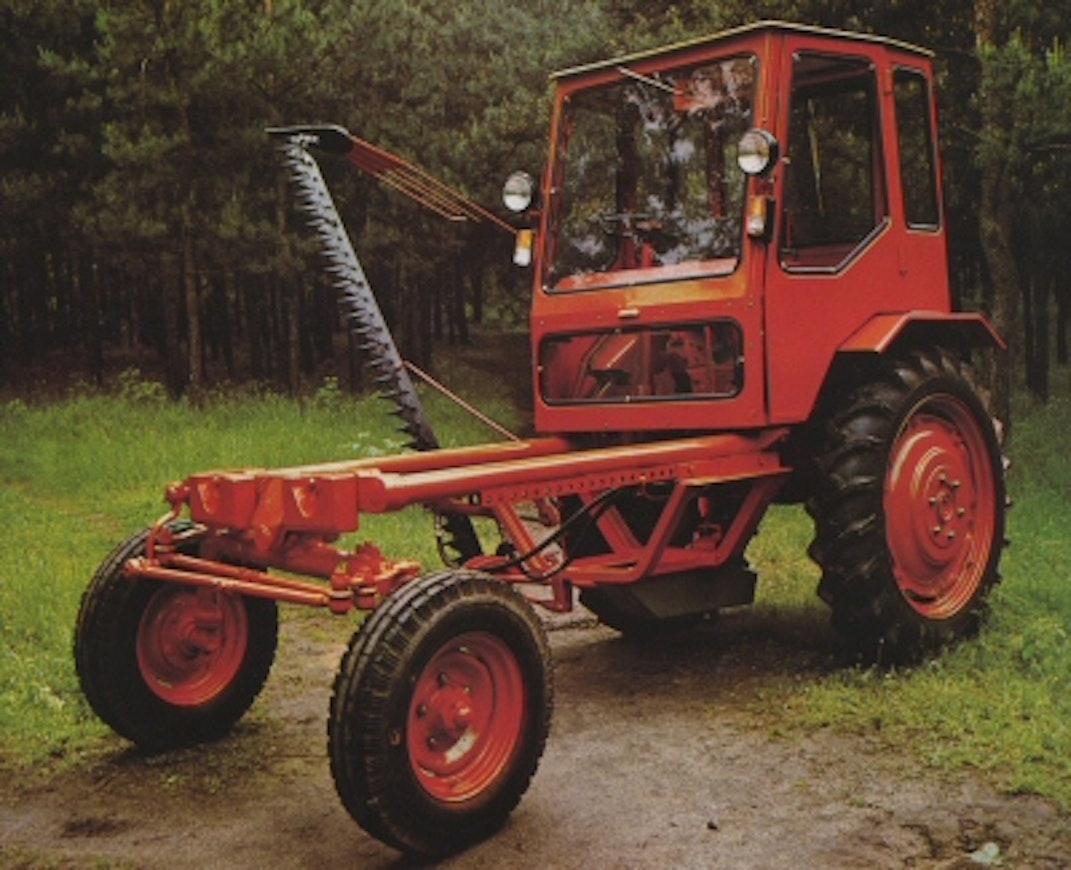

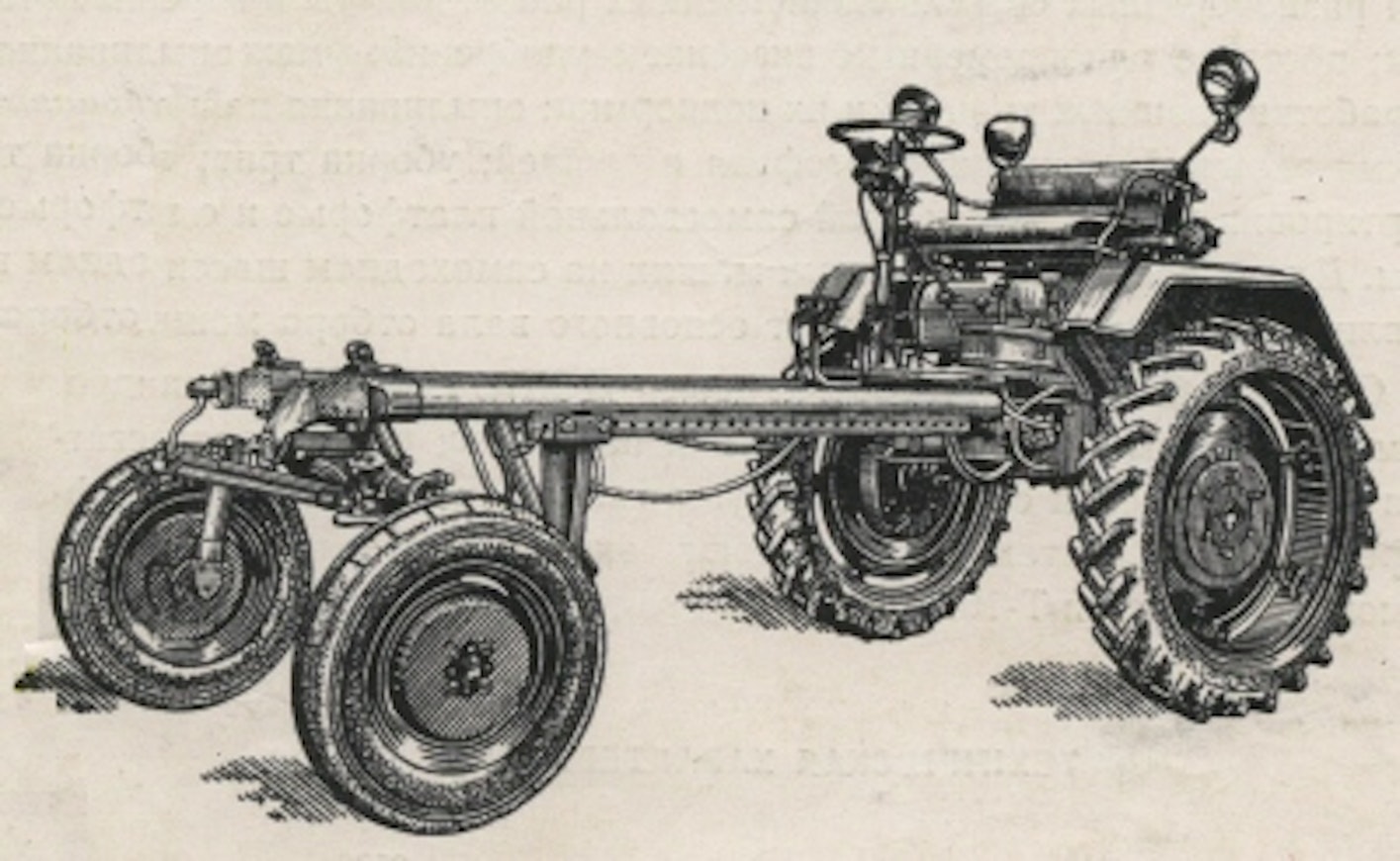

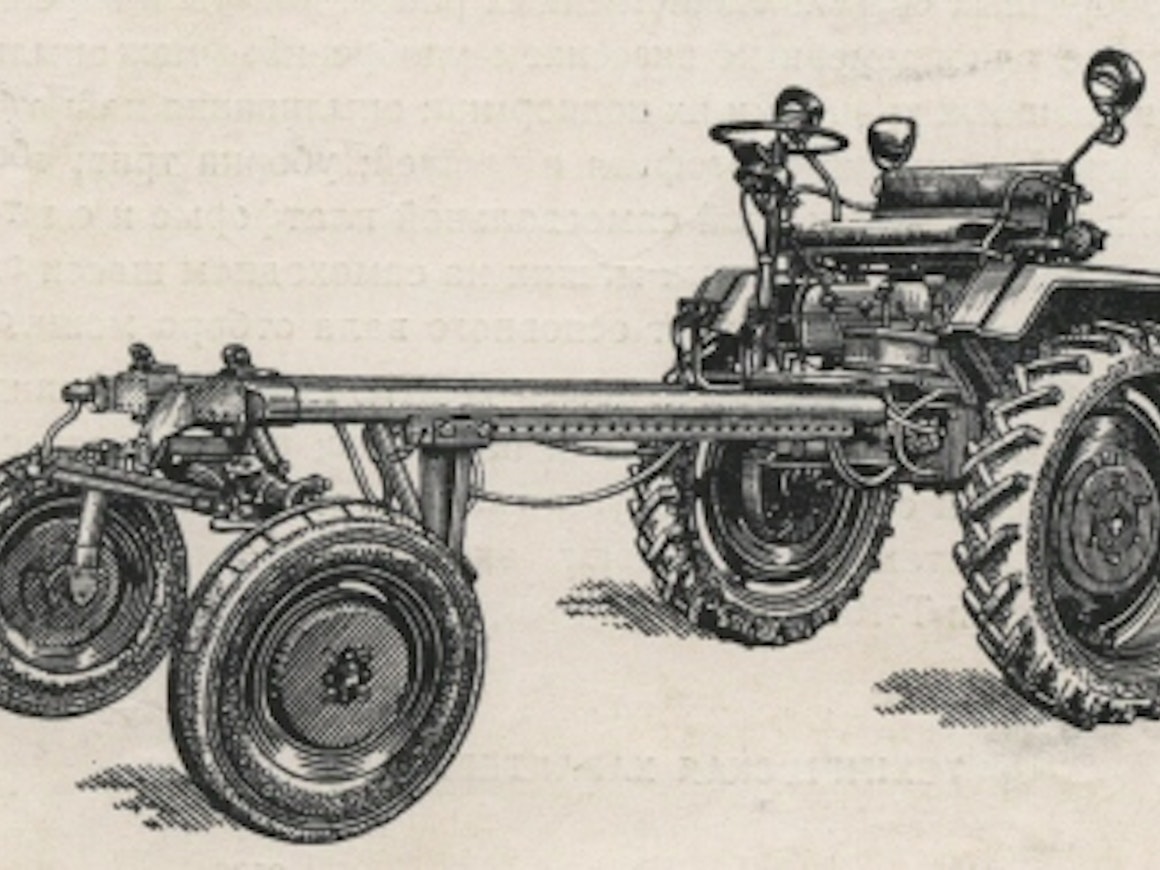

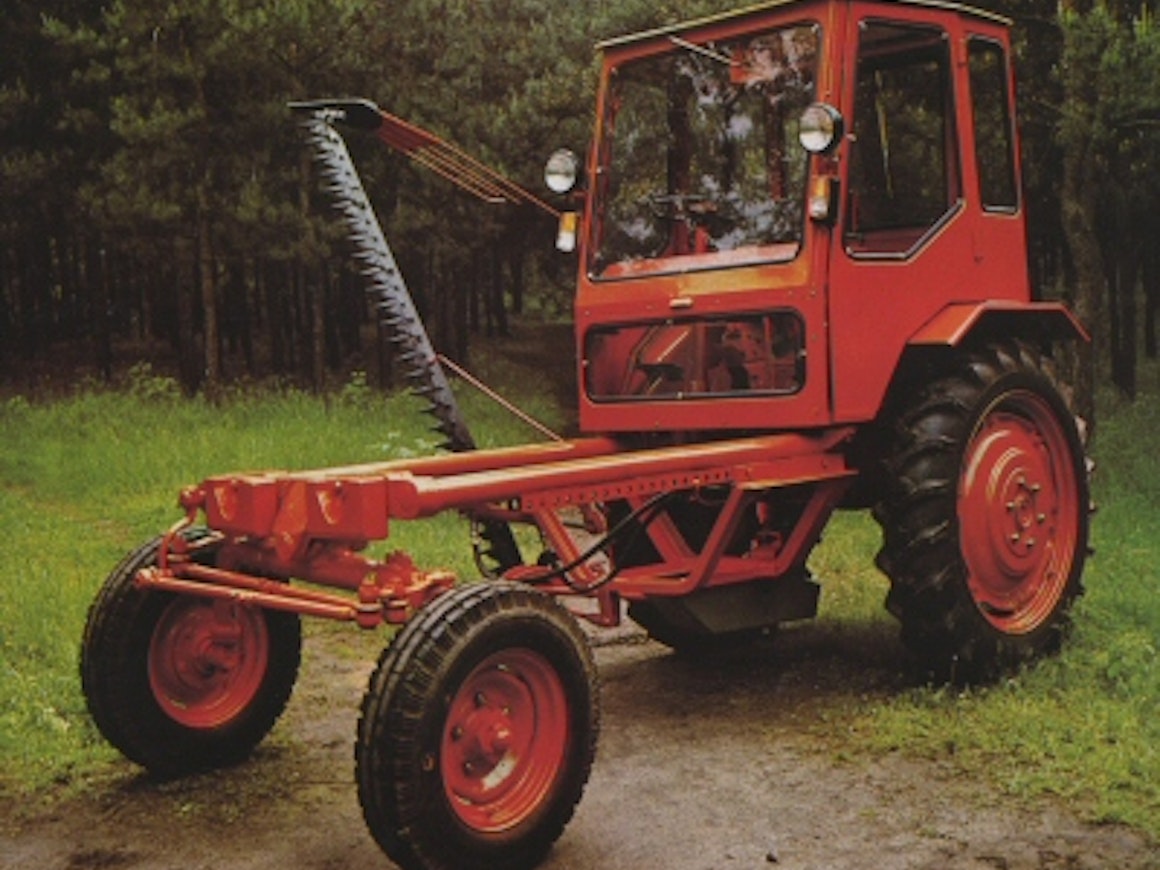

At the Kharkov factory, the production of work machine carriers began with the 1-cylinder model DVSŠ-14, followed by the 2-cylinder T-16 introduced in 1959. It featured an air-cooled diesel engine D-16 with a power output of 16 hp. The T-16 was in production from 1961 to 1967. Its successor was the improved T-16M, which was equipped with the same 2.1-liter engine as the T-25 tractor from the Vladimir factory. At this stage, the cab was also new. The 7+1-speed gearbox was redesigned. In the model T-16Mg, produced from 1986 onwards, hydrostatic steering was introduced.
At least in West Germany, the T-16M was sold under the name Belarus 250 GT.
This is an automated translation. Please report any issues in the translation.

At the Kharkov factory, the production of work machine carriers began with the 1-cylinder model DVSŠ-14, followed by the 2-cylinder T-16 introduced in 1959. It featured an air-cooled diesel engine D-16 with a power output of 16 hp. The T-16 was in production from 1961 to 1967. Its successor was the improved T-16M, which was equipped with the same 2.1-liter engine as the T-25 tractor from the Vladimir factory. At this stage, the cab was also new. The 7+1-speed gearbox was redesigned. In the model T-16Mg, produced from 1986 onwards, hydrostatic steering was introduced.

At least in West Germany, the T-16M was sold under the name Belarus 250 GT.

This is an automated translation. Please report any issues in the translation.

Belarus T-16

Malli

Hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

First year sold

Last year sold

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Power

Power speed

Rated power hp/rpm DIN

Rated power

Rated speed

Max power hp/rpm DIN

Max power

Max speed

Rated power hp/rpm ISO

Max power hp/rpm ISO

Max power hp/rpm

Rated power hp/rpm ECE

Max power	hp/rpm ECE

Rated power hp/rpm SAE

Rated power hp/rpm PTO

Rated power hp/rpm engine pulley

Rated power hp/rpm

Torque Nm/rpm

Torque Nm/rpm ECE

Torque Nm/rpm ISO

Torque Nm/rpm SAE

Torque Nm/rpm DIN

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

Sylinterien lukumäärä

Iskutilavuus

Iskusuhde

Suurin vääntömomentti, Nm

Suurin vääntömomentti, r/min

Vääntömomentin nousu

Polttonesteen kulutus suurimman tehon pisteessä

Kytkimen tyyppi

Ajovoimanotto

Nopeus eteenpäin moottorin nimellisnopeudella, pienin

Nopeus eteenpäin moottorin nimellisnopeudella, suurin

Jarrut

Hydrauliikan suurin paine

Hydrauliikan suurin tuotto

Nostolaitehydrauliikan hallinta

Ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

Nostovoima (kN=100 kg)

Hydrauliikan tyyppi

Kääntöympyrän halkaisija ilman ohjausjarrua

Eturenkaat

Takarenkaat

Kokonaismassa säiliöt täynnä vakiovarustein

Etuakselipaino

Taka-akselipaino

Suurin korkeus (ohjaamon ylimpään kohtaan)

Belarus T-16M / 250 GT

Belarus/Harkov T-16, 250 GT

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Lukijan kuvat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Subscribe

Paywall

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Belarus T-16	Belarus T-16M / 250 GT
Options
Manufacturer name	Belarus	Belarus
Imported to Finland	No	No
Years	1961-67	1967-95
First year sold	1961	1967
Last year sold	1967	1995
Engine model	D-16	D21A1
Cyl/Turbo/Intercooler	2	2
Displacement	1701 cm³	2077 cm³
Bore x stroke	95×120 mm	105×120 mm
Rated power hp/rpm DIN	16/1600	25/1800
Rated power	16	25
Rated speed	1600	1800
Torque Nm/rpm DIN	-	110/1100
Gears	7+1 (4+4)	7+1
Speeds in km/h	1,1-19,6 (5,0-15,6)	1,6-23,2 (1,4-20,6)
Lift controls	mech.	mech.
PTO speeds	540/ajo	540/ajo
Brakes	drum brakes	drum brakes
Steering	mech.	mech./hydr.
Turning circle m 2WD	-	7
Front tyres 2WD	6.00-16	6.00-16
Rear tyres 2WD	8.0-32	9.5-32
Weight 2WD	1200 kg	1810 kg
Height with cab	(200) cm	250 cm
Length (2WD/4WD)	382 cm	370/385 cm
Wheelbase (2WD/4WD)	250 cm	250 cm
Fuel tank	-	40 l
Solid cab	-	x
