Belarus 590-1321

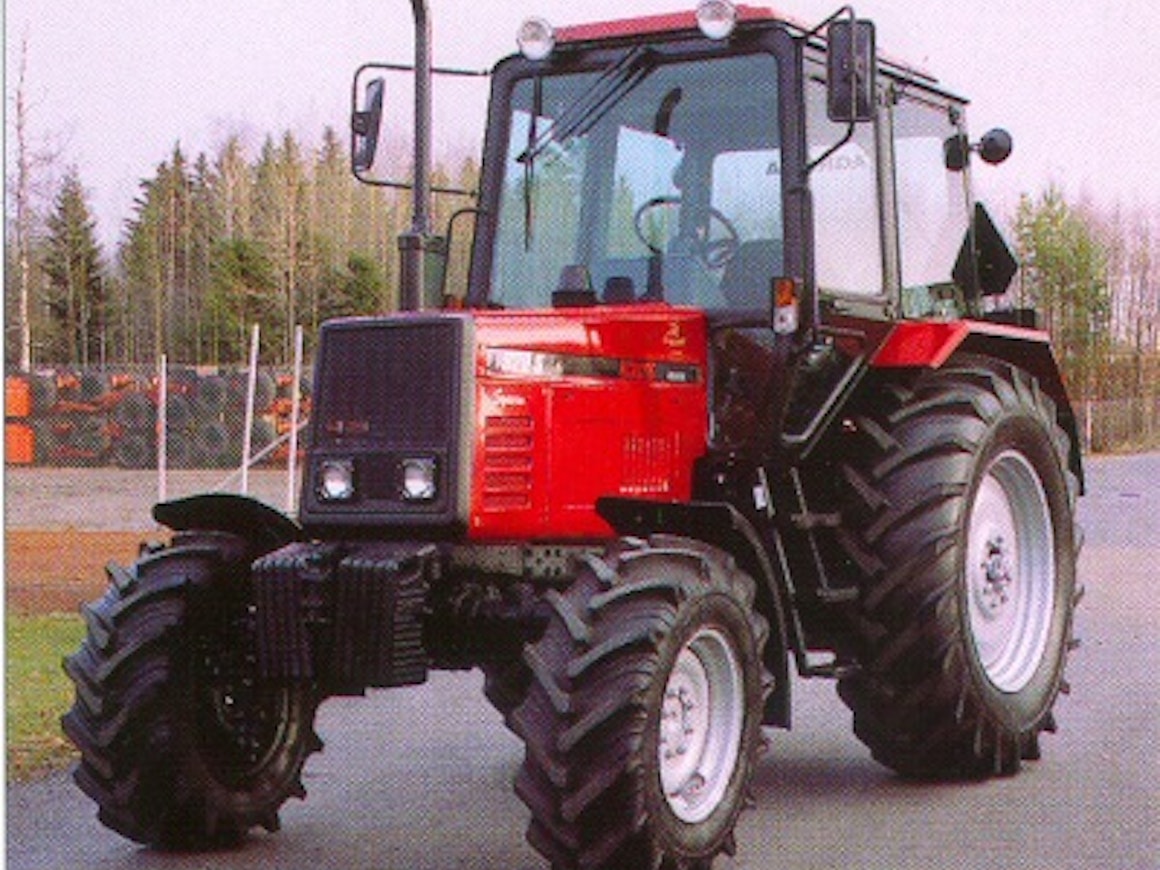

97Belarus920

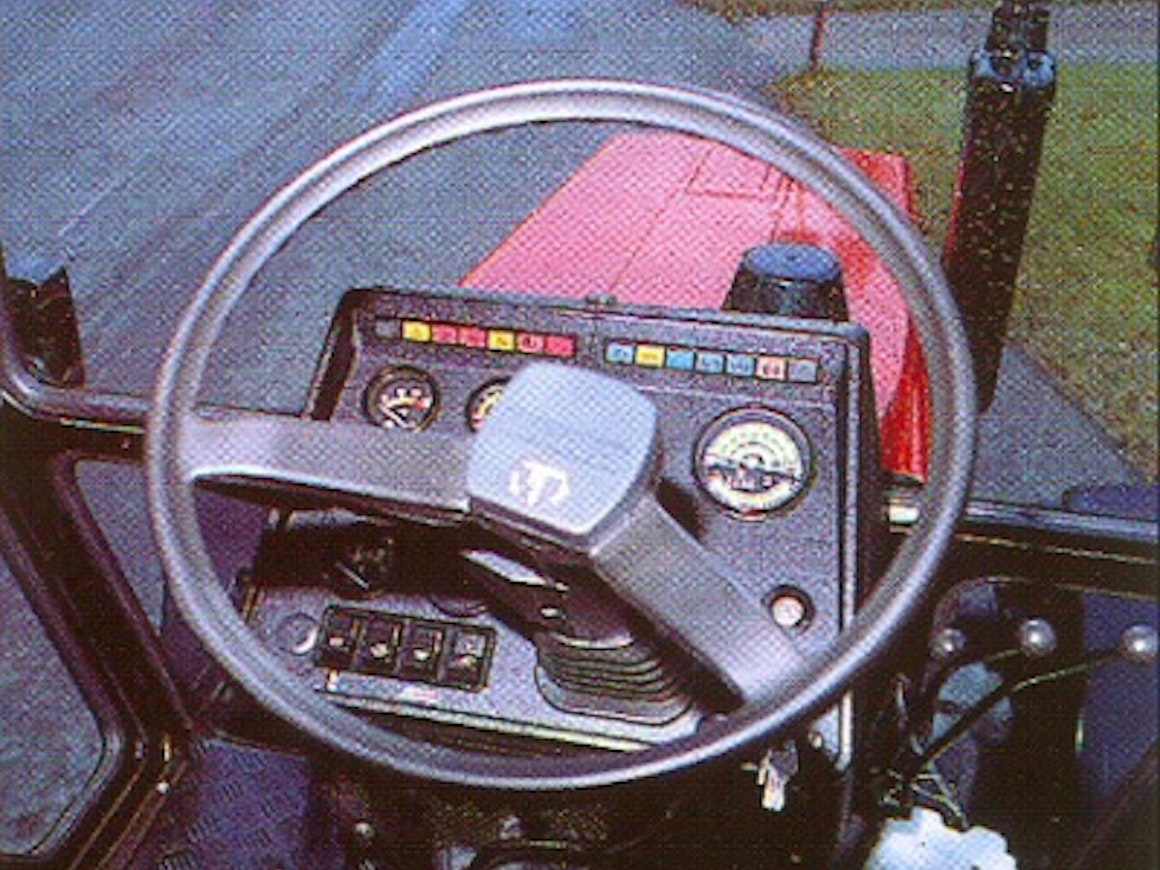

97Belarus920ohjaamo
02Belarus920nopeudet

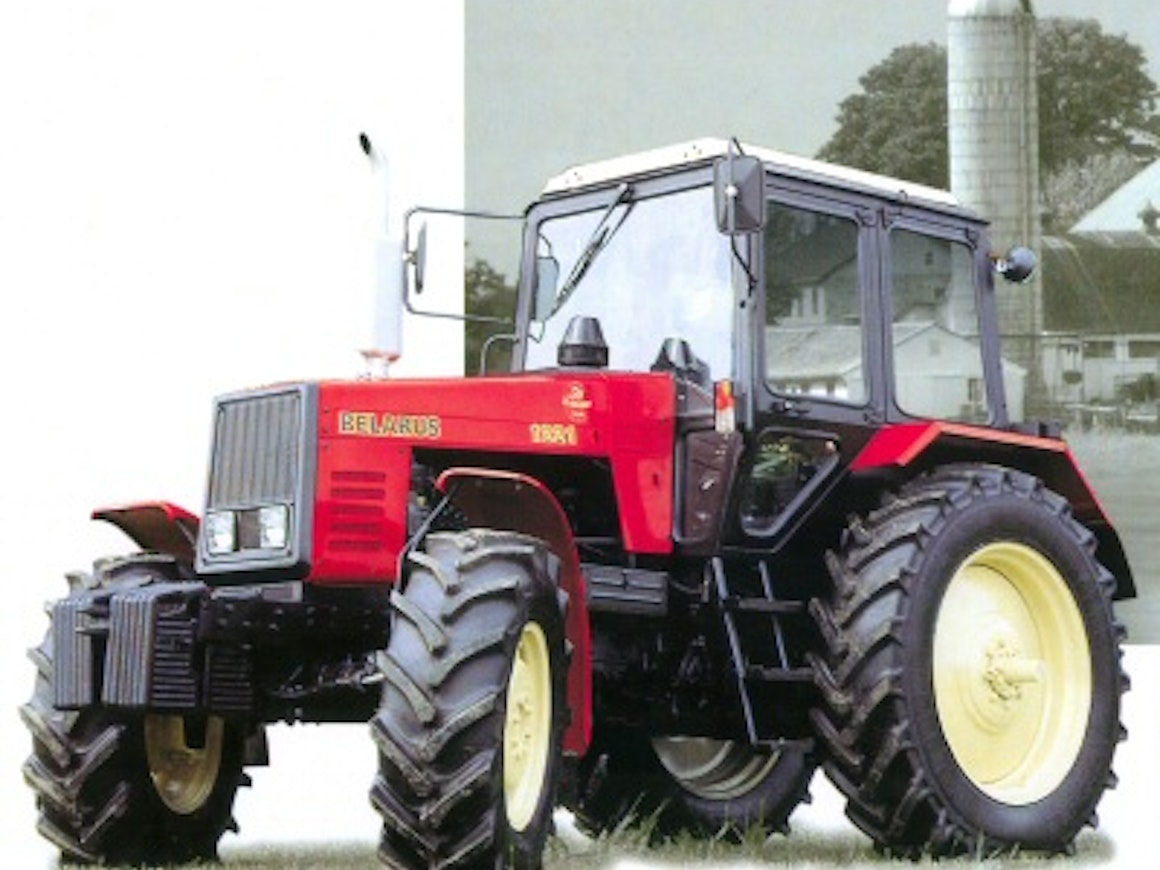

99Belarus1221
97Belarus920
97Belarus920ohjaamo
02Belarus920nopeudet
99Belarus1221
Manufacturer
Models
Belarus 590/592, Belarus 900/920, Belarus 950/952, Belarus 1021, Belarus 1005/1025, Belarus 1221, Belarus 1321
Years
1994-
Info

Here is the English translation of the provided text:


In the years 1994-1995, the updated Belaruses were introduced. The most important change was the synchronized gearbox, except for the first and reverse gears as well as the range gear. The gear lever was now on the side, and the same lever was also used to shift the range gear. The front design was renewed, and the cabin was painted black. The engines were the familiar 4.75-liter ones. As a novelty, the 1221 model was equipped with a 7.1-liter six-cylinder engine. The old features were retained, such as the dual-action lifting device, automatically engaging four-wheel drive, and front axle limited-slip differential. Most often, these models also featured the new, straight front axle.

In Finland, Belaruses were sold alternately by Mateko, Agroma, and Agri-Kymi in the early 2000s. The model sold under the number 920 did not necessarily have a synchronized gearbox or a straight front axle but rather corresponded more to the international model 820. Here, the rear tires were usually size 18.4-34. In the mid-2000s, the GL or Green Line series was marketed here, with green coloring and a modernly designed fiberglass hood. For us, the 1025’s power was stated as 115 hp, differing from the international 105 hp. The Carraro front axle was available as an optional extra.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelBelarus 590/592Belarus 900/920Belarus 950/952Belarus 1021Belarus 1005/1025Belarus 1221Belarus 1321
Manufacturer nameBelarusBelarusBelarusBelarusBelarusBelarusBelarus
Imported to FinlandYesYesYesYesYesNoNo
Years1995-1994-1994--1994-1994--
Engine modelD-242D-243D-245.5D-245 SD-245 SD-260.2Perkins 1006-6TLR2
Cyl/Turbo/Intercooler444T4T4T6T6T
Displacement4750 cm³4750 cm³4750 cm³4750 cm³4750 cm³7120 cm³5980 cm³
Bore x stroke110×125 mm110×125 mm110×125 mm110×125 mm110×125 mm110×125 mm100×127 mm
Rated power62/1800 hp DIN/rpm81/2200 hp DIN/rpm89/2200 hp DIN/rpm100/2200 hp DIN/rpm105/2200 hp DIN/rpm130/2200 hp DIN/rpm130/2200 hp DIN/rpm
Torque-------
Gears7+7/14+414+414+414+416+816+816+8
Synchronized gears5/1010101016+816+816+8
Powershift gears-/mech.mech.mech.mech.---
Speeds in km/h2,6-28,1/1,9-28,02,5-36,62,1-30,02,6-37,52,3-36,62,1-32,62,1-32,6
Hydr. flow l/min43/45 l/min45 l/min45/55 l/min45/55 l/min45/55 l/min51 l/min51 l/min
Hydraulic pressure180/200 bar200 bar200 bar200 bar200 bar200 bar200 bar
Lift controlsmech.mech.mech.mech.mech.mech.mech.
Lift capacity3000 kg3700 kg3700 kg4300 kg4500 kg4500 kg4500 kg
PTO speeds540/1000/ajov.540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo540/1000/ajo
Brakesdisc brakesdisc brakesdisc brakesdisc brakesdisc brakesdisc brakesdisc brakes
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 2WD7.67.67.6-8.9--
Turning circle m 4WD10.510.510.510.410.410.610.6
Front tyres 2WD9.00-209.00-209.00-20-9.00-20--
Front tyres 4WD11.2-2013.6-2013.6-2013.6-2013.6-2014.9R2414.9R24
Rear tyres 2WD15.5R3815.5R3815.5R38-16.9R38--
Rear tyres 4WD15.5R3815.5R3816.9R3816.9R3816.9R3818.4R3818.4R38
Weight 2WD3600 kg3700 kg3700 kg-4025 kg--
Weight 4WD3800 kg3900 kg3920 kg4400 kg4285 kg5300 kg5400 kg
Height with cab279 cm279 cm279 cm284 cm287 cm288 cm288 cm
Length (2WD/4WD)382/393 cm384/393 cm384/393 cm419 cm422 cm495 cm495 cm
Wheelbase (2WD/4WD)237/245 cm237/245 cm237/245 cm257 cm257 cm276 cm276 cm
Fuel tank130 l130 l130 l156 l156 l160 l160 l
Cab noise level85 dB85 dB85 dB85 dB85 dB85 dB85 dB
Solid cabxxxxxxx
Diff. lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lock
Creeper gear-opt.opt.opt.opt.opt.opt.
