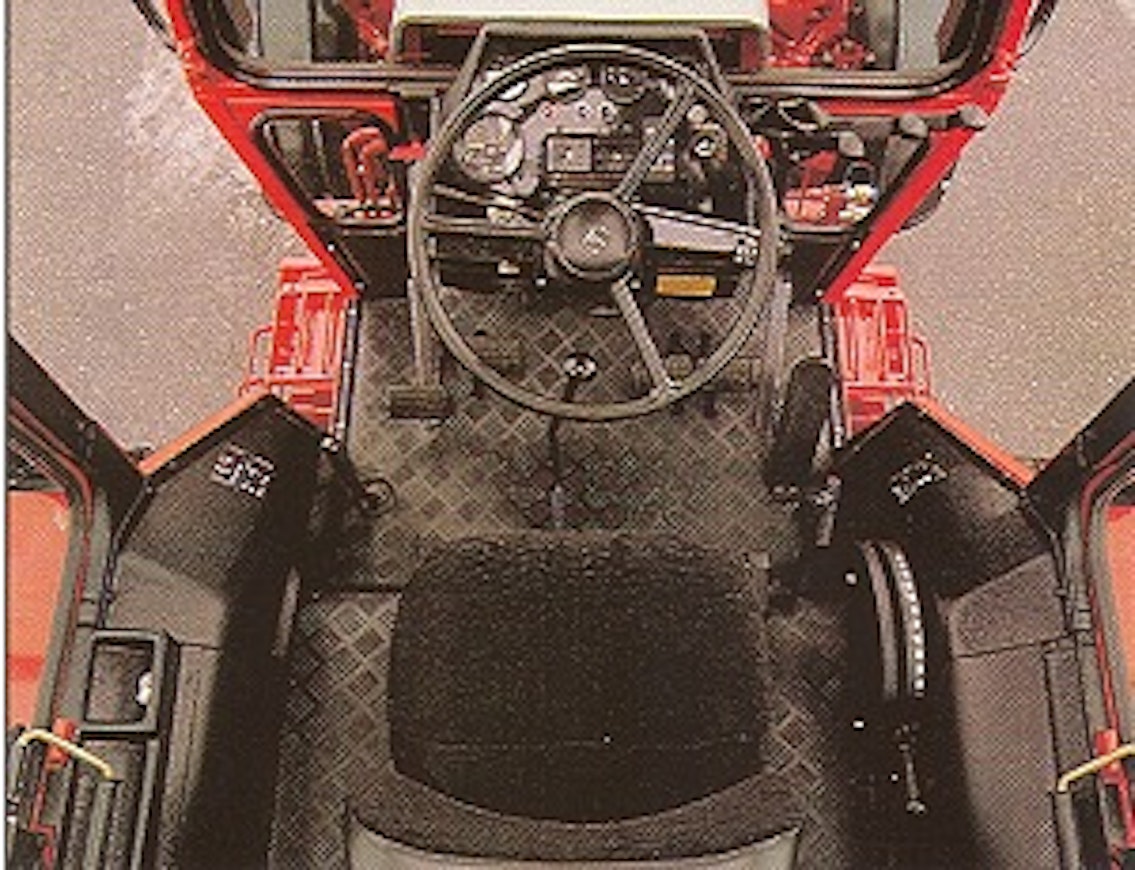

In the spring of 1983, the Pikku-Belarus received a Progress cabin manufactured by Maaseudun Kone, which featured a fuel-operated heating device. The Finnish content of the tractor was stated to be 30% based on the price.

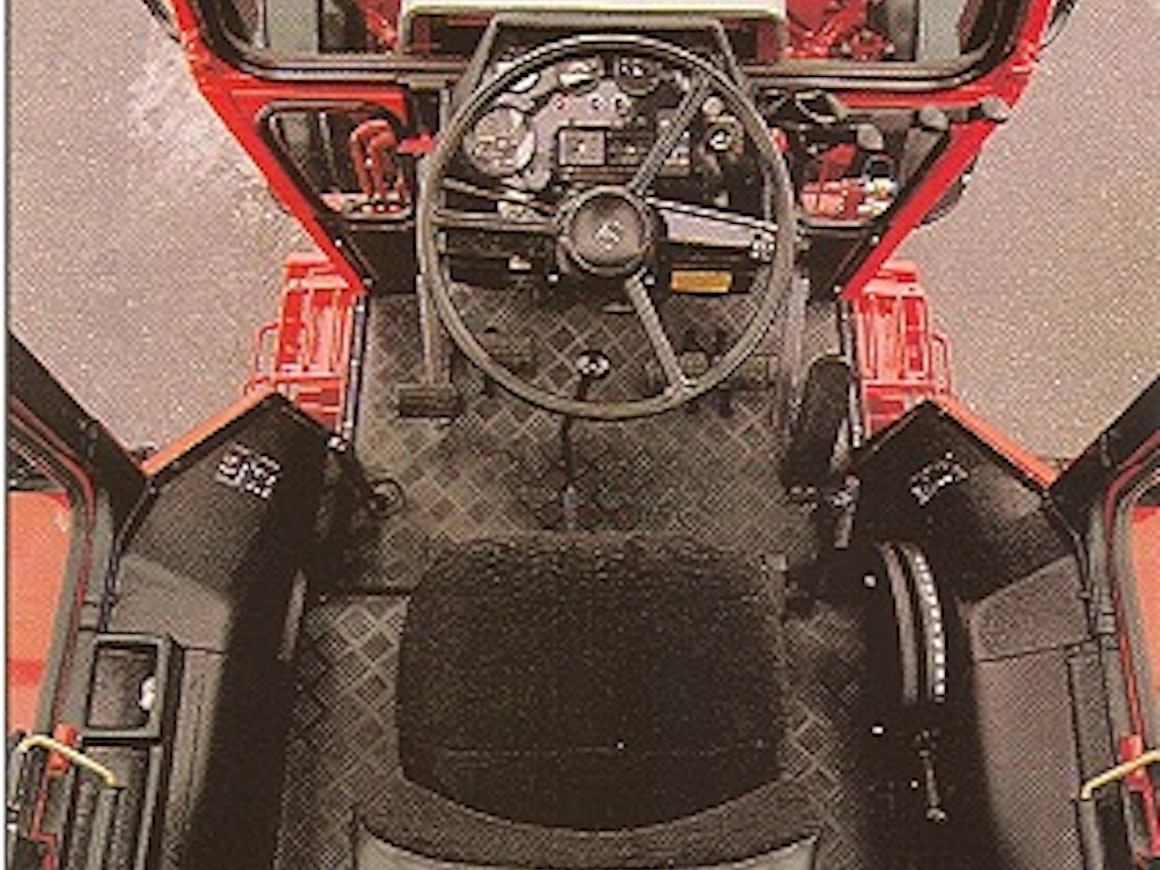

In 1990, the Agross model had its cabin replaced with a more affordable Russian-made one, and the power increased to 58 horsepower.
In LTZ factory production, these export models were called T-40AS. The main difference from the standard model was primarily a greater number of gears in the lower range.
This is an automated translation. Please report any issues in the translation.

In the spring of 1983, the Pikku-Belarus received a Progress cabin manufactured by Maaseudun Kone, which featured a fuel-operated heating device. The Finnish content of the tractor was stated to be 30% based on the price.

In 1990, the Agross model had its cabin replaced with a more affordable Russian-made one, and the power increased to 58 horsepower.

In LTZ factory production, these export models were called T-40AS. The main difference from the standard model was primarily a greater number of gears in the lower range.

This is an automated translation. Please report any issues in the translation.

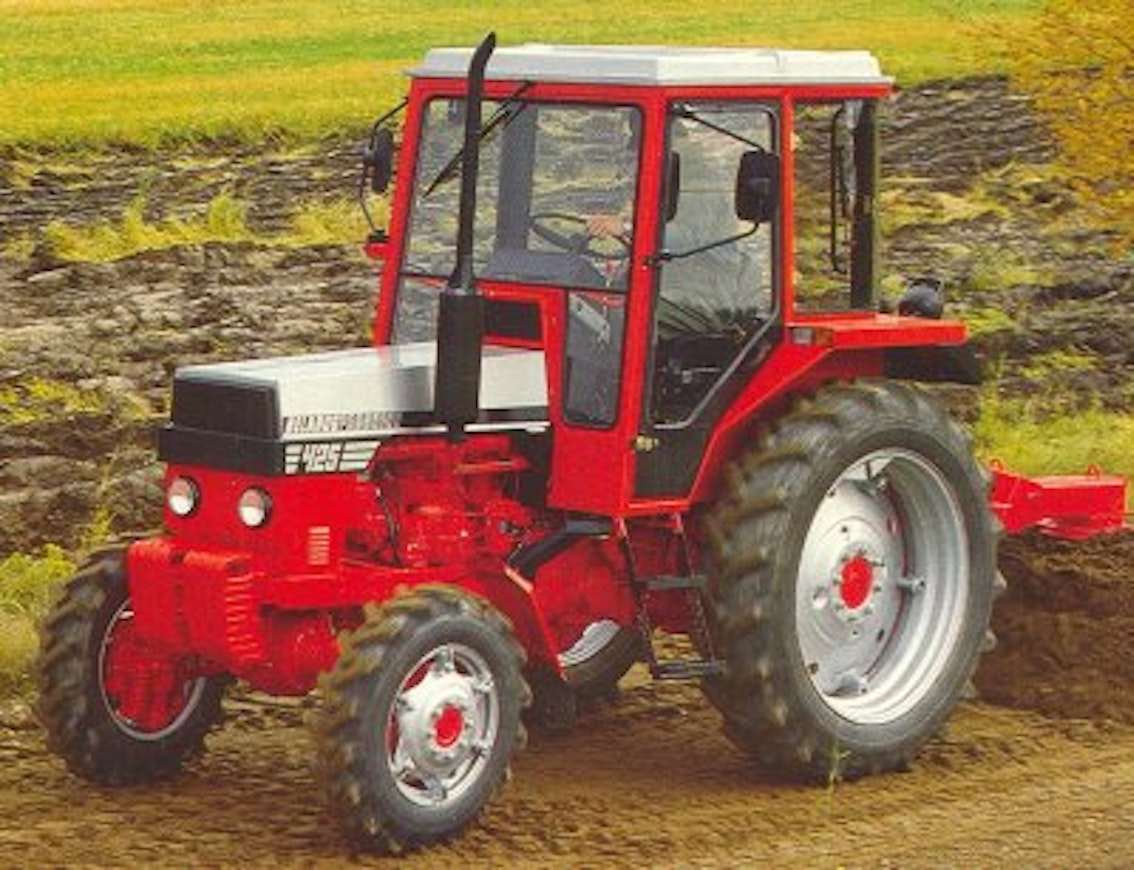

Belarus Progress 405/425

Malli

Hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

First year sold

Last year sold

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Power

Power speed

Rated power hp/rpm DIN

Rated power

Rated speed

Max power hp/rpm DIN

Max power

Max speed

Rated power hp/rpm ISO

Max power hp/rpm ISO

Max power hp/rpm

Rated power hp/rpm ECE

Max power	hp/rpm ECE

Rated power hp/rpm SAE

Rated power hp/rpm PTO

Rated power hp/rpm engine pulley

Rated power hp/rpm

Torque Nm/rpm

Torque Nm/rpm ECE

Torque Nm/rpm ISO

Torque Nm/rpm SAE

Torque Nm/rpm DIN

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

Sylinterien lukumäärä

Iskutilavuus

Iskusuhde

Suurin vääntömomentti, Nm

Suurin vääntömomentti, r/min

Vääntömomentin nousu

Polttonesteen kulutus suurimman tehon pisteessä

Kytkimen tyyppi

Ajovoimanotto

Nopeus eteenpäin moottorin nimellisnopeudella, pienin

Nopeus eteenpäin moottorin nimellisnopeudella, suurin

Jarrut

Hydrauliikan suurin paine

Hydrauliikan suurin tuotto

Nostolaitehydrauliikan hallinta

Ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

Nostovoima (kN=100 kg)

Hydrauliikan tyyppi

Kääntöympyrän halkaisija ilman ohjausjarrua

Eturenkaat

Takarenkaat

Kokonaismassa säiliöt täynnä vakiovarustein

Etuakselipaino

Taka-akselipaino

Suurin korkeus (ohjaamon ylimpään kohtaan)

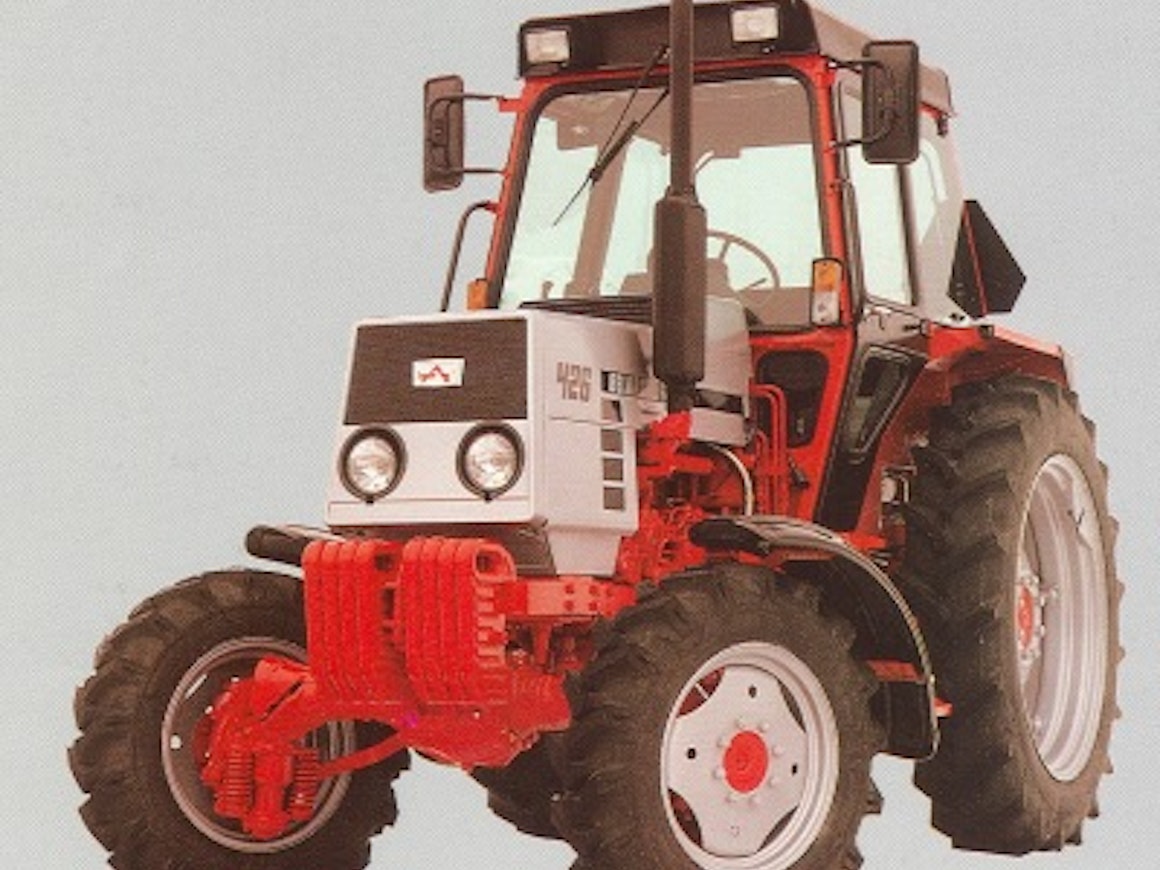

Belarus Agross 406/426

Belarus Progress 405/425, Agross 406/426

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Lukijan kuvat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Subscribe

Paywall

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Belarus Progress 405/425	Belarus Agross 406/426
Options
Manufacturer name	Belarus	Belarus
Imported to Finland	Yes	Yes
Years	1983-90	1990-97
First year sold	1983	1990
Last year sold	1990	1997
Engine model	D144	D144
Cyl/Turbo/Intercooler	4	4
Displacement	4150 cm³	4150 cm³
Bore x stroke	105×120 mm	105×120 mm
Rated power hp/rpm DIN	55/1800	58/2100
Rated power	55	58
Rated speed	1800	2100
Torque Nm/rpm DIN	235/1050	235/1050
Gears	11+8	11+8
Reverser	x	x
Speeds in km/h	2,2-30	2,7-32,1
Hydr. flow l/min	43 l/min	43 l/min
Hydraulic pressure	175 bar	175 bar
Lift controls	mech.	mech.
Lift capacity	1600 kg	1600 kg
PTO speeds	540/ajov.	540/ajov.
Brakes	disc brakes	disc brakes
Steering	hydrost.	hydrost.
Turning circle m 2WD	8.4	8.4
Turning circle m 4WD	9.6	9.6
Front tyres 2WD	6,50-16	6,50-16
Front tyres 4WD	8.30-20	8.30-20
Rear tyres 2WD	13,6-38	13,6-38
Rear tyres 4WD	13.6-38	13.6-38
Weight 2WD	3200 kg	3200 kg
Weight 4WD	3260 kg	3260 kg
Height with cab	265 cm	268 cm
Length (2WD/4WD)	366/385 cm	373/393 cm
Wheelbase (2WD/4WD)	218/232 cm	214/225 cm
Fuel tank	80 l	80 l
Cab noise level	85 dB	85 dB
Solid cab	x	x
Diff. lock	differential lock with cogs	differential lock with cogs
