Belarus 2522-3022.2

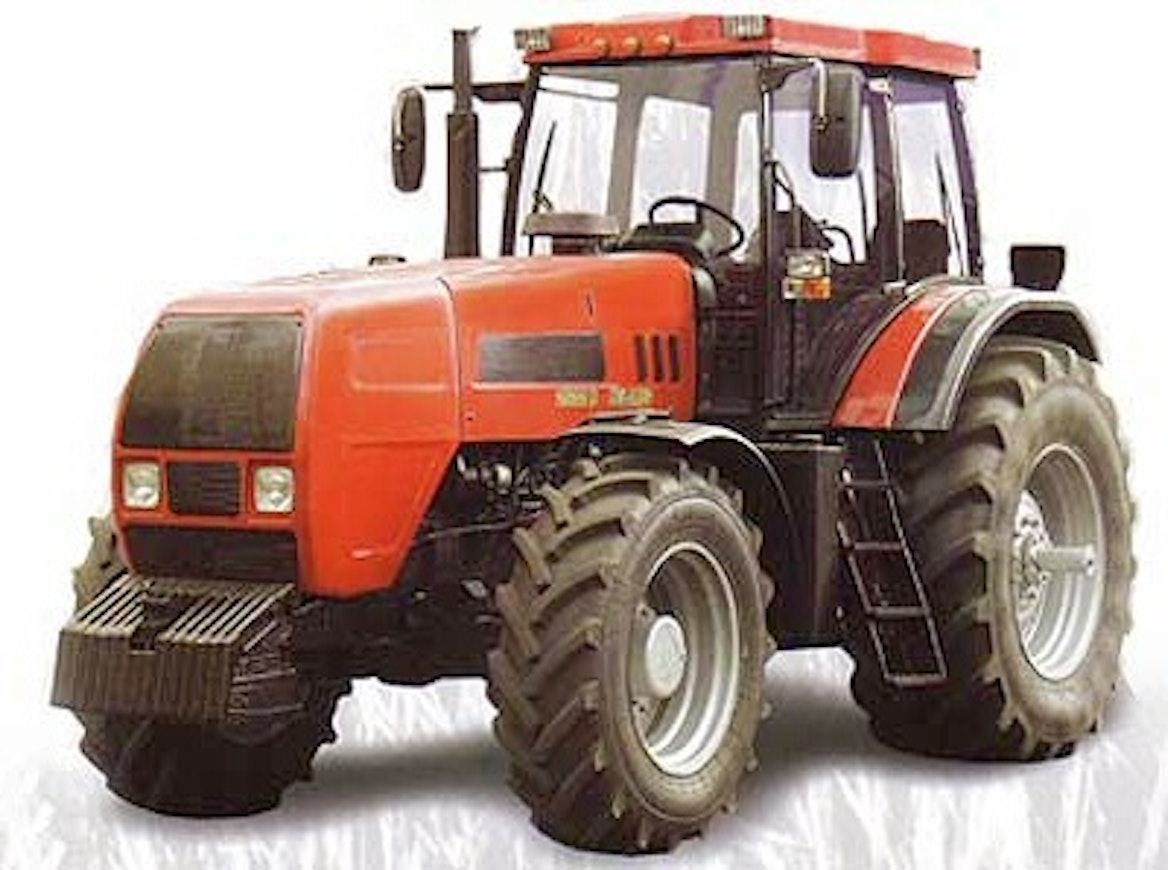

04Belarus2822

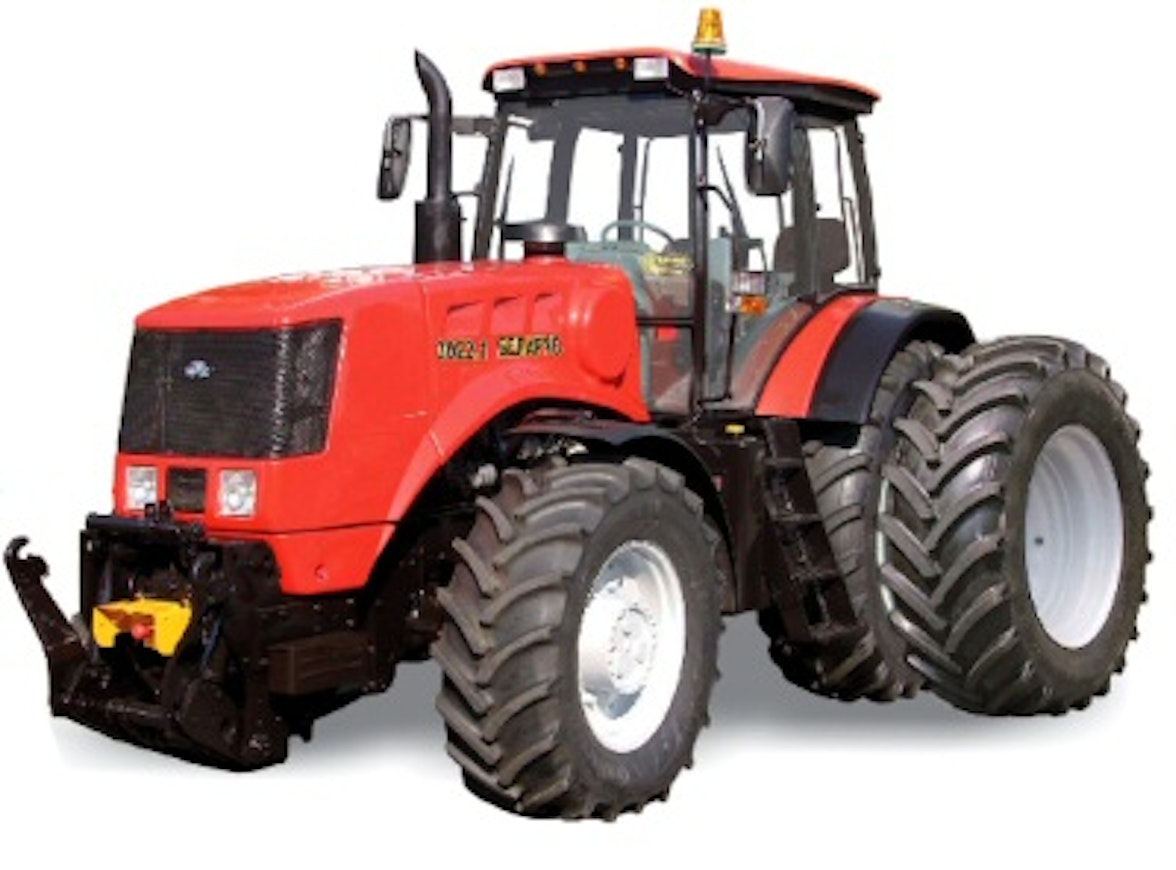

08Belarus3022
04Belarus2822
08Belarus3022
Manufacturer
Models
Belarus 2522DB, Belarus 2822DC, Belarus 3022DB, Belarus 3022DC, Belarus 3022DZ, Belarus 3022DC.1, Belarus 3022DC.1, Belarus 3022.2, Belarus 3022.B, Belarus 3022.2
Years
2004-
Info

In 2003, Belarus introduced its first large tractors, the 2522 (250/265 hp) and the 2822 (280 hp). The engines were 7.1-liter Deutz or 8.7-liter Detroit Diesels. The hydraulics with variable displacement pumps were purchased from Rexroth. The transmission was mechanical with 24+12 gears (with crawler gears 36+24), equipped with a 6-speed shuttle. The clutch was a dry 2-plate type.

The 3022, introduced in 2007, featured a more refined design. Otherwise, the differences were mainly limited to higher power. In 2009, a concept tractor with an electric powertrain for the future was introduced. This was designated as the 3023.

The 3022.B, introduced in 2015, had a Minsk-made 8.0-liter engine. However, this was only a Stage II emissions standard model, and the only versions meeting Western requirements continued to be the more powerful 3522 models.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelBelarus 2522DBBelarus 2822DCBelarus 3022DBBelarus 3022DCBelarus 3022DZBelarus 3022DC.1Belarus 3022DC.1Belarus 3022.2Belarus 3022.BBelarus 3022.2
Manufacturer nameBelarusBelarusBelarusBelarusBelarusBelarusBelarusBelarusBelarusBelarus
Imported to FinlandNoNoNoNoNoNoNoNoNoNo
Years2004-072007-112007-112007-112011-152015-182018-2013-152015-182018-
Engine modelDTA 530 EBF06M 1013 FCS40E 8.7 LTA M146BF06M 1013 FCBF06M 1013 FCBF06M 1013 FCBF06M 1013 FCBF06M 1013 FCD-262S2BF06M 1013 FC
Cyl/Turbo/Intercooler6TI6TI6TI6TI6TI6TI6TI6TI6TI6TI
Displacement8707 cm³7146 cm³8707 cm³7146 cm³7146 cm³7146 cm³7146 cm³7146 cm³7980 cm³7146 cm³
Bore x stroke116,6×135,9 mm108×130 mm116,6×135,9 mm108×130 mm108×130 mm108×130 mm108×130 mm108×130 mm110×140 mm108×130 mm
Rated power265/2200 hp DIN/rpm278/2200 hp DIN/rpm300/2200 hp DIN/rpm303/2300 hp DIN/rpm303/2300 hp DIN/rpm303/2300 hp DIN/rpm303/2300 hp DIN/rpm303/2300 hp DIN/rpm300/2100 hp DIN/rpm303/2300 hp DIN/rpm
Torque----------
Gears24+1224+1224+1224+1224+1224+1236+2424+1236+2436+24
Synchronized gears24+1224+1224+1224+1224+1224+1236+2424+1236+2436+24
Powershift gears6-step6-step6-step6-step6-step6-step6-step6-step6-step6-step
Speeds in km/h2,2-37,82,4-40,02,4-40,02,4-40,02,4-40,02,4-40,00,4-40,92,4-40,00,4-40,90,4-40,9
Hydr. flow l/min110 l/min100 l/min100 l/min100 l/min100 l/min120 l/min120 l/min100 l/min120 l/min120 l/min
Hydraulic pressure200 bar200 bar200 bar200 bar200 bar200 bar205 bar200 bar205 bar205 bar
Lift controlselec.elec.elec.elec.elec.elec.elec.elec.elec.elec.
Lift capacity10000 kg10000 kg10000 kg10000 kg10000 kg10000 kg10000 kg10000 kg10000 kg10000 kg
PTO speeds1000/14501000/14501000/14501000/14501000/14501000/14501000/14501000/14501000/14501000/1450
Brakeswet discwet discwet discwet discwet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD11111111111111111111
Front tyres 4WD480/70R30540/65R30540/65R30540/65R30540/65R30540/65R30540/65R30540/65R30540/65R30540/65R30
Rear tyres 4WD580/70R42580/70R42580/70R42580/70R42580/70R42580/70R42580/70R42580/70R42580/70R42580/70R42
Weight 4WD10800 kg11500 kg11500 kg11500 kg11500 kg11500 kg11500 kg11500 kg11500 kg11500 kg
Height with cab315 cm315 cm315 cm315 cm315 cm315 cm315 cm315 cm315 cm315 cm
Length (2WD/4WD)586 cm615 cm615 cm615 cm610 cm610 cm610 cm610 cm640 cm610 cm
Wheelbase (2WD/4WD)283 cm301 cm296 cm301 cm301 cm301 cm301 cm301 cm306 cm301 cm
Fuel tank420 l420/500 l500 l500 l500 l500 l500 l500 l500 l500 l
Solid cabxxxxxxxxxx
Diff. lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lock
Autom. differential locksxxxxxxxxxx
Creeper gearopt.opt.opt.opt.opt.opt.opt.opt.xx
Air conditioning-xxxxxxxxx
