Sampo Rosenlew Verrato V4

Manufacturer
Models
SR Verrato V4
Years
2018-
Info

Here is the translation of the text to English:

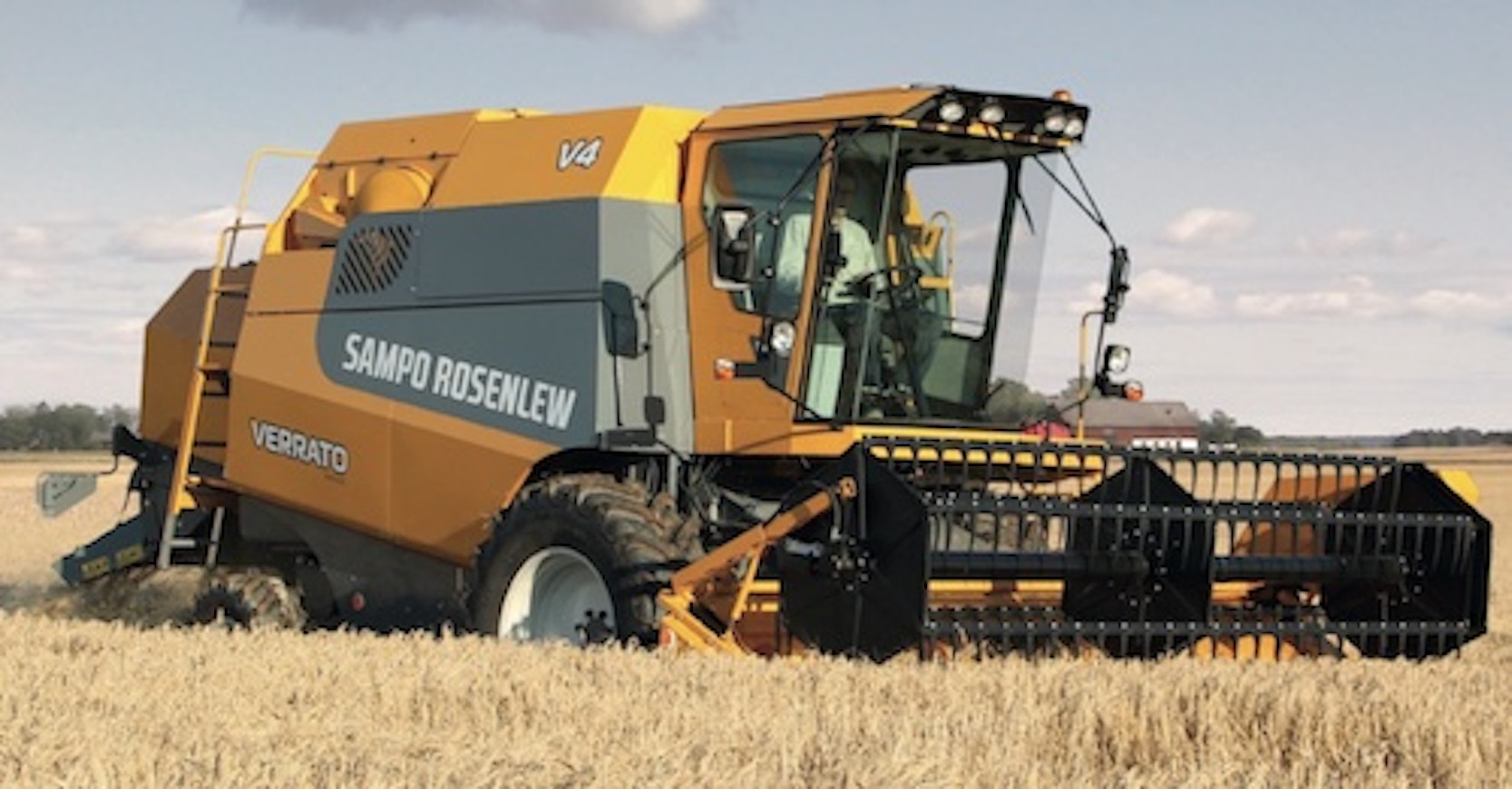

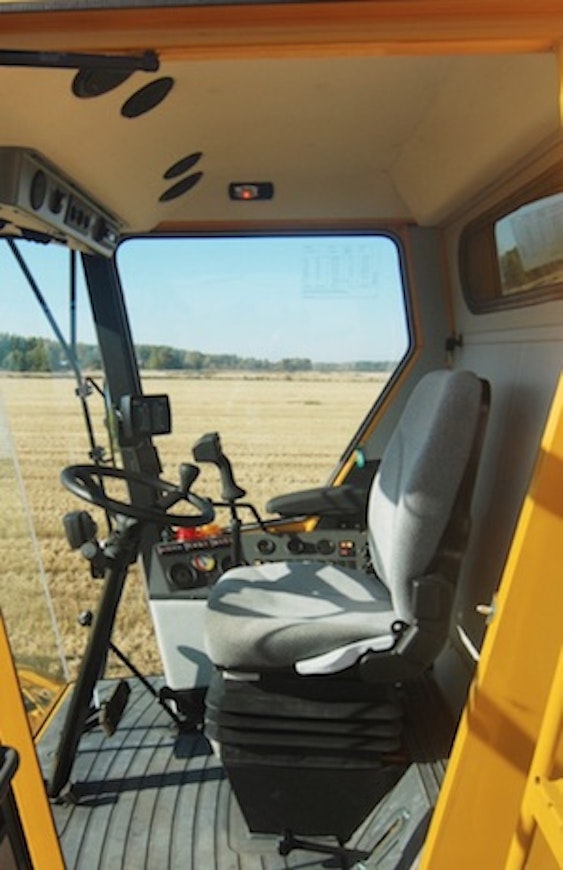

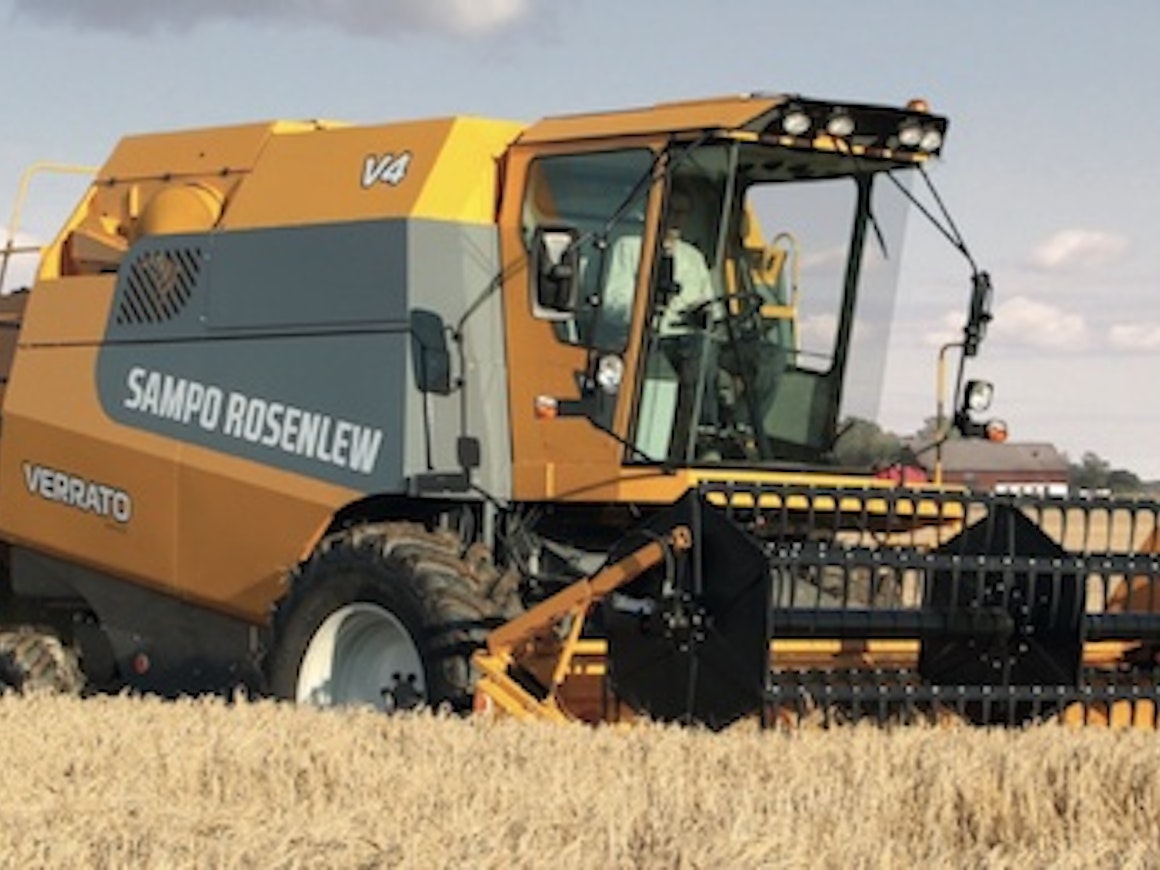

As the successor to Sampo Classic, which was founded in 2045, came the Sampo Verrato V4 in 2018. The new model's frame was sourced from Comia. The engine was a 4-cylinder, 150-horsepower unit. The wheels had oil hubs, and four-wheel drive was available as an option. The cutting platform was a standard 3.9 meters wide. There were four crop lifters with four settings. The grain sieve was a threshing sieve with lamella. The grain tank had a capacity of 37 hectoliters (42 as an option). The cab was the standard cab from before, developed with minor improvements. The use of the straw chopper drum was mechanical.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelSR Verrato V4
Imported to FinlandYes
Years2018-
EngineAgcoPower
Engine type49AWF/LTFN
Displacement4912 cm³
Cyl/turbo4 TI
Power-
Fuel tank200/350+AB35 l
Transmissionhydr.
Gears3
Speed min-max.0-25 km/h
Cutting width390 cm
Cutting width, alternative345-420 cm
Reel diameter105 cm
Header length51 cm
Threshing cyl. diameter50 cm
Threshing cyl. width111 cm
Number of straw walkers4
Area of walkers480 dm²
Lenght of walkers410 cm
Straw shieve207 dm²
Bottom shieve133 dm²
Total screening area340
Overall lenght868 cm
Overall width430 cm
Width without header296 cm
Height with cabin365 cm
Weight with cabin7845 kg
Weight without header7100 kg
Grain tank37 hl
Unl. height340 cm
Tyres front (Finland)18.4R34
Tyres front, alternative750/65R26
Tyres rear (Finland)360/70R20
Tyres rear, alternative420/65R20
Reel forward/backw. adjustmentelec.
Reel speed adjustmentelec.
Threshing cyl. speed adjustmentelec.
Bottom sieveconvertible
Brakesmech. shoe
Reverserx
Heatingx
Type of cutting platform floatinggas damper
