Sampo 2045-2095

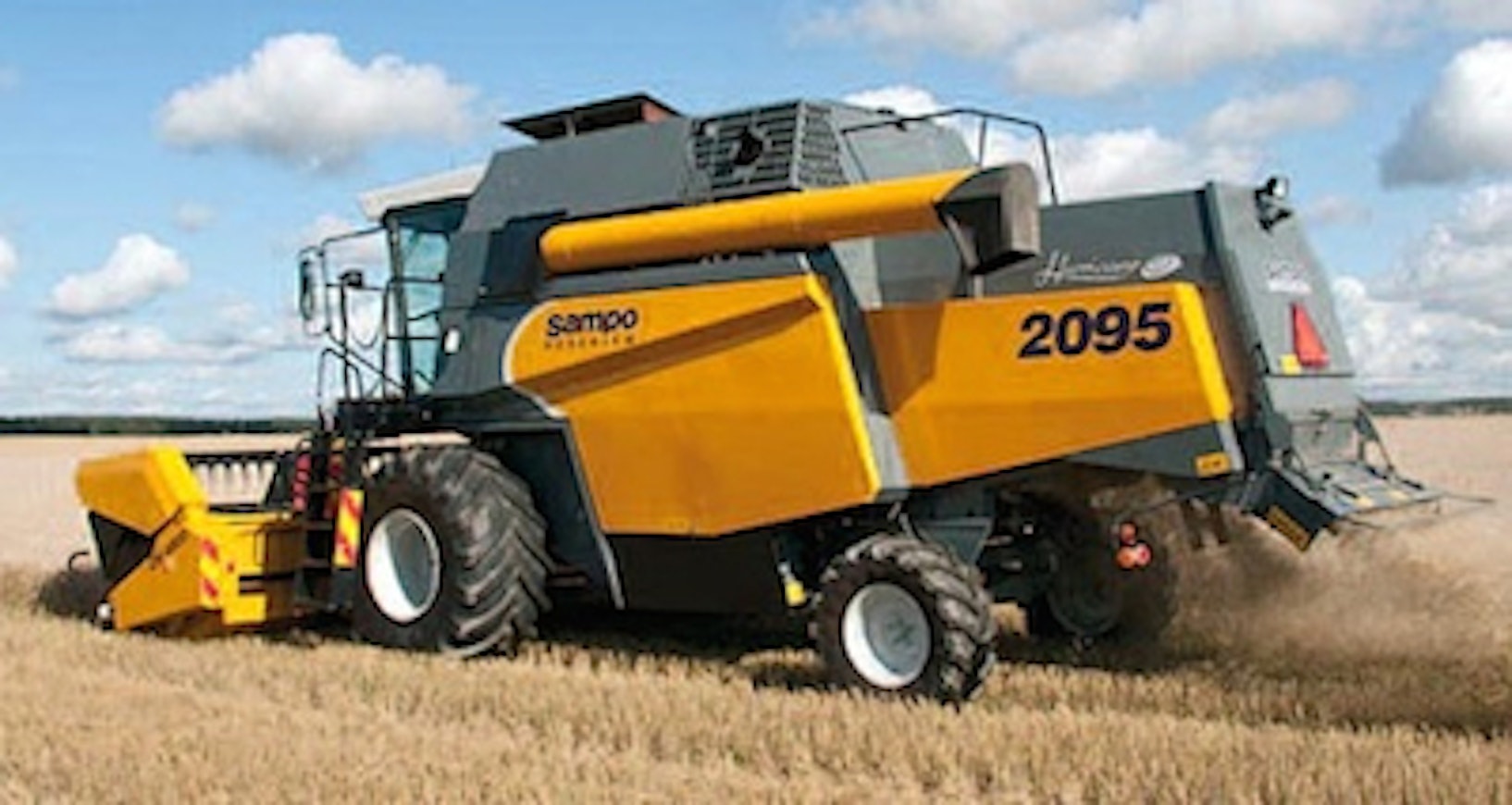

10SR2095

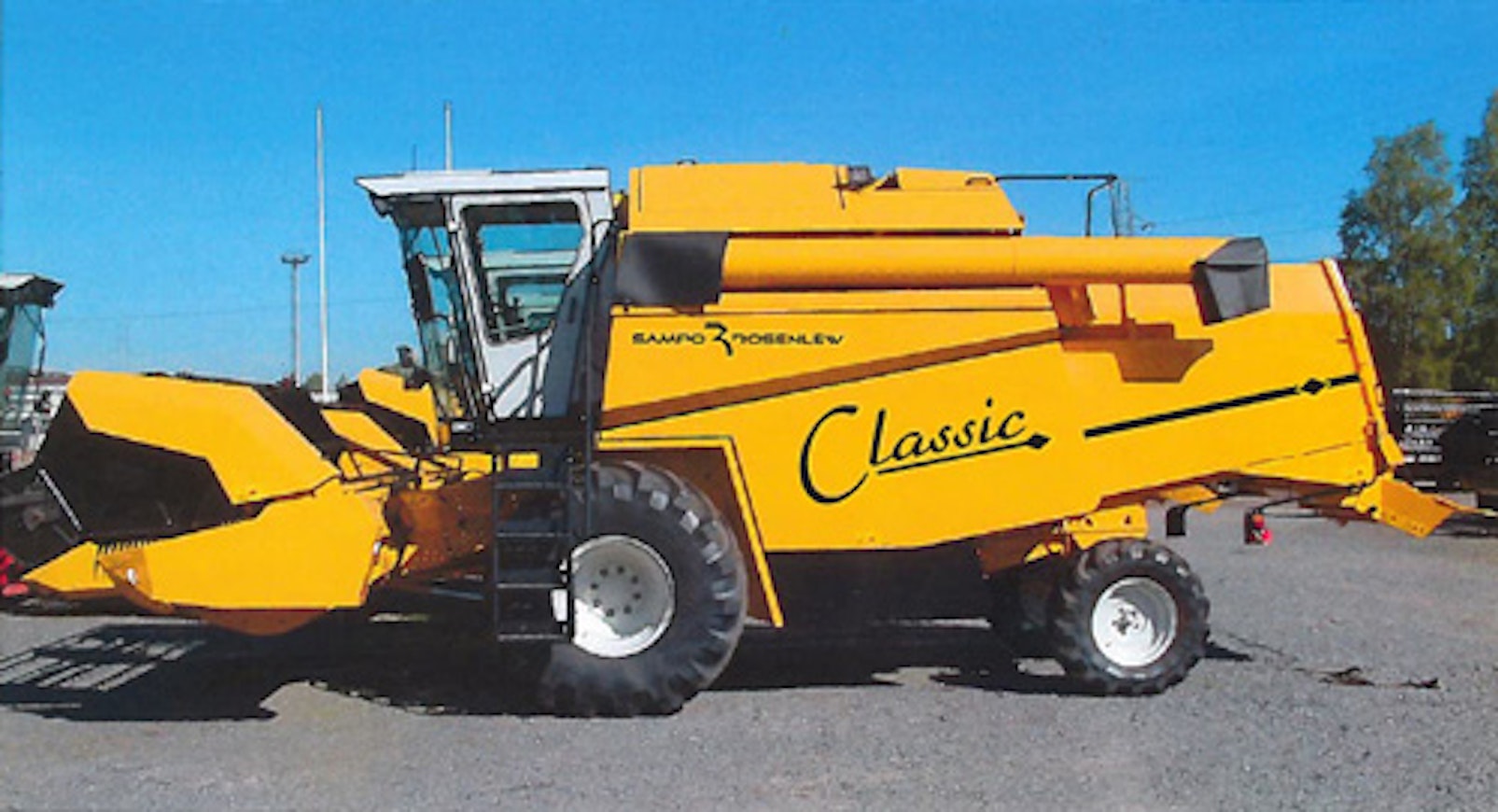

13SampoClassic

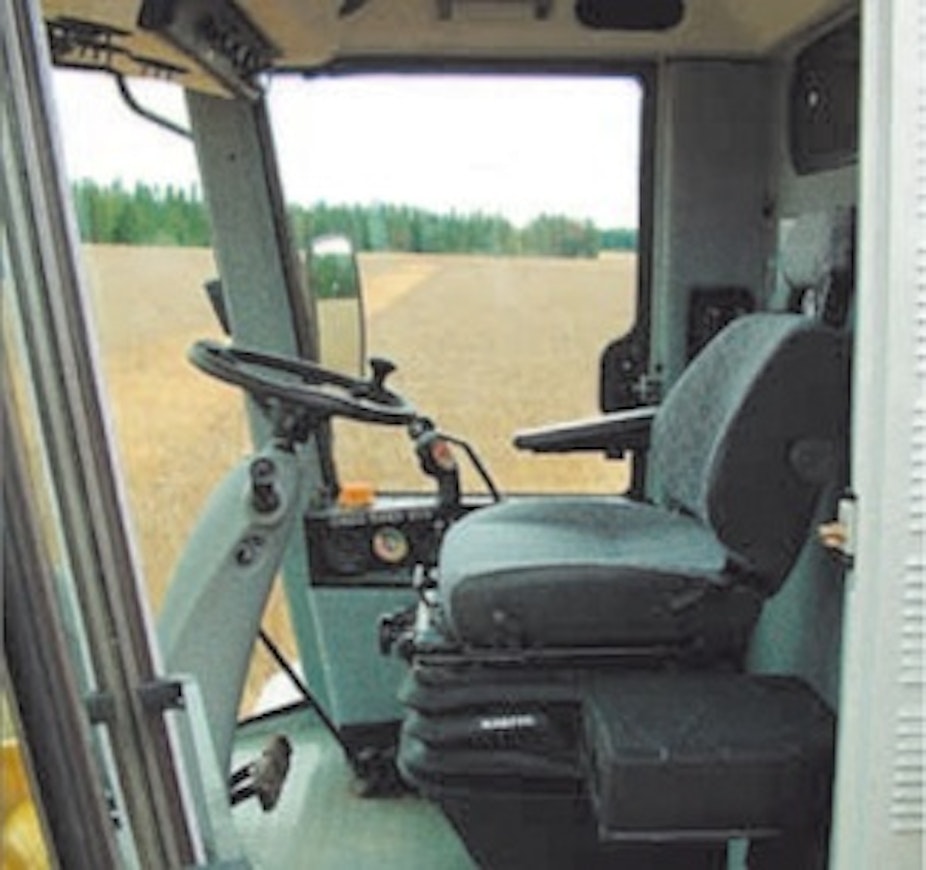

10SR2000ohjaamo
10SR2095
13SampoClassic
10SR2000ohjaamo
Manufacturer
Models
SR 2045 Classic, SR 2045 Classic, SR 2045 Ventus, SR 2065 HT 130, SR 2065 HT 155, SR 2065 Tornado, SR 2085 Tornado, SR 2095 Hurricane
Years
2010-2012
Info

For the 2010 season, the Sampo Rosenlew lineup was updated. The 2035 was removed from the 2000 series, and accordingly, a Classic version was introduced for the 2045, which had a 120 hp engine, mechanical adjustment for the straw walker, and bolt adjustment for the distance of the unloading auger, along with some other equipment being trimmed down. The 2045 Ventus was equipped with a 150 hp engine, a 390 cm cutting platform, and oil-bath drive hubs. Alongside the basic model of the 2065, a Tornado version was introduced, featuring a 185 hp engine and a threshing cylinder with rasp bars. A new model, the 2095, was introduced, equipped with a 210 hp engine and came standard with, among other things, a threshing loss monitor, air conditioning, and ball-bearing mounted rasp bars. The standard cab noise level was reported as 84 dB for 4-cylinder models and 81 dB for 6-cylinder models.

Alongside the Comia series, the Sampo Classic remained in the lineup. It received a 37 hl threshing tank, an 8-knife HD threshing cylinder, and electric distance adjustment for the unloading auger.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelSR 2045 ClassicSR 2045 ClassicSR 2045 VentusSR 2065 HT 130SR 2065 HT 155SR 2065 TornadoSR 2085 TornadoSR 2095 Hurricane
Imported to FinlandYesYesYesYesYesYesYesYes
Years2010-122012-172010-122010-122010-122010-122010-122010-12
EngineAgcoPowerAgcoPowerAgcoPowerAgcoPowerAgcoPowerAgcoPowerAgcoPowerAgcoPower
Engine type44 CTA44 CTA44 CTA44 CTA66 CTA66 CTA66 CTA66 CTA
Displacement4400 cm³4400 cm³4400 cm³4400 cm³6600 cm³6600 cm³6600 cm³6600 cm³
Cyl/turbo4 TI4 TI4 TI4 TI6 TI6 TI6 TI6 TI
Power--------
Fuel tank200 l200 l200 l350 l350 l350 l350 l350 l
Transmissionhydr.hydr.hydr.hydr.hydr.hydr.hydr.hydr.
Gears33333333
Speed min-max.0-25 km/h0-25 km/h0-25 km/h0-25 km/h0-25 km/h0-25 km/h0-25 km/h0-25 km/h
Cutting width345 cm345 cm390 cm390 cm420 cm420 cm450 cm450 cm
Cutting width, alternative310 cm310 cm345 cm420, 345 cm390, 450 cm390, 450 cm420, 480 cm420, 480 cm
Reel diameter105 cm105 cm105 cm105 cm105 cm105 cm105 cm105 cm
Header length51 cm51 cm51 cm51 cm51 cm51 cm51 cm51 cm
Threshing cyl. diameter50 cm50 cm50 cm50 cm50 cm50 cm50 cm50 cm
Threshing cyl. width111 cm111 cm111 cm111 cm111 cm111 cm111 cm111 cm
Number of straw walkers44455555
Area of walkers480 dm²480 dm²480 dm²480 dm²480 dm²480 dm²480 dm²480 dm²
Lenght of walkers410 cm410 cm410 cm410 cm410 cm410 cm410 cm410 cm
Straw shieve207 dm²207 dm²207 dm²207 dm²207 dm²207 dm²207 dm²207 dm²
Bottom shieve133 dm²133 dm²133 dm²133 dm²133 dm²133 dm²133 dm²133 dm²
Total screening area340340340340340340340340
Overall lenght868 cm868 cm868 cm868 cm868 cm868 cm910 cm910 cm
Overall width385 cm385 cm430 cm430 cm460 cm460 cm490 cm490 cm
Width without header283 cm283 cm304 cm304 cm312 cm312 cm330 cm330 cm
Height with cabin350 cm350 cm350/365 cm350/365 cm350/365 cm350/365 cm365 cm365 cm
Weight with cabin7280 kg7280 kg7495 kg7895 kg7945 kg7945 kg8900 kg8900 kg
Grain tank33 hl37 hl37 hl37 hl42 hl42 hl52 hl52 hl
Unl. height330 cm330 cm330 cm340 cm340 cm340 cm340 cm340 cm
Tyres front (Finland)18.4R3418.4R34520/70R34520/70R34600/65R34600/65R34750/65R26750/65R26
Tyres front, alternative600/65R34600/65R34600/65R34600/65R34750/65R26750/65R26--
Tyres rear (Finland)360/70R20360/70R20360/70R20360/70R20420/65R20420/65R20420/65R20420/65R20
Tyres rear, alternative420/65R20420/65R20420/65R20420/65R20550/45-22.5550/45-22.5550/45-22.5550/45-22.5
Reel forward/backw. adjustmentelec.elec.elec.elec.elec.elec.elec.elec.
Reel speed adjustmentelec.elec.elec.elec.elec.elec.elec.elec.
Threshing cyl. speed adjustmentelec.elec.elec.elec.elec.elec.elec.elec.
Bottom sieveconvertibleconvertibleconvertibleconvertibleconvertibleconvertibleconvertibleconvertible
Brakesmech. shoemech. shoemech. shoemech. shoemech. shoemech. shoemech. shoemech. shoe
Reverserxxxxxxxx
Heatingxxxxxxxx
Type of cutting platform floatinggas dampergas dampergas dampergas dampergas dampergas dampergas dampergas damper
Alternative hp---150 hp185 hp---
2. cyl. diameter------40 cm40 cm
Air conditioning-------x
