Niva SK-5

Manufacturer
Models
Niva SK-5, Rostselmash Niva
Years
1973-2018
Info

The first Soviet self-propelled combine harvester, the S-4 Stalinets, was introduced in 1947. Based on it, the Vistula was developed in Poland, the E170 series in the GDR, and the AC400 Emag in Hungary. The S-4 had a 4.0-meter cutting width, an 85 cm threshing drum, and a 55-horsepower gasoline engine. At this stage, however, pull-type combines were the most prominent in the Soviet combine production, with the largest manufacturer being Rostov Agricultural Machinery Factory, known as Rostselmash, founded in 1929.

In 1958, the SK-3 was introduced in Rostov, featuring a 120 cm threshing drum, an 18-hectoliter grain tank, and a maximum 5-meter cutting platform. In 1962, a more powerful version arrived, the SK-4, which was equipped with a 115-horsepower diesel engine. By 1969, the Rostov factory had produced one million combine harvesters.

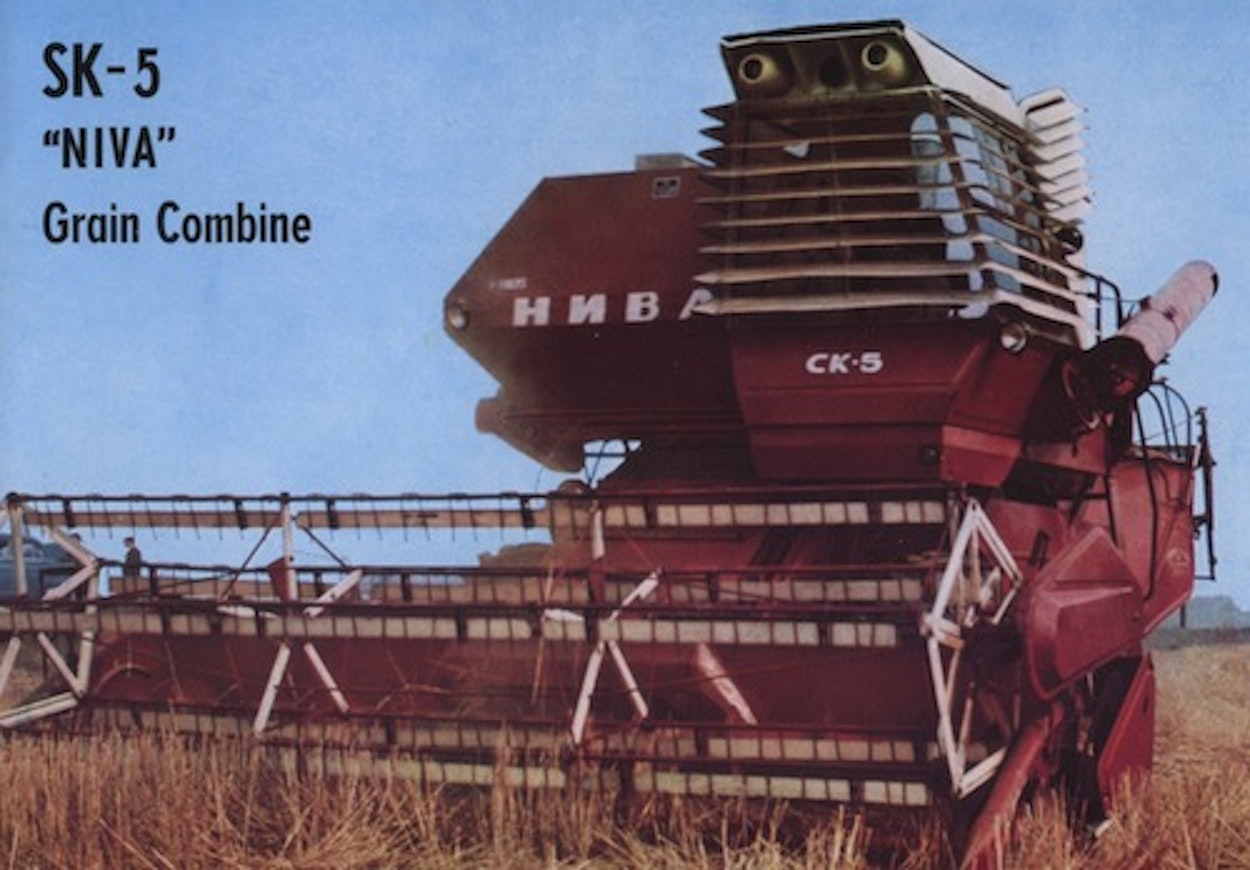

In 1973, a heavily modernized version of the previous model, the Niva SK-5, entered production. Characteristic of the early Niva models was a cab equipped with sunshade slats and a tall structure. The engine was a 6.3-liter, 100-horsepower diesel, and the power transmission featured a continuously variable transmission (CVT). Initially, cutting platforms were available in 4.0, 4.5, 5.0, and 6.0 meters, and later also in 7.0 meters. The speed and distance of the straw walker drum were hydraulically adjustable. Both sieves were adjustable. The blower did not have directional airflow control. The number of grease nipples decreased from 200 on the SK-4 to 60.

The Niva was tested at Vakola in 1975, and the final assessment of the combine’s operational features and durability highlighted many shortcomings. Of course, improvements came over its long model history. An option introduced was a turbocharged 120-horsepower engine, a hydrostatic drive as an accessory, and finally, in the Niva Effect model, a Belarus 6-cylinder 155-horsepower engine.

In the 2000s, the Niva was sold mainly in Eastern Europe and Africa. By the end of production in 2018, 1.2 million units had been manufactured.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelNiva SK-5Rostselmash Niva
Imported to FinlandNoNo
Years1973--2018
Engine typeSMD-17KD-260.1-36
Displacement6300 cm³7120 cm³
Cyl/turbo46TI
Power100 hp DIN155 hp DIN
Alternative hp120T hp-
Fuel tank187 l300 l
Transmissionmech.hydr.
Gears33
Speed min-max.1,0-18,7 km/h-
Cutting width386 cm410 cm
Cutting width, alternative450-700 cm500 cm
Reel diameter108 cm108 cm
Header length45 cm45 cm
Threshing cyl. diameter60 cm60 cm
Threshing cyl. width119 cm119 cm
Number of straw walkers44
Area of walkers403 dm²403 dm²
Lenght of walkers360 cm360 cm
Straw shieve98 dm²98 dm²
Bottom shieve81 dm²81 dm²
Total screening area242242
Overall lenght1050 cm1092 cm
Overall width441 cm393 cm
Height with cabin402 cm410 cm
Weight with cabin7640 kg-
Grain tank28 hl30 hl
Unl. height296 cm260 cm
Tyres front (Finland)21.3-2421.3-24
Reel forward/backw. adjustmenthydr.hydr.
Reel speed adjustmenthydr.hydr.
Threshing cyl. speed adjustmentadj, in cabin-
Bottom sieveadj.adj.
Brakesdrumdrum
Type of cutting platform floatingspring-
Engine-Minsk
Weight without header-7400 kg
Tyres rear (Finland)-12-16HC8
Air conditioning-x
