Don-1200 – Don-1500

Manufacturer
Models
Don-1500 A, Don-1500 B, Don-1500 M
Years
1985-2006
Info

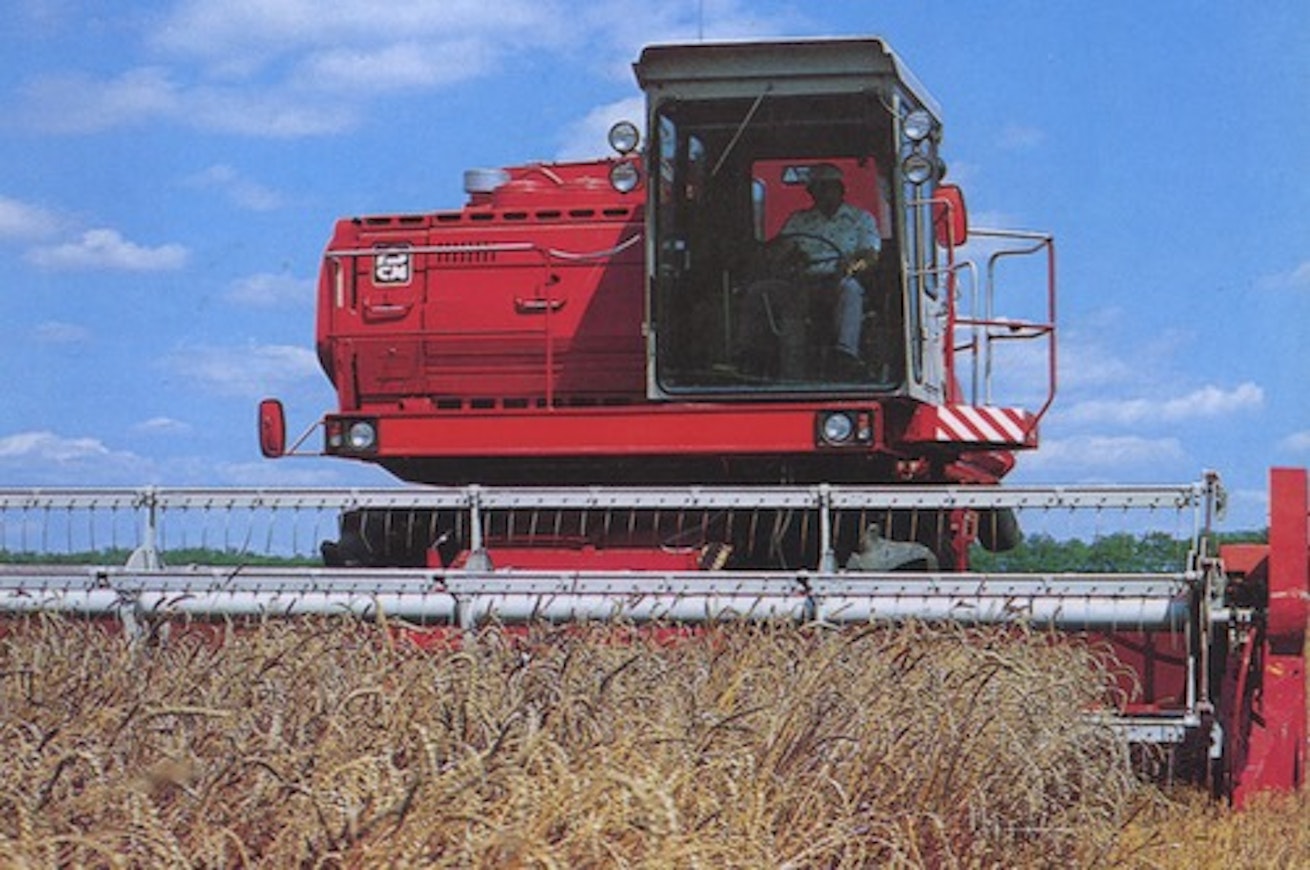

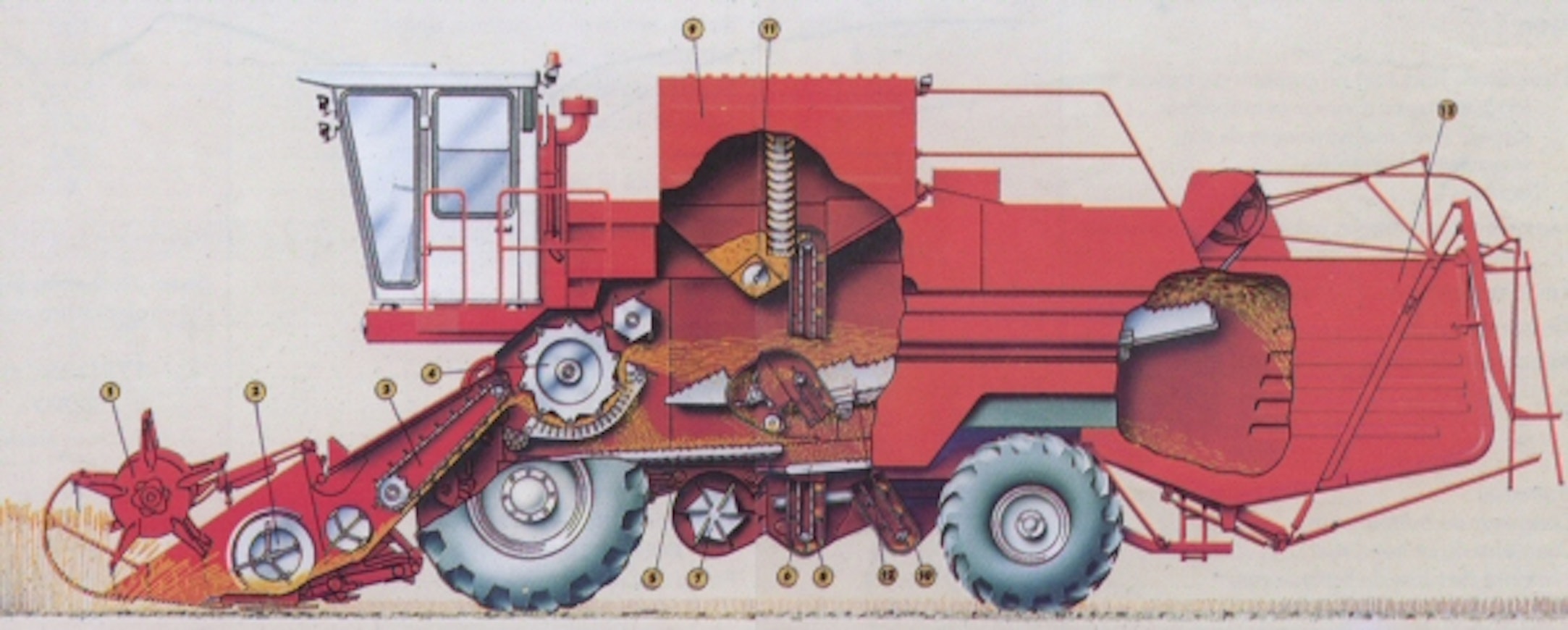

At the end of 1984, Rostselmash introduced the Don series of combine harvesters, of which the Don-1500 was by far the most common. It was sold in Western Europe and North America mostly under the Belarus brand. The threshing drum was quite substantial: 80 cm in diameter and 148.5 cm wide. It had five rasp bars and a large sieve surface area. The transmission was hydrostatic and the engine was a turbocharged 9.5-liter producing 235 hp. The engine was located between the cab and the 60-hectoliter grain tank. Air conditioning was standard at least in France and the USA. The combine also featured an electronic monitoring system covering 18 points.

The smaller Don-1200 had a 118 cm threshing drum, a 160 hp engine, and a 45-hectoliter grain tank.

The updated Don-1500 B featured a naturally aspirated 14.9-liter V8. Thanks to the new engine and other technical improvements, such as increased threshing drum speed, the threshing capacity was reported to increase by 20%. The Don-1500 B was generally green in color. The latest development was the Don-1500 M, which had a 90-hectoliter grain tank, a 250-horsepower engine, and more equipment in the cab, such as improved sound insulation and a refrigerator.

The Don family also included the rare rotor threshing combine Don 2600.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelDon-1500 ADon-1500 BDon-1500 M
Options
Imported to FinlandNoNoNo
Years1985--2006-2006
First year sold198520062006
Last year sold-20062006
Power235235250
EngineHarkovJaroslawJaroslaw
Engine typeSMD-31AYMZ-238-AKYMZ-236-BK
Displacement9500 cm³14866 cm³11150 cm³
Cyl/turbo6TIV8V6T
Power hp DIN235235250
Fuel tank300 l540 l540 l
Transmissionhydr.hydr.hydr.
Gears344
Speed min-max.0-22 km/h0-22 km/h0-27 km/h
Cutting width600 cm600 cm600 cm
Cutting width, alternative700-860 cm700-860 cm700-900 cm
Threshing cyl. diameter80 cm80 cm80 cm
Threshing cyl. width148.5 cm148.5 cm148.5 cm
Number of straw walkers555
Area of walkers574 dm²615 dm²615 dm²
Lenght of walkers410 cm410 cm410 cm
Straw shieve251 dm²--
Bottom shieve193 dm²--
Total screening area-474474
Overall lenght1200 cm1200 cm1200 cm
Overall width650 cm650 cm650 cm
Height with cabin398 cm398 cm398 cm
Weight with cabin13900 kg--
Weight without header-12590 kg-
Grain tank60 hl60 hl90 hl
Unl. height300 cm300 cm-
Tyres front (Finland)30.5L-3230.5L-3230.5L-32
Tyres rear (Finland)18.4L-2418.4L-2418.4L-24
Reel forward/backw. adjustmenthydr.hydr.hydr.
Reel speed adjustmenthydr.hydr.hydr.
Threshing cyl. speed adjustmentadj, in cabinadj, in cabinadj, in cabin
Bottom sieveadj.adj.adj.
Brakes-disc brakesdisc brakes
Reverserxxx
Air conditioningxxx
Heatingxxx
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information. There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed. Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
