Siirry sivupalkkiinSiirry alaosaanClayson 1520 – S 1550

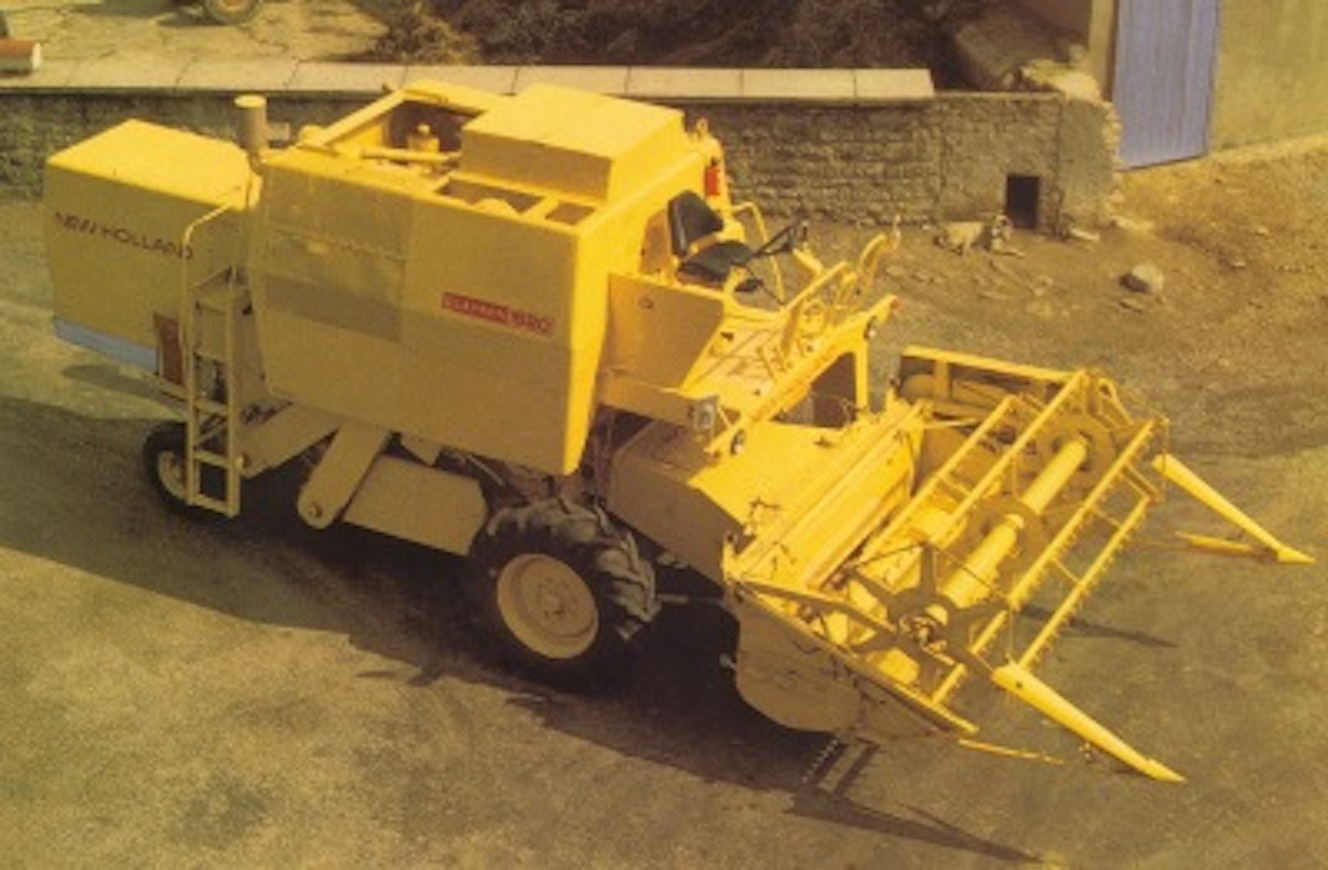

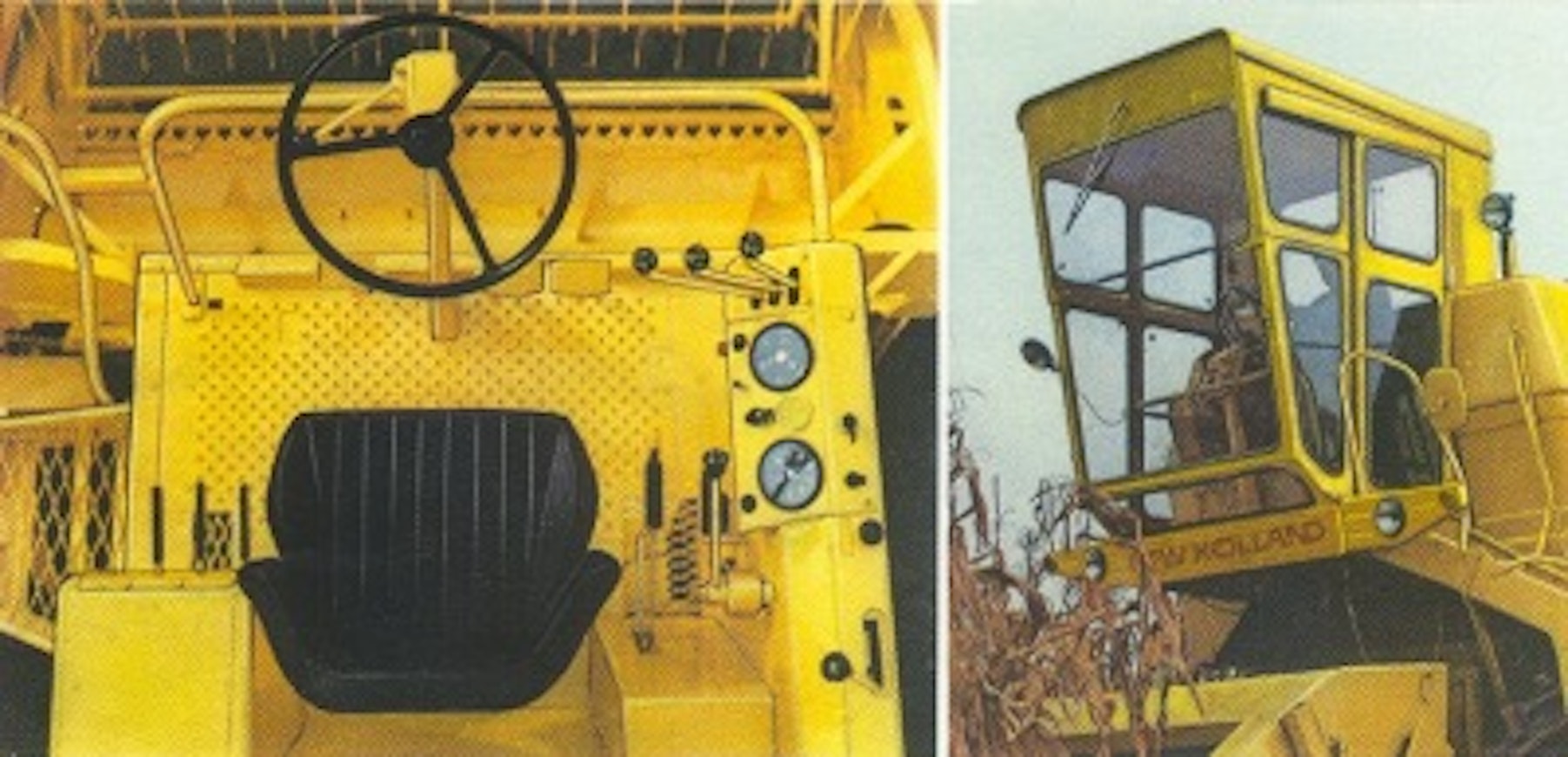

The Clayson 1500 series cutting table was longer than before, and the brakes were hydraulic. The blade speed was higher, and the blade drive was oil-bath lubricated. The placement of the control devices was more thoughtfully considered than earlier. The differences between the various models were greater than in later Claysons. The 1520 was clearly smaller than the rest of the lineup. Starting with model 1540, the unloading auger was hydraulically controlled, and the straw reel speed changed in proportion to the threshing drum speed.
The S 1540 and S 1550 models introduced in 1973 had a straw reel behind the after-threshing reel. From the 1540 onward, the sieve movement was counteracting. In the early '70s, harvesters equipped with Ford engines were imported to Finland, whereas the last models were generally equipped with Deutz engines, except for the 1520. There was also an AL parallel model of the 1540 designed for hillside harvesting.
This is an automated translation. Please report any issues in the translation.
| Model | Clayson 1510 | Clayson 1520 | Clayson 1530 | Clayson 1540 | Clayson S 1540 | Clayson 1545 | Clayson S 1550 |
|---|---|---|---|---|---|---|---|
| Imported to Finland | No | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 1971-71 | 1971-80 | 1971-80 | 1971-79 | 1973-79 | 1971-76 | 1973-79 |
| Power | 70 (75 SAE) hp DIN | 72 (81 SAE) hp DIN | 98 (113 SAE) hp DIN | 116 SAE hp DIN | 116 SAE hp DIN | 120 (130 SAE) hp DIN | 140 hp DIN |
| Transmission | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Gears | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Cutting width | 250 cm | 304 cm | 365 cm | 396 cm | 396 cm | 457 cm | 518 cm |
| Cutting width, alternative | 300 cm | 259-335 cm | 305-396 cm | 305-457 cm | 457 cm | 396-518 cm | 457-670 cm |
| Threshing cyl. diameter | 60 cm | 46 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm |
| Threshing cyl. width | 81 cm | 102 cm | 102 cm | 102 cm | 102 cm | 127.5 cm | 127.5 cm |
| Total screening area | 192 | 223 | 264 | 310 | 310 | 333 | 390 |
| Weight without cabin | 3700 kg | 5120 kg | 5720 kg | 6600 kg | - | 6450 kg | 7250 kg |
| Grain tank | 19 hl | 18-20 hl | 24 hl | 32 hl | 32 hl | 26.1 hl | 35 hl |
| Tyres front (Finland) | 14.9-26 | 18.4-26 | 18.4-30 | 18.4-30 | 18.4-30 | 18.4-30 | 23.1-26 |
| Engine | - | Ford | Deutz | Deutz | Deutz | Ford | Ford |
| Engine type | - | 2712E | F6L912 | F6L912 | F6L912 | 2715E | 2704ET |
| Displacement | - | 4150 cm³ | 5652 cm³ | 5652 cm³ | 5652 cm³ | 6220 cm³ | 5945 cm³ |
| Cyl/turbo | - | 4 | 6 | 6 | 6 | 6 | 6 T |
| Fuel tank | - | 80/135 l | 160/250 l | 160/250 l | 160/250 l | 160/250 l | 240 l |
| Speed min-max. | - | 1,3-19,3 km/h | 1,6-21,4 km/h | 1,5-21,5 km/h | 1,5-21,5 km/h | 1,6-21,4 km/h | 1,6-23,3 km/h |
| Reel diameter | - | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm |
| Header length | - | 41 cm | 41 cm | 41 cm | 41 cm | 41 cm | 41 cm |
| Number of straw walkers | - | 4 | 4 | 4 | 4 | 5 | 5 |
| Area of walkers | - | 311 dm² | 371 dm² | 400 dm² | - | 488 dm² | 456 dm² |
| Lenght of walkers | - | 302 cm | 360 cm | 397 cm | 355 cm | 380 cm | 355 cm |
| Straw shieve | - | 69 dm² | 151 dm² | 174 dm² | 174 dm² | - | 219 dm² |
| Bottom shieve | - | 69 dm² | 113 dm² | 120 dm² | 120 dm² | - | 151 dm² |
| Overall lenght | - | 757 cm | 808 cm | 842 cm | 842 cm | 808 cm | 840 cm |
| Overall width | - | 338 cm | 399 cm | 429 cm | 429 cm | 490 cm | 531 cm |
| Height without cabin | - | 302 cm | 312 cm | 314 cm | 314 cm | 312 cm | 348 cm |
| Tyres front, alternative | - | 14.9-26 | 18.4-26 | 23.1-26 | 23.1-26 | - | 18.4-30 |
| Tyres rear (Finland) | - | 10.5-18 | 10.5-18 | 10.5-18 | 10.5-18 | 10.5-18 | 10.5-18 |
| Tyres rear, alternative | - | 8.5-12 | 10.0-12 | 12-18 | - | 12-18 | 12-18 |
| Reel forward/backw. adjustment | - | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. | mech./hydr. |
| Reel speed adjustment | - | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin |
| Threshing cyl. speed adjustment | - | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin | adj, in cabin |
| Bottom sieve | - | adj. | adj. | adj. | adj. | adj. | adj. |
| Brakes | - | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Type of cutting platform floating | - | gas damper | gas damper | gas damper | gas damper | gas damper | gas damper |
| Alternative hp | - | - | 98 (Ford) hp | 115 (124 SAE) (Ford) hp | 115 (124 SAE) (Ford) hp | - | 140 (MB) hp |
| Width without header | - | - | 270 cm | - | - | - | - |
| 2. cyl. diameter | - | - | - | - | 60 cm | - | 60 cm |
