Siirry sivupalkkiinSiirry alaosaanNew Holland TC4.90-TC5.90




Here is the translation of the text to English:
For the year 2015, the model numbering of TC models manufactured in Poland was revamped. At the same time, the 4-cylinder model received a new cab, rounded shapes, and a larger grain tank, features that had already been introduced to the larger models the previous year. All engines now featured SCR technology.

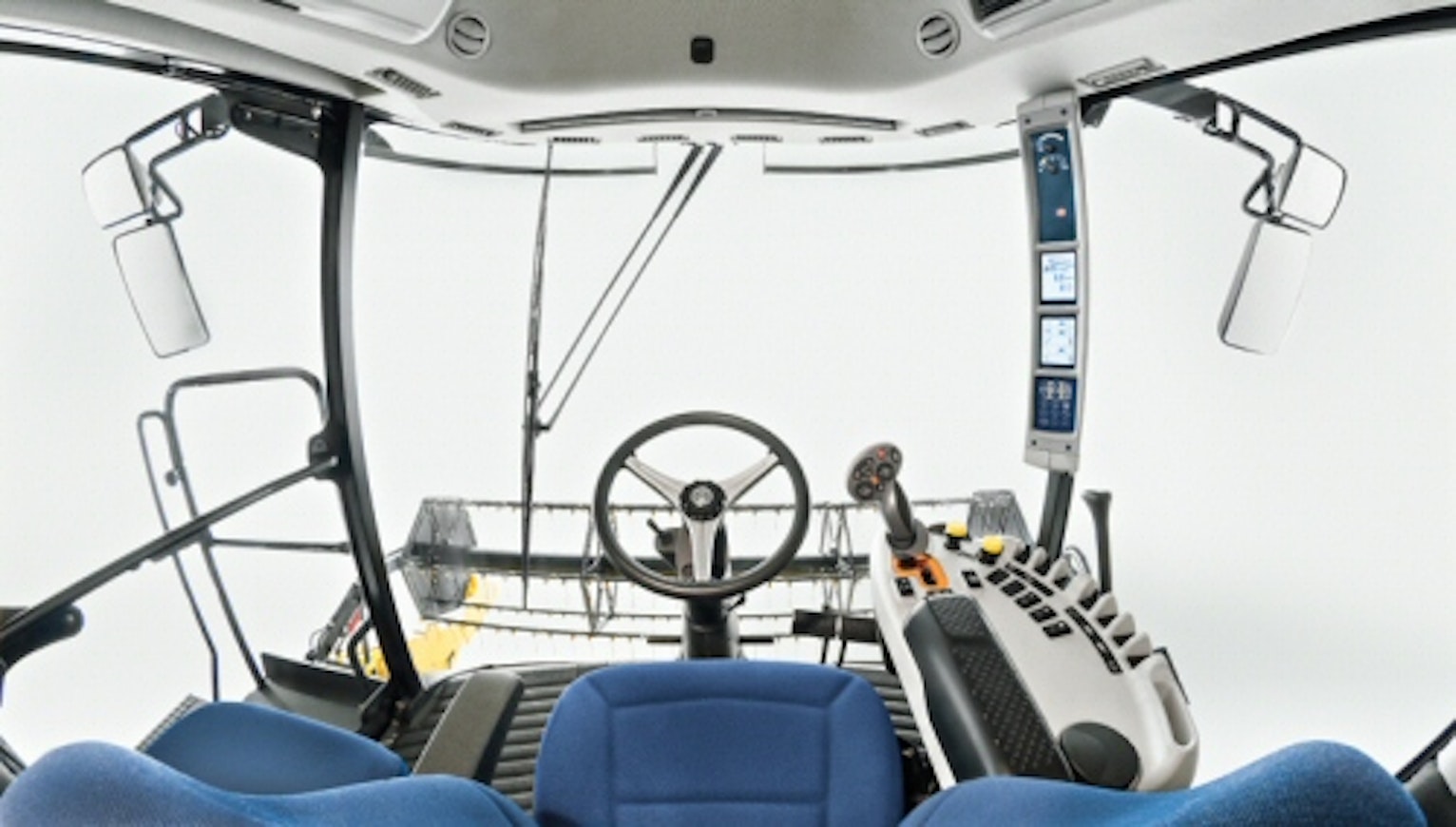

The cab, named Harvest Suite, had the same chassis as the CX. The controls were positioned on the armrest, and the cab noise level had dropped to 74 decibels. The displays were located on the A-pillar, and there was no separate driver computer display like on the CX. The RS models had a straw chopper; as a new feature, it was now also available for the smallest model. The electric hydraulic header lift and stubble height control were now standard. Basic headers featured an electrically driven auger, while the wider ones had hydraulic operation. Optional extras included a Varifeed header with adjustable length, electric sieve adjustment, and a grain spreader. In Finland, the TC5.80 came standard with an air-suspended seat and a differential lock.
For the year 2019, the TC4.90 – TC5.70 engines were changed to 4-cylinder versions. Stage V versions arrived in 2021. With the 8300-liter tank, the unloading rate was 100 liters per second instead of 60 liters per second for the smaller tanks.
This is an automated translation. Please report any issues in the translation.
| Model | TC4.90 | TC4.90 RS | TC5.70 | TC5.70 RS | TC5.80 | TC5.80 RS | TC5.90 | TC5.90 RS |
|---|---|---|---|---|---|---|---|---|
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 2015- | 2015- | 2015- | 2015- | 2015-19 | 2015-19 | 2015- | 2015- |
| Engine | Iveco | Iveco | Iveco | Iveco | Iveco | Iveco | Iveco | Iveco |
| Engine type | NEF | NEF | NEF | NEF | NEF | NEF | NEF | NEF |
| Displacement | 6728/4485 cm³ | 6728/4485 cm³ | 6728/4485 cm³ | 6728/4485 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ |
| Cyl/turbo | 6 TI / 4 TI | 6 TI / 4 TI | 6 TI / 4 TI | 6 TI / 4 TI | 6 TI | 6 TI | 6 TI | 6 TI |
| Power | - | - | - | - | - | - | - | - |
| Fuel tank | 300+AB70 l | 300+AB70 l | 300+AB70 l | 300+AB70 l | 400+AB80 l | 400+AB80 l | 400+AB80 l | 400+AB80 l |
| Transmission | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Gears | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Speed min-max. | 0-25/30 km/h | 0-25/30 km/h | 0-25/30 km/h | 0-25/30 km/h | 0-30 km/h | 0-30 km/h | 0-30 km/h | 0-30 km/h |
| Cutting width | 396 cm | 396 cm | 457 cm | 457 cm | 457 cm | 457 cm | 518 cm | 610 cm |
| Cutting width, alternative | 457-610 cm | 457-610 cm | 396-518 cm | 396-518 cm | 396-610 cm | 396-610 cm | 396-914 cm | 396-914 cm |
| Reel diameter | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm |
| Header length | 55 cm | 55 cm | 55 cm | 55 cm | 55 cm | 55 cm | 55 cm | 55 cm |
| Threshing cyl. diameter | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm | 60 cm |
| Threshing cyl. width | 104 cm | 104 cm | 130 cm | 130 cm | 130 cm | 130 cm | 130 cm | 130 cm |
| Number of straw walkers | 4 | 4 | 5 | 5 | 5 | 5 | 5 | 5 |
| Area of walkers | 441 dm² | 375 dm² | 551 dm² | 468 dm² | 551 dm² | 468 dm² | 551 dm² | 538 dm² |
| Lenght of walkers | 389 cm | 330 cm | 389 cm | 330 cm | 389 cm | 330 cm | 389 cm | 345 cm |
| Straw shieve | 174 dm² | 174 dm² | 219 dm² | 219 dm² | 219 dm² | 219 dm² | 219 dm² | 219 dm² |
| Bottom shieve | 136 dm² | 136 dm² | 171 dm² | 171 dm² | 171 dm² | 171 dm² | 171 dm² | 171 dm² |
| Total screening area | 325 | 325 | 398 | 398 | 398 | 398 | 398 | 398 |
| Overall lenght | 932 cm | 932 cm | 932 cm | 932 cm | 932 cm | 932 cm | 932 cm | 932 cm |
| Overall width | 429 cm | 429 cm | 490 cm | 490 cm | 490 cm | 490 cm | 551 cm | 551 cm |
| Width without header | 332 cm | 332 cm | 365 cm | 365 cm | 365 cm | 365 cm | 365 cm | 370 cm |
| Height with cabin | 383 cm | 383 cm | 383 cm | 383 cm | 390 cm | 390 cm | 390 cm | 390 cm |
| Weight with cabin | 9900 kg | 10000 kg | 10700 kg | 10800 kg | 11400 kg | 11500 kg | 11400 kg | 13800 kg |
| Weight without header | 8850 kg | 8850 kg | 9150 kg | 9150 kg | 10700 kg | 10700 kg | 10750 kg | - |
| Grain tank | 48/50 hl | 48/50 hl | 52 hl | 52 hl | 64 hl | 64 hl | 64 hl | 64/83 hl |
| Unl. height | 399 cm | 399 cm | 399 cm | 399 cm | 399 cm | 399 cm | 399 cm | 399/420 cm |
| Tyres front (Finland) | 750/70LR26 | 750/70LR26 | 750/65LR26 | 750/65LR26 | 800/65R32 | 800/65R32 | 800/70R32 | 900/70R32 |
| Tyres front, alternative | 800/65R32 | 800/65R32 | 800/65R32 | 800/65R32 | 620/75R30 | 620/75R30 | 620/75R30 | 620/75R30 |
| Tyres rear (Finland) | 400/70R20 | 400/70R20 | 400/70R20 | 400/70R20 | 400/70R20 | 400/70R20 | 400/70R20 | 500/70R24 |
| Tyres rear, alternative | 13/65-18 | 13/65-18 | 16/70-20 | 16/70-20 | 16/70-20 | 16/70-20 | 16/70-20 | 500/85R24 |
| Reel forward/backw. adjustment | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Reel speed adjustment | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Threshing cyl. speed adjustment | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. | adj. | adj. | adj. |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Reverser | x | x | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x | x | x |
| Heating | x | x | x | x | x | x | x | x |
| Grain loss indicator | x | x | x | x | x | x | x | x |
| Floating cutting platform | x | x | x | x | x | x | x | x |
| Type of cutting platform floating | autom. | autom. | autom. | autom. | autom. | autom. | autom. | autom. |
| Slope levelling | - | - | opt. | opt. | opt. | opt. | opt. | opt. |
| 2. cyl. diameter | - | - | - | 60 cm | - | 60 cm | - | 60 cm |
| Autom. control of cutting height | - | - | - | - | - | - | opt. | opt. |
| Cutting platform lateral tilt | - | - | - | - | - | - | opt. | opt. |
