Siirry sivupalkkiinSiirry alaosaanNew Holland CX7.80 – CX8.90

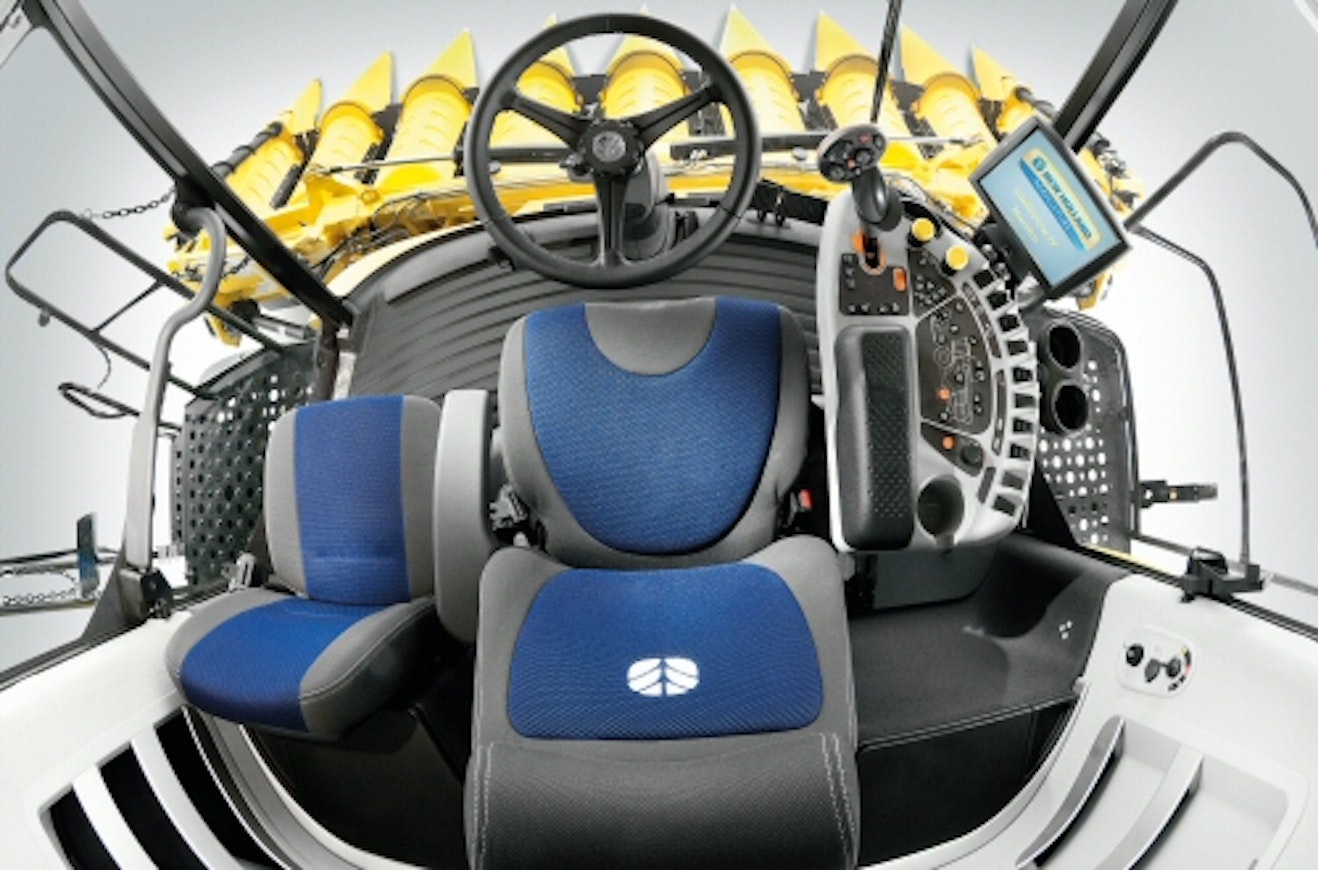

For the 2016 season, the model designations of the CX series manufactured in Belgium were renewed. The engines were cleaner than before, and the smaller models had increased power. The new model was the CX8.85, which had less engine power than the CX8.90. The largest models featured even greater engine power. The cab was redesigned and slightly larger than before, called the Harvest Suite Ultra. The noise level was reported to be 73 dB. Standard equipment for the CX series included, among other things, electronic sieve adjustment, header tilt, high-performance chopper, straw spreader, automatic air conditioning, Intelliview IV touchscreen, and a threshing loss monitor. In the CX8 models, the straw walker drive was hydraulic, while in the smaller models it was initially mechanical. The hydraulic version included adaptive speed control.
In the 2020 Stage V engines, most models had slightly more power and larger AdBlue tanks.
This is an automated translation. Please report any issues in the translation.
| Model | CX7.80 | CX7.90 | CX8.70 | CX8.80 | CX8.85 | CX8.90 |
|---|---|---|---|---|---|---|
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 2016- | 2016- | 2016- | 2016- | 2016-19 | 2016- |
| Engine | FPT | FPT | FPT | FPT | FPT | FPT |
| Engine type | Cursor 9 | Cursor 9 | Cursor 9 | Cursor 9 | Cursor 9 | Cursor 10 |
| Displacement | 8709 cm³ | 8709 cm³ | 8709 cm³ | 8709 cm³ | 8709 cm³ | 10308 cm³ |
| Cyl/turbo | 6 TI | 6 TI | 6 TI | 6 TI | 6 TI | 6 TI |
| Power | - | - | - | - | - | - |
| Fuel tank | 750+AB120/170 l | 750+AB120/170 l | 750+AB120/170 l | 1000+AB120/170 l | 1000+AB120/170 l | 1000+AB120/170 l |
| Transmission | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Gears | 4 | 4 | 4 | 4 | 4 | 4 |
| Speed min-max. | 0-30 (40) km/h | 0-30 (40) km/h | 0-30 (40) km/h | 0-30 (40) km/h | 0-30 (40) km/h | 0-30 (40) km/h |
| Cutting width | 609 cm | 609 cm | 732 cm | 732 cm | 732 cm | 915 cm |
| Cutting width, alternative | 518-915 cm | 518-915 cm | 518-915 cm | 610-1067 cm | 762-1067 cm | 762-1067 cm |
| Reel diameter | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm | 107 cm |
| Header length | 55 cm | 55 cm | 55 cm | 55 cm | 55 cm | 55 cm |
| Threshing cyl. diameter | 75 cm | 75 cm | 75 cm | 75 cm | 75 cm | 75 cm |
| 2. cyl. diameter | 72 cm | 72 cm | 72 cm | 72 cm | 72 cm | 72 cm |
| Threshing cyl. width | 130 cm | 130 cm | 156 cm | 156 cm | 156 cm | 156 cm |
| Number of straw walkers | 5 | 5 | 6 | 6 | 6 | 6 |
| Area of walkers | 556 dm² | 556 dm² | 668 dm² | 668 dm² | 668 dm² | 668 dm² |
| Lenght of walkers | 367 cm | 367 cm | 367 cm | 367 cm | 367 cm | 367 cm |
| Straw shieve | 310 dm² | 310 dm² | 395 dm² | 395 dm² | 395 dm² | 395 dm² |
| Bottom shieve | 191 dm² | 191 dm² | 228 dm² | 228 dm² | 228 dm² | 228 dm² |
| Total screening area | 540 | 540 | 650 | 650 | 650 | 650 |
| Overall lenght | 1050 cm | 1050 cm | 1050 cm | 1050 cm | 1050 cm | 1050 cm |
| Overall width | 654 cm | 654 cm | 777 cm | 777 cm | 777 cm | 777 cm |
| Width without header | 379 cm | 379 cm | 403 cm | 403 cm | 403 cm | 403 cm |
| Height with cabin | 398 cm | 398 cm | 398 cm | 398 cm | 398 cm | 398 cm |
| Weight with cabin | 17200 kg | 17200 kg | 18200 kg | 18200 kg | 18200 kg | 18200 kg |
| Weight without header | 14266 kg | 14802 kg | 15507 kg | 15538 kg | 16034 kg | 16034 kg |
| Grain tank | 90 hl | 100 hl | 95 (115) hl | 115 hl | 125 hl | 125 hl |
| Unl. height | 442 cm | 442 cm | 442/462 cm | 442/462 cm | 442/462 cm | 442/462 cm |
| Tyres front (Finland) | 900/60R32 | 900/60R32 | 900/60R32 | 900/60R32 | 900/60R32 | 900/60R32 |
| Tyres front, alternative | 900/60R38 | 900/60R38 | 1050/50R32 | 1050/50R32 | 1050/50R32 | 1050/50R32 |
| Tyres rear (Finland) | 600/65R28 | 600/65R28 | 600/65R28 | 600/65R28 | 600/65R28 | 600/65R28 |
| Tyres rear, alternative | 540/65R30 | 540/65R30 | 620/70R30 | 620/70R30 | 620/70R30 | 620/70R30 |
| Reel forward/backw. adjustment | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reel speed adjustment | elec. | elec. | elec. | elec. | elec. | elec. |
| Threshing cyl. speed adjustment | elec. | elec. | elec. | elec. | elec. | elec. |
| Bottom sieve | adj. | adj. | adj. | adj. | adj. | adj. |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Reverser | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x |
| Heating | x | x | x | x | x | x |
| Grain loss indicator | x | x | x | x | x | x |
| Floating cutting platform | x | x | x | x | x | x |
| Autom. control of cutting height | x | x | x | x | x | x |
| Slope levelling | opt. | opt. | opt. | opt. | opt. | opt. |
| Cutting platform lateral tilt | x | x | x | x | x | x |
| Type of cutting platform floating | autom. | autom. | autom. | autom. | autom. | autom. |
