Ford

At the beginning of 1978, the Muir Hill Series III models were introduced, featuring a new 30% more spacious Spacecab. Noise levels were reported to be 83…86 dB. The engines had slightly more power. The 111 and 121 models with Ford transmissions were fitted with a Dual Power quickshifter. The 171 had an Eaton-Fuller T4510 transmission. Other key features, according to the brochure, were axles manufactured by Muir-Hill, a hydraulically engaged front axle lock, oil-immersed disc brakes on four wheels, a tapered roller bearing gearbox and a 2-speed power take-off with a replaceable axle head.

At the end of 1978, the range was completed by the turbocharged 141, which was available in a 158-horsepower Ford-engined version as well as a 143-horsepower Perkins version. In some exotic export markets, service was only available for Perkins. The 141's specifications matched the 121 except for the wider standard tyres.

Muir-Hill production ended in a takeover in the autumn of 1982. Later, there was a weak attempt to continue production under the name Myth-Holm.

Muir-Hill

Traktory

Muir-Hill 111-171 Series III

The most significant improvement of the Muir-Hill Series II models introduced in 1972 was the much improved, flat-floor cabin. There were sliding doors on both sides and large window surfaces.

As before, the Muir-Hills had a front axle with a central axle, gear lock and brakes, four equal-sized wheels and a reinforced Ford 8+2 transmission. The smallest model was now the 111 with a Perkins six-cylinder. The previous 101 with a Ford engine had been replaced by the 121, whose model designation corresponded to the increased power. The fuel tank was larger. The Dual Power quick gearbox was not available until the end of the Series II range.

In 1975, the 161 was replaced by the slightly more powerful 171. Instead of the rare Perkins V8.510, the engine was now the more common 8.8-liter V8.540. Unlike its predecessor, there was only one exhaust pipe. The wheelbase was increased by 22 cm. The cab was now a redesigned white Series II, almost similar to the smaller models.

Muir-Hill 111-171

In 1969, the Muir-Hill model 161 was introduced, which was clearly more powerful than the previous models. The engine was a Perkins 8.36-liter V8 with an output of 163 hp and the transmission was a Fuller 10+2. There were two 14-inch clutches.

The 161 was almost as compact in external dimensions as the smaller models, with a wheelbase 8 cm longer. The turning circle was promised to be 10.0 meters and only 6.1 meters with the steering brake. A compressed air system was standard equipment, and the differential locks were engaged pneumatically. A lock was an option at the front. The tires were the same size at the front and rear, the widest being 23.1-26.

The majority of the approximately 200 tractors produced were industrial models. For example, a hitch (Cat III) and a power take-off were optional extras.

The cab was flat-floored and large, but had a sheet metal interior. The 161 remained in production until 1975. It was not until the successor model 171 that it received the Series II cab that had been introduced 1972 in the smaller models.

Muir-Hill 161

Muir-Hill manufactured, among other things, wheel loaders and dump trucks, which were based on Ford technology. In 1965, the company hired an engineer named David Brown, who had at his previous workplace developed a four-wheel drive version of the Ford 5000 called the Northrop 5004, which was not commercially successful. At Muir-Hill, he refined his idea further and the Muir-Hill 101 was born.

The tractor, which was launched at the end of 1966, had a Ford 5000 transmission, four identical wheels and a 101-horsepower Ford 2704 six-cylinder engine. Unlike the competing County and Roadless, the Muir-Hill's panels were completely designed to look like their own and were painted industrial yellow. The front axle, equipped with a hydraulically engaged toothed lock and brakes, was Muir-Hill's own production. The wheelbase was only 190 cm.

In 1967, a Dual Power-based quick-shift transmission was introduced. A basic cabin was introduced in 1970. The final year models, 1971-72, featured a slightly more powerful 6.2-liter engine.

In 1969, the 110-horsepower model 110 was introduced, with a Perkins 6-cylinder engine.

Muir-Hill 101-110

The Roadless 120 model, with its large front wheels, was redesigned to be based on Ford's 600 series technology. The engine was still the 2715E industrial engine (114 hp). Standard equipment included a Dual Power 16+4 transmission, hydrostatic steering, auxiliary lift cylinder, 2-speed pto, front axle lock and additional fuel tank. The cab was a flat-floor Lambourn Q-Cab (82 db). The tyres were standard 13.6-38.

In the last S series models, the power was increased to 125 hp and the hydraulics were more powerful.

Roadless

Roadless 120

In 1979, Roadless introduced the 780 and 980 models, which were based on the 78 K and 98 K models, but the front axle steering swivels had been significantly improved to 50 degrees. The turning circle had been reduced to 8.5 meters. A front axle lock and hydrostatic steering were standard.

The 980 had a Dual Power quick gear (16+4). An auxiliary lift cylinder was available as an option.

Production volumes of these models remained low.

Roadless 780-980

In 1975 Roadless introduced the first Ford 600 series based models 78 and 98, which had the power according to the model designation. The transmission was 8+2 and the 98 had Dual Power as an option. The hydraulics were Ford-standard. The standard cab was a rudimentary Duncan and the Lambourn Q-Cab as an option. The 78 still did not have a lock on the front axle, but the 98 did.

A year later the J Series models were introduced, which had a flat-floor Lambourn cab with a noise level of 82 dB. The 118 with a 2715E six-cylinder engine was added to the series. Its lifting device had one auxiliary cylinder, the transmission was 2-speed and the steering was hydrostatic.

The K Series models introduced in 1979 had a redesigned, slightly higher cab. The 78 K had a 13” clutch. The 98 K had a 2-speed pto and Dual Power quickshift as standard.

The last S series models had the 4.4-liter engine in the 78 and 98. There was also more power in the 118. The hydraulic pump was slightly more efficient.

At this point, it was difficult to find features in the Roadless that would have surpassed Ford's own four-wheel drive models. The company went bankrupt in 1983.

Roadless 78-118

Więcej od tego producenta

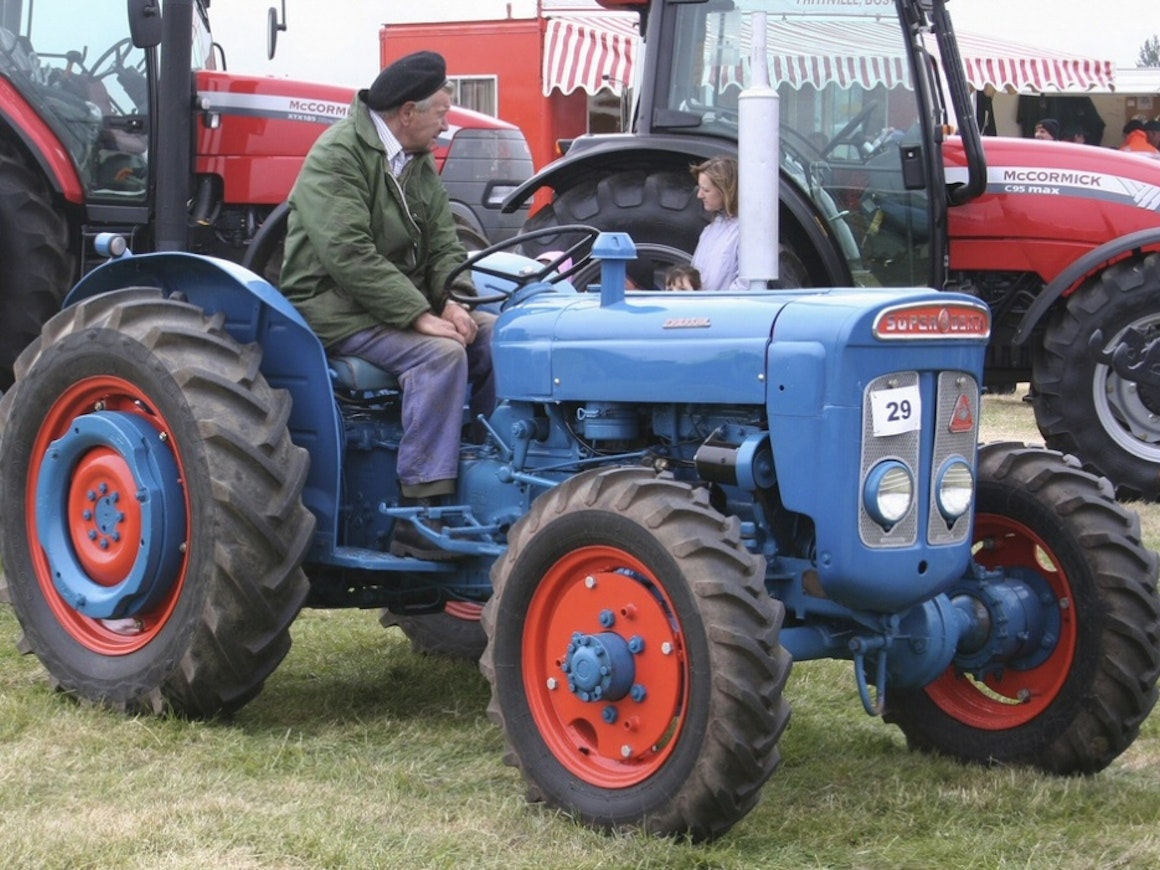

Roadless achieved moderate sales success with its four-wheel drive conversion Manuel-Major. So it began offering a four-wheel drive package also for the 32-horsepower Dexta in 1960. The parts were supplied by Selene from Italy, and the Dexta's front axle was also converted from GMC. The front wheels were smaller, 7.50-18.

At the end of 1961, the more powerful (39.5 hp) Super Dexta was introduced, and the front tires were changed to size 7.50-20. In the last models, the power was increased to 44.5 hp.

The price difference with the Manuel-Major was too small, and only 78 four-wheel drive Dextas were equipped.

Photo: Kimmo Kotta

Roadless Super Dexta

Model

Cena (z VAT)

Seria szczegółowa

Marka

Specyfikacja modelu

Model sprzedawany w Finlandii

Lata

Pierwszy rok sprzedaży

Ostatni rok sprzedaży

Typ silnika

Liczba cylindrów/Turbo/intercooler.

Pojemność skokowa cm3

Pojemność skokowa cylindra x długość skoku mm

Moc znamionowa KM/obr. DIN

Maksymalna moc KM/obr. DIN

Moc znamionowa KM/obr. ISO

Maksymalna moc KM/obr. ISO

Moc maksymalna KM/obr.

Moc znamionowa KM/obr. ECE

Maksymalna moc KM/obr. ECE

Moc znamionowa KM/obr. SAE

Moc znamionowa KM/obr. VOA

Moc znamionowa KM/obw. koło pasowe

Moc znamionowa KM/obr.

Moment obrotowy Nm/obr.

Moment obrotowy Nm/obr. ECE

Moment obrotowy Nm/obr. ISO

Moment obrotowy Nm/obr. SAE

Moment obrotowy Nm/obr. DIN

Liczba biegów

Prędkości powolnego ruchu

Synchronizowane

Przełącznik biegów

Przełącznik kierunku jazdy

Prędkości znamionowe

Prędkość maksymalna km/h

Wydajność hydrauliki l/min

Ciśnienie hydrauliki bar

Hydraulika tylnej osi

Siła podnoszenia kg

Moc wyjściowa

Hamulce

Układ kierowniczy

Średnica skrętu m napęd na tylne koła

Średnica zawracania m napęd na cztery koła

Opony przednie do napędu tylnego

Opony przednie do napędu 4x4

Opony bliźniacze do napędu tylnego

Opony terenowe do napędu na cztery koła

Masa kg napędu tylnego

Masa kg napęd na cztery koła

Wysokość cm

Długość cm (napęd tylny/ na cztery koła)

Rozstaw osi cm (napęd tylni/napęd na cztery koła)

Zbiornik paliwa l

Poziom hałasu dB

Zamknięta kabina

Blokada wału przekaźnikowego

Automatyka blokady mechanizmu różnicowego

Siedzisko z zawieszeniem pneumatycznym

Klimatyzacja

Komputer pokładowy

Bieg pełzający

Liczba cylindrów

Pojemność iskrownika

Przełożenie skrzyni biegów

Maksymalny moment obrotowy, Nm

Maksymalny moment obrotowy, obr./min

Wzrost momentu obrotowego

Zużycie paliwa przy maksymalnej mocy

Typ sprzęgła

PTO (wał odbioru mocy)

Prędkość do przodu przy znamionowej prędkości silnika, najmniejsza

Prędkość do przodu przy znamionowej prędkości silnika, maksymalna

Maksymalne ciśnienie hydrauliczne

Największa wydajność hydrauliki

Sterowanie osprzętem hydraulicznym

Zewnętrzna hydraulika, bloki zaworów

jednofunkcyjne

dwusuwowe

Siła podnoszenia (kN=100 kg)

Typ hydrauliki

Średnica zawracania bez hamulca kierowniczego

Opony przednie

Opony terenowe

Masa całkowita z pełnymi zbiornikami, wyposażenie standardowe

Przedni ciężarek osi

Obciążnik osi Taka

Maksymalna wysokość (do najwyższego punktu kabiny)

Całkowita długość

Rozstaw osi

Zasób ziemi, najmniejszy

Pojemność zbiornika paliwa

Najwyższy poziom hałasu

Blokada mechanizmu różnicowego wału przedniego

Przedni podnośnik

Osłony dyszla przedniego

Zawór hamulcowy przyczepy

Roadless Dexta

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Subscribe

Paywall

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Roadless Super Dexta	Roadless Super Dexta
Marka	Fordson	Fordson
Model sprzedawany w Finlandii	Tak	Tak
Lata	1961-62	1963-64
Pierwszy rok sprzedaży	1961	1963
Ostatni rok sprzedaży	1962	1964
Typ silnika	F3.152	F3.152
Liczba cylindrów/Turbo/intercooler.	3	3
Pojemność skokowa cm3	2500 cm³	2500 cm³
Pojemność skokowa cylindra x długość skoku mm	91,49×127 mm	91,49×127 mm
Moc znamionowa KM/obr. SAE	39,5/2000 hp SAE/rpm	44,5/2000 hp SAE/rpm
Moment obrotowy Nm/obr. SAE	152/1250 Nm/rpm SAE	152/1250 Nm/rpm SAE
Liczba biegów	6+2	6+2
Prędkości znamionowe	2,3-28,0	3,4-31,5
Wydajność hydrauliki l/min	18.6 l/min	18.6 l/min
Ciśnienie hydrauliki bar	175 bar	175 bar
Hydraulika tylnej osi	mech.	mech.
Siła podnoszenia kg	1070 kg	1070 kg
Moc wyjściowa	540	540
Hamulce	drum brakes	drum brakes
Układ kierowniczy	mech.	mech.
Opony przednie do napędu tylnego	7,50-20	7,50-20
Opony bliźniacze do napędu tylnego	12,4/11-28	12,4/11-28
Masa kg napęd na cztery koła	(1770) kg	(1770) kg
Wysokość cm	(132) cm	(132) cm
Długość cm (napęd tylny/ na cztery koła)	305 cm	305 cm
Rozstaw osi cm (napęd tylni/napęd na cztery koła)	197 cm	197 cm
Zbiornik paliwa l	32.8 l	32.8 l
