Zetor 2011-4045

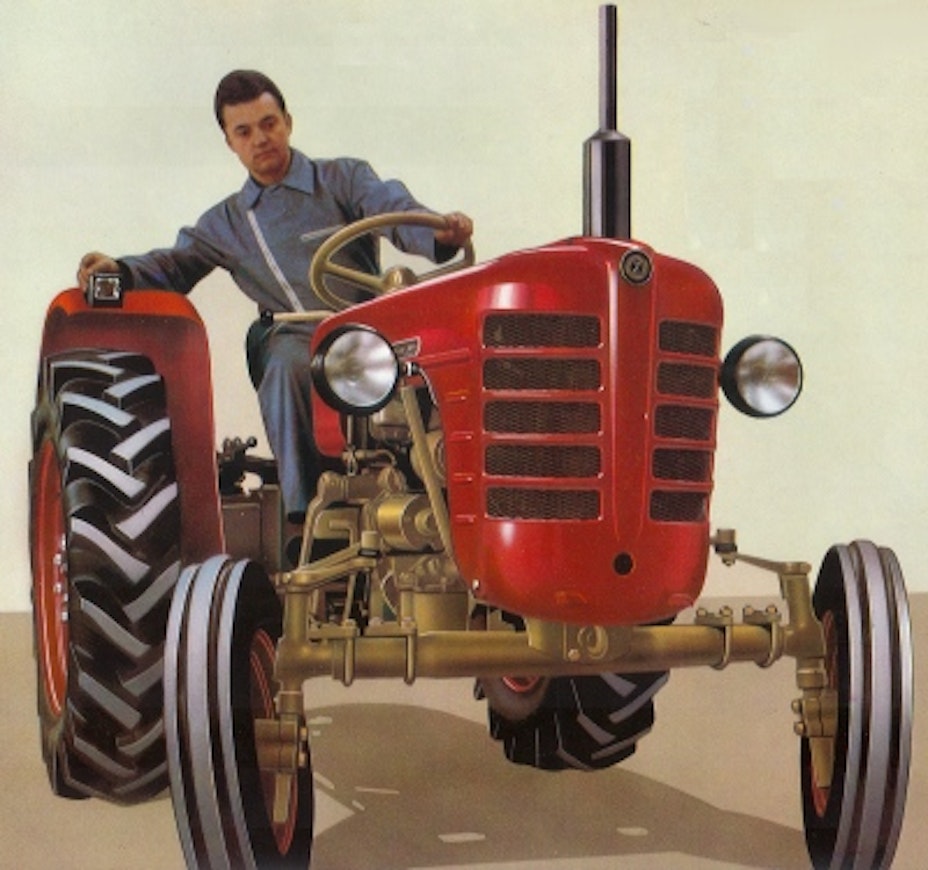

63Zetor3011

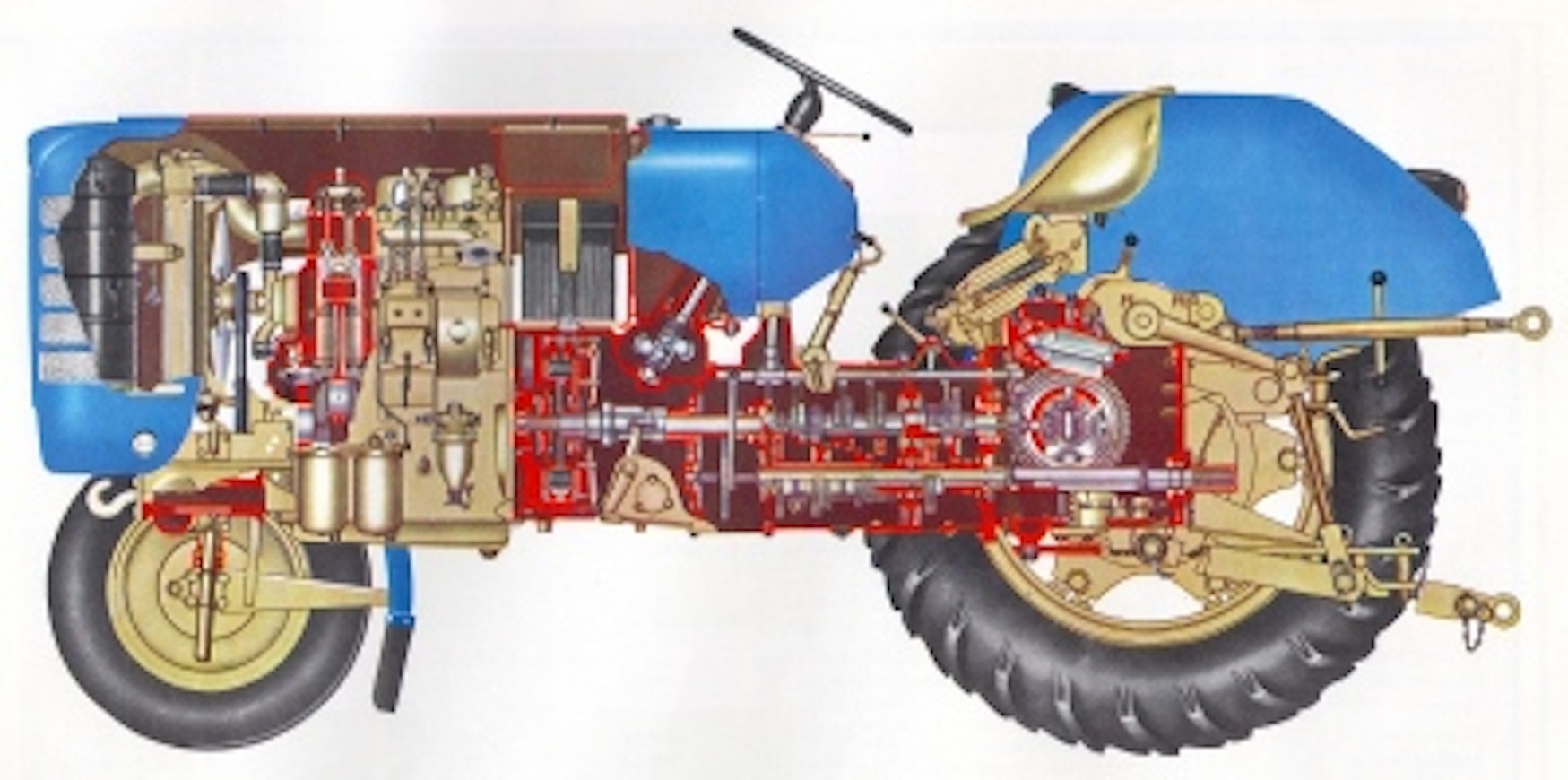

63ZetorHalkileikkaus
63Zetor3011
63ZetorHalkileikkaus
Manufacturer
Models
Zetor 2011, Zetor 3011/3045, Zetor 4011/4045
Years
1962-67
Info

The Zetorin UR I series was introduced in 1960 but only went into production in 1962. There were three models with SAE power ratings of 25, 38, and 52 horsepower. The UR I was quite technically advanced for its time: standard features included, among others, a 10+2 gearbox, dual clutch, a wide range of gauges, a differential lock, hydraulically operated brakes, a weight transfer system, and a separate valve for external hydraulic use. As an optional extra, a factory-installed cab and a compressor were available. To use the steering brakes, a lever was used to select whether both, the right, or the left brake was engaged. There were six power take-off speeds available for local use. Additionally, a front power take-off was standard.

There were also four-wheel-drive versions of the 3- and 4-cylinder models, although these were not imported into Finland. The production range also included models with half and full frames. The series was produced in both blue and red colors. In Finland, the blue ones were more common. The 3011 received a rating of Very Poor for durability in the Vakola test report. Sales success in Finland also remained a fraction of previous models.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelZetor 2011Zetor 3011/3045Zetor 4011/4045
Options
Manufacturer nameZetorZetorZetor
Imported to FinlandYesYesYes
Years1963-671962-671962-67
First year sold196319621962
Last year sold196719671967
Engine modelZ2001Z3001Z4001
Cyl/Turbo/Intercooler234
Displacement1560 cm³2340 cm³3120 cm³
Bore x stroke95×110 mm95×110 mm95×110 mm
Rated power hp/rpm DIN22/200035/200045/2000
Rated power223545
Rated speed200020002000
Torque Nm/rpm DIN85/1400128/1400-
Gears10+210+210+2
Speeds in km/h1,0-21,61,1-25,41,1-25,6
Max. speed -28 km/h29 km/h
Hydr. flow l/min25 l/min25 l/min25 l/min
Hydraulic pressure150 bar150 bar150 bar
Lift controlsmech.mech.mech.
Lift capacity750 kg1000 kg1200/1400 kg
PTO speeds540/1000/ajo540/1000/ajo540/1000/ajo
Brakesdrum brakesdrum brakesdrum brakes
Steeringmech.mech.mech.
Turning circle m 2WD6.46.87.8
Front tyres 2WD5,50-166,00-166,00-18
Front tyres 4WD-8-20-
Rear tyres 2WD12,4/11-2812,4/11-2814,9/13-28
Rear tyres 4WD-12.4/11-2814.9/13-28
Weight 2WD(1440) kg(1590) kg(2140) kg
Height with cab(146) cm(153) cm(162) cm
Length (2WD/4WD)299 cm302 cm325 cm
Wheelbase (2WD/4WD)175 cm192 cm213 cm
Fuel tank40 l40 l70 l
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information. There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed. Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
