Siirry sivupalkkiinSiirry alaosaanZetor Crystal 150-170

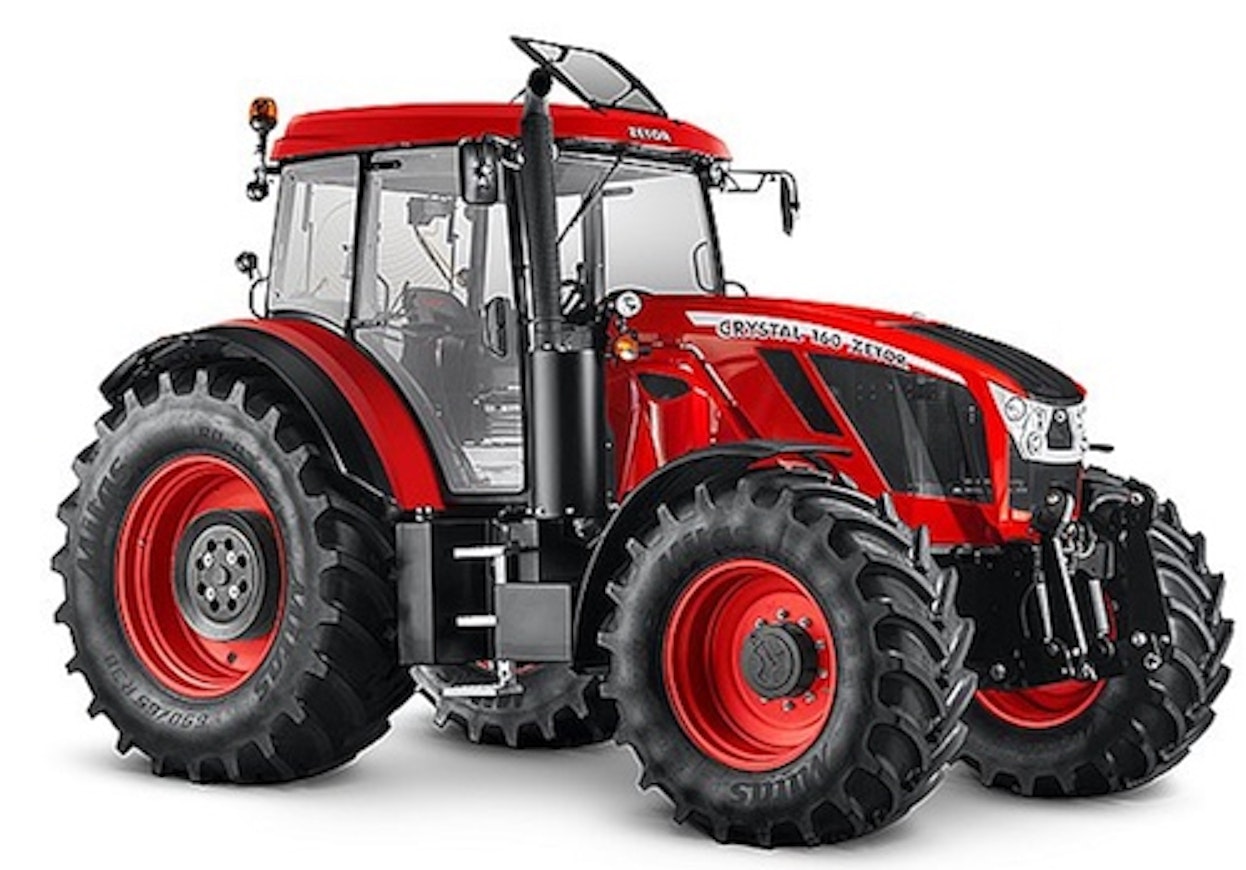

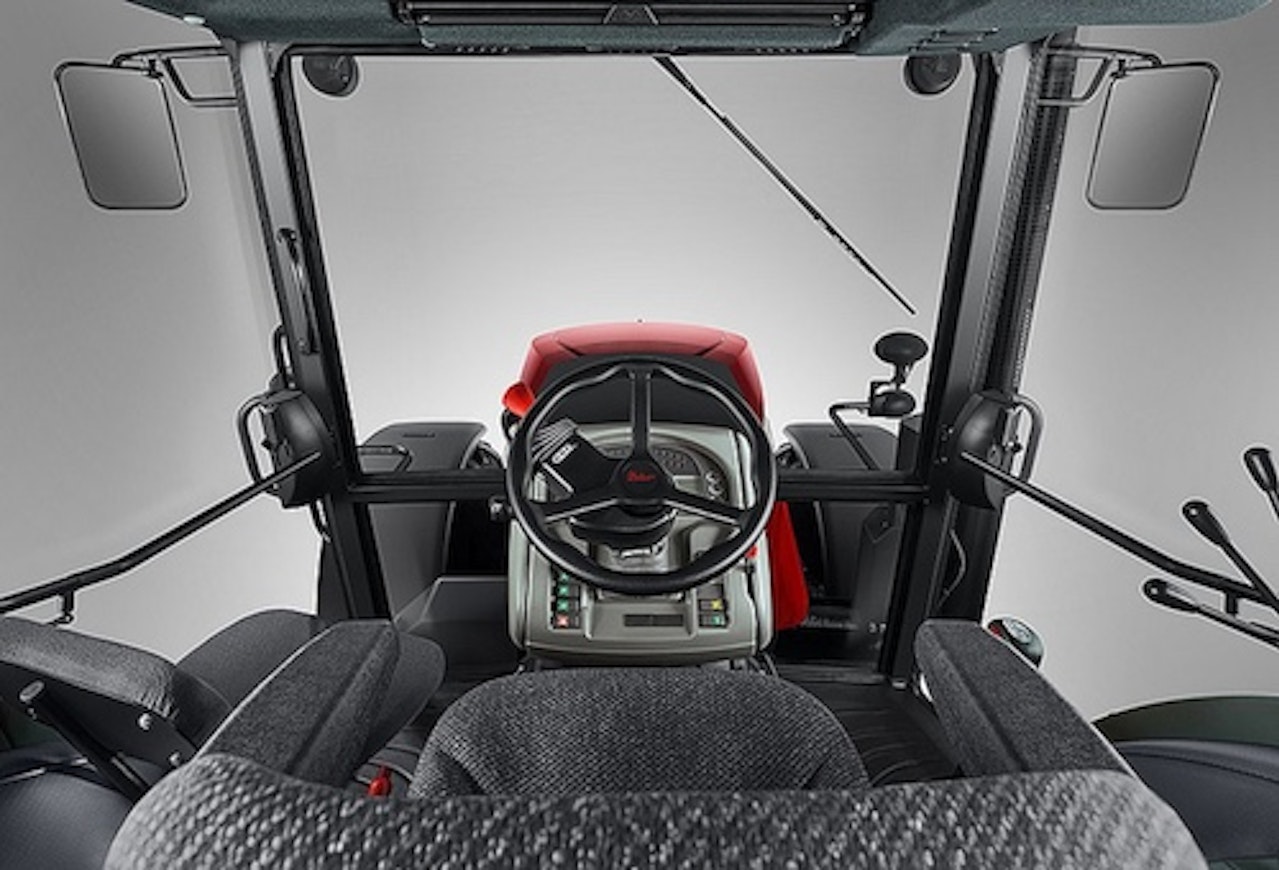

At Agritechnica in the autumn of 2015, the first 6-cylinder Zetors were presented for the first time in a long while. The technology had only minor differences compared to the Forterra models, but the model name chosen was the traditional Crystal, and the hood design was more massive. The engines were 6.1-liter Deutz units. The torque increase was a top-level 38%. The emission technology included urea injection, common rail, and a viscous fan. The transmission was an in-house produced 30+30 with a three-stage power shift and power shift automation. The lifting capacity was the same 8.5 tons as in the Forterra HD. The front axle was a separate-sprung Carraro with 25 grease nipples to be lubricated every 100 hours. Cab suspension was also standard. The noise level was 73 dB. The controls were somewhat more basic than usual for tractors of this size, and there was no control armrest like on the Forterra HD.

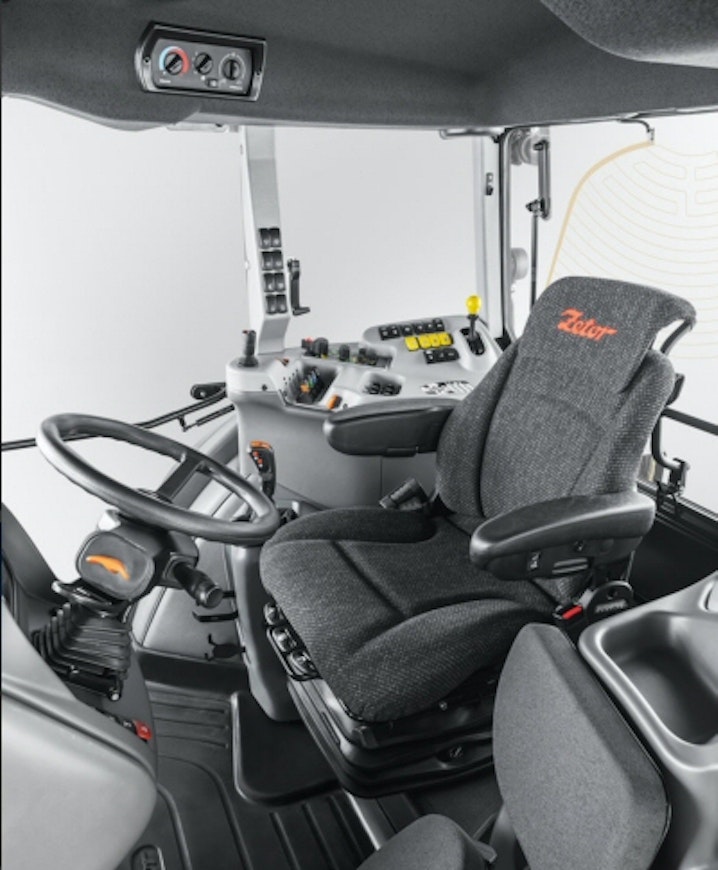

In autumn 2018, the HD models received Stage 5 engines as well as updated instrument panels, controls, and seats. The 40 km/h speed was now reached at 1750 rpm instead of rated engine speed.
This is an automated translation. Please report any issues in the translation.
| Model | Zetor Crystal 150 | Zetor Crystal 160 | Zetor Crystal HD 150 | Zetor Crystal HD 170 |
|---|---|---|---|---|
| Manufacturer name | Zetor | Zetor | Zetor | Zetor |
| Imported to Finland | Yes | Yes | Yes | Yes |
| Years | 2016-18 | 2016-18 | 2018- | 2018- |

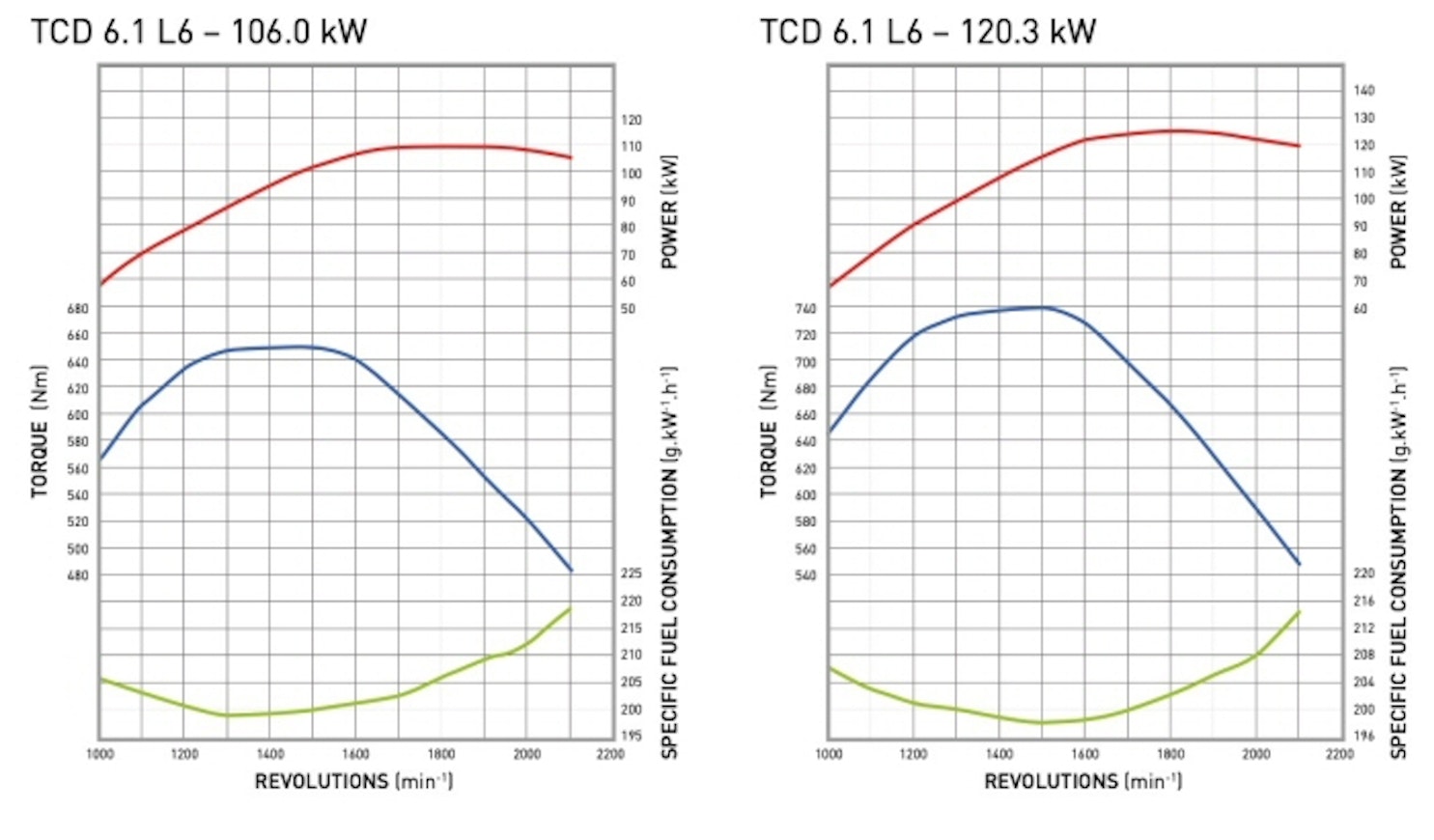

| Engine model | TCD 6.1 L6 | TCD 6.1 L6 | TCD 6.1 L6 | TCD 6.1 L6 |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI |
| Displacement | 6057 cm³ | 6057 cm³ | 6057 cm³ | 6057 cm³ |
| Bore x stroke | 101×126 mm | 101×126 mm | 101×126 mm | 101×126 mm |
| Rated power | - | - | - | - |
| Max power | - | - | - | - |
| Torque | - | - | - | - |
| Gears | 30+30 | 30+30 | 30+30 | 30+30 |
| Synchronized gears | 30+30 | 30+30 | 30+30 | 30+30 |
| Powershift gears | 3-step | 3-step | 3-step | 3-step |
| Reverser | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 1,9-37,9 | 1,9-37,9 | 1,9-43 | 1,9-43 |
| Max. speed | 40 km/h | 40 km/h | 43 km/h | 43 km/h |
| Hydr. flow l/min | 85 l/min | 85 l/min | 85 l/min | 85 l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. |
| Lift capacity | 8500 kg | 8500 kg | 8500 kg | 8500 kg |
| PTO speeds | 540/750/1000/1250 | 540/750/1000/1250 | 540/750/1000/1250 | 540/750/1000/1250 |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. |
| Front tyres 4WD | 540/65R28 | 540/65R28 | 480/65R28 | 480/65R28 |
| Rear tyres 4WD | 650/65R38 | 650/65R38 | 600/65R38 | 600/65R38 |
| Weight 4WD | 5840 kg | 5840 kg | 5760 kg | 5760 kg |
| Height with cab | 297 cm | 297 cm | 305 cm | 305 cm |
| Length (2WD/4WD) | 577 etupainoilla cm | 577 etupainoilla cm | 541 cm | 541 cm |
| Wheelbase (2WD/4WD) | 284 cm | 284 cm | 285 cm | 285 cm |
| Fuel tank | 300+AB32 l | 300+AB32 l | 300+AB32 l | 300+AB32 l |
| Cab noise level | 73 dB | 73 dB | 73 dB | 73 dB |
| Solid cab | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Air suspension seat | x | x | x | x |
| Air conditioning | x | x | x | x |
