Siirry sivupalkkiinSiirry alaosaanVersatile 500 – 950 Series 2

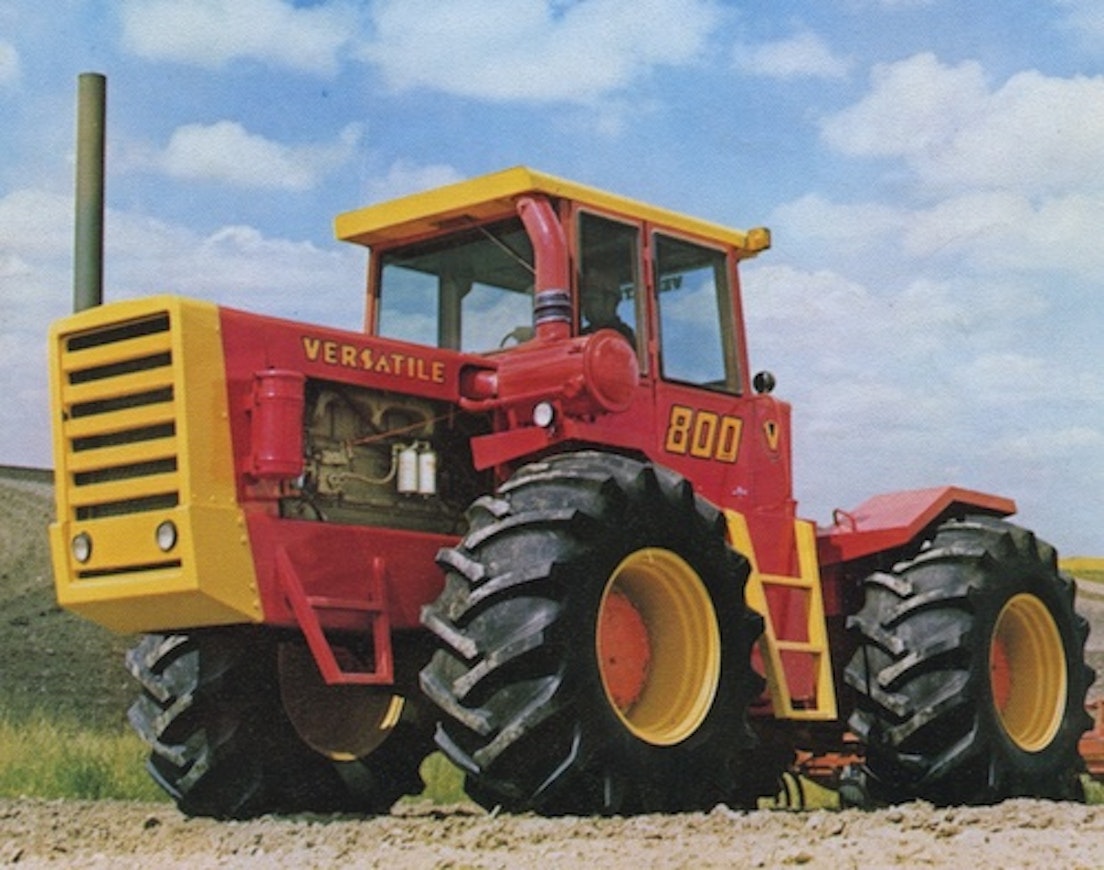

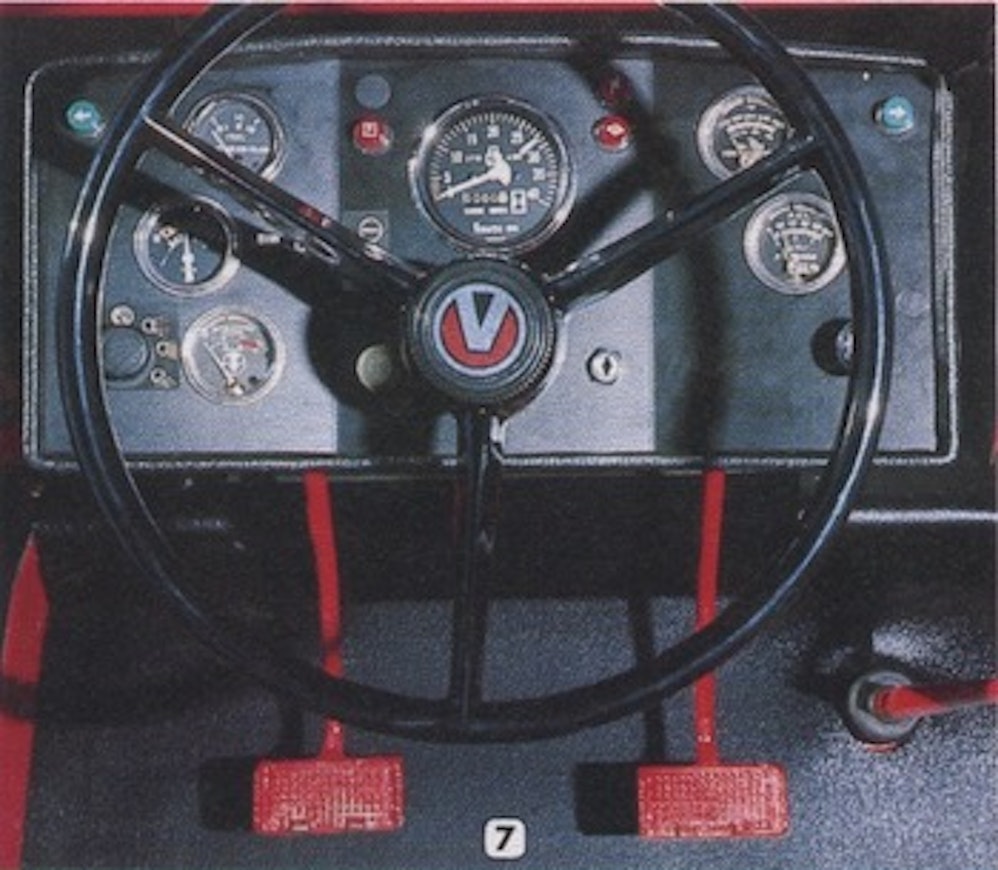

With its model introduced in 1973, Versatile had risen to become the market leader of four-wheel-drive large tractors. For the year 1976, Versatile renewed its lineup with the Series 2. The cab had been developed to be more comfortable and maintainability improved. The yellow front section changed the appearance to a more modern look. The 700-liter fuel tank was significantly larger than before. The engines used were 6- and 8-cylinder Cummins. The turbocharged six-cylinder models 825 and 850 provided considerably better torque than the 900 V8. Versatile designed the axles and transmissions itself. The transmission was still a mechanical 12+4. An automatic differential lock for the front axle was now available as an option. The hydraulics came standard with three sections. Production of this model series lasted less than two years.
In 1977, the smaller Versatile 500 was introduced to the lineup. It was half a meter shorter and just over 1000 kg lighter than the other models. The engine was a 6.2-liter Cummins V8. The transmission was Versatile’s own mechanical 15+5. Unlike the other models, the 500 could be equipped with a power take-off (either 540 or 1000 rpm) as an option. The hydraulic output was still generous on the 500: 94 liters per minute. The wheelbase was adjustable between 1.52 and 2.46 meters.
In 1976, Versatile manufactured a prototype of the 8-wheeled model 1080 “Big Roy.” It had 600 hp and weighed 26 tons. There was not enough demand for the giant tractor to start production.
This is an automated translation. Please report any issues in the translation.
| Model | Versatile 500 | Versatile 700 Series 2 | Versatile 750 Series 2 | Versatile 800 Series 2 | Versatile 825 Series 2 | Versatile 850 Series 2 | Versatile 900 Series 2 | Versatile 950 Series 2 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer name | Versatile | Versatile | Versatile | Versatile | Versatile | Versatile | Versatile | Versatile |
| Imported to Finland | No | No | No | No | No | No | No | No |
| Years | 1977-79 | 1976-77 | 1976-77 | 1976-77 | 1977-77 | 1976-77 | 1976-77 | 1977-77 |
| Engine model | Cummins V504-C210 | Cummins V-555 | Cummins N855-C220 | Cummins N855-C250 | Cummins NT855-C250 | Cummins NT855-C280 | Cummins V-903 | Cummins VT-903 |
| Cyl/Turbo/Intercooler | V8 | V8 | 6 | 6 | 6T | 6T | V8 | V8T |
| Displacement | 6194 cm³ | 9085 cm³ | 14016 cm³ | 14016 cm³ | 14016 cm³ | 14016 cm³ | 14794 cm³ | 14794 cm³ |
| Bore x stroke | 95,25×117,5 mm | 117,5×104,8 mm | 139,7×152,4 mm | 139,7×152,4 mm | 139,7×152,4 mm | 139,7×152,4 mm | 139,7×120,65 mm | 139,7×120,65 mm |
| Rated power | 192/2850 hp DIN/rpm | 210/2850 hp DIN/rpm | 220/2100 hp DIN/rpm | 240/2100 hp DIN/rpm | 250/2100 hp DIN/rpm | 280/2100 hp DIN/rpm | 300/2400 hp DIN/rpm | 350/2400 hp DIN/rpm |
| Torque | - | - | - | - | - | - | - | - |
| Gears | 15+5 | 12+4 | 12+4 | 12+4 | 12+4 | 12+4 | 12+4 | 12+4 |
| Speeds in km/h | 3,2-28,0 | 4,2-23,3 | 4,0-22,4 | 4,0-22,4 | 4,0-22,4 | 4,2-23,3 | 4,1-22,9 | 4,1-22,9 |
| Hydr. flow l/min | 94 l/min | 88.9 l/min | 88.9 l/min | 88.9 l/min | 88.9 l/min | 88.9 l/min | 98.4 l/min | 98.4 l/min |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Lift capacity | 3640 kg | 5611 kg | 5611 kg | 5611 kg | 5611 kg | 5611 kg | 5611 kg | 5611 kg |
| PTO speeds | (1000) | - | - | - | - | - | - | - |
| Brakes | disc brakes | disc brakes | disc brakes | disc brakes | disc brakes | disc brakes | disc brakes | disc brakes |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 10.76 | 10.96 | 10.96 | 10.96 | 10.96 | 10.96 | 10.96 | 10.96 |
| Front tyres 4WD | 18.4-38 | 24.5-32 | 24.5-32 | 24.5-32 | 24.5-32 | 24.5-32 | 24.5-32 | 24.5-32 |
| Rear tyres 4WD | 18.4-38 | 24.5-32 | 24.5-32 | 24.5-32 | 24.5-32 | 24.5-32 | 24.5-32 | 24.5-32 |
| Weight 4WD | 7037 kg | 7850 kg | 8400 kg | 8400 kg | 8400 kg | 8470 kg | 8200 kg | 9300 kg |
| Height with cab | 315 cm | 330 cm | 330 cm | 330 cm | 330 cm | 330 cm | 330 cm | 330 cm |
| Length (2WD/4WD) | 595 cm | 643 cm | 643 cm | 643 cm | 643 cm | 643 cm | 643 cm | 643 cm |
| Wheelbase (2WD/4WD) | 305 cm | 330 cm | 330 cm | 330 cm | 330 cm | 330 cm | 330 cm | 330 cm |
| Fuel tank | 401 l | 700 l | 700 l | 700 l | 700 l | 700 l | 700 l | 700 l |
| Solid cab | x | x | x | x | x | x | x | x |
| Diff. lock | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. |
| Air conditioning | x | - | - | - | - | - | - | x |
