Siirry sivupalkkiinSiirry alaosaanVolvo BM Valmet/Valmet 505-605

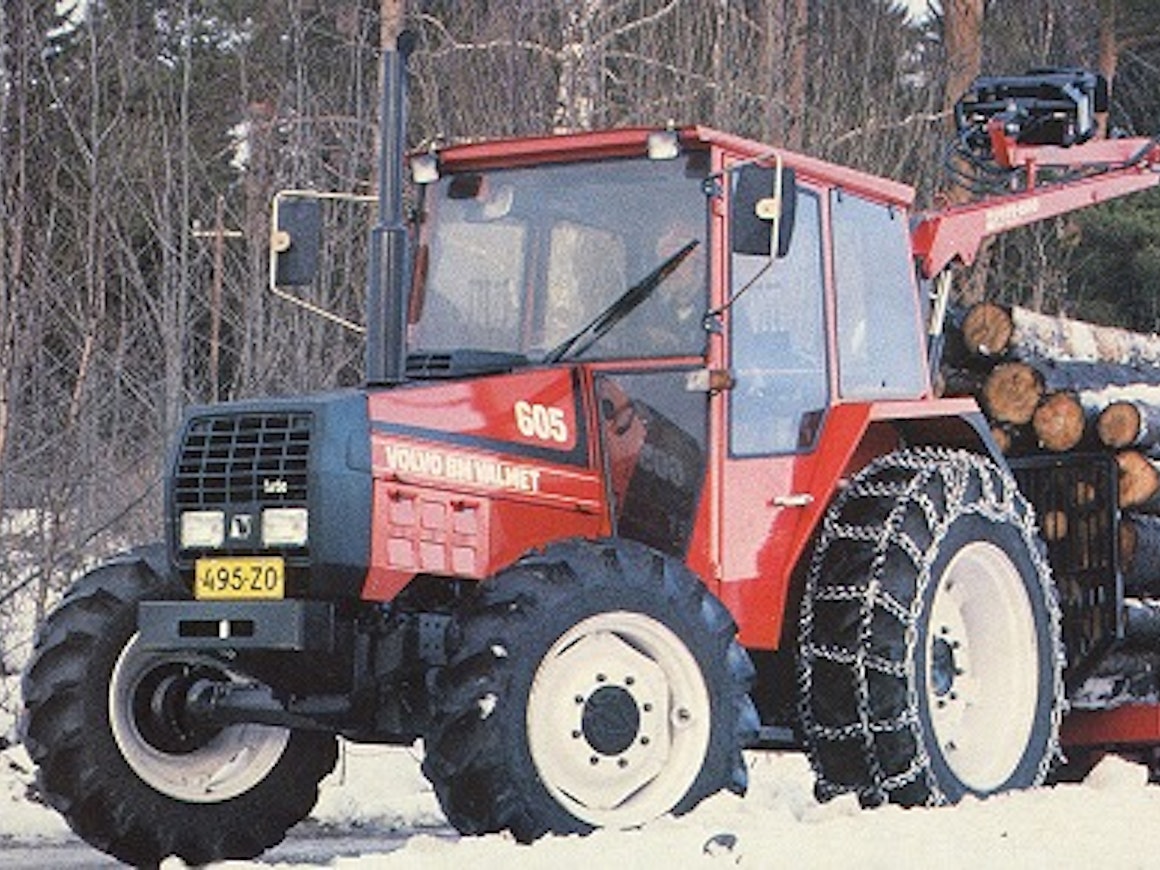

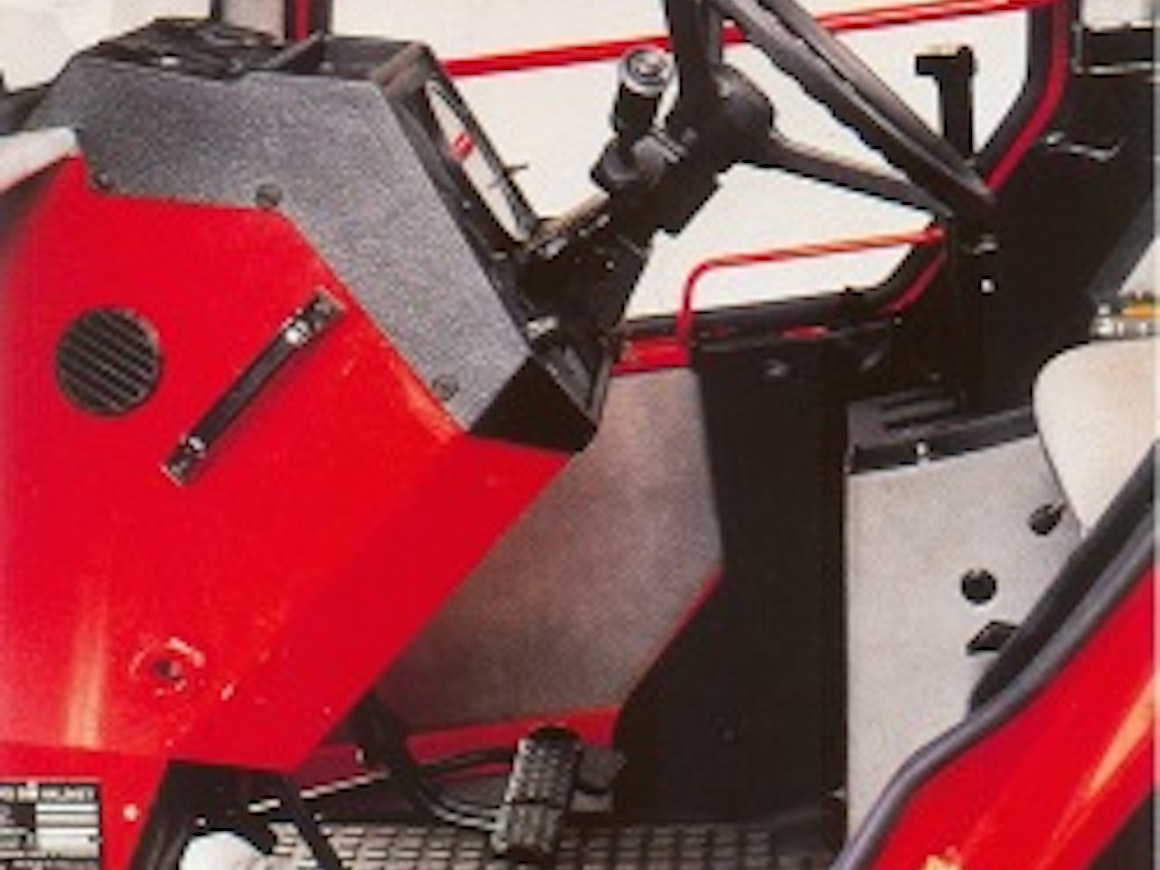

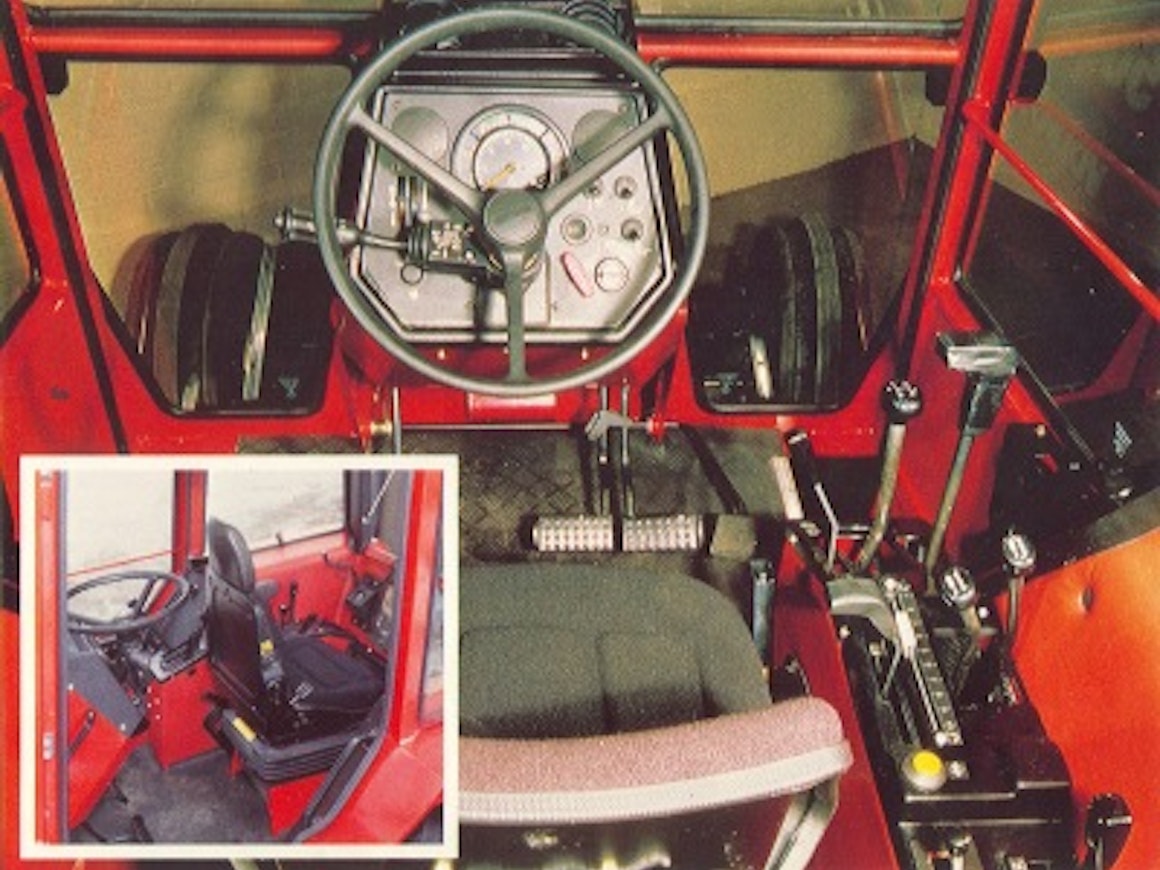

The Volvo BM Valmet 05 series was introduced in 1982, and deliveries began at the beginning of 1983. There were two three-cylinder models: the 505 with 65 hp and the 605 with 72 hp. The transmission was a new synchronized 8+4. As an optional extra, a reduction gear could be added, which came from Volvo. The cabin was spacious but more austere in its upholstery compared to the best competitors. The noise level was the maximum allowed 85 dB, and ventilation was insufficient.
The hydraulics were very efficient for the size of the tractor. On the other hand, the external dimensions were also large for its class. However, the turning radius was small. The underside of the tractor is flat.
At the beginning of 1985, minor updates were made: the power of the 3-cylinder models increased to 68 and 75 horsepower, the GL trim for the cabin became standard, and the upholstery color changed to light gray.
From the beginning of 1986, the brand was changed to Valmet, and the stickers on the side panels became black. In the summer of 1988, updated models were introduced, with the option to choose from five color options. At the same time, the driven front axle was replaced with a new model, and the cabin underwent minor improvements. The turbos were changed to ones manufactured by Schwitzer.
This is an automated translation. Please report any issues in the translation.
| Model | Valmet 505 | Valmet 505 | Valmet 605 | Valmet 605 |
|---|---|---|---|---|
| Manufacturer name | Valmet | Valmet | Valmet | Valmet |
| Imported to Finland | Yes | Yes | Yes | Yes |
| Years | 1983-84 | 1984-89 | 1983-84 | 1984-89 |
| Engine model | TD33DS5 | TD33DS5 | TD33DS6 | TD33DS6 |
| Cyl/Turbo/Intercooler | 3T | 3T | 3T | 3T |
| Displacement | 3300 cm³ | 3300 cm³ | 3300 cm³ | 3300 cm³ |
| Bore x stroke | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm |
| Rated power | 65/2250 hp DIN/rpm | 68/2250 hp DIN/rpm | 72/2250 hp DIN/rpm | 75/2250 hp DIN/rpm |
| Torque | - | - | - | - |
| Gears | 8+4/16+8 | 8+4/16+8 | 8+4/16+8 | 8+4/16+8 |
| Synchronized gears | 8+4/16+8 | 8+4/16+8 | 8+4/16+8 | 8+4/16+8 |
| Powershift gears | opt. | opt. | opt. | opt. |
| Speeds in km/h | 3,3-28,0 | 3,3-28,0 | 3,3-28,0 | 3,3-28,0 |
| Hydr. flow l/min | 49.5 l/min | 49.5 l/min | 49.5 l/min | 49.5 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar | 180 bar |
| Lift controls | mech. | mech. | mech. | mech. |
| Lift capacity | 4000 kg | 4000/4500 kg | 4000 kg | 4000/4500 kg |
| PTO speeds | 540 | 540 | 540 | 540 |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 8 | 8 | 8 | 8 |
| Turning circle m 4WD | 8.4 | 8.4 | 8.4 | 8.4 |
| Front tyres 2WD | 10,00-16 | 10,00-16 | 10,00-16 | 10,00-16 |
| Front tyres 4WD | 12.4-24 | 12.4-24 | 12.4-24 | 12.4-24 |
| Rear tyres 2WD | 13,6-38 | 13,6-38 | 16,9-34 | 16,9-34 |
| Rear tyres 4WD | 13.6-38 | 13.6-38 | 13.6-38 | 16.9-34 |
| Weight 2WD | 3190 kg | 3190 kg | 3290 kg | 3290 kg |
| Weight 4WD | 3350 kg | 3350 kg | 3490 kg | 3490 kg |
| Height with cab | 267 cm | 267 cm | 267 cm | 267 cm |
| Length (2WD/4WD) | 429 cm | 429 cm | 429 cm | 429 cm |
| Wheelbase (2WD/4WD) | 236/229 cm | 236/229 cm | 236/229 cm | 236/229 cm |
| Fuel tank | 180 l | 180 l | 180 l | 180 l |
| Cab noise level | 85 dB | 85 dB | 85 dB | 85 dB |
| Solid cab | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock |
