Valtra T145-T235

Manufacturer
Models
Valtra T145, Valtra T155, Valtra T175e, Valtra T195, Valtra T215, Valtra T235, Valtra T255
Years
2021-
Info

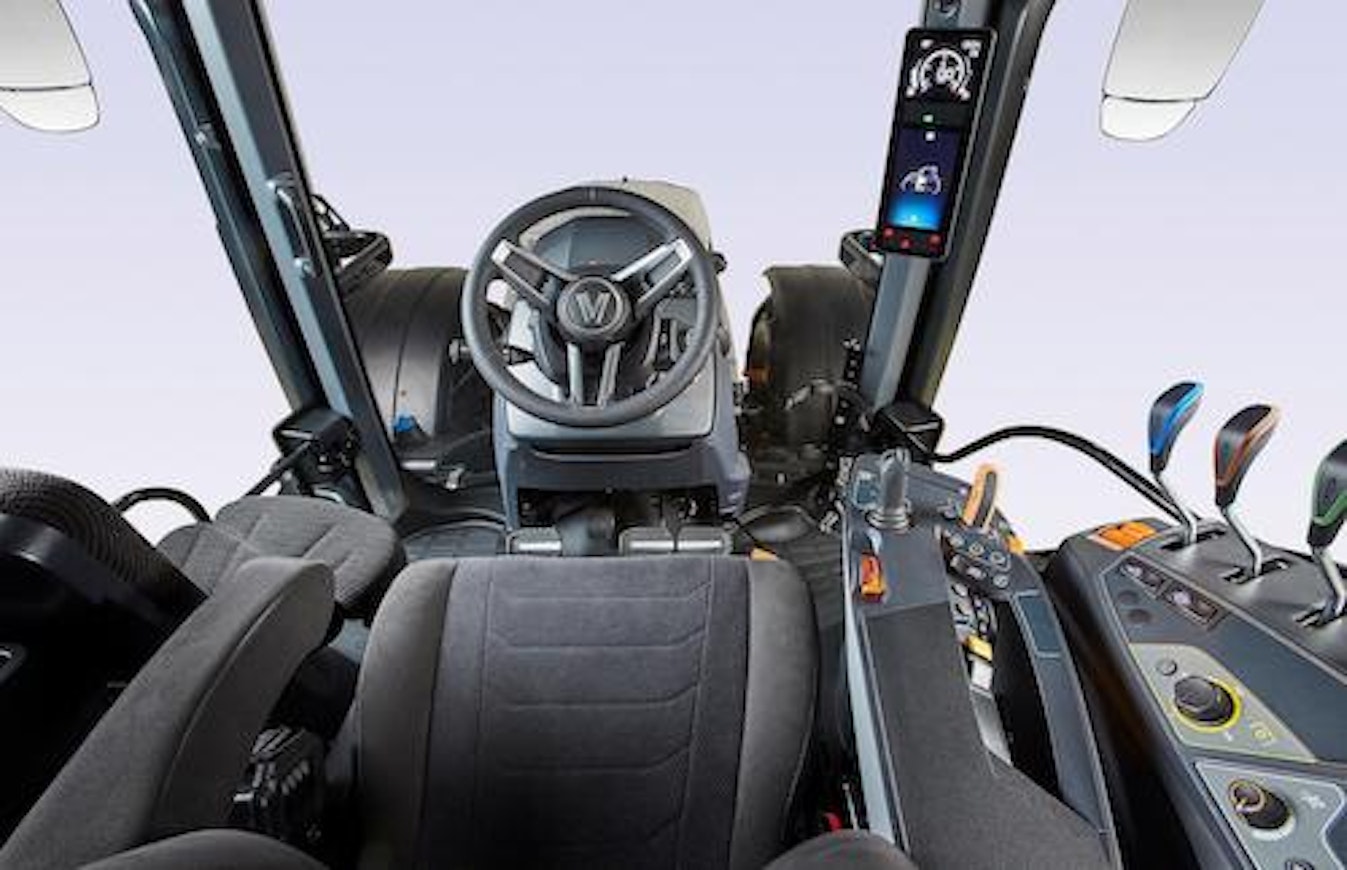

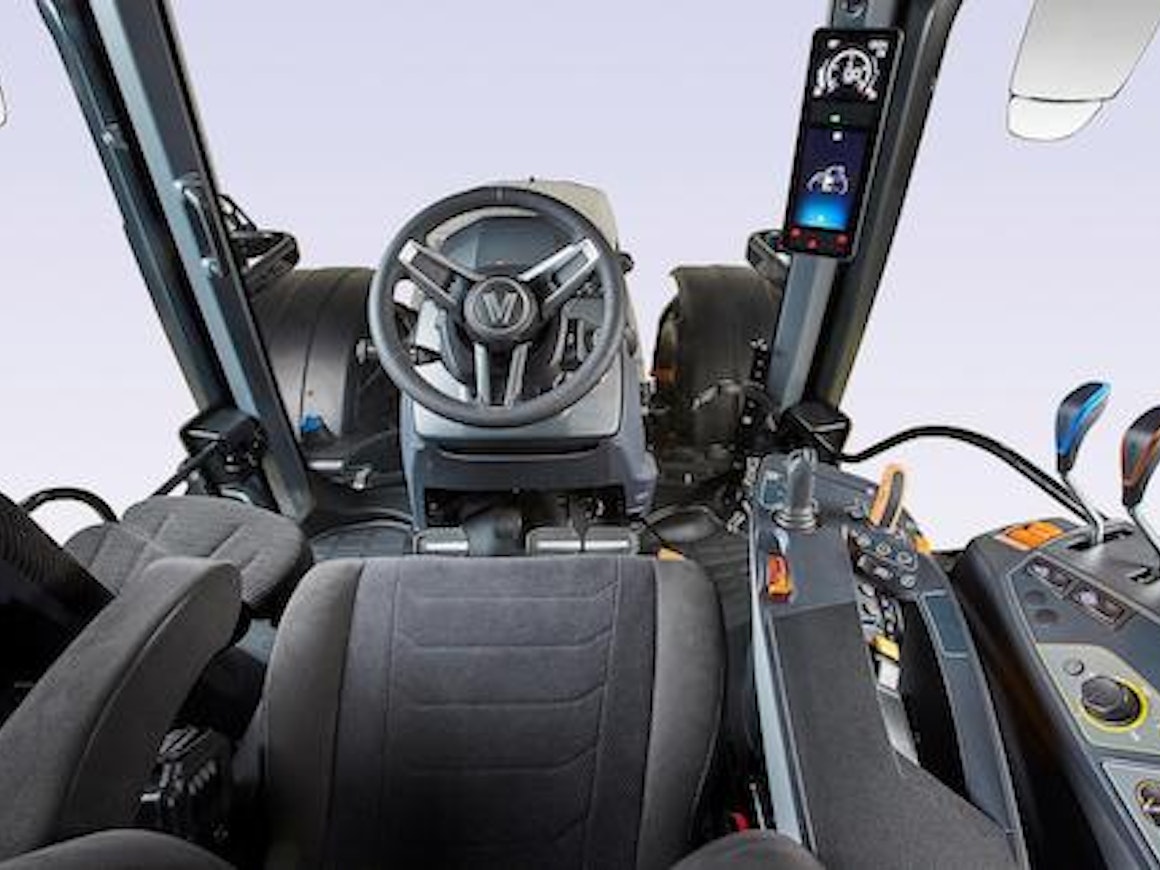

In spring 2021, the Valtra T series moved to the fifth generation. The instrument cluster was relocated from behind the steering wheel to the A-pillar. In the Active and HiTech models, tractor settings were now managed via a new display on the A-pillar. The Versu and Direct models featured a 9" SmartTouch display integrated into the control armrest. The steering column was new, and the direction indicator returned to the center position. Speed range changes were accelerated through both software and component development.

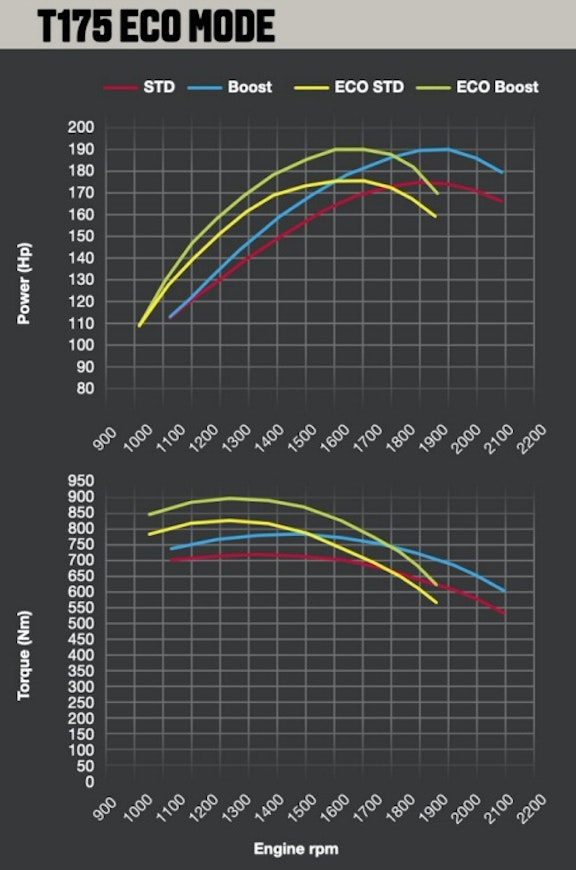

The engines complied with the Stage V emissions standard, so in addition to urea injection and the oxidation catalyst, a particulate filter was also introduced. Additional power was achieved at field and road speeds. The T255 had an extra 250 hp during field work or PTO use and 271 hp on the road. The 175e was Valtra’s traditional low-rev model, where the maximum torque was reached at 1100 rpm and maximum power at 1700 rpm using the Eco mode.

There were four equipment versions. The Hitech, Active, and Versu models all had a 5-speed quick shuttle with shift automation and an electronic range shift. The Active and Versu versions featured a launch assist, allowing the tractor to be stopped using only the brake and then started by releasing the brake and pressing the throttle. In these models, engine speed was also automatically raised when using hydraulics without affecting driving speed. The Hitech model had a traditional gear pump in the hydraulics (73 or 90 l/min). Other models featured a load-sensing system (115/160/200 l/min) and separate hydraulic and transmission oils. Versu and Direct had electronic control of hydraulic valves, a control armrest, and a display. The Direct model included Valtra’s own stepless transmission. Optional extras were now available in packages; for example, the Comfort package included front axle and cab suspension, a wide-angle windshield wiper, and premium work lights.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelValtra T145Valtra T155Valtra T175eValtra T195Valtra T215Valtra T235Valtra T255
Manufacturer nameValtraValtraValtraValtraValtraValtraValtra
Imported to FinlandYesYesYesYesYesYesYes
Years2021-2021-2021-2021-2021-2021-2021-
Engine model66LFTN-D566LFTN-D574LFTN-D574LFTN-D574LFTN-D574LFTN-D574LFTN-D5
Cyl/Turbo/Intercooler6TI6TI6TI6TI6TI6TI6TI
Displacement6598 cm³6598 cm³7368 cm³7368 cm³7368 cm³7368 cm³7368 cm³
Bore x stroke108×120 mm108×120 mm108×134 mm108×134 mm108×134 mm108×134 mm108×134 mm
Max power-------
Torque-------
Gears30+30/stepless30+30/stepless30+30/stepless30+30/stepless30+30/stepless30+3030+30
Synchronized gears30+30/stepless30+30/stepless30+30/stepless30+30/stepless30+30/stepless30+3030+30
Powershift gears5-step/stepless5-step/stepless5-step/stepless5-step/stepless5-step/stepless5-step5-step
Reverserhydr.hydr.hydr.hydr.hydr.hydr.hydr.
Speeds in km/h0,7-43/53 / 0-43/530,7-43/53 / 0-43/530,7-43/53 / 0-43/530,7-43/53 / 0-43/530,7-43/53 / 0-43/530,7-43/530,7-43/53
Max. speed 43/53 km/h43/53 km/h43/53/57 km/h43/53/57 km/h43/53/57 km/h43/53/57 km/h43/53/57 km/h
Hydr. flow l/minH 73 (90), A/V/D 115 (160/200) l/minH 73 (90), A/V/D 115 (160/200) l/minH 73 (90), A/V/D 115 (160/200) l/minH 73 (90), A/V/D 115 (160/200) l/minH 73 (90), A/V/D 115 (160/200) l/minH 73 (90), A/V 115 (160/200) l/minH 73 (90), A/V 115 (160/200) l/min
Hydraulic pressure210 bar210 bar210 bar210 bar210 bar210 bar210 bar
Lift controlselec.elec.elec.elec.elec.elec.elec.
Lift capacity8100 (9500) kg8100 (9500) kg8100 (9500) kg8100 (9500) kg8100 (9500) kg8100 (9500) kg8100 (9500) kg
PTO speeds540/1000540/1000540/1000540/1000540/1000540/1000540/1000
Brakeswet discwet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD10.510.510.510.510.510.510.5
Front tyres 4WD16.9R2816.9R2816.9R28540/65R30540/65R30540/65R30540/65R30
Rear tyres 4WD20.8R3820.8R3820.8R38650/65R42650/65R42650/65R42650/65R42
Weight 4WD7300 kg7300 kg7300 kg7300 kg7300 kg7300 kg7300 kg
Height with cab313 cm313 cm313 cm313 cm313 cm313 cm313 cm
Length (2WD/4WD)514 cm514 cm514 cm514 cm514 cm514 cm514 cm
Wheelbase (2WD/4WD)300 cm300 cm300 cm300 cm300 cm300 cm300 cm
Fuel tank380(+AB70) l380(+AB70) l380(+AB70) l380(+AB70) l380(+AB70) l380(+AB70) l380(+AB70) l
Cab noise level70 dB70 dB70 dB70 dB70 dB70 dB70 dB
Solid cabxxxxxxx
Diff. lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lock
Autom. differential locksxxxxxxx
Air suspension seatxxxxxxx
Air conditioningxxxxxxx
Creeper gearxxxxxxx
