Siirry sivupalkkiinSiirry alaosaanValtra S232-S352

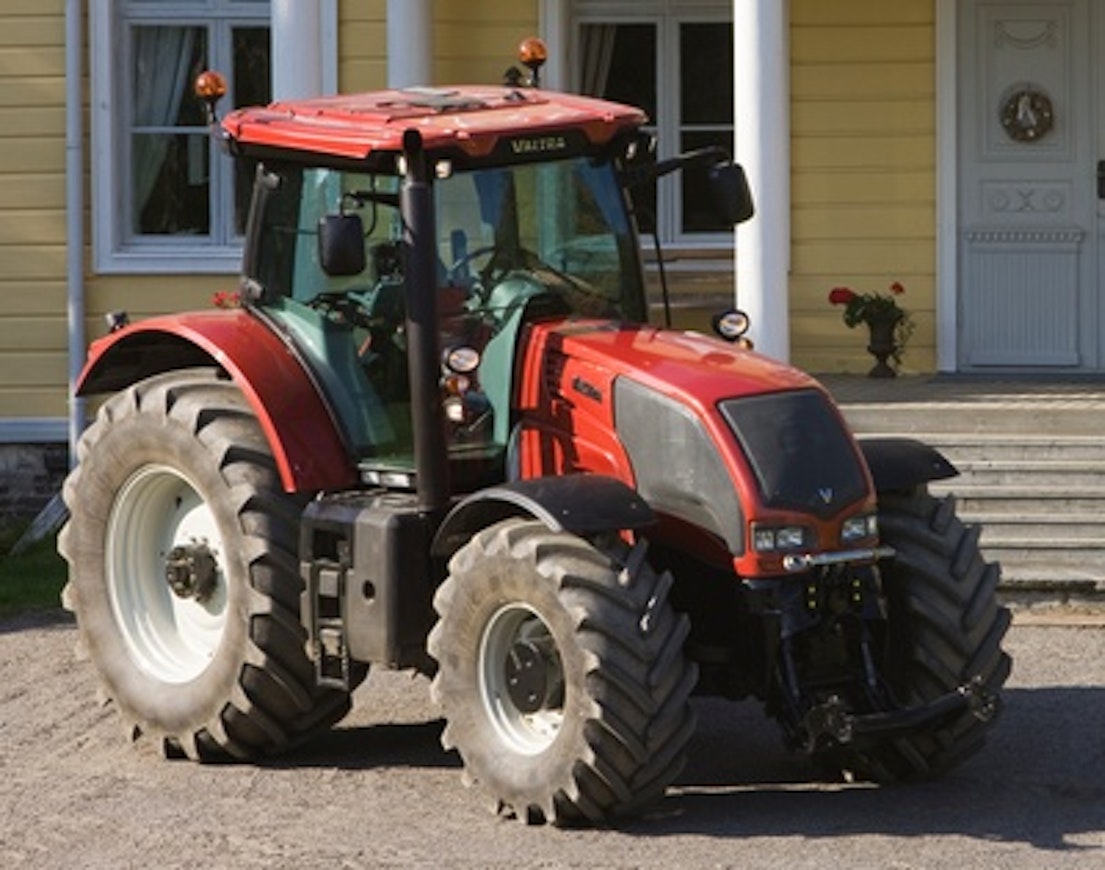

The successor to Valtra's first S-series was designed as a group collaboration based on the MF 8600. Production of the S-series in France began in spring 2009. The Fendt Vario transmission was named AVT (Agco Variable Transmission) by Valtra. The model range was the same as MF's, and the largest model came standard with urea injection. The biggest differences compared to MF were in the control devices, which were designed to be similar to those in other Valtra models. For example, the direction changer with a handbrake was similar to that of the HiTech.

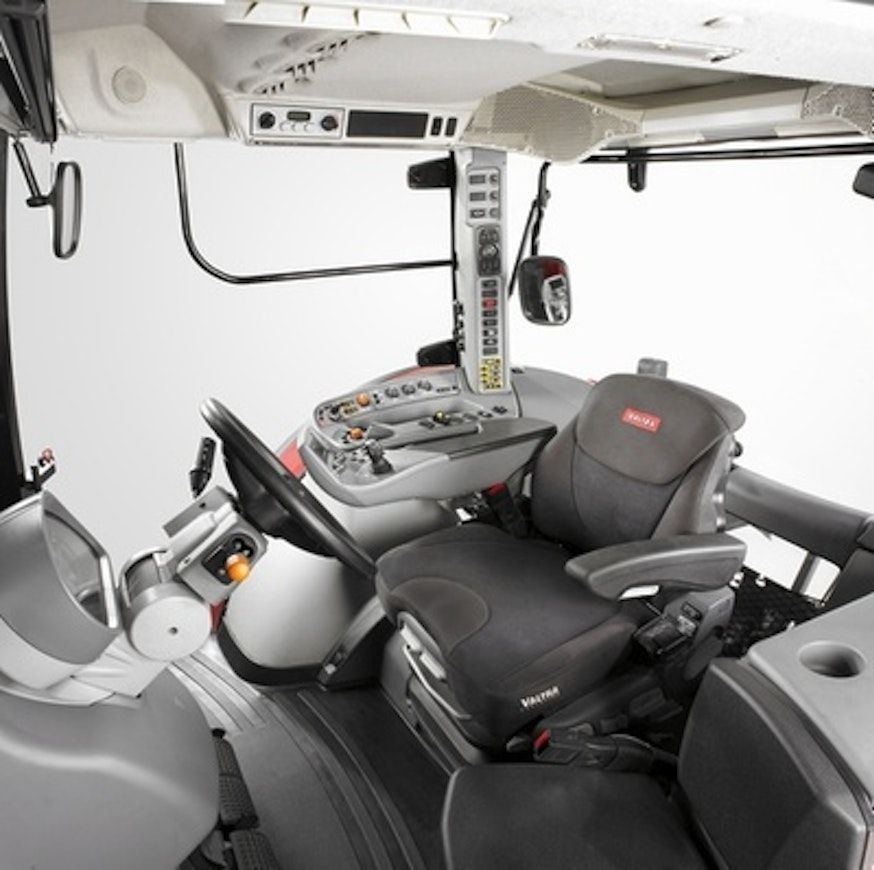

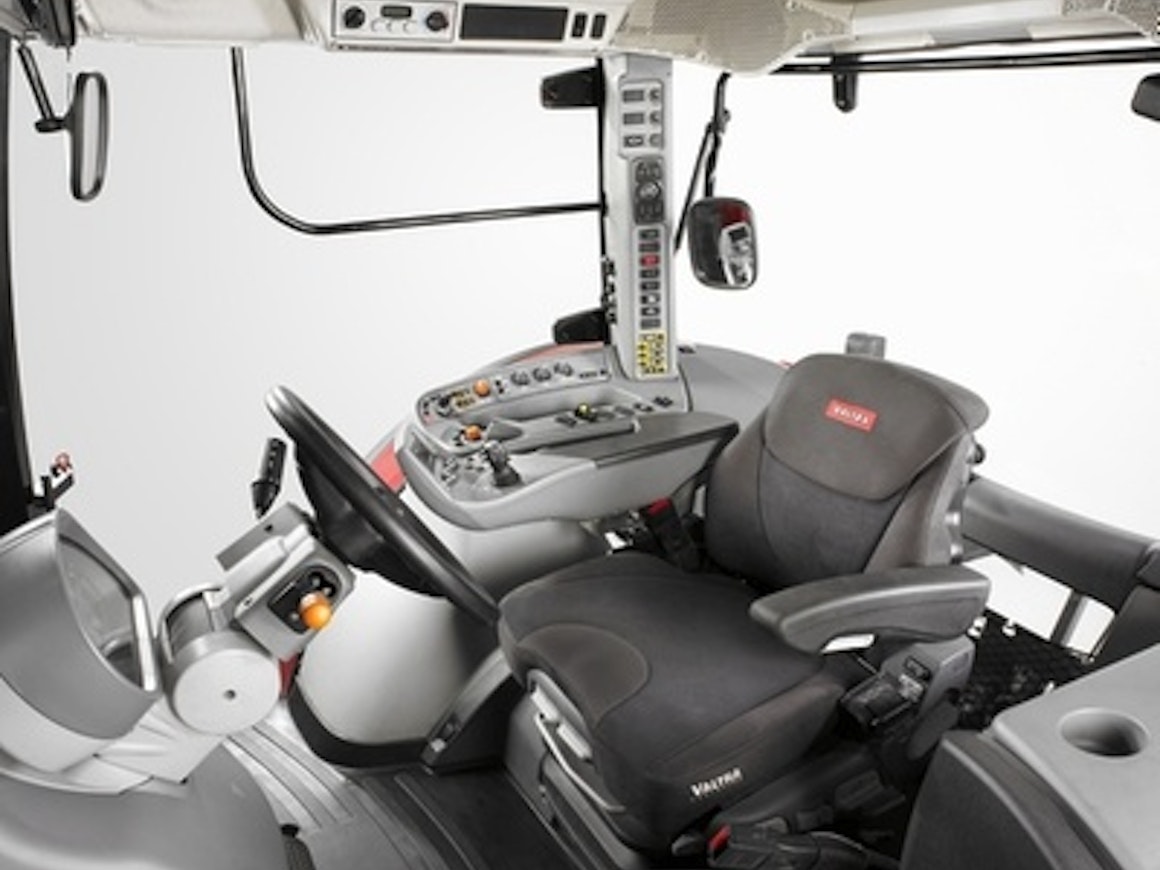

Valtra came standard with QuickSteer rapid steering, which allowed the number of steering wheel turns to be adjusted between 1 and 2.5 at speeds below 18 km/h. The cab and front axle were suspended. Automatic air conditioning and electric mirrors were standard in the three largest models.
This is an automated translation. Please report any issues in the translation.
| Model | Valtra S232 | Valtra S262 | Valtra S292 | Valtra S322 | Valtra S352 |
|---|---|---|---|---|---|
| Manufacturer name | Valtra | Valtra | Valtra | Valtra | Valtra |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes |
| Years | 2008-11 | 2008-11 | 2008-11 | 2008-11 | 2008-11 |
| Engine model | 84CTA-4V | 84CTA-4V | 84CTA-4V | 84CTA-4V | 84CTA-4V |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI | 6TI |
| Displacement | 8400 cm³ | 8400 cm³ | 8400 cm³ | 8400 cm³ | 8400 cm³ |
| Bore x stroke | 111×145 mm | 111×145 mm | 111×145 mm | 111×145 mm | 111×145 mm |
| Rated power | - | - | - | - | - |
| Max power | - | - | - | - | - |
| Torque | - | - | - | - | - |
| Gears | stepless | stepless | stepless | stepless | stepless |
| Synchronized gears | stepless | stepless | stepless | stepless | stepless |
| Powershift gears | stepless | stepless | stepless | stepless | stepless |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 0,03-40/50 | 0,03-40/50 | 0,03-40/50 | 0,03-40/50 | 0,03-40/50 |
| Max. speed | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h | 40/50 km/h |
| Hydr. flow l/min | 175 l/min | 175 l/min | 175 l/min | 175 l/min | 175 l/min |
| Hydraulic pressure | 200 bar | 200 bar | 200 bar | 200 bar | 200 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 12000 kg | 12000 kg | 12000 kg | 12000 kg | 12000 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 11.5 | 11.5 | 11.5 | 11.5 | 11.5 |
| Front tyres 4WD | 600/70R30 | 600/65R34 | 600/65R34 | 600/65R34 | 600/65R34 |
| Rear tyres 4WD | 650/85R38 | 710/75R42 | 710/75R42 | 710/75R42 | 710/75R42 |
| Weight 4WD | 10500 kg | 10500 kg | 10500 kg | 10500 kg | 10500 kg |
| Height with cab | 338 cm | 338 cm | 338 cm | 338 cm | 338 cm |
| Length (2WD/4WD) | 567 cm | 567 cm | 567 cm | 567 cm | 567 cm |
| Wheelbase (2WD/4WD) | 311 cm | 311 cm | 311 cm | 311 cm | 311 cm |
| Fuel tank | 580 l | 580 l | 590 l | 580 l | 580(+AB51) l |
| Cab noise level | 71 dB | 71 dB | 71 dB | 71 dB | 71 dB |
| Solid cab | x | x | x | x | x |
| Diff. lock | disc lock | disc lock | disc lock | disc lock | disc lock |
| Autom. differential locks | x | x | x | x | x |
| Air suspension seat | x | x | x | x | x |
| Air conditioning | x | x | autom. | autom. | autom. |
| Creeper gear | x | x | x | x | x |
