Siirry sivupalkkiinSiirry alaosaanValtra N123-N163 Versu/Direct

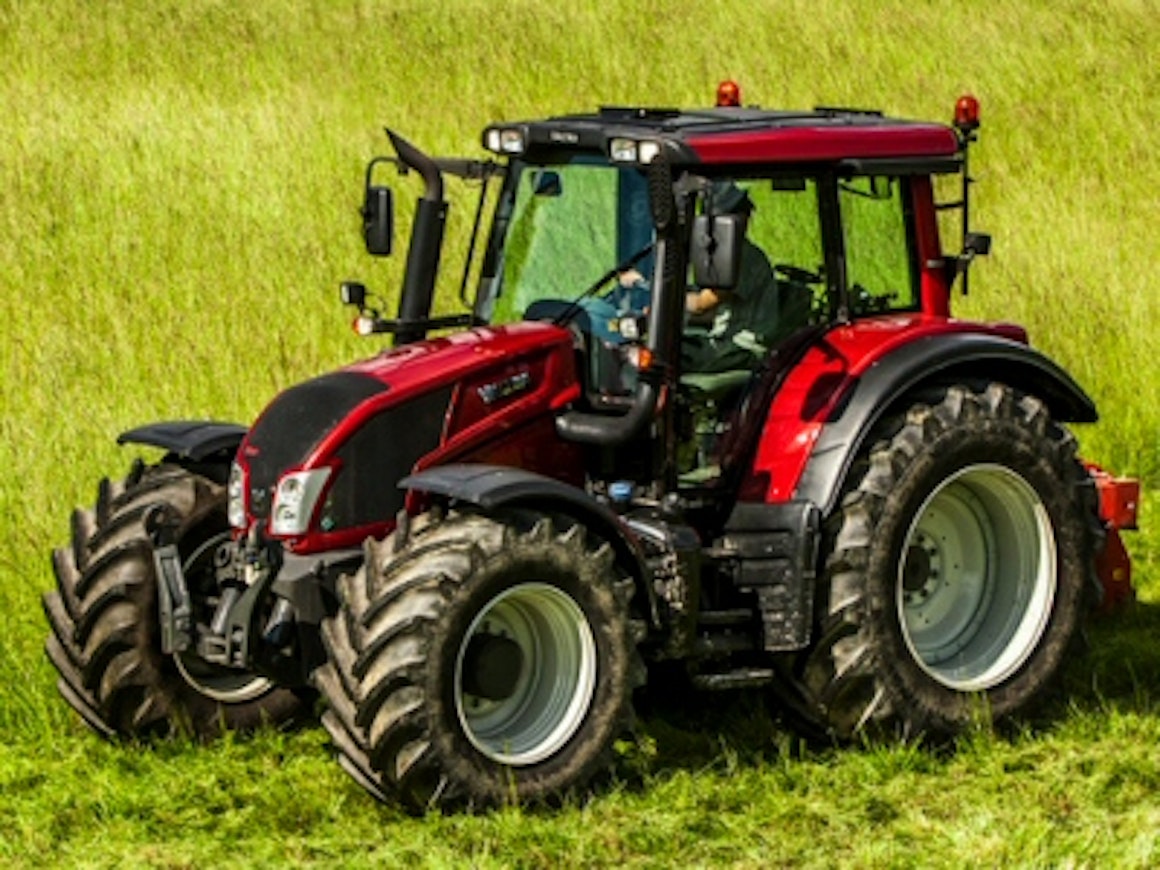

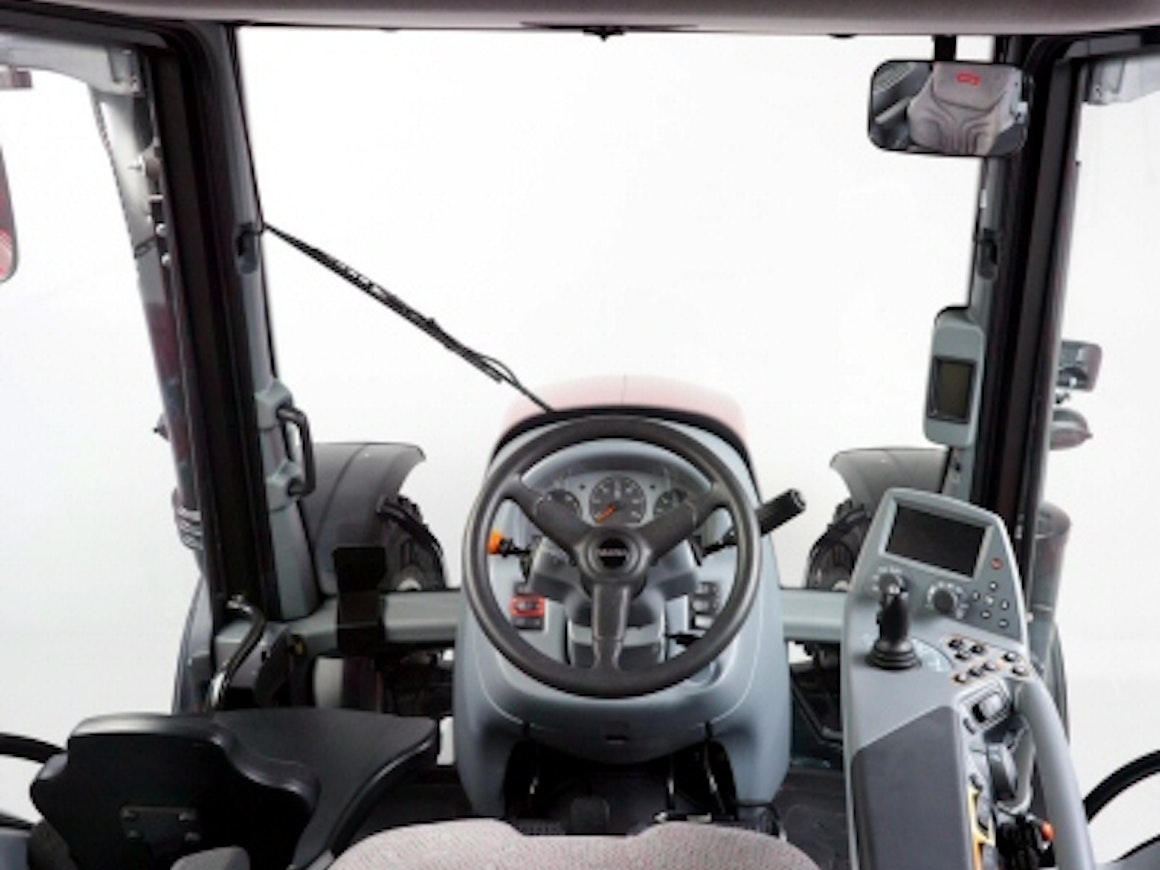

The N-Series Versu and Direct models were redesigned for 2012. Up front there were now four headlights, and the chassis was modified so the wheels could turn more sharply. The wheelbase was 10 cm longer. The engines were 4.9 liters and equipped with urea injection, i.e. SCR technology. The N163 was the new flagship model and, at its debut, the most powerful four-cylinder in the world. Despite its larger displacement, the N123 produced slightly less power and 50 Nm less torque than before. Noise levels were now specified only as “under 70 dB.” In the 40 km/h EcoSpeed version, 40 km/h was reached at 1,750 rpm. The hydraulics were electrically controlled, with the hydraulic oil reservoir separate from the transmission. The armrest featured a color display. Headland automation could now store programs for 30 different implements.
This is an automated translation. Please report any issues in the translation.
| Model | Valtra N123 Versu | Valtra N143 Versu | Valtra N163 Versu | Valtra N123 Direct | Valtra N143 Direct | Valtra N163 Direct |
|---|---|---|---|---|---|---|
| Manufacturer name | Valtra | Valtra | Valtra | Valtra | Valtra | Valtra |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 2011-16 | 2011-16 | 2011-16 | 2011-16 | 2011-16 | 2011-16 |
| Engine model | 49AWI | 49AWI | 49AWI | 49AWI | 49AWI | 49AWI |
| Cyl/Turbo/Intercooler | 4TI | 4TI | 4TI | 4TI | 4TI | 4TI |
| Displacement | 4912 cm³ | 4912 cm³ | 4912 cm³ | 4912 cm³ | 4912 cm³ | 4912 cm³ |
| Bore x stroke | 108×134 mm | 108×134 mm | 108×134 mm | 108×134 mm | 108×134 mm | 108×134 mm |
| Max power | - | - | - | - | - | - |
| Torque | - | - | - | - | - | - |
| Gears | 30+30 | 30+30 | 30+30 | 4+4 | 4+4 | 4+4 |
| Synchronized gears | 30+30 | 30+30 | 30+30 | 4+4 | 4+4 | 4+4 |

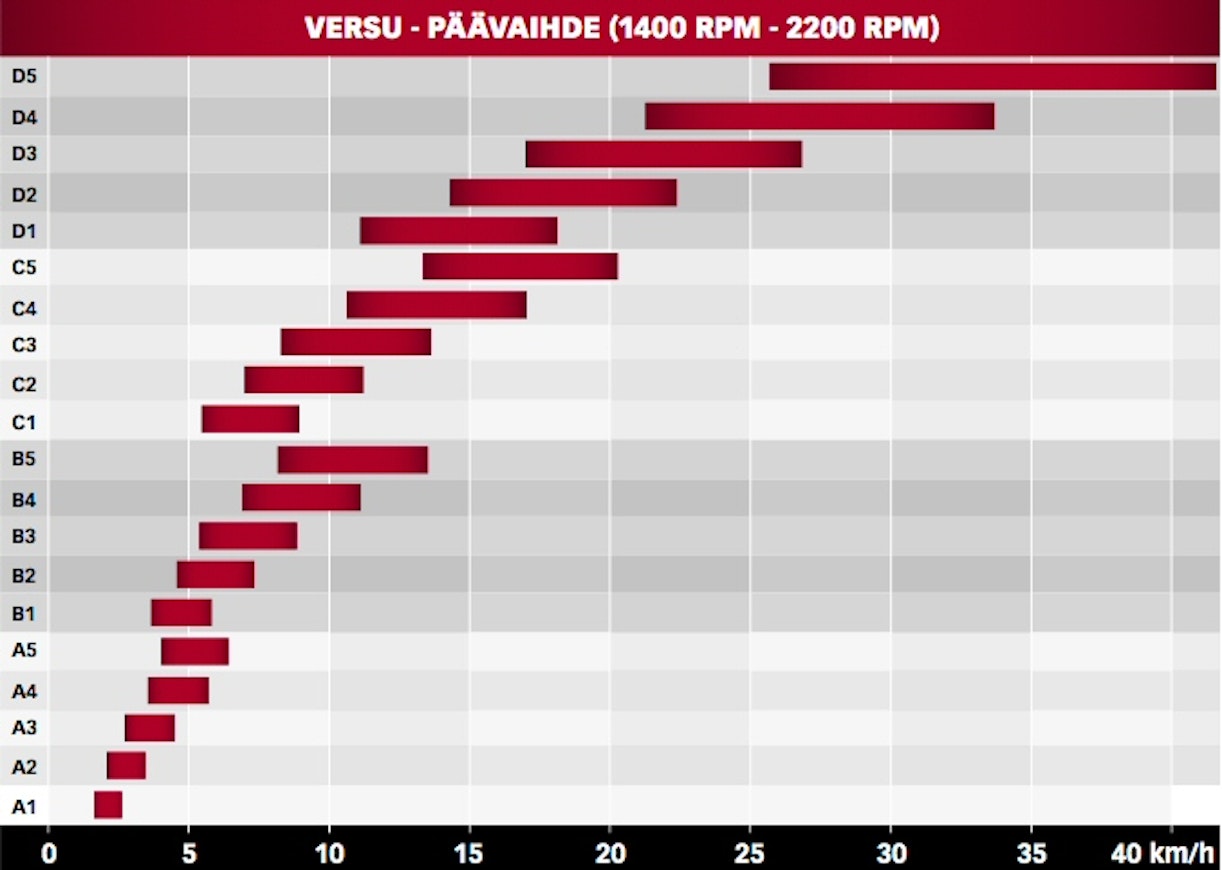

| Powershift gears | 5-step | 5-step | 5-step | stepless | stepless | stepless |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 0,8-40/50 | 0,8-40/50 | 0,8-40/50 | 0-40/50 | 0-40/50 | 0-40/50 |
| Max. speed | 43 (50) km/h | 43 (50) km/h | 43 (50) km/h | 43 (50) km/h | 43 (50) km/h | 43 (50) km/h |
| Hydr. flow l/min | 115 (160) l/min | 115 (160) l/min | 115 (160) l/min | 115 (160) l/min | 115 (160) l/min | 115 (160) l/min |
| Hydraulic pressure | 205 bar | 205 bar | 205 bar | 205 bar | 205 bar | 205 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 8100 kg | 8100 kg | 8100 kg | 8100 kg | 8100 kg | 8100 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 9 | 9 | 9 | 9 | 9 | 9 |
| Front tyres 4WD | 14.9R28 | 14.9R28 | 14.9R28 | 14.9R28 | 14.9R28 | 14.9R28 |
| Rear tyres 4WD | 18.4R38 | 18.4R38 | 18.4R38 | 18.4R38 | 18.4R38 | 18.4R38 |
| Weight 4WD | 5450 kg | 5450 kg | 5600 kg | 5450 kg | 5450 kg | 5600 kg |
| Height with cab | 295 cm | 295 cm | 295 cm | 295 cm | 295 cm | 295 cm |
| Length (2WD/4WD) | 466 cm | 466 cm | 466 cm | 466 cm | 466 cm | 466 cm |
| Wheelbase (2WD/4WD) | 267 cm | 267 cm | 267 cm | 267 cm | 267 cm | 267 cm |
| Fuel tank | 230(+AB27) l | 230(+AB27) l | 230(+AB27) l | 230(+AB27) l | 230(+AB27) l | 230(+AB27) l |
| Solid cab | x | x | x | x | x | x |
| Diff. lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock |
| Autom. differential locks | x | x | x | x | x | x |
| Air suspension seat | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x |
