Siirry sivupalkkiinSiirry alaosaanValtra A65-A95






In the autumn of 2002, a new step was seen once again in the series of minor updates to Valtra's small series. Following the pattern of larger new models, the tractor was now named the A series. The biggest innovation was a 12+12 directional shuttle gearbox. The mechanical shuttle lever could be positioned either on the right or left side. As an optional accessory, a push-button clutch was available. Along with the transmission change, smaller gears were introduced, but the road speed decreased to 37 km/h. The old 16+8 quick-shift gearbox was still available.

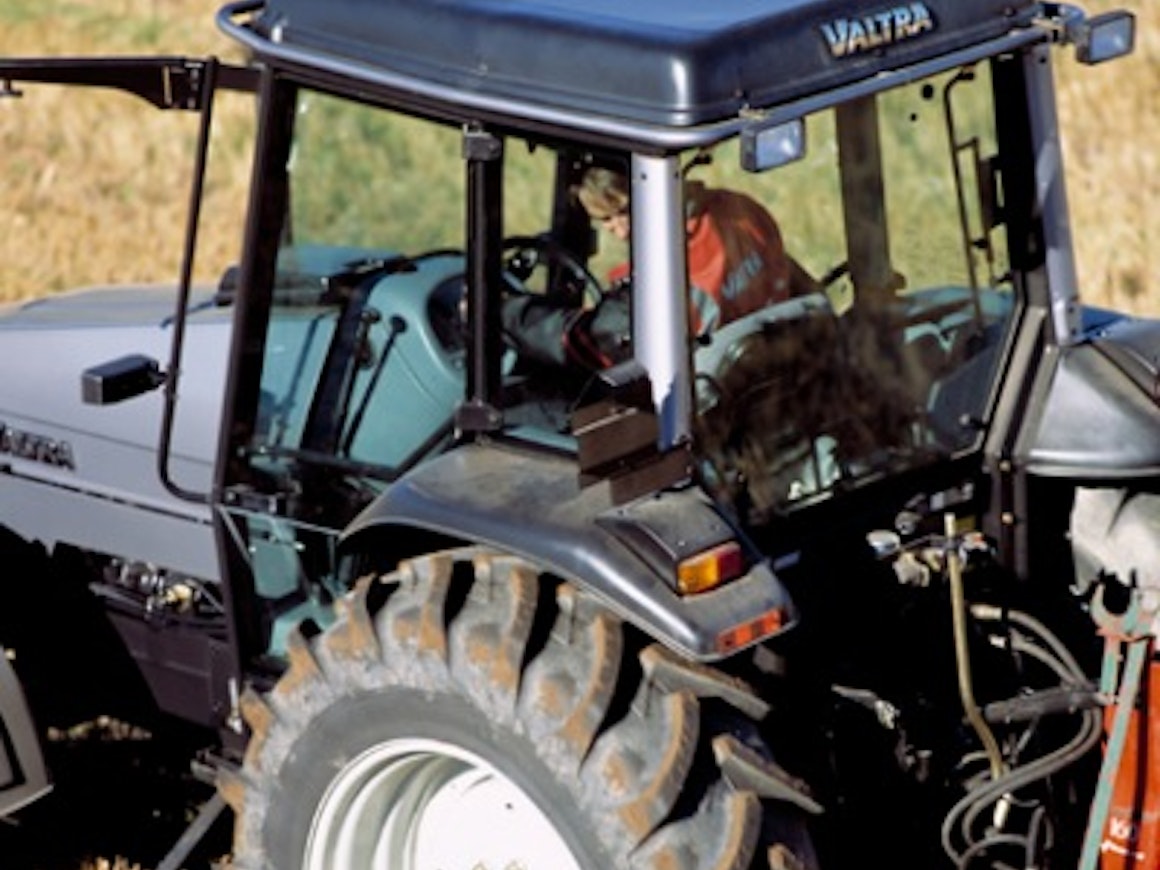

The cab was as basic as before, but somewhat quieter than earlier models (80-81.5 dB). The brakes were now hydraulic, and as a result, a trailer brake valve became available as an optional accessory. However, the four-wheel drive and power take-off clutches were still mechanical, and the four-wheel drive did not engage during braking as it does in other tractors. These updates were only introduced in the next revision in autumn 2004.
This is an automated translation. Please report any issues in the translation.
| Model | Valtra A65 | Valtra A75 | Valtra A85 | Valtra A95 |
|---|---|---|---|---|
| Manufacturer name | Valtra | Valtra | Valtra | Valtra |
| Imported to Finland | Yes | Yes | Yes | Yes |
| Years | 2002-04 | 2002-04 | 2002-04 | 2002-04 |
| Engine model | 320 DE | 320 DSRE | 420 DSRE | 420 DSRE |
| Cyl/Turbo/Intercooler | 3 | 3T | 4T | 4T |
| Displacement | 3300 cm³ | 3300 cm³ | 4400 cm³ | 4400 cm³ |
| Bore x stroke | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm |
| Rated power | - | - | - | - |
| Torque | - | - | - | - |
| Gears | 12+12 | 12+12 | 12+12 | 12+12 |
| Synchronized gears | 12+12 | 12+12 | 12+12 | 12+12 |
| Powershift gears | 16-8 opt. | 16-8 opt. | 16-8 opt. | 16-8 opt. |
| Reverser | mech. | mech. | mech. | mech. |
| Speeds in km/h | 0,8-35 | 0,9-37 | 0,9-37 | 0,9-37 |
| Hydr. flow l/min | 37 l/min | 37 l/min | 52 l/min | 52 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 190 bar | 190 bar |
| Lift controls | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) |
| Lift capacity | 2800 kg | 2800 kg | 3300 kg | 3300 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 7 | 7 | 7.2 | 7.2 |
| Turning circle m 4WD | 8.4 | 8.4 | 8.4 | 8.4 |
| Front tyres 2WD | 10.00-16 | 10.00-16 | 10.00-16 | 10.00-16 |
| Front tyres 4WD | 12.4R24 | 13.6R24 | 13.6R24 | 13.6R24 |
| Rear tyres 2WD | 16.9R30 | 16.9R30 | 16.9R30 | 16.9R30 |
| Rear tyres 4WD | 16.9R30 | 16.9R34 | 16.9R34 | 16.9R34 |
| Weight 4WD | 3390 kg | 3440 kg | 3540 kg | 3590 kg |
| Height with cab | 260 cm | 261/266 cm | 261/266 cm | 261/266 cm |
| Length (2WD/4WD) | 375/386 cm | 375/386 cm | 388/404 cm | 388/404 cm |
| Wheelbase (2WD/4WD) | 211/226 cm | 211/226 cm | 224/239 cm | 224/239 cm |
| Fuel tank | 79 l | 79 l | 79 l | 79 l |
| Cab noise level | 80 dB | 80 dB | 81.5 dB | 80 dB |
| Solid cab | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock |
| Creeper gear | opt. | opt. | opt. | opt. |
| Weight 2WD | - | 3180 kg | 3260 kg | 3260 kg |
