Siirry sivupalkkiinSiirry alaosaanValmet/Valtra 600-900






The Valmet 100 series, introduced in the autumn of 1997, is one of the best examples in the tractor world of how small but continuous improvements can keep an outdated model up to date with development. The lineup was updated every few years enough to maintain the interest of buyers looking for an affordable solution. The 100 series itself was a sales success, even though competitors offered models with features like a shuttle gearbox and a quiet cabin for the same money. It is also interesting that competitors only began to bring similar basic models equipped with pedals through the floor to the Finnish market in the early 2000s.

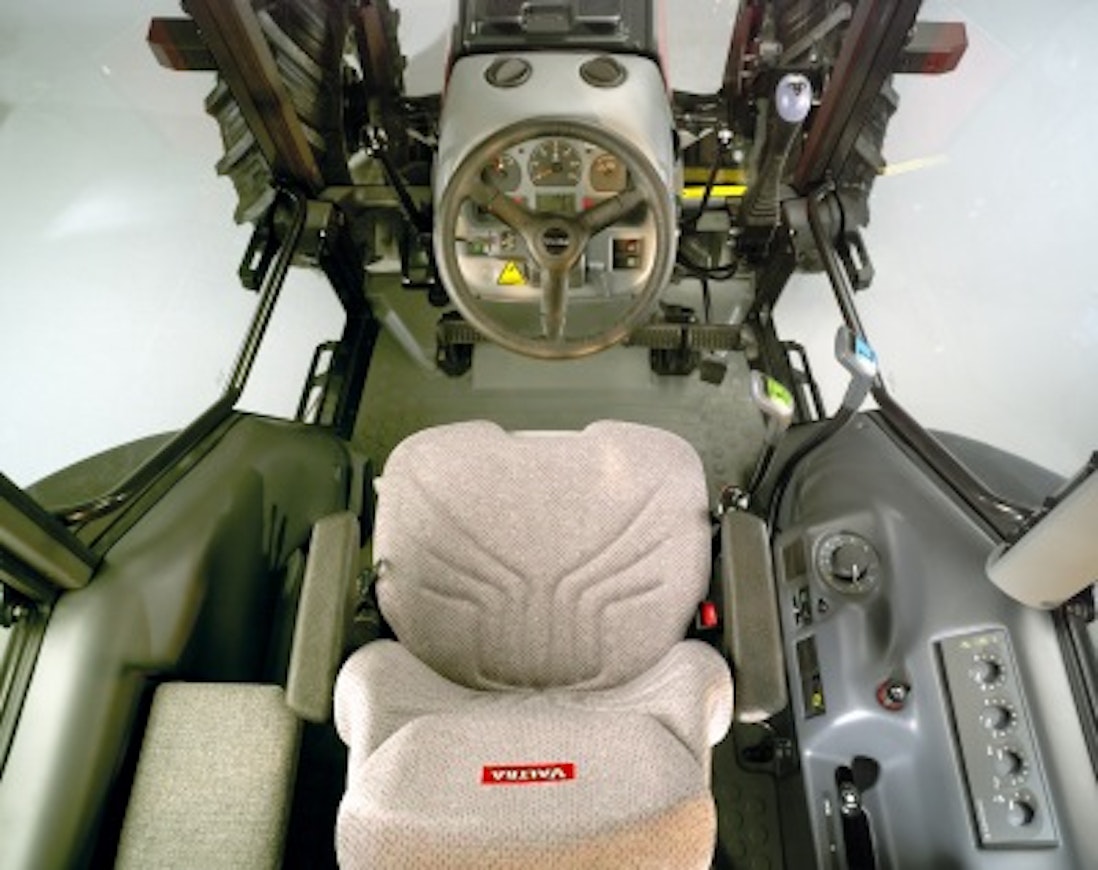

The improvements introduced in the 865 model were expanded across the entire 100 series, including the redesigned cabin, reinforced rear axle, and lifting capacity increased to 3.3 tons with auxiliary cylinders (standard on the 800/900 models). New were the quick shift and an additional heater mounted on the roof—these were standard on the 900. The lineup was now quite clear: naturally aspirated three-cylinder 600, turbocharged three-cylinder 700, naturally aspirated four-cylinder 800, and turbocharged four-cylinder 900. The four-cylinder models had a distributor pump and a muffler placed under the engine hood. New optional equipment included a push-button clutch and an auxiliary fuel tank that increased fuel capacity to just over one hundred liters. The weight had increased by about 350 kilos compared to before.
In 2001, the engines were equipped with an electronic injection pump, and the 800 model was also fitted with a turbo. The torque of the four-cylinder engines increased, and the noise level of all models was reduced to 81 decibels.
This is an automated translation. Please report any issues in the translation.
| Model | Valmet 600 | Valmet 700 | Valmet 800 | Valmet 800 | Valmet 900 | Valmet 900 |
|---|---|---|---|---|---|---|
| Manufacturer name | Valmet | Valmet | Valmet | Valmet | Valmet | Valmet |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 1997-02 | 1997-02 | 1997-01 | 2001-02 | 1997-01 | 2001-02 |
| Engine model | 320 D/DE | 320 DS/DSRE | 420 DR | 420 DSRE | 420 DSR | 420 DSRE |
| Cyl/Turbo/Intercooler | 3 | 3T | 4 | 4T | 4T | 4T |
| Displacement | 3300 cm³ | 3300 cm³ | 4400 cm³ | 4400 cm³ | 4400 cm³ | 4400 cm³ |
| Bore x stroke | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm | 108×120 mm |
| Rated power | 60/2270 hp DIN/rpm | 70/2270 hp DIN/rpm | 80/2270 hp DIN/rpm | 80/2270 hp DIN/rpm | 90/2270 hp DIN/rpm | 90/2270 hp DIN/rpm |
| Torque | - | - | - | - | - | - |
| Gears | 8+4 | 8+4 | 8+4 | 8+4 | 16+8 | 16+8 |
| Synchronized gears | 8+4 | 8+4 | 8+4 | 8+4 | 16+8 | 16+8 |
| Powershift gears | opt. | opt. | opt. | opt. | hydr. | hydr. |
| Speeds in km/h | 3,8-37,5 | 4,1-40,2 | 4,1-40,2 | 4,1-40,2 | 3,5-40,2 | 3,5-40,2 |
| Max. speed | 40.8 km/h | 43.7 km/h | 43.7 km/h | 43.7 km/h | 43.7 km/h | 43.7 km/h |
| Hydr. flow l/min | 37 l/min | 37 l/min | 52 l/min | 52 l/min | 52 l/min | 52 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 190 bar | 190 bar | 190 bar | 190 bar |
| Lift controls | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) |
| Lift capacity | 2800 kg | 2800 kg | 3300 kg | 3300 kg | 3300 kg | 3300 kg |
| PTO speeds | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 | 540/750 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 7 | 7 | 7.2 | 7.2 | 7.2 | 7.2 |
| Turning circle m 4WD | 9.2 | 9.2 | 9.6 | 9.6 | 9.6 | 9.6 |
| Front tyres 2WD | 10.00-16 | 10.00-16 | 10.00-16 | 10.00-16 | 10.00-16 | 10.00-16 |
| Front tyres 4WD | 12.4R24 | 13.6R24 | 13.6R24 | 13.6R24 | 13.6R24 | 13.6R24 |
| Rear tyres 2WD | 16.9R30 | 16.9R34 | 16.9R34 | 16.9R34 | 16.9R34 | 16.9R34 |
| Rear tyres 4WD | 16.9R30 | 16.9R34 | 16.9R34 | 16.9R34 | 16.9R34 | 16.9R34 |
| Weight 2WD | 3160 kg | 3210 kg | 3330 kg | 3330 kg | 3360 kg | 3360 kg |
| Weight 4WD | 3390 kg | 3440 kg | 3560 kg | 3560 kg | 3590 kg | 3590 kg |
| Height with cab | 266 cm | 266 cm | 268/270 cm | 268/270 cm | 268/270 cm | 268/270 cm |
| Length (2WD/4WD) | 375/386 cm | 375/386 cm | 388/404 cm | 388/404 cm | 388/404 cm | 388/404 cm |
| Wheelbase (2WD/4WD) | 211/226 cm | 211/226 cm | 224/239 cm | 224/239 cm | 224/239 cm | 224/239 cm |
| Fuel tank | 73 l | 73 l | 73 l | 73 l | 73 l | 73 l |
| Cab noise level | 83/81 dB | 83/81 dB | 83 dB | 81 dB | 83 dB | 81 dB |
| Solid cab | x | x | x | x | x | x |
| Diff. lock | friction lock | friction lock | friction lock | friction lock | friction lock | friction lock |
| Creeper gear | opt. | opt. | opt. | opt. | opt. | opt. |
