In the bright yellow 1979 model range, the power of the 1102 increased to 107 horsepower with the extended stroke. The parallel model 1103 featured, among other things, Hi-Trac (a mechanical downshift quick gear) and quick clutches as standard. Unlike the smaller models, the front axle was a NAF.

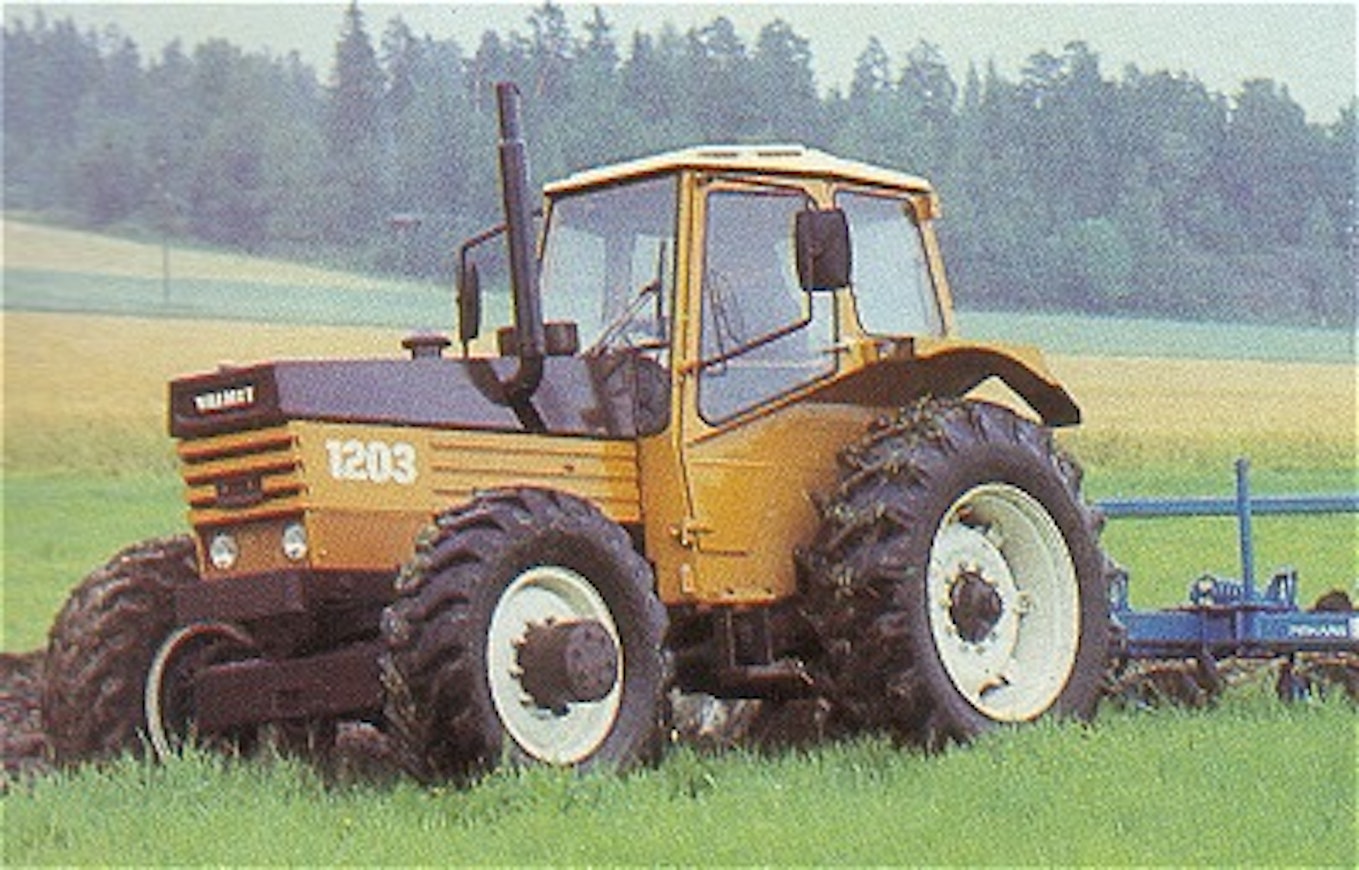

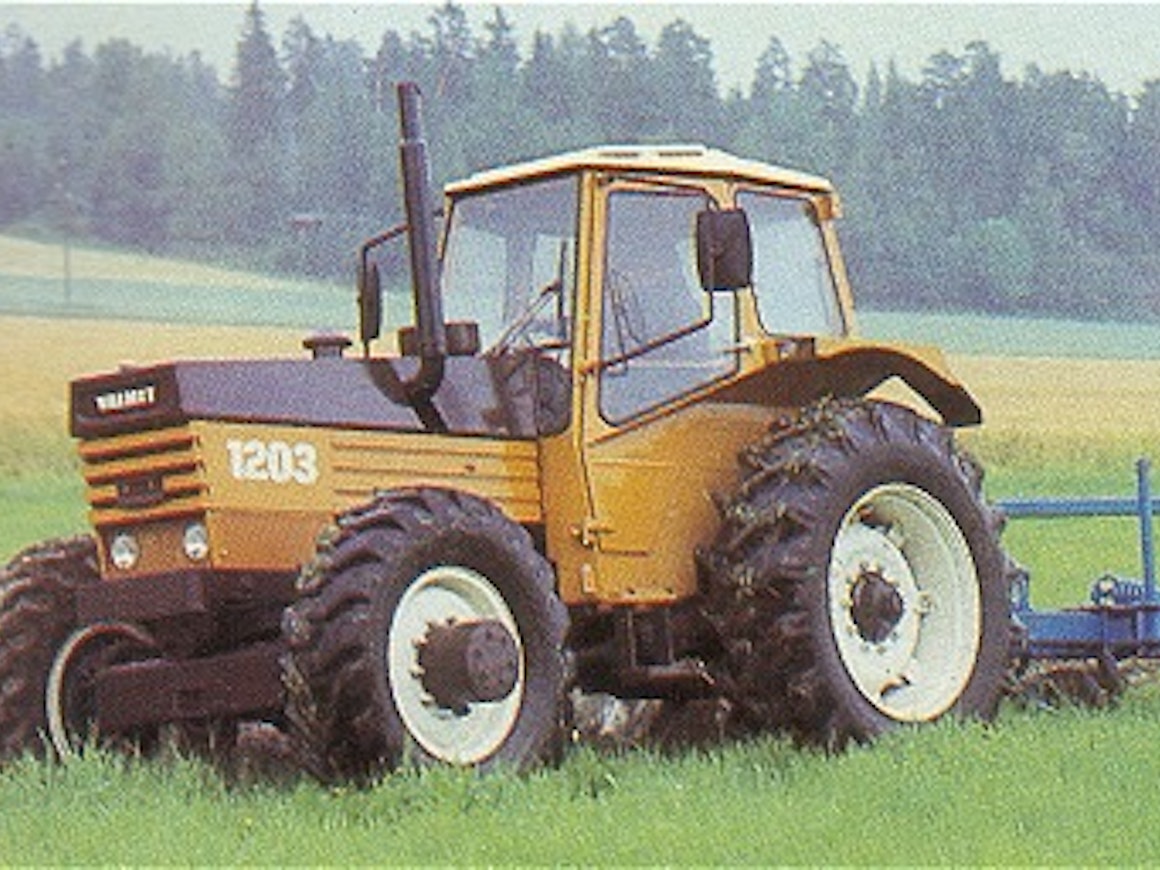

At the end of 1980, the 1102/1103 was replaced by the 1203, which had a quick-responding Comprex supercharger. The engine, known for its distinctive whistle, had a power output of 110 hp. More significant than the increase in maximum power were the good torque characteristics. Besides the sound, the 1203 can be distinguished by its extended front end due to an additional fuel tank. With the 1102-1203 models, Valmet also tried to penetrate peat bog areas with Vapo versions. The 1203 remained in production for a while even after the introduction of the red Volvo BM Valmet series, while waiting for the launch of the 905.

This is an automated translation. Please report any issues in the translation.

Valmet 1102

malli

hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Rated power

Max power

Torque

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

sylinterien lukumäärä

iskutilavuus

iskusuhde

suurin vääntömomentti, nm

suurin vääntömomentti, r/min

vääntömomentin nousu

polttonesteen kulutus suurimman tehon pisteessä

kytkimen tyyppi

ajovoimanotto

nopeus eteenpäin moottorin nimellisnopeudella, pienin

nopeus eteenpäin moottorin nimellisnopeudella, suurin

jarrut

hydrauliikan suurin paine

hydrauliikan suurin tuotto

nostolaitehydrauliikan hallinta

ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

nostovoima (kn=100 kg)

hydrauliikan tyyppi

kääntöympyrän halkaisija ilman ohjausjarrua

eturenkaat

takarenkaat

kokonaismassa säiliöt täynnä vakiovarustein

etuakselipaino

taka-akselipaino

suurin korkeus (ohjaamon ylimpään kohtaan)

kokonaispituus

akseliväli

maavara, pienin

polttoainesäiliön tilavuus

korkein melutaso

etuakselin tasauspyörästön lukko

etunostolaite

etulokasuojat

ilmastointilaite

perävaunun jarruventtiili

ilmaistuin

ohjauksen tyyppi

Valmet 1103

Valmet 1203

Valmet 1102-1203

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Valmet 1102	Valmet 1103	Valmet 1203
Manufacturer name	Valmet	Valmet	Valmet
Imported to Finland	Yes	Yes	Yes
Years	1979-80	1979-80	1980-83
Engine model	411 CS	411 CS	411 CX
Cyl/Turbo/Intercooler	4T	4T	4PA
Displacement	4400 cm³	4400 cm³	4400 cm³
Bore x stroke	108×120 mm	108×120 mm	108×120 mm
Rated power	107/2300 hp DIN/rpm	107/2300 hp DIN/rpm	110/2300 hp DIN/rpm
Torque	-	-	-
Gears	8+2	16+4	16+4
Synchronized gears	8+2	16+4	16+4
Powershift gears	opt.	mech.	mech.
Speeds in km/h	3,2-31,3	2,3-31,3	2,6-31,7
Max. speed	34 km/h	34 km/h	33 km/h
Hydr. flow l/min	35 l/min	35 l/min	37 l/min
Lift controls	mech.	mech.	mech.
Lift capacity	3230 kg	3230 kg	3230 kg
PTO speeds	540/1000/ajo	540/1000/ajo	540/1000/ajo
Brakes	dry disc	dry disc	dry disc
Steering	hydrost.	hydrost.	hydrost.
Turning circle m 2WD	8.6	8.6	8.6
Turning circle m 4WD	12.4	12.4	12.7
Front tyres 2WD	9,00-20	9,00-20	9,00-20
Front tyres 4WD	14.9-24	14.9-24	14.9-24
Rear tyres 2WD	18,4-34	18,4-34	18,4-34
Rear tyres 4WD	18.4-34	18.4-34	18.4-34
Weight 2WD	4050 kg	4100 kg	4200 kg
Weight 4WD	4680 kg	4730 kg	4830 kg
Height with cab	262 cm	262 cm	260/265 cm
Length (2WD/4WD)	391/417 cm	391/417 cm	416/422 cm
Wheelbase (2WD/4WD)	234/245 cm	234/245 cm	234/245 cm
Fuel tank	90 l	90 l	143 l
Cab noise level	85 dB	85 dB	84 dB
Solid cab	x	x	x
