Ursus C-4011 / C-350 – C-362

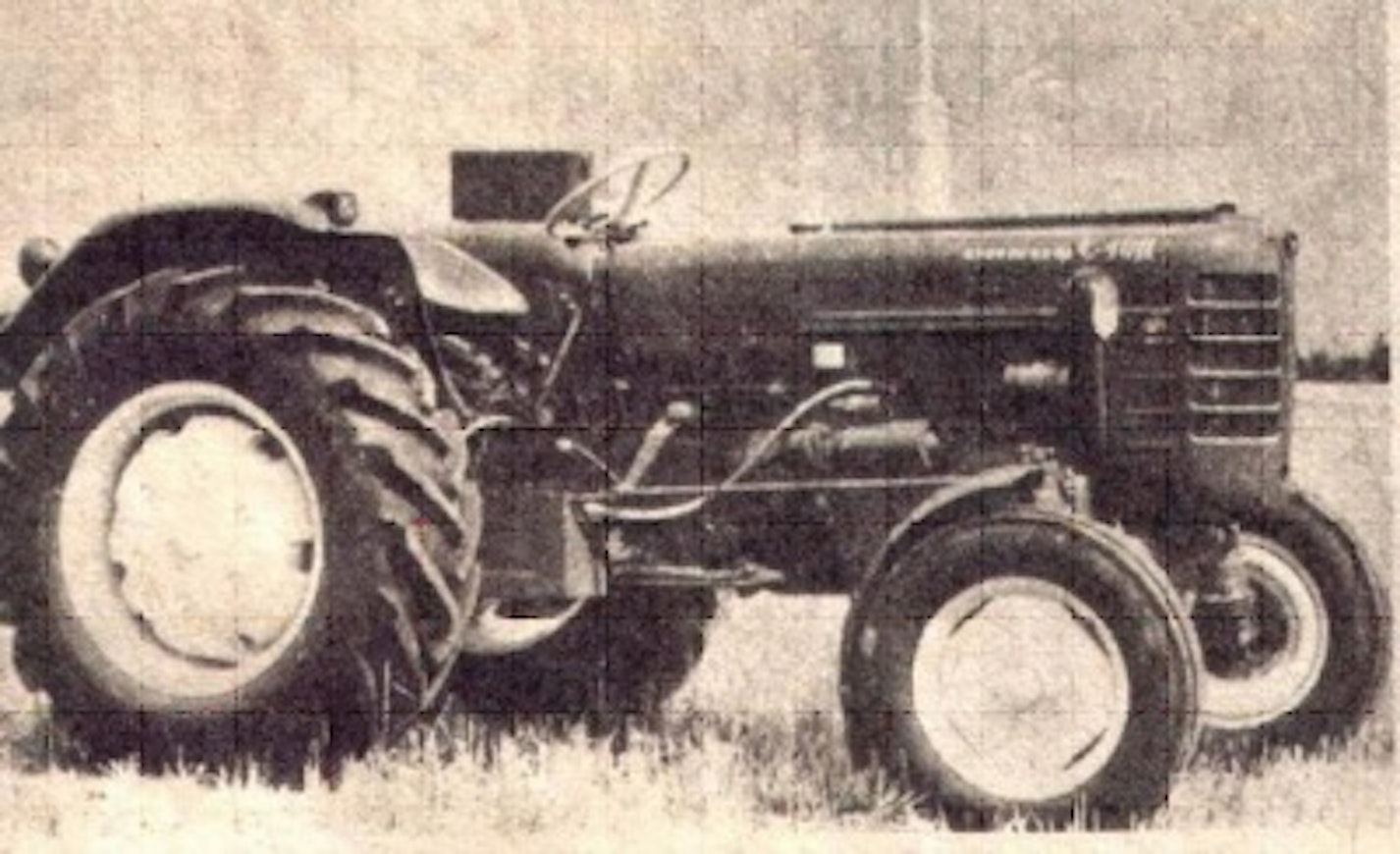

65UrsusC-4011

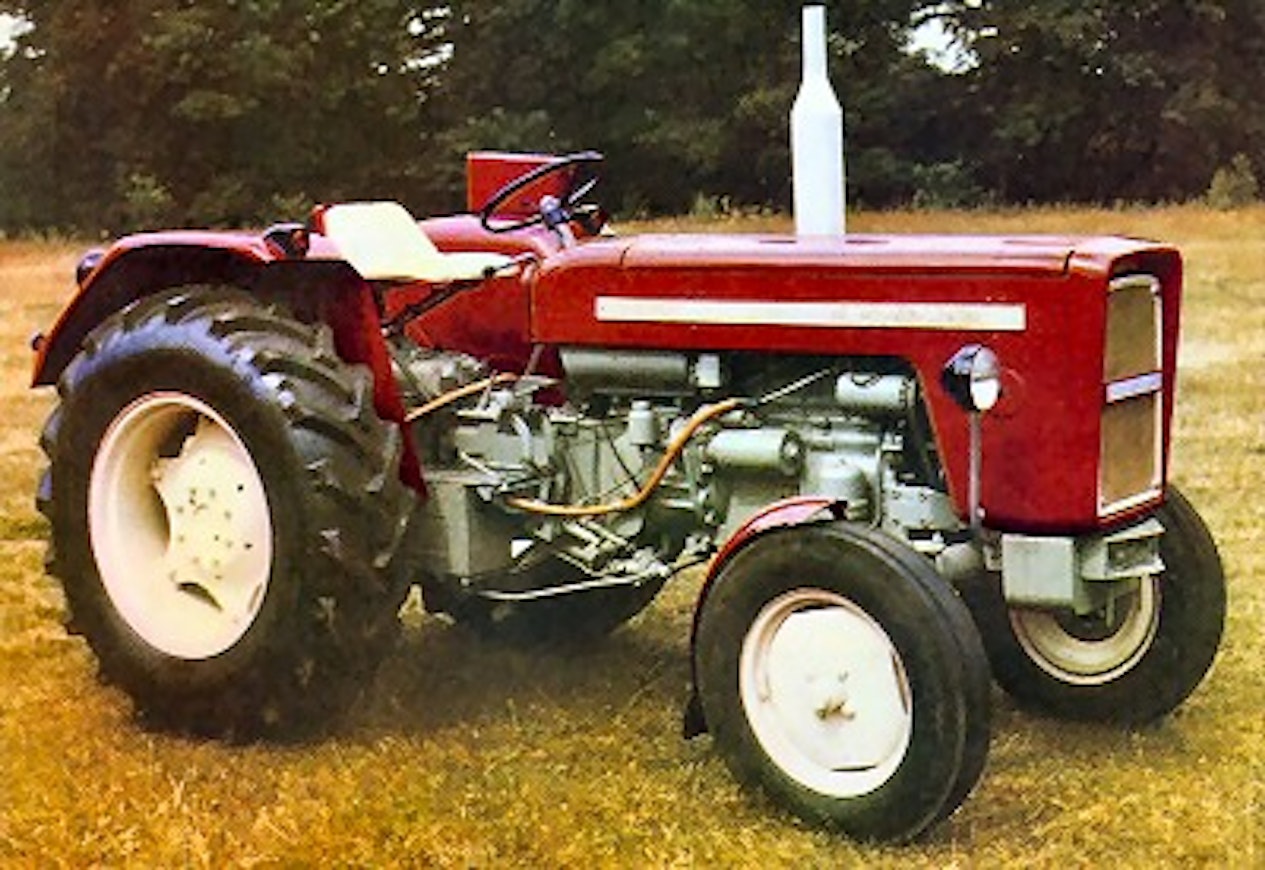

72UrsusC-355

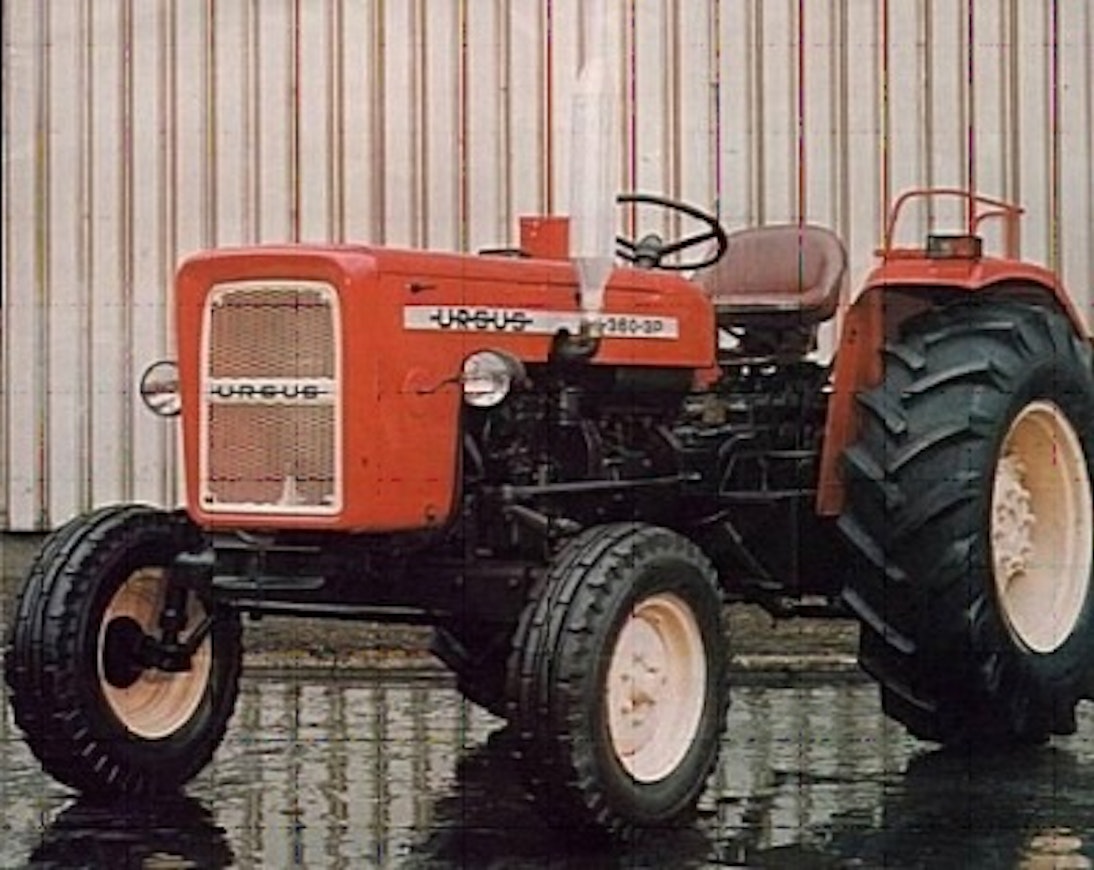

81UrsusC360-3P

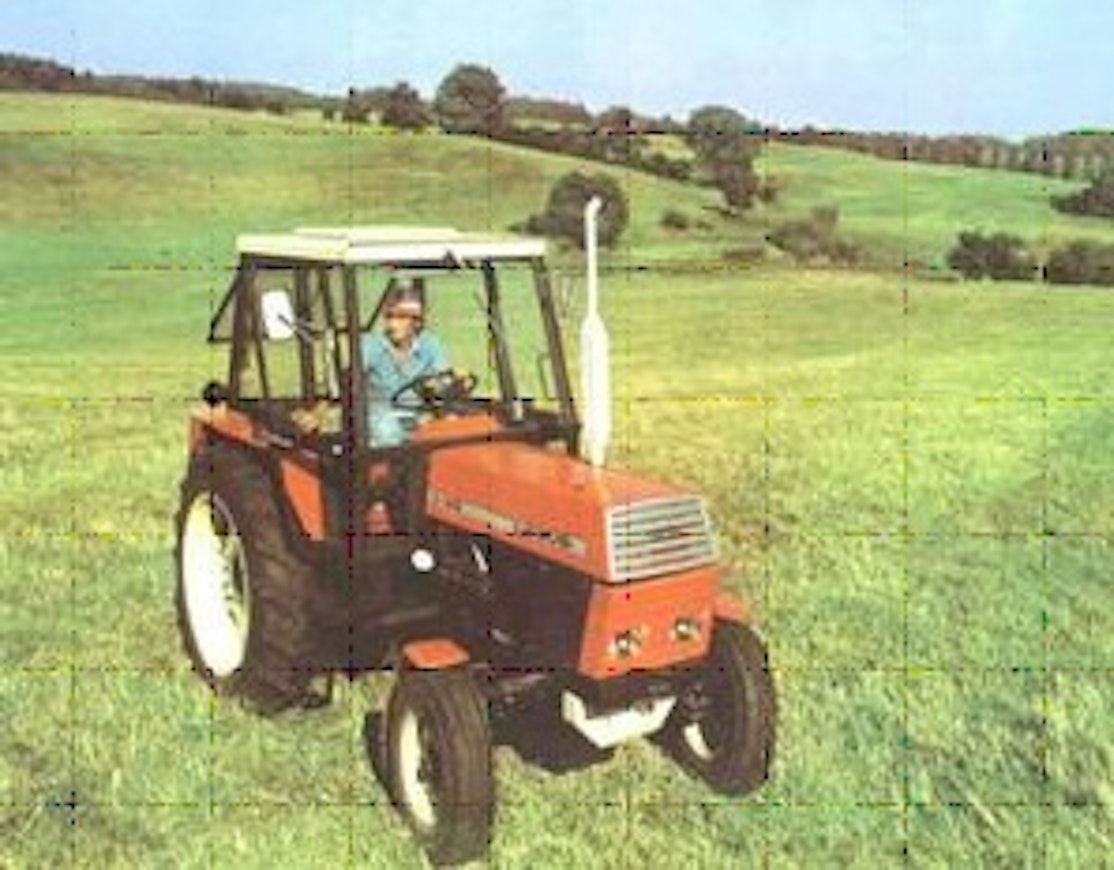

83UrsusC-362
65UrsusC-4011
72UrsusC-355
81UrsusC360-3P
83UrsusC-362
Manufacturer
Models
Ursus C-4011, Ursus C-350, Ursus C-355, Ursus C-355M, Ursus C-360, Ursus C-360, Ursus C-360 3P, Ursus C-362
Years
1965-93
Info

C-4011 (1965-71) and its export model C-350 were Zetor 4011 models manufactured under license. The C-355 applied the technology of the Zetor 5511. The successor to the C-355 was the 52-horsepower C-360, which was produced until 1993. Eventually, it was equipped with a 3-cylinder Perkins (47 hp), in which case the model designation was C-360 3p. The C-362, in turn, was technically equivalent to the C-360, but its design resembled the larger Ursus models, except that the cabin was taken from Zetor. In other later models, the cabin with its slanted doors resembled the larger Ursus tractors.

Small Ursus tractors were exported to many Western countries, but they were never brought closer than Sweden. Alongside the C-series models, MF-based models appeared in the early 1980s, but especially in the domestic market, the cheaper older models continued to sell better for a long time.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelUrsus C-4011Ursus C-350Ursus C-355Ursus C-355MUrsus C-360Ursus C-360Ursus C-360 3PUrsus C-362
Options
Manufacturer nameUrsusUrsusUrsusUrsusUrsusUrsusUrsusUrsus
Imported to FinlandNoNoNoNoNoNoNoNo
Years1965-70?-19701970-751975-76?-19761976-871981-931980-87
First year sold1965-19701975-197619811980
Last year sold19701970197519761976198719931987
Engine modelS-4001S-4001S-4002S-4002S-4003S-4003AD3.152URS-4003
Cyl/Turbo/Intercooler44444434
Displacement3120 cm³3120 cm³3120 cm³3120 cm³3120 cm³3120 cm³2502 cm³3120 cm³
Bore x stroke95×110 mm95×110 mm95×110 mm95×110 mm95×110 mm95×110 mm91,44×127 mm95×110 mm
Rated power hp/rpm DIN45/200045/200045/200045/200052/220052/220047/225052-56/2200
Rated power45454545525247-
Rated speed20002000200020002200220022502200
Torque Nm/rpm DIN180/1500180/1500175/1500175/1500190/1500190/1500165/1400186/1500
Gears10+210+210+210+210+210+210+210+2
Speeds in km/h1,1-25,61,1-25,61,1-25,61,0-231,1-25,61,1-25,41,2-26,11,1-25,4
Max. speed -------27.7 km/h
Hydr. flow l/min20 l/min20 l/min20 l/min20 l/min20 l/min20 l/min21.5 l/min20 l/min
Hydraulic pressure150 bar150 bar150 bar150 bar150 bar150 bar150 bar160 bar
Lift controlsmech.mech.mech.mech.mech.mech.mech.mech.
Lift capacity1200 kg1200 kg1200 kg1200 kg1200 kg1200 kg1200 kg1200 kg
PTO speeds540/ajo540/ajo540/ajo540/ajo540/ajo540/ajo540/ajo540/ajo
Brakeshydr. vannej.hydr. vannej.hydr. vannej.hydr. vannej.hydr. vannej.hydr. vannej.hydr. vannej.hydr. vannej.
Steeringmech.mech.mech.mech.mech.mech.mech.power
Turning circle m 2WD-6.87.747.747---
Front tyres 2WD6.00-186.00-186.00-186.00-186.00-166.00-166.00-167.50-16
Rear tyres 2WD14.9-2814.9-2814.9-2814.9-2816.9-2814.9-2814.9-2812.4-36
Weight 2WD(2100) kg(2190) kg(2000) kg(2000) kg(2190) kg(2100) kg(2056) kg2635 kg
Height with cab223 cm206 cm205 cm205 cm206 cm205 cm205 cm-
Length (2WD/4WD)325 cm325 cm357 cm357 cm325 cm361 cm361 cm351 cm
Wheelbase (2WD/4WD)213 cm213 cm213 cm213 cm213 cm217 cm217 cm215 cm
Fuel tank70 l70 l70 l68 l70 l68 l68 l60 l
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information. There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed. Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
