Ursus 2812-6514

88Ursus3512
88Ursus4514
93Ursus4514
88Ursus3512
88Ursus4514
93Ursus4514
Manufacturer
Models
Ursus 2812, Ursus 3512/3514, Ursus 4512/4514, Ursus 4514, Ursus 5514 (4514 DL), Ursus 5312/5314, Ursus 5714, Ursus 6014, Ursus 6514
Years
1984-2011
Info

The cooperation agreement between Ursus and MF was signed in 1974. The first tractors were brought to market in 1984 and exported a couple of years later. The very old small 300-series Ursus tractors were still manufactured alongside the MF-based models until the early 1990s.

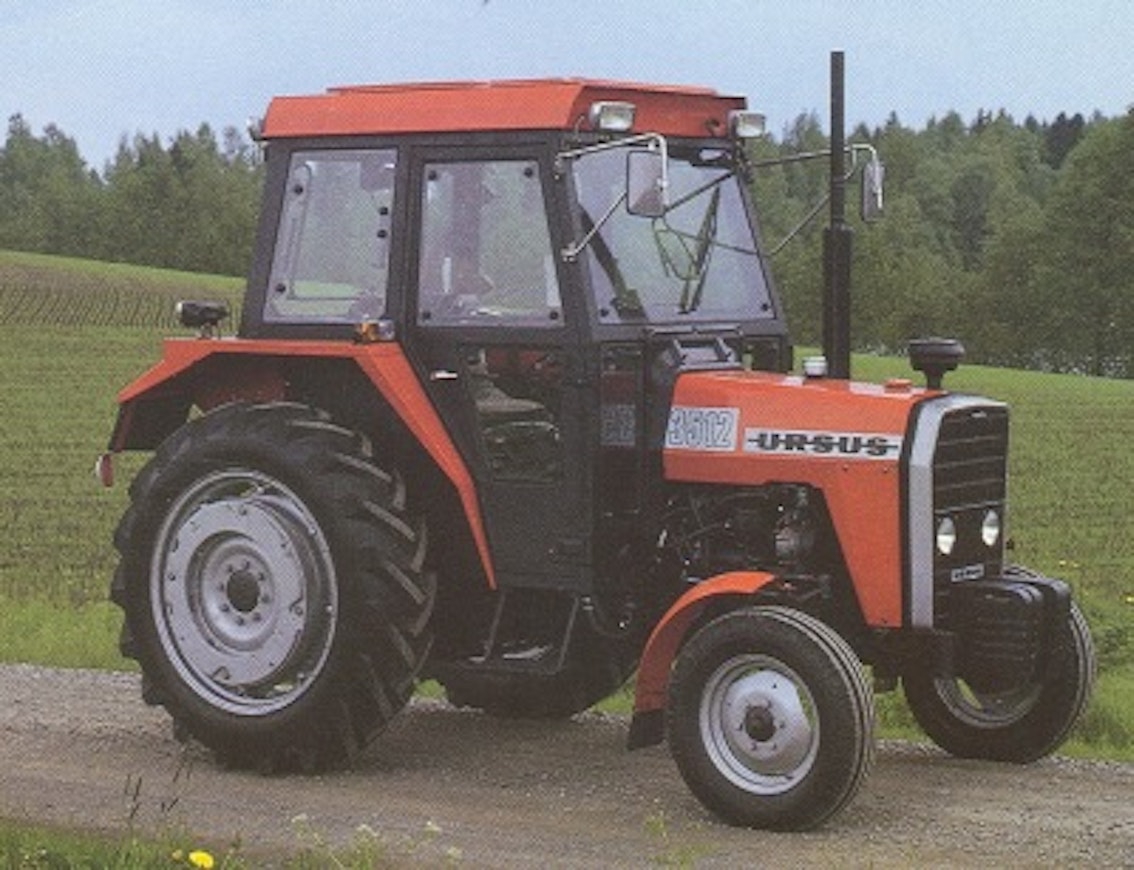

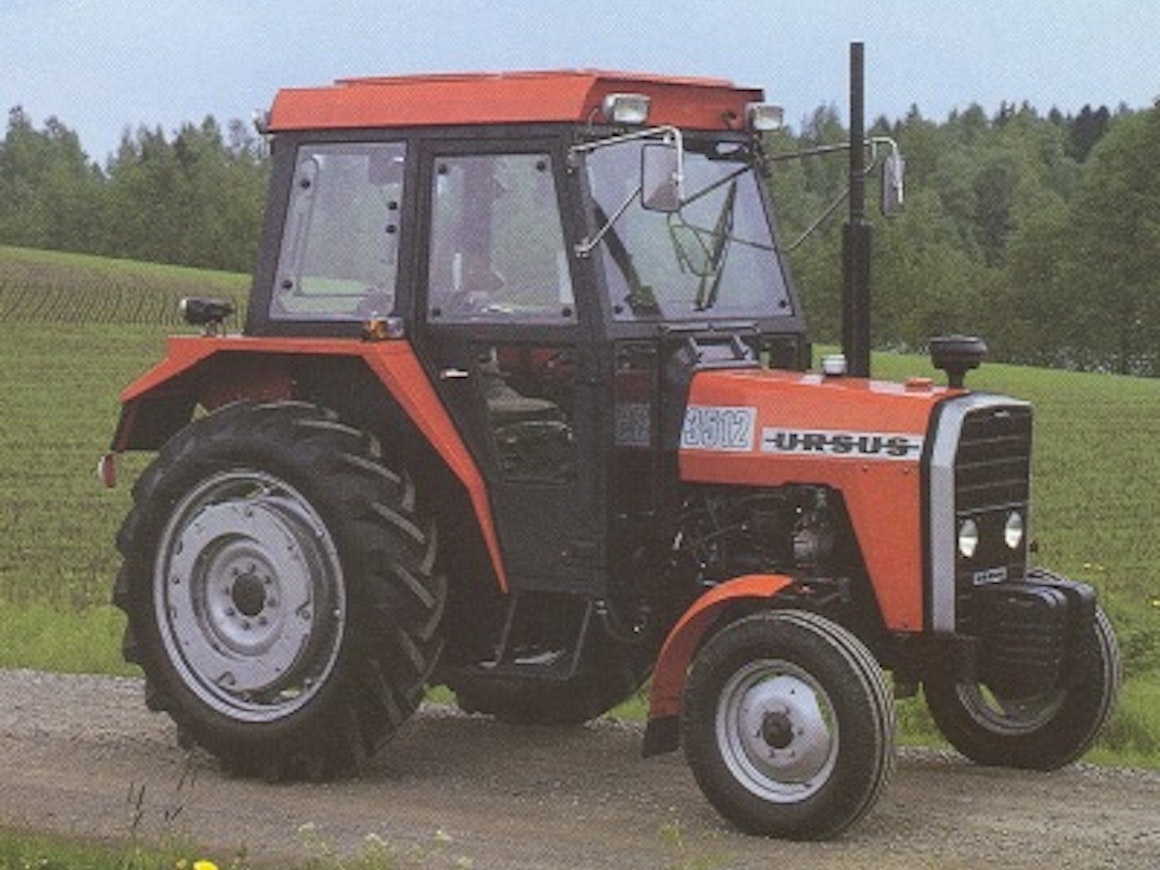

The Ursus 2812 corresponded to the MF model 235, and the 3512 corresponded to the MF 255. Both had the familiar 3-cylinder Perkins engine and an 8+2 transmission. The 3512 model with 47 horsepower was imported to Finland. The little Ursus’s cab was quite basic. Alongside these models, there were narrow, cabless models 2802, 3502, and 4502 designed for fruit cultivation in production.

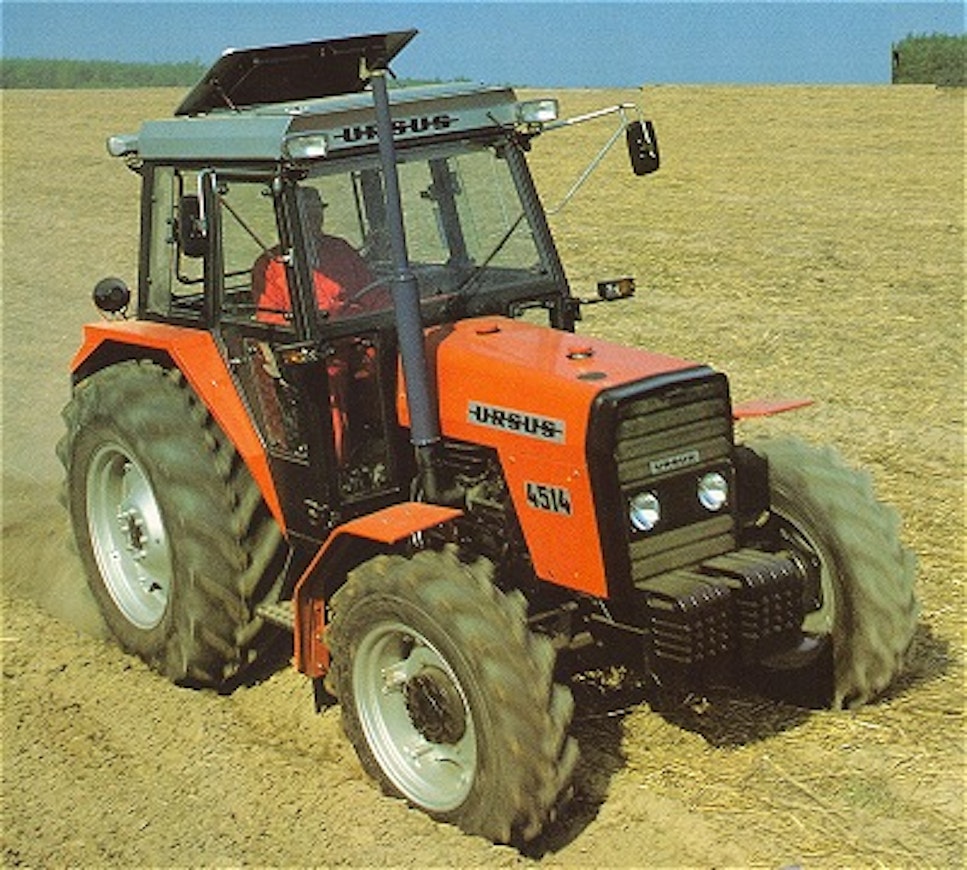

In 1988, the 4-cylinder 4512 was introduced. Its four-wheel-drive version, the 4514, was also imported to Finland as a 66-horsepower base model and as a 72-horsepower DL model, which was known elsewhere as the 5514. The four-wheel-drive model had a front axle made under Landini’s license. The middle picture shows a return in Ursus design to the MF styling in Finland due to a change of importer. In 1992, the turbocharged 6514 (85 hp) was introduced, and in 1997, the models 6012 and 6014 (83 hp).

In 2004, the models in production were 2812, 3512, 4514, 5314 (71 hp), and 5714 (81 hp). Additionally, the cabless models 3502 and 4502 were available. At least the 3512 model remained in production until Ursus went bankrupt in 2011.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelUrsus 2812Ursus 3512/3514Ursus 4512/4514Ursus 4514Ursus 5514 (4514 DL)Ursus 5312/5314Ursus 5714Ursus 6014Ursus 6514
Manufacturer nameUrsusUrsusUrsusUrsusUrsusUrsusUrsusUrsusUrsus
Imported to FinlandNoYesNoYesYesNoNoNoNo
Years1984-1984-20111988-1988-20091992-981993-20032002-20091997-1992-98
Engine model3250325043904390/441043904390/441044104390T4390T
Cyl/Turbo/Intercooler33444444T4T
Displacement2502 cm³2502 cm³3865 cm³3865 cm³3865 cm³3865 cm³4068 cm³3865 cm³3865 cm³
Bore x stroke91,44×127 mm91,44×127 mm98,4×127 mm98,4×127 mm98,4×127 mm98,4×127 mm101×127 mm98,4×127 mm98,4×127 mm
Rated power38/2000 hp DIN/rpm47/2250 hp DIN/rpm60/2000 hp DIN/rpm66/2000 hp DIN/rpm72/2200 hp DIN/rpm71-72/2200 hp DIN/rpm79/2200 hp DIN/rpm83/2200 hp DIN/rpm85/2200 hp DIN/rpm
Torque---------
Gears8+28+28+28+28+28+2 (12+4)8+28+28+2
Speeds in km/h2,4-25,82,3-24,42,3-24,3/ 2,6-28,22,5-33,62,5-33,32,1-28,62,2-29,42,2-29,42,1-28,6
Hydr. flow l/min15 l/min17 l/min26 l/min26 l/min26 l/min26 (62) l/min26 l/min62 l/min26 l/min
Hydraulic pressure160 bar160 bar160 bar160 bar160 bar190 bar160 bar190 bar160 bar
Lift controlsmech.mech.mech.mech.mech.mech.mech.mech.mech.
Lift capacity1330 kg1330 kg1330/1900 kg1900 kg1900/2200 kg2200/2600 kg2800 kg3850 kg1900/2200 kg
PTO speeds540540540540/1000540/1000540/1000540/1000540/1000540/1000
Brakesdrum brakeswet discwet discwet discwet discwet discwet discwet discwet disc
Steeringmech.mech./hydrost.mech./hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Front tyres 2WD6,00-167,50-167,50-16--7,50-16---
Rear tyres 2WD12,4-3212,4-3213,6-36--16,9-34---
Weight 2WD2060 kg2520 kg2980 kg--3180 kg---
Height with cab224 cm230/255 cm253 cm258 cm258 cm254 cm255 cm255 cm258 cm
Length (2WD/4WD)326 cm340/350 cm378 cm378 cm378 cm377/376 cm385 cm385 cm378 cm
Wheelbase (2WD/4WD)193 cm208 cm222 cm230 cm230 cm222/230 cm233 cm230 cm230 cm
Fuel tank58 l58 l80 l80 l80 l80 l-140 l80 l
Solid cabxxxxxxxxx
Turning circle m 2WD-7.7-------
Front tyres 4WD-8.3-2411.2-2411.2-2412.4-2412.4-2411.2-2412.4R2411.2-24
Rear tyres 4WD-12.4-3213.6-3616.9-3016.9-3416.9-3413.6-3616.9R3413.6-36
Weight 4WD-3430 kg3300 kg3280 kg3405 kg3500 kg3400 kg3600 kg3405 kg
Cab noise level-85 dB-85 dB85 dB87 dB---
Max. speed ---36.9 km/h36.9 km/h----
Turning circle m 4WD---99---9.2
