Steiger Wildcat – Tiger Series IV
Manufacturer
Models
Steiger Bearcat IV KM-225, Steiger Bearcat IV CM-225, Steiger Cougar IV CM-250, Steiger Cougar IV KM/KS-280, Steiger Cougar IV CM/CS-280, Steiger Panther IV KM/KS-325, Steiger Panther IV CM/CS-325, Steiger Panther IV KM/KS-360, Steiger Panther IV CM/CS-360, Steiger Tiger IV KP-525
Years
1976-83
Info

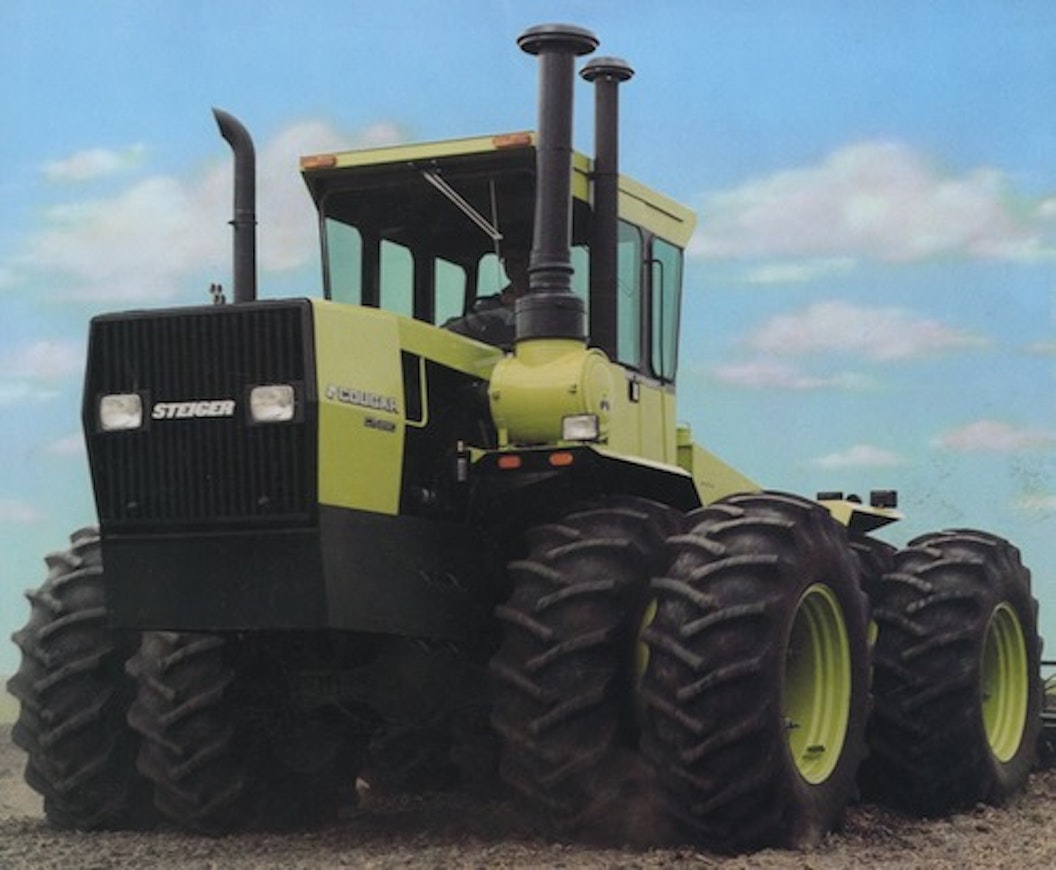

The IV-series Steigers were introduced in the fall of 1982. The technology was almost unchanged, with the focus now on minor improvements. The exterior featured more black and angular headlights. Except for the Tiger, all models were available with either Cummins (K versions) or Caterpillar (C) engines. Additionally, the Panther had a new option: a Komatsu engine (SM-325). The transmission in the smaller models was still 20+4. In the Tiger, the Allison powershift transmission now had four ranges and a 6-speed quick shift. The shift automation also changed between ranges. Newly introduced for the smaller models were the KS and CS Steiger-Matic transmissions, Allison’s automated 5-speed transmission that, thanks to gear lockup, offered the same efficiency as a mechanical transmission. The Tiger IV remained in the lineup even after the other models moved to the 1000 series.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | Steiger Bearcat IV KM-225 | Steiger Bearcat IV CM-225 | Steiger Cougar IV CM-250 | Steiger Cougar IV KM/KS-280 | Steiger Cougar IV CM/CS-280 | Steiger Panther IV KM/KS-325 | Steiger Panther IV CM/CS-325 | Steiger Panther IV KM/KS-360 | Steiger Panther IV CM/CS-360 | Steiger Tiger IV KP-525 |
|---|---|---|---|---|---|---|---|---|---|---|
| Options | ||||||||||
| Manufacturer name | Steiger | Steiger | Steiger | Steiger | Steiger | Steiger | Steiger | Steiger | Steiger | Steiger |
| Imported to Finland | No | No | No | No | No | No | No | No | No | No |
| Years | 1983-85 | 1983-85 | 1983-85 | 1983-85 | 1983-85 | 1983-85 | 1983-85 | 1983-85 | 1983-85 | 1984-88 |
| First year sold | 1983 | 1983 | 1983 | 1983 | 1983 | 1983 | 1983 | 1983 | 1983 | 1984 |
| Last year sold | 1985 | 1985 | 1985 | 1985 | 1985 | 1985 | 1985 | 1985 | 1985 | 1988 |
| Engine model | Cummins LT-10-A | CAT 3306 DIT | CAT 3306 DITA | Cummins NT-855-A | CAT 3406 DIT | Cummins NTA-855-A | CAT 3406 DIT | Cummins NTA-855-A | CAT 3406 DITA | Cummins KTA 1150 |
| Cyl/Turbo/Intercooler | 6T | 6T | 6TA | 6T | 6T | 6TA | 6T | 6TA | 6TA | 6TI |
| Displacement | 10014 cm³ | 10455 cm³ | 10455 cm³ | 14010 cm³ | 14593 cm³ | 14010 cm³ | 14010 cm³ | 14010 cm³ | 14010 cm³ | 18845 cm³ |
| Bore x stroke | 125×136 mm | 120,7×152,4 mm | 120,7×152,4 mm | 139,7×152,4 mm | 137,16×165 mm | 139,7×152,4 mm | 137,16×165 mm | 139,7×152,4 mm | 137,16×165 mm | 158,8×158,8 mm |
| Rated power hp/rpm DIN | 225/2100 | 225/2100 | 250/2100 | 280/2100 | 280/2100 | 325/2100 | 325/2100 | 350/2600 | 350/2600 | 525/2100 |
| Rated power | 225 | 225 | 250 | 280 | 280 | 325 | 325 | 350 | 350 | 525 |
| Rated speed | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 | 2100 | 2600 | 2600 | 2100 |
| Torque Nm/rpm DIN | 992/1300 | 990/1300 | 1166/1300 | 1234/1400 | 1281/1200 | 1464/1400 | 1424/1200 | 1627/1400 | 1593/1200 | 2135/1500 |
| Gears | 20+4 | 20+4 | 20+4 | 20+4/10+2 | 20+4/10+2 | 20+4/10+2 | 20+4/10+2 | 20+4/10+2 | 20+4/10+2 | 24+4 powershift |
| Synchronized gears | ? | ? | ? | ? | ? | ? | ? | ? | ? | 24+4 |
| Powershift gears | mech. | mech. | mech. | mech./5-step | mech./5-step | mech./5-step | mech./5-step | mech./5-step | mech./5-step | 6-step |
| Speeds in km/h | 2,9-29,0 | 2,9-29,0 | 2,9-29,0 | 2,9-29,0 / 3,0-25,4 | 3,7-37,2 / 3,0-25,4 | 3,7-37,2 / 3,0-25,4 | 3,7-37,2 / 3,0-25,4 | 3,7-37,2 / 3,0-25,4 | 3,7-37,2 / 3,0-25,4 | 2,1-34,8 |
| Hydr. flow l/min | 113.6 l/min | 117.4 l/min | 117.4 l/min | 108.3 l/min | 117.4 l/min | 108.3 l/min | 117.4 l/min | 108.3 l/min | 117.4 l/min | 143.8 l/min |
| Lift controls | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. | mech. |
| Brakes | disc brakes | disc brakes | disc brakes | disc brakes | disc brakes | disc brakes | disc brakes | disc brakes | disc brakes | disc brakes |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
| Front tyres 4WD | 18.4-38 | 18.4-38 | 18.4-38 | 18.4-38 | 18.4-38 | 20.8-38 | 20.8-38 | 20.8-38 | 20.8-38 | 30.5-32 |
| Rear tyres 4WD | 18.4-38 | 18.4-38 | 18.4-38 | 18.4-38 | 18.4-38 | 20.8-38 | 20.8-38 | 20.8-38 | 20.8-38 | 30.5-32 |
| Weight 4WD | 11072 kg | 11209 kg | 11345 kg | 11345/11749 kg | 11345/11907 kg | 12090/12222 kg | 12203/12348 kg | 12090/12222 kg | 12203/12390 kg | 18470 kg |
| Height with cab | 396 cm | 396 cm | 396 cm | 396 cm | 396 cm | 396 cm | 396 cm | 396 cm | 396 cm | 408 cm |
| Length (2WD/4WD) | 644 cm | 644 cm | 644 cm | 644 cm | 644 cm | 644 cm | 644 cm | 644 cm | 644 cm | 734 cm |
| Wheelbase (2WD/4WD) | 328 cm | 328 cm | 328 cm | 328 cm | 328 cm | 328 cm | 328 cm | 328 cm | 328 cm | 381 cm |
| Fuel tank | 1011 l | 1011 l | 1011 l | 1011 l | 1011 l | 1011 l | 1011 l | 1011 l | 1011 l | 1457 l |
| Cab noise level | 80.5 dB | 80.5 dB | 77 dB | 77 dB | 77 dB | 79 dB | 79 dB | 79 dB | 79 dB | 76.5 dB |
| Solid cab | x | x | x | x | x | x | x | x | x | x |
| Diff. lock | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. | opt. |
| Air conditioning | x | x | x | x | x | x | x | x | x | x |
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information.
There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed.
Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
