Same Tiger, Trident

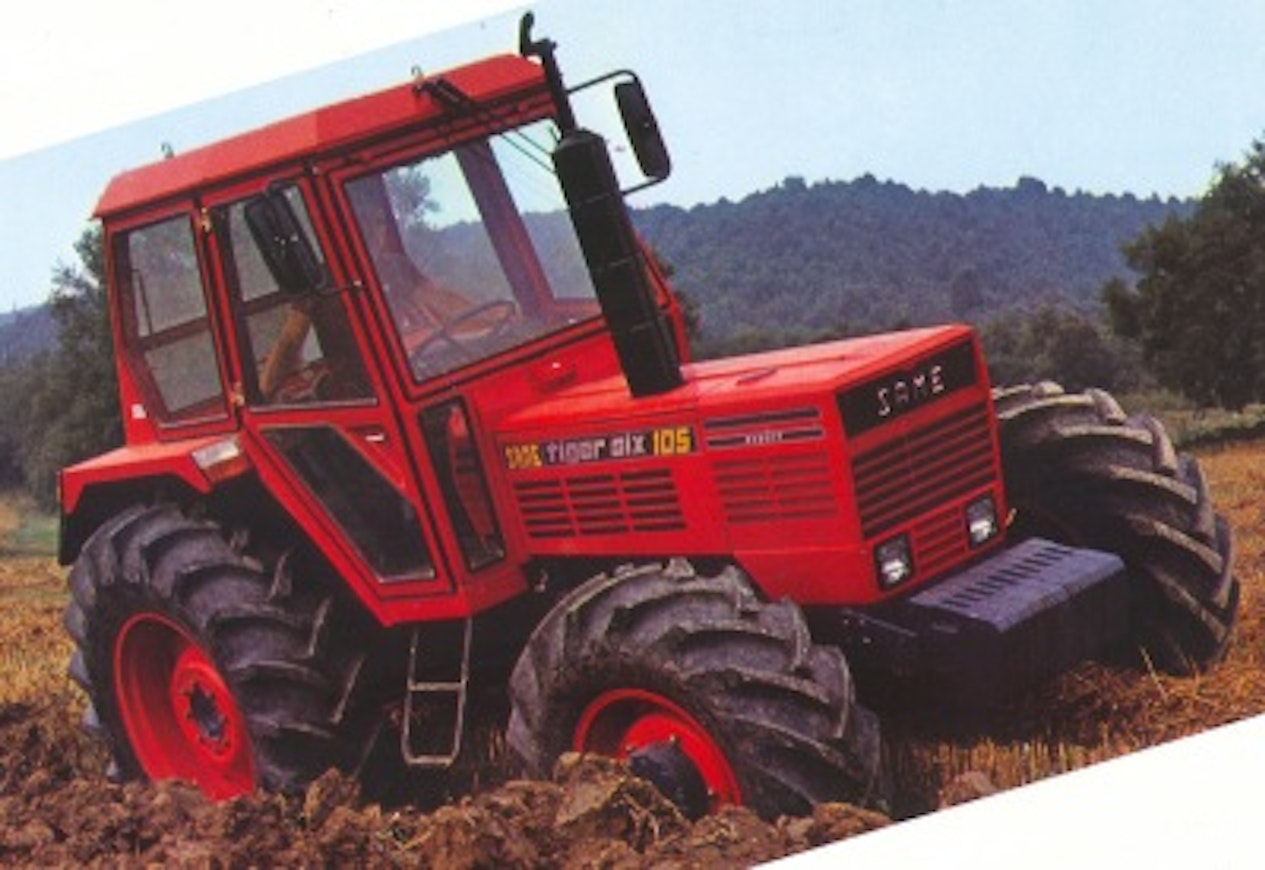

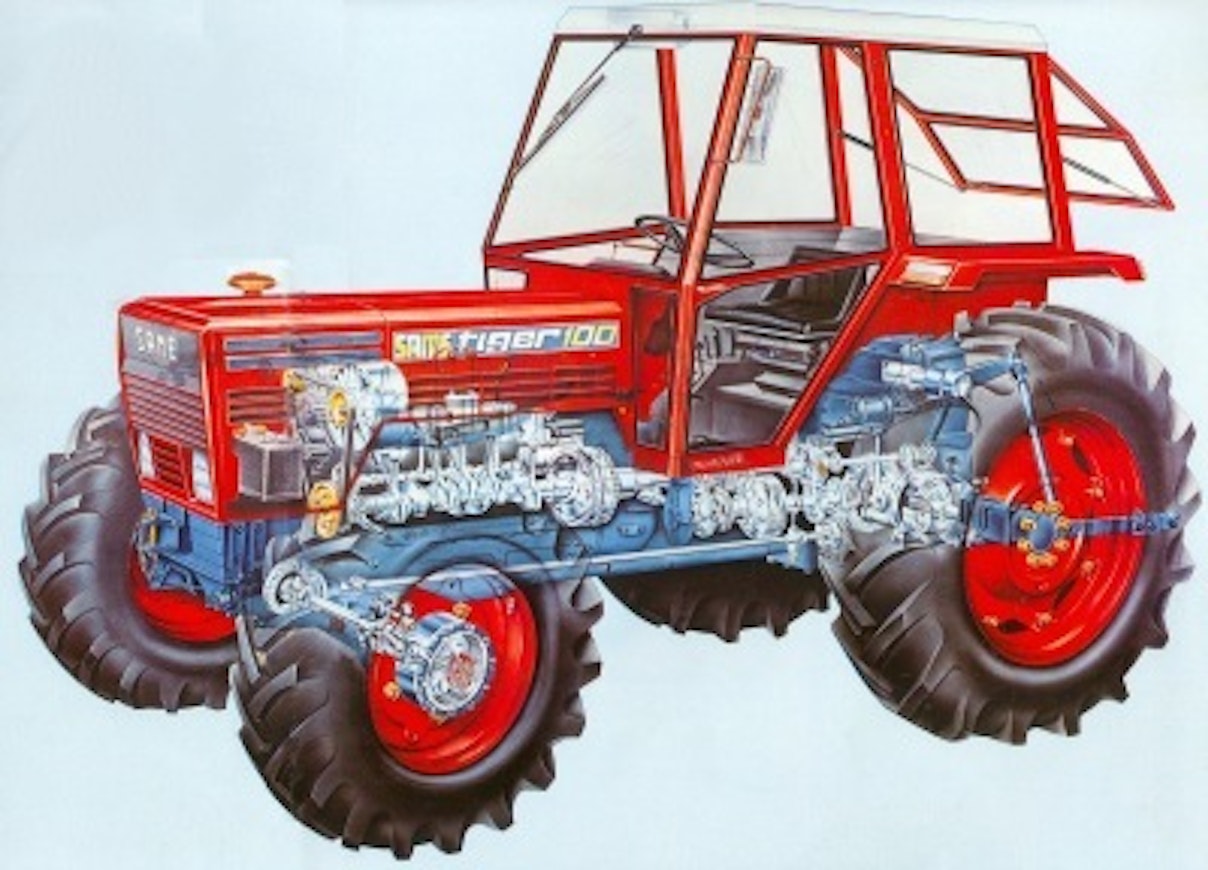

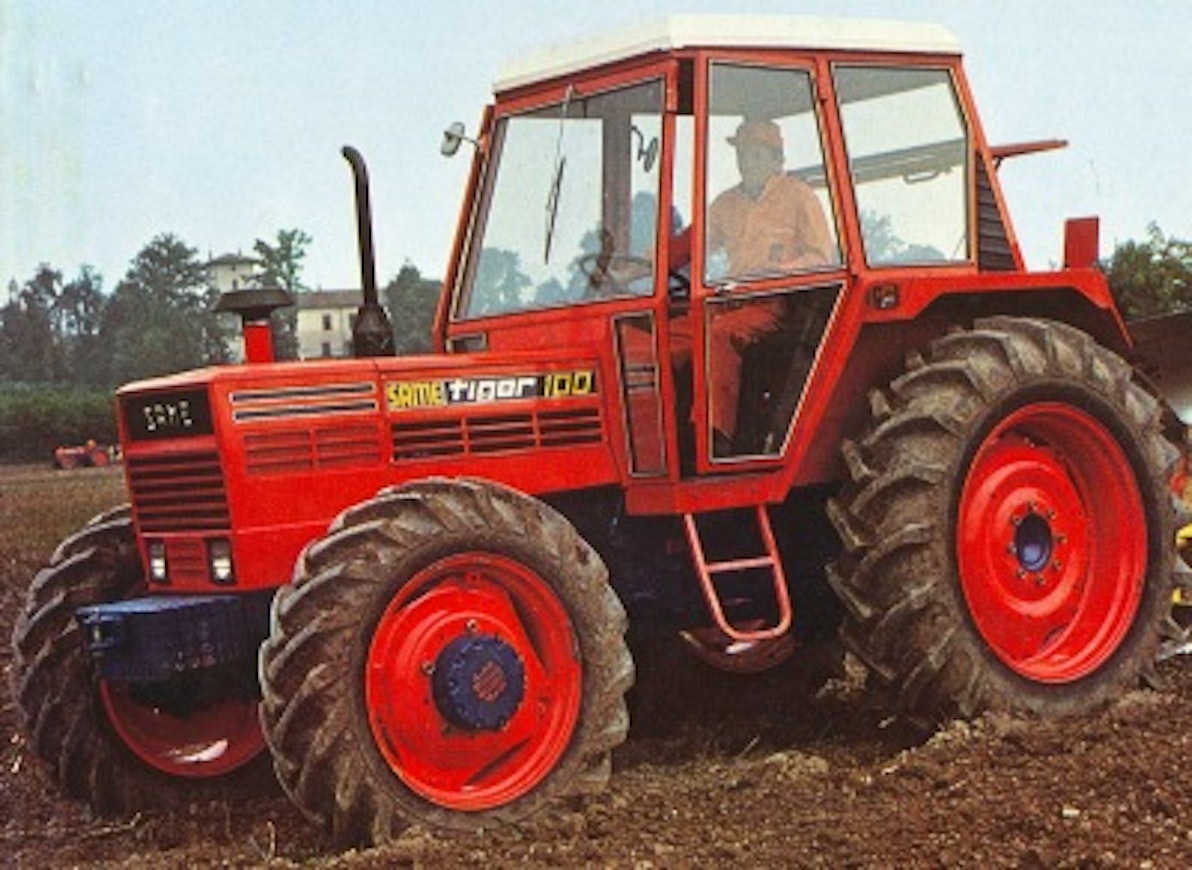

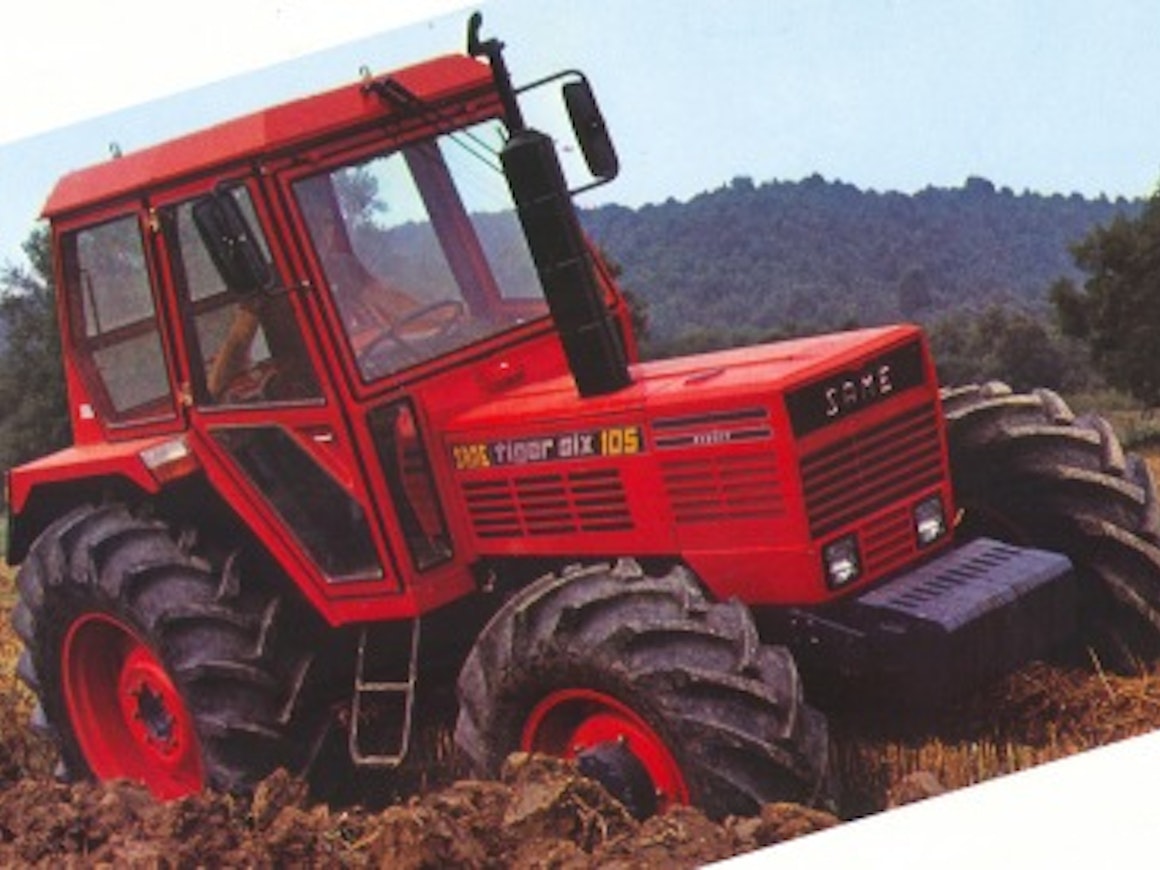

Between 1977 and 1978, Same introduced many new models. At the beginning of 1977, the Tigers entered the 100 horsepower class. The Tiger 100 had a 5-cylinder 5.2-liter engine, and the Tiger Six 105 had a 5.4-liter six-cylinder engine. The transmission in all the mid-range models was the 12+3 used across the range, to which an optional reduction gear or creeping gears could be added. The lifting capacity of the Tiger 100 was 3000 kg, while the six-cylinder version could lift 4240 kg.
In the autumn of 1980, the Tiger 100 was discontinued, and the power of the 105 was increased to match the model designation of 105 horsepower. At the same time, the lifting capacity was increased to 4760 kilograms.
Alongside the 125-horsepower Buffalo, a lighter Trident 130 equipped with the same engine was introduced, whose transmission—unlike the other larger models—was the same 12+3 as in the Tiger. The Trident was in the lineup for only a couple of years before the introduction of the Lasers. The engine of the Tiger Six was changed in 1983 to the 5.7-liter engine of the Laser 110, and it continued for one more year as an option alongside the Laser.
This is an automated translation. Please report any issues in the translation.
| Model | Same Tiger 100 | Same Tiger Six 105 | Same Tiger Six 105 | Same Trident 130 |
|---|---|---|---|---|
| Manufacturer name | Same | Same | Same | Same |
| Imported to Finland | No | No | No | No |
| Years | 1977-80 | 1977-80 | 1980-84 | 1981-83 |
| Engine model | 1055L | 986P | 986P | 1056P |
| Cyl/Turbo/Intercooler | 5 | 6 | 6 | 6 |
| Displacement | 5195 cm³ | 5428 cm³ | 5428 cm³ | 6234 cm³ |
| Bore x stroke | 105×120 mm | 98×120 mm | 98×120 mm | 105×120 mm |
| Rated power | 102/2200 hp DIN/rpm | 100/2200 hp DIN/rpm | 105/2200 hp DIN/rpm | 125/2300 hp DIN/rpm |
| Torque | - | - | - | - |
| Gears | 12+3 | 12+3 | 12+3 | 12+3 |
| Synchronized gears | 12+3 | 12+3 | 12+3 | 12+3 |
| Powershift gears | opt. | opt. | opt. | opt. |
| Speeds in km/h | 1,3-24,1 | 1,6-28,9 | 1,6-28,9 | 1,5-28,6 |
| Max. speed | 25 km/h | 25/30 km/h | 25/30 km/h | 25/30 km/h |
| Hydr. flow l/min | 36 l/min | 35 (60) l/min | 35 (60) l/min | 41 l/min |
| Hydraulic pressure | 175 bar | 175 bar | 175 bar | 175 bar |
| Lift controls | mech. | mech. | mech. | mech. |
| Lift capacity | 3000 kg | 4240 kg | 3800/4760 kg | 5000 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 6.8 | 7.8 | 7.8 | - |
| Turning circle m 4WD | 7,6 jarrulla | 8,4 jarrulla | 8,4 jarrulla | 8,4 jarrulla |
| Front tyres 2WD | 7.50-20 | 7.50-20 | 7.50-20 | - |
| Front tyres 4WD | 13.6-24 | 16.9-24 | 16.9-24 | 14.9-30 |
| Rear tyres 2WD | 18.4-34 | 18.4-34 | 18.4-34 | - |
| Rear tyres 4WD | 18.4-34 | 18.4-34 | 18.4-34 | 18.4-38 |
| Weight 2WD | 3770 kg | 4050 kg | 4050 kg | - |
| Weight 4WD | 4040 kg | 4400 kg | 4400 kg | 4840 kg |
| Height with cab | 273 cm | 278 cm | 278 cm | 288 cm |
| Length (2WD/4WD) | 378/395 cm | 433/446 cm | 433/446 cm | 465 cm |
| Wheelbase (2WD/4WD) | 251/254 cm | 266/271 cm | 266/271 cm | 269 cm |
| Fuel tank | 130 l | 135 l | 135 l | 120 l |
| Solid cab | x | x | x | x |
| Creeper gear | opt. | opt. | opt. | opt. |
| Diff. lock | - | - | opt. | opt. |
