Same Solar / Lamborghini 550-660 / Hürlimann H-351/361

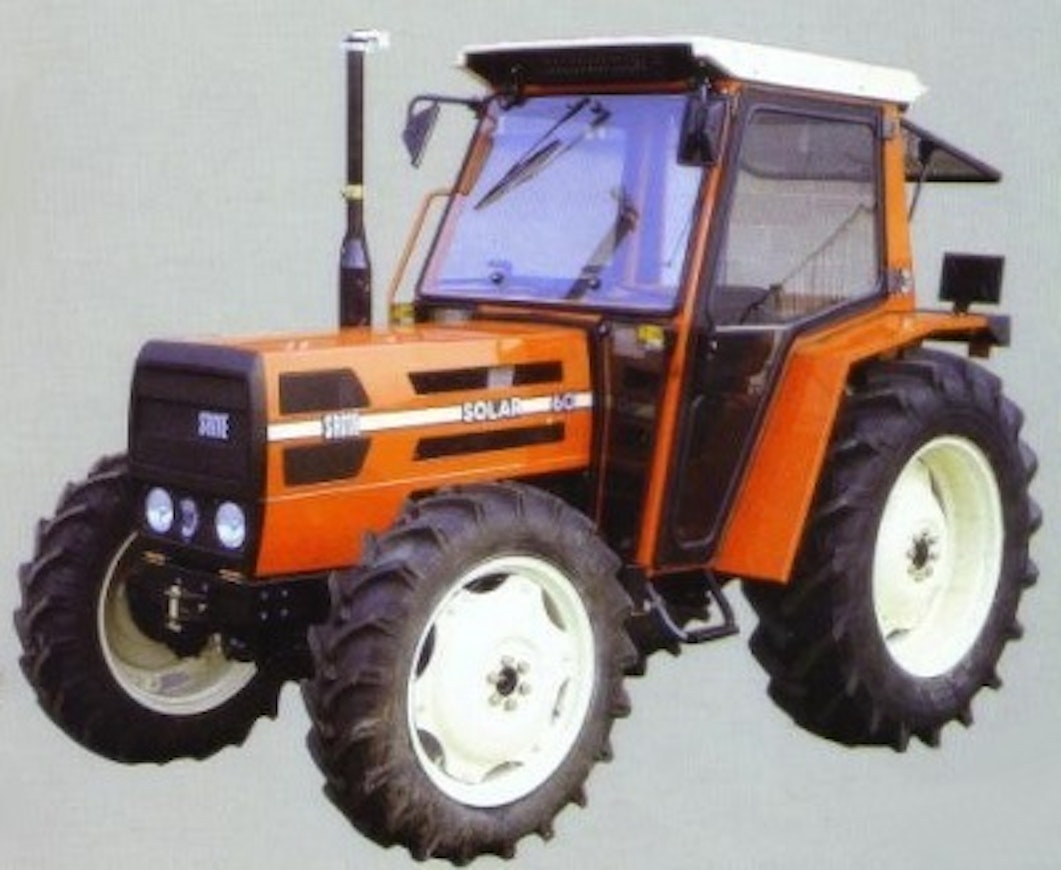

The Solar represented the best basic tractor in the 50-60 hp class and was introduced in the summer of 1986. As a basic model, it was equipped with a rollover protective frame, and a rudimentary cabin was available at an extra cost. The 3-cylinder air-cooled engines belonged to Sampo's older model range. Similarly, the 12+3-speed gearbox (16+4 with crawler gears) also came from the generation preceding the Explorer. The Solar 60 had a rather high lifting capacity of 2970 kilograms. Solars came standard with oil-bath brakes, and the four-wheel-drive models featured hydrostatic steering.

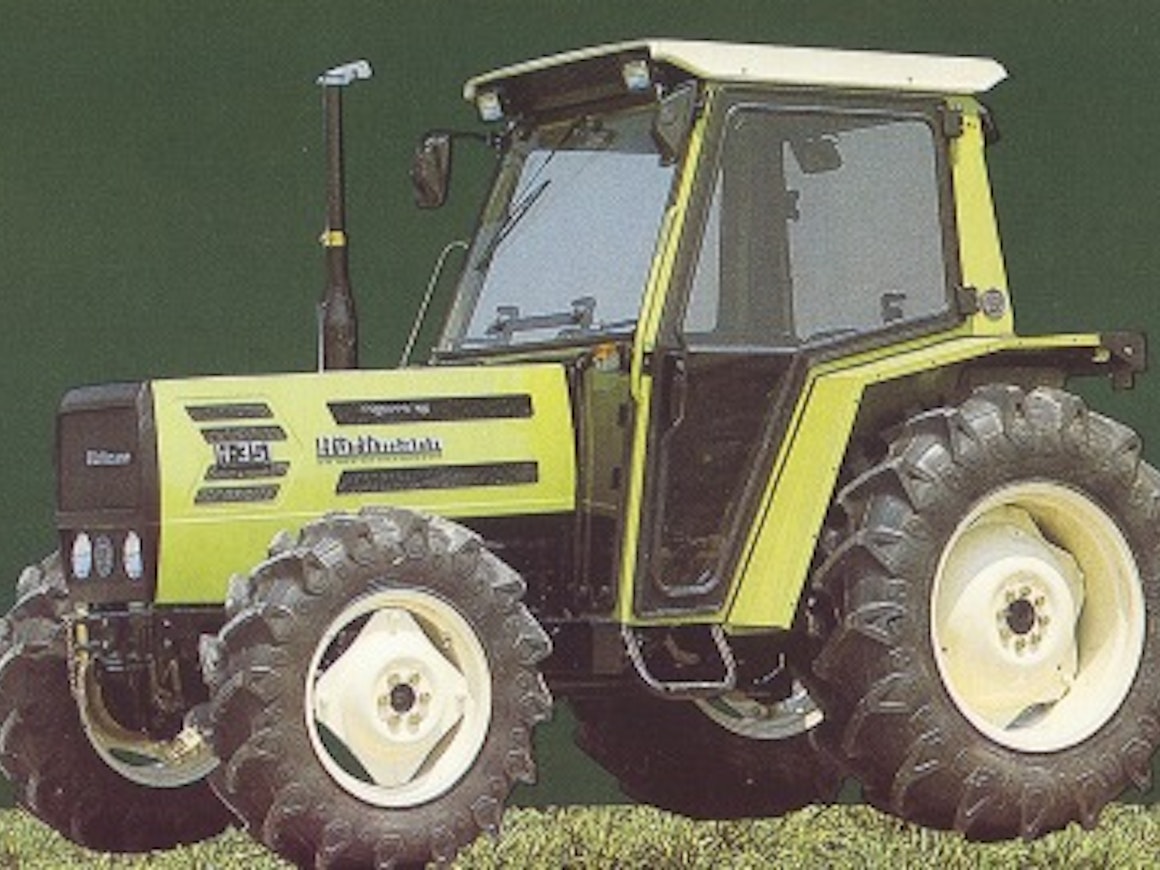

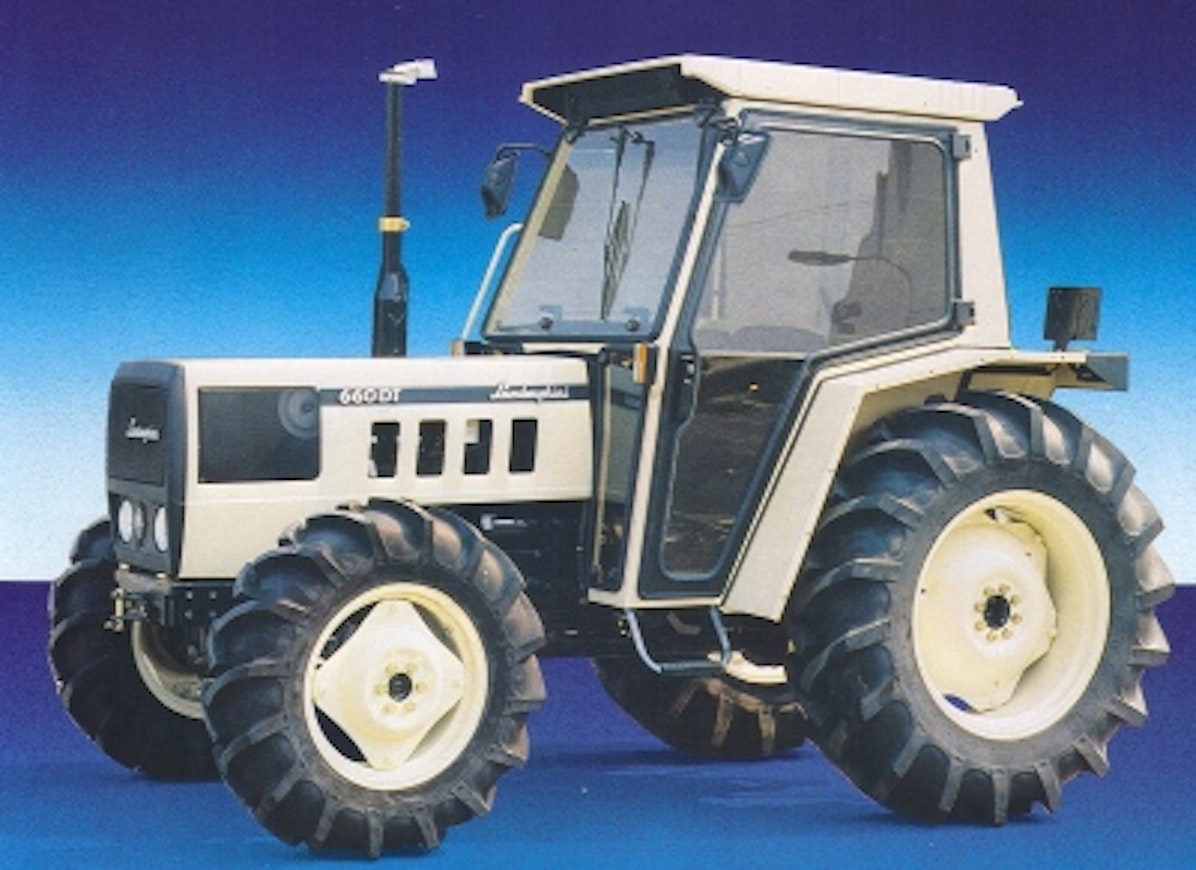

With Lamborghini, the same model was known as the 550 and 660 models, and with Hürlimann as the H-351 and H-361. In the USA, the same tractor was sold under the name Agco Allis 4650/4660.
This is an automated translation. Please report any issues in the translation.
| Model | Same Solar 50 | Lamborghini 550 | Same Solar 60 | Lamborghini 660 |
|---|---|---|---|---|
| Imported to Finland | No | No | No | No |
| Years | 1986-97 | 1986-97 | 1986-97 | 1986-97 |
| First year sold | 1986 | 1986 | 1986 | 1986 |
| Last year sold | 1997 | 1997 | 1997 | 1997 |
| Engine model | 983 L | 983 L | 1053 P | 1053 P |
| Cyl/Turbo/Intercooler | 3 | 3 | 3 | 3 |
| Displacement | 2715 cm³ | 2715 cm³ | 3116 cm³ | 3116 cm³ |
| Bore x stroke | 98×120 mm | 98×120 mm | 105×120 mm | 105×120 mm |
| Rated power | 50/2200 hp DIN/rpm | 50/2200 hp DIN/rpm | 60/2200 hp DIN/rpm | 60/2200 hp DIN/rpm |
| Torque | - | - | - | - |
| Gears | 12+3 | 12+3 | 12+3 | 12+3 |
| Synchronized gears | 12+3 | 12+3 | 12+3 | 12+3 |
| Speeds in km/h | 0,9-29,2 | 0,9-29,2 | 1,0-30,0 | 1,0-30,0 |
| Max. speed | 30 km/h | 30 km/h | 30 km/h | 30 km/h |
| Hydr. flow l/min | 24 l/min | 24 l/min | 32 l/min | 32 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar | 180 bar |
| Lift controls | mech. | mech. | mech. | mech. |
| Lift capacity | 2370 kg | 2370 kg | 2970 kg | 2970 kg |
| PTO speeds | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo | 540/1000/ajo |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | mech./hydrost. | mech./hydrost. | mech./hydrost. | mech./hydrost. |
| Turning circle m 2WD | 7.1 | 7.1 | 7.2 | 7.2 |
| Turning circle m 4WD | 7.8 | 7.8 | 7.9 | 7.9 |
| Front tyres 2WD | 6.50-16 | 6.50-16 | 7.50-16 | 7.50-16 |
| Front tyres 4WD | 11.2-20 | 11.2-20 | 9.5-24 | 9.5-24 |
| Rear tyres 2WD | 14.9-28 | 14.9-28 | 14.9-30 | 14.9-30 |
| Rear tyres 4WD | 14.9-28 | 14.9-28 | 14.9-30 | 14.9-30 |
| Weight 2WD | 2080 kg | 2080 kg | 2425 kg | 2425 kg |
| Weight 4WD | 2280 kg | 2280 kg | 2625 kg | 2625 kg |
| Height with cab | 228 cm | 228 cm | 233 cm | 233 cm |
| Length (2WD/4WD) | 337/339 cm | 337/339 cm | 340 cm | 340 cm |
| Wheelbase (2WD/4WD) | 209/207 cm | 209/207 cm | 209/207 cm | 209/207 cm |
| Fuel tank | 55 l | 55 l | 55 l | 55 l |
| Cab noise level | 86 dB | 86 dB | 86 dB | 86 dB |
| Solid cab | (x) | (x) | (x) | (x) |
| Creeper gear | opt. | opt. | opt. | opt. |
