Same Falcon, Minitauro, Centauro

72SameFalcon
76SameMinitauro
72SameFalcon
76SameMinitauro
Manufacturer
Models
Same Falcon 50, Same Minitauro 60, Same Centauro, Same Centauro 60, Same Centauro 65
Years
1965-78
Info

In 1965 the 55-horsepower Same Centauro was introduced, featuring a 3.4-litre V4 engine. Air cooling was enhanced with a fan. The Centauro had a dual clutch and an 8+4 gear transmission. Same’s weight-transfer system was called Valvematic and was based on draft link sensing.

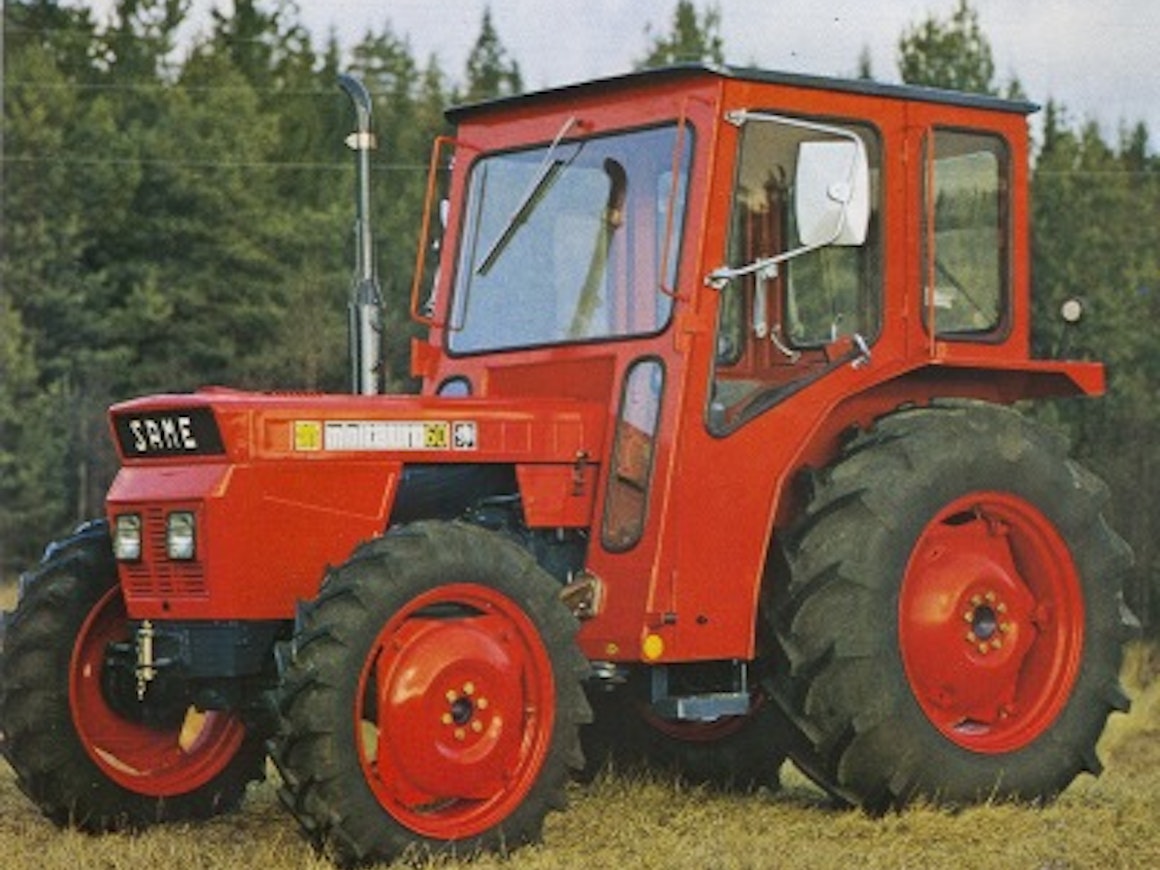

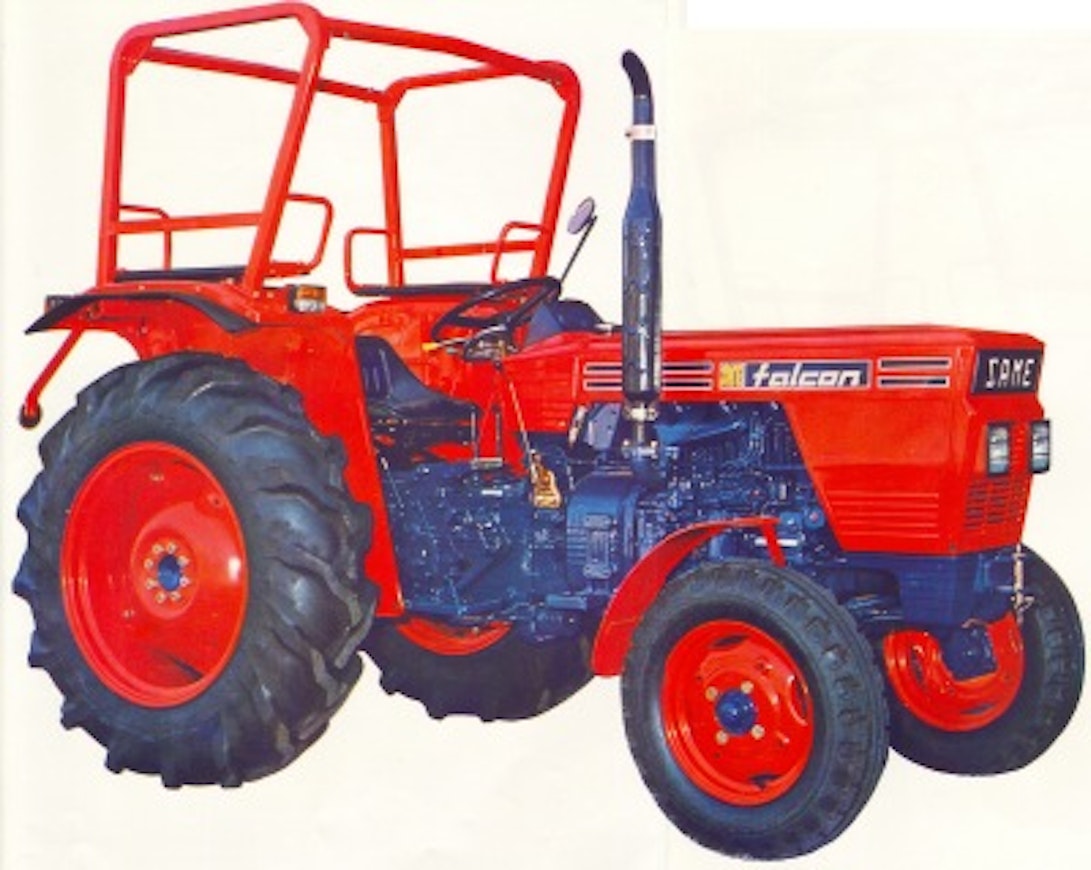

By the 1970s, Same unveiled an updated 57-horsepower Centauro. In 1972 it was replaced by the 3.8-litre Centauro 65, and a new model was added below it: the 56-horsepower Minitauro 60 with an in-line engine, which marked the debut of the 3.1-litre three-cylinder engine later used in many other models. In 1974, a model even lower in the range was introduced, the Falcon, with 50 horsepower and a 2.7-litre engine. The Falcon’s straight-nose design was more modern than that of the other models. In the new models the transmission was a synchronized 8+4, and creeper gears were available as an option. Other optional extras included a power take-off independent of the driving clutch and a neutral-on-the-move function.

The most popular model was the Minitauro 60, with 33,000 units produced.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelSame Falcon 50Same Minitauro 60Same CentauroSame Centauro 60Same Centauro 65
Options
Manufacturer nameSameSameSameSameSame
Imported to FinlandNoNoNoNoNo
Years1974-761972-781965-691969-721972-78
First year sold19741972196519691972
Last year sold19761978196919721978
Engine model03544-983038-1053LDA 954/V021-954 V021-1004 V
Cyl/Turbo/Intercooler33V4V4V4
Displacement2715 cm³3117 cm³3402 cm³3402 cm³3770 cm³
Bore x stroke98×120 mm105×120 mm95×120 mm95×120 mm100×120 mm
Rated power hp/rpm DIN50/215056/220055/200057/200064/2200
Rated power5056555764
Rated speed21502200200020002200
Torque Nm/rpm DIN182/1400193/1490185/1500--
Gears8+48+48+48+48+4
Synchronized gears8+48+48+48+48+4
Speeds in km/h1,8-24,51,8-24,61,1-24,91,1-23,91,0-22,8
Max. speed 25 km/h25 km/h25 km/h25 km/h25 km/h
Hydr. flow l/min-26 l/min18 l/min--
Hydraulic pressure-175 bar175 bar--
Lift controlsmech.mech.mech.mech.mech.
Lift capacity1800 kg1800/2600 kg1700 kg--
PTO speeds540540540/ajo540540
Brakesdrum brakesdrum brakesdrum brakesdrum brakesdrum brakes
Steeringmech.mech.mech.mech.mech.
Turning circle m 2WD6.46.26.5--
Turning circle m 4WD7.47.67.4--
Front tyres 2WD6.00-166.50-166.00-166.00-186.00-18
Front tyres 4WD9.5-208.3-249.5-209.5-208.3-24
Rear tyres 2WD13.6-2814.9-2813.6-2813.6-2814.9-28
Rear tyres 4WD13.6-2814.9-2813.6-2813.6-2814.9-28
Weight 2WD(2150) kg2400 kg(2150) kg(2130) kg(2195) kg
Weight 4WD(2350) kg2600 kg(2310) kg(2330) kg(2395) kg
Height with cab227 cm235 cm---
Length (2WD/4WD)318/327 cm327/330 cm325/332 cm319/330 cm324/331 cm
Wheelbase (2WD/4WD)186/195 cm197/196 cm218/213 cm215/214 cm215/214 cm
Fuel tank45 l63/70 l55 l--
Cab noise level-80.5 dB---
Diff. locknonononono
Creeper gearopt.opt.opt.opt.opt.
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information. There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed. Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
