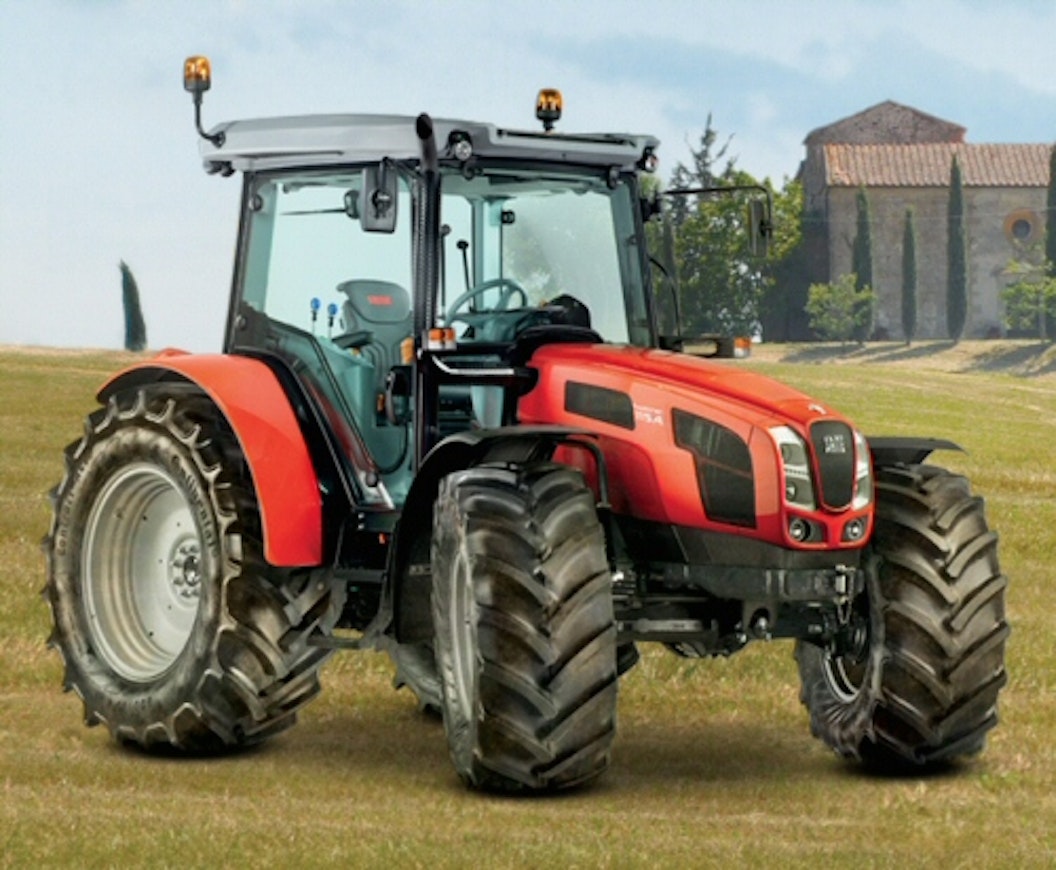

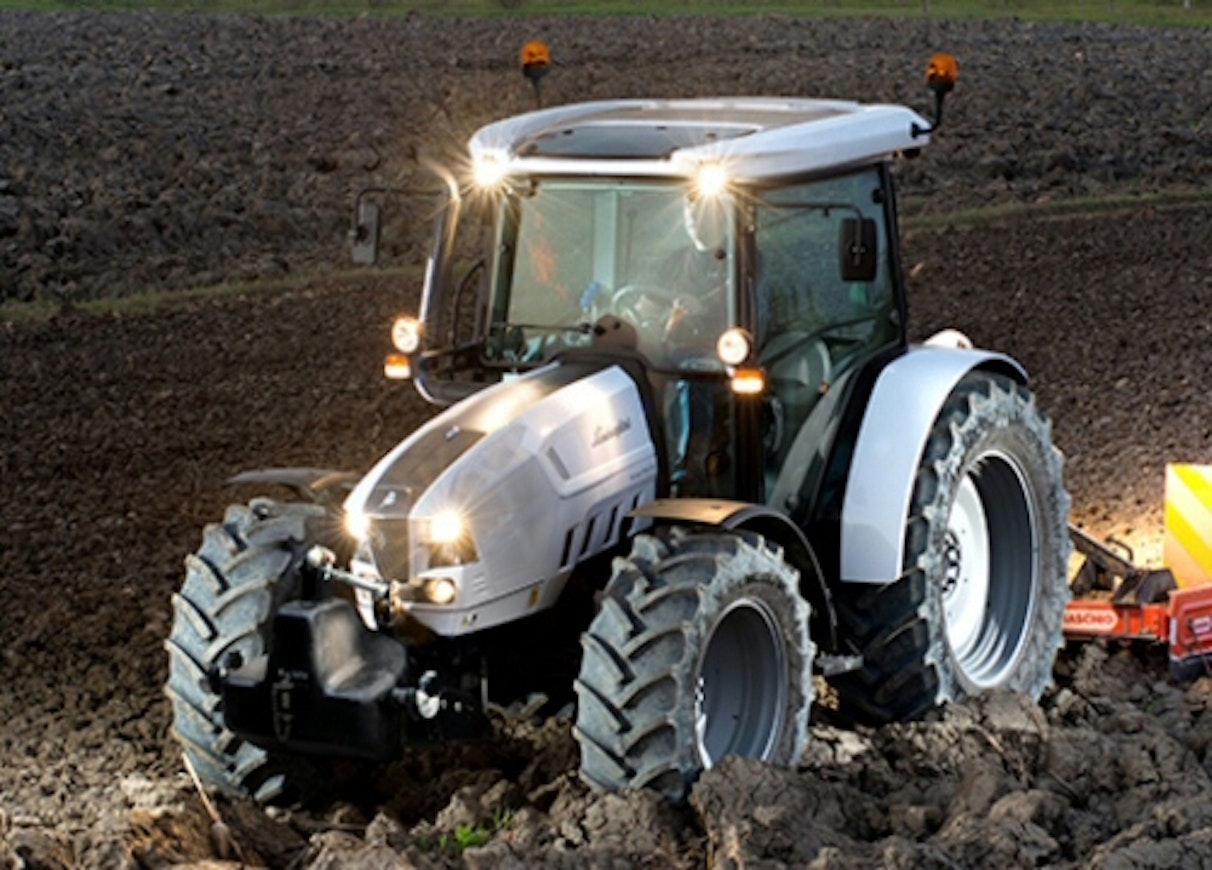

Siirry sivupalkkiinSiirry alaosaanSame Explorer HD 90.4-115.4 / Lamborghini Strike HD 90.4-115.4






The Explorer/Strike HD range featured rear wheels of either 34 or 38 inches and 4-cylinder FARMotion engines from Same. The HD 115.4 model stood out slightly from the rest of the range. It was available with an optional lifting capacity of 5400 kg and a 3-speed powershift, which gave a total of 30+30 gears and 60+60 with creep speed.
There were plenty of transmission options. The basic versions were 8+8 and 10+10, both of which could be equipped with a creeper gearbox that doubled the number of gears. With the powershift option, there were 16+16 and 20+20 gears available, and both could again be equipped with a creeper. A hydraulic reverser was available as an extra option on all versions, with a Stop&Go function that allowed the tractor to be stopped momentarily simply by pressing the brake. The aggressiveness of the directional change was adjustable by the user via a potentiometer. The lifting device was either mechanical or electric. The engagement of four-wheel drive, locks, and PTO was electric. For an additional cost, a 60-liter ECO pump was available for the hydraulics, delivering full output at 1600 rpm. Electrically controlled hydraulic valves could also be added to this setup. Like Same tractors, brakes were also on the front axle.
The 2017 HD model range featured Stage 4 compliant urea injection.
This is an automated translation. Please report any issues in the translation.
| Model | Same Explorer HD 90.4 | Lamborghini Strike HD 90.4 | Same Explorer HD 105.4 | Lamborghini Strike HD 105.4 | Same Explorer HD 115.4 | Lamborghini Strike HD 115.4 | Same Explorer HD 110 | Lamborghini Strike HD 110 | Same Explorer HD 120 | Lamborghini Strike HD 120 |
|---|---|---|---|---|---|---|---|---|---|---|
| Imported to Finland | No | No | No | No | No | No | No | No | No | No |
| Years | 2014-16 | 2014-16 | 2014-16 | 2014-16 | 2014-16 | 2014-16 | 2017- | 2017- | 2017- | 2017- |
| Engine model | FARMotion | FARMotion | FARMotion | FARMotion | FARMotion | FARMotion | FARMotion | FARMotion | FARMotion | FARMotion |
| Cyl/Turbo/Intercooler | 4TI | 4TI | 4TI | 4TI | 4TI | 4TI | 4TI | 4TI | 4TI | 4TI |
| Displacement | 3849 cm³ | 3849 cm³ | 3849 cm³ | 3849 cm³ | 3849 cm³ | 3849 cm³ | 3849 cm³ | 3849 cm³ | 3849 cm³ | 3849 cm³ |
| Bore x stroke | 103×115,5 mm | 103×115,5 mm | 103×115,5 mm | 103×115,5 mm | 103×115,5 mm | 103×115,5 mm | 103×115,5 mm | 103×115,5 mm | 103×115,5 mm | 103×115,5 mm |
| Rated power | - | - | - | - | - | - | - | - | - | - |
| Max power | - | - | - | - | - | - | - | - | - | - |
| Torque | - | - | - | - | - | - | - | - | - | - |
| Gears | 8+8 40+40 | 8+8 40+40 | 8+8 40+40 | 8+8 40+40 | 10+10 60+60 | 10+10 60+60 | 8+8 40+40 | 8+8 40+40 | 10+10 60+60 | 10+10 60+60 |
| Synchronized gears | 8+8 40+40 | 8+8 40+40 | 8+8 40+40 | 8+8 40+40 | 10+10 60+60 | 10+10 60+60 | 8+8 40+40 | 8+8 40+40 | 10+10 60+60 | 10+10 60+60 |
| Powershift gears | -/hydr. | -/hydr. | -/hydr. | -/hydr. | -/hydr. | -/hydr. | -/hydr. | -/hydr. | -/hydr. | -/hydr. |
| Reverser | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) | mech. (hydr.) |
| Max. speed | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 55 l/min | 55 l/min | 55 l/min | 55 l/min | 55 l/min | 55 l/min | 55 l/min | 55 l/min | 55 l/min | 55 l/min |
| Hydraulic pressure | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar | 180 bar |
| Lift controls | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) | mech. (elec.) |
| Lift capacity | 3600 (4855) kg | 3600 (4855) kg | 3600 (4855) kg | 3600 (4855) kg | 3600 (5410) kg | 3600 (5410) kg | 3600 (4855) kg | 3600 (4855) kg | 3600 (5410) kg | 3600 (5410) kg |
| PTO speeds | 540 (540/750/ 1000/1250) | 540 (540/750/ 1000/1250) | 540 (540/750/ 1000/1250) | 540 (540/750/ 1000/1250) | 540 (540/750/ 1000/1250) | 540 (540/750/ 1000/1250) | 540 (540/750/ 1000/1250) | 540 (540/750/ 1000/1250) | 540 (540/750/ 1000/1250) | 540 (540/750/ 1000/1250) |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Front tyres 4WD | 420/70R24 | 420/70R24 | 420/70R24 | 420/70R24 | 420/70R28 | 420/70R28 | 420/70R24 | 420/70R24 | 420/70R24 | 420/70R24 |
| Rear tyres 2WD | 480/70R34 | 480/70R34 | 480/70R34 | 480/70R34 | 480/70R38 | 480/70R38 | 480/70R34 | 480/70R34 | 480/70R34 | 480/70R34 |
| Rear tyres 4WD | 480/70R34 | 480/70R34 | 480/70R34 | 480/70R34 | 480/70R38 | 480/70R38 | 480/70R34 | 480/70R34 | 480/70R34 | 480/70R34 |
| Weight 4WD | 4200 kg | 4200 kg | 4200 kg | 4200 kg | 4300 kg | 4300 kg | 4200 kg | 4200 kg | 4300 kg | 4300 kg |
| Height with cab | 273 cm | 273 cm | 273 cm | 273 cm | 273 cm | 273 cm | 273 cm | 273 cm | 273 cm | 273 cm |
| Length (2WD/4WD) | 431 cm | 431 cm | 431 cm | 431 cm | 431 cm | 431 cm | 427 cm | 427 cm | 427 cm | 427 cm |
| Wheelbase (2WD/4WD) | 236/240 cm | 236/240 cm | 236/240 cm | 236/240 cm | 236/240 cm | 236/240 cm | 236/240 cm | 236/240 cm | 236/240 cm | 236/240 cm |
| Fuel tank | 152 l | 152 l | 152 l | 152 l | 152 l | 152 l | 145+10AB l | 145+10AB l | 145+10AB l | 145+10AB l |
| Solid cab | x | x | x | x | x | x | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Creeper gear | -/x | -/x | -/x | -/x | -/x | -/x | -/x | -/x | -/x | -/x |
