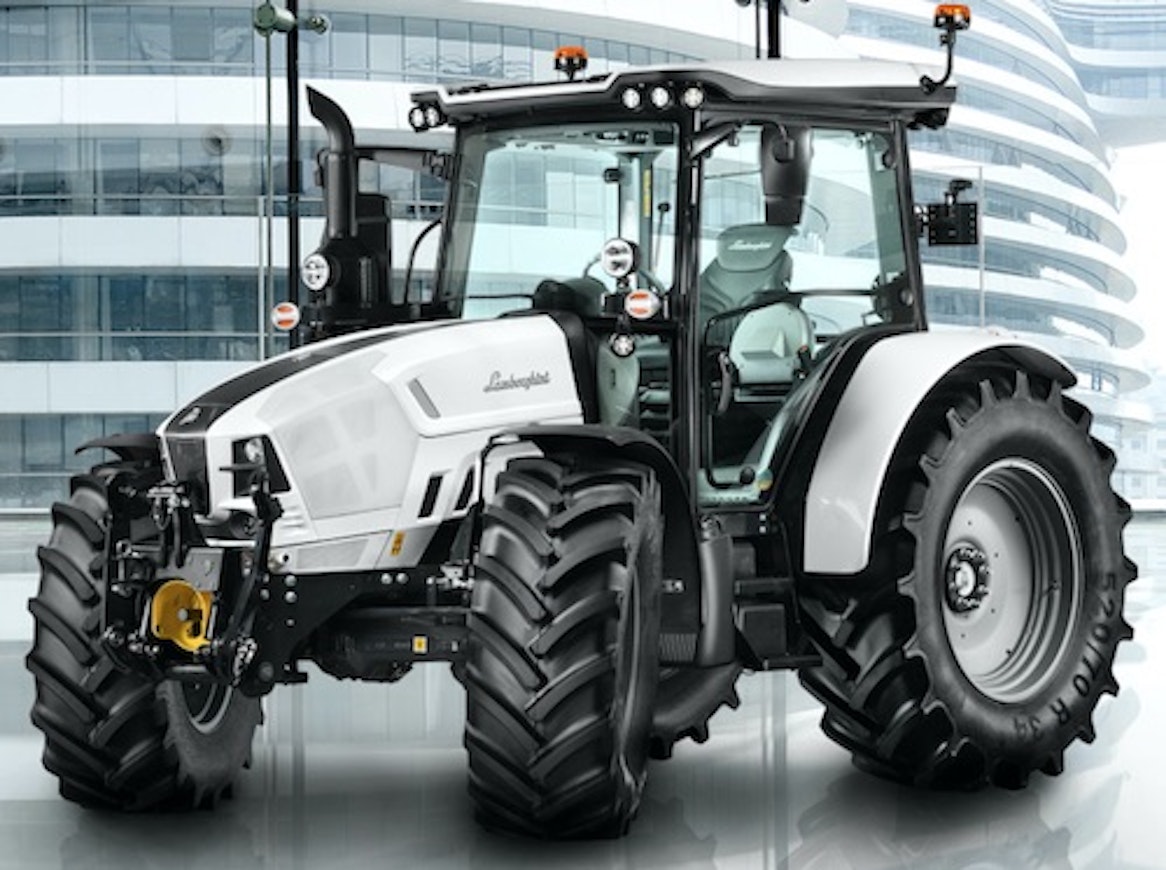

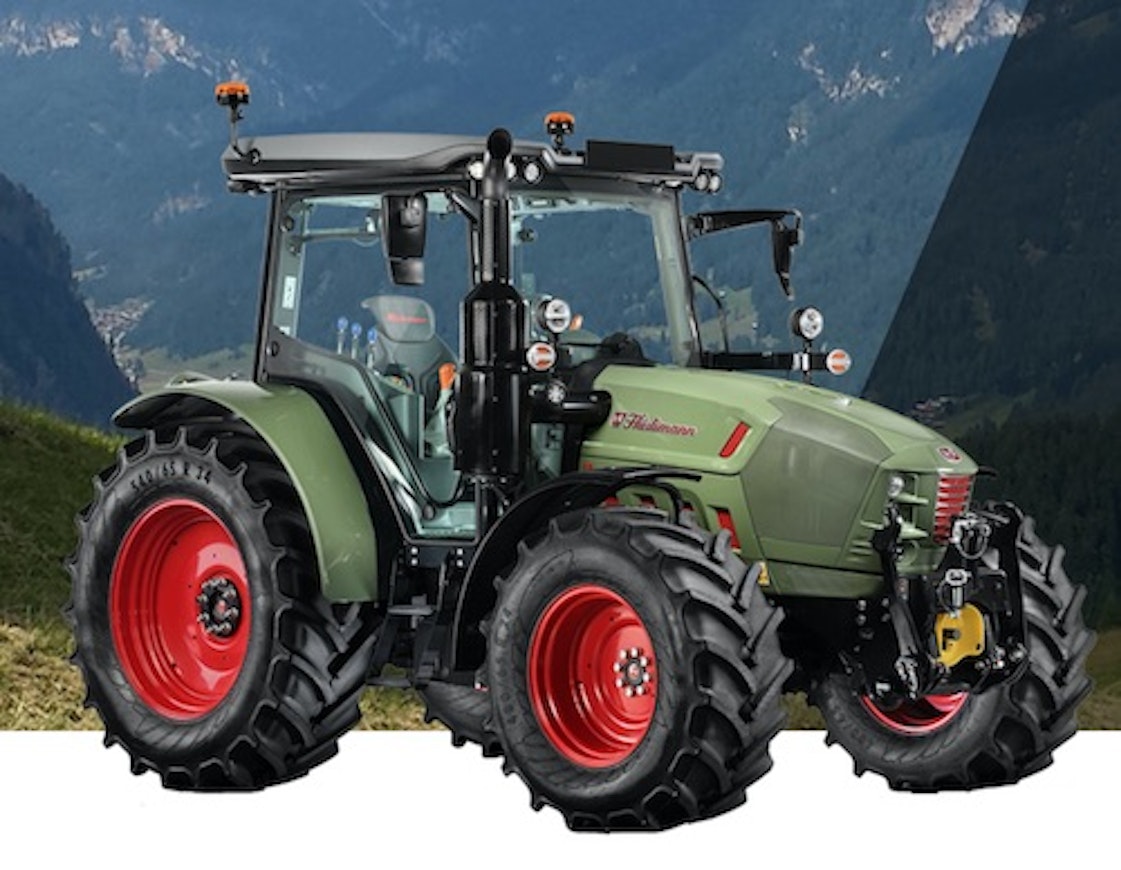

Same Explorer 95-125 / Lamborghini Strike 95-125 / Hürlimann XA 95-125

Manufacturer
Models
Same Explorer 95, Lamborghini Strike 95, Same Explorer 100, Lamborghini Strike 100, Same Explorer 105, Lamborghini Strike 105, Same Explorer 115, Lamborghini Strike 115, Same Explorer 125, Lamborghini Strike 125
Years
2021-
Info

In spring 2021, the Stage V model ranges of Same Explorer, Lamborghini Strike, Hürlimann XB, and Deutz-Fahr 5 were introduced. The number of different versions had been reduced, but now from the same models you could get either a basic tractor equipped with mechanical functions or, on the other hand, a comprehensively equipped one.

The engines were FARMotion engines from their own group. There were five power classes in the range of 90…120 hp, and all now featured urea injection. The transmission in the base version was a 10+10 mechanical with direction reversal. Using a 2- or 3-speed powershift, the number of gears increased to 20+20 and 30+30, and with creep gears even up to 60+60. As an optional extra, a hydraulic reverser was also available. The Stop&Go function was standard equipment.

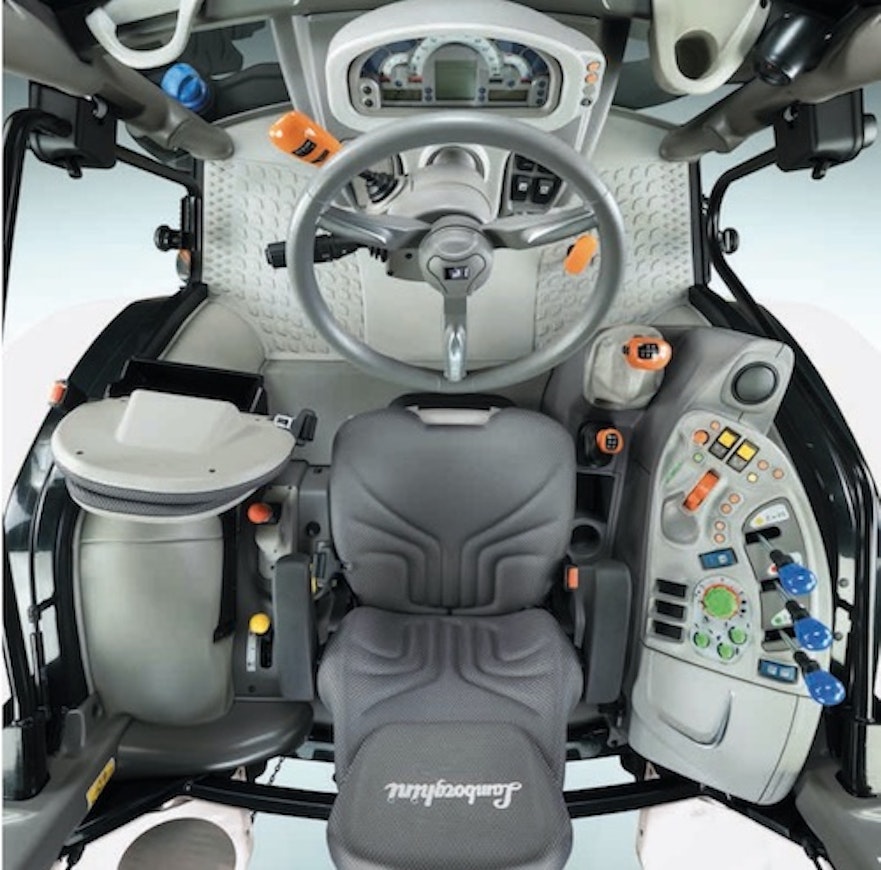

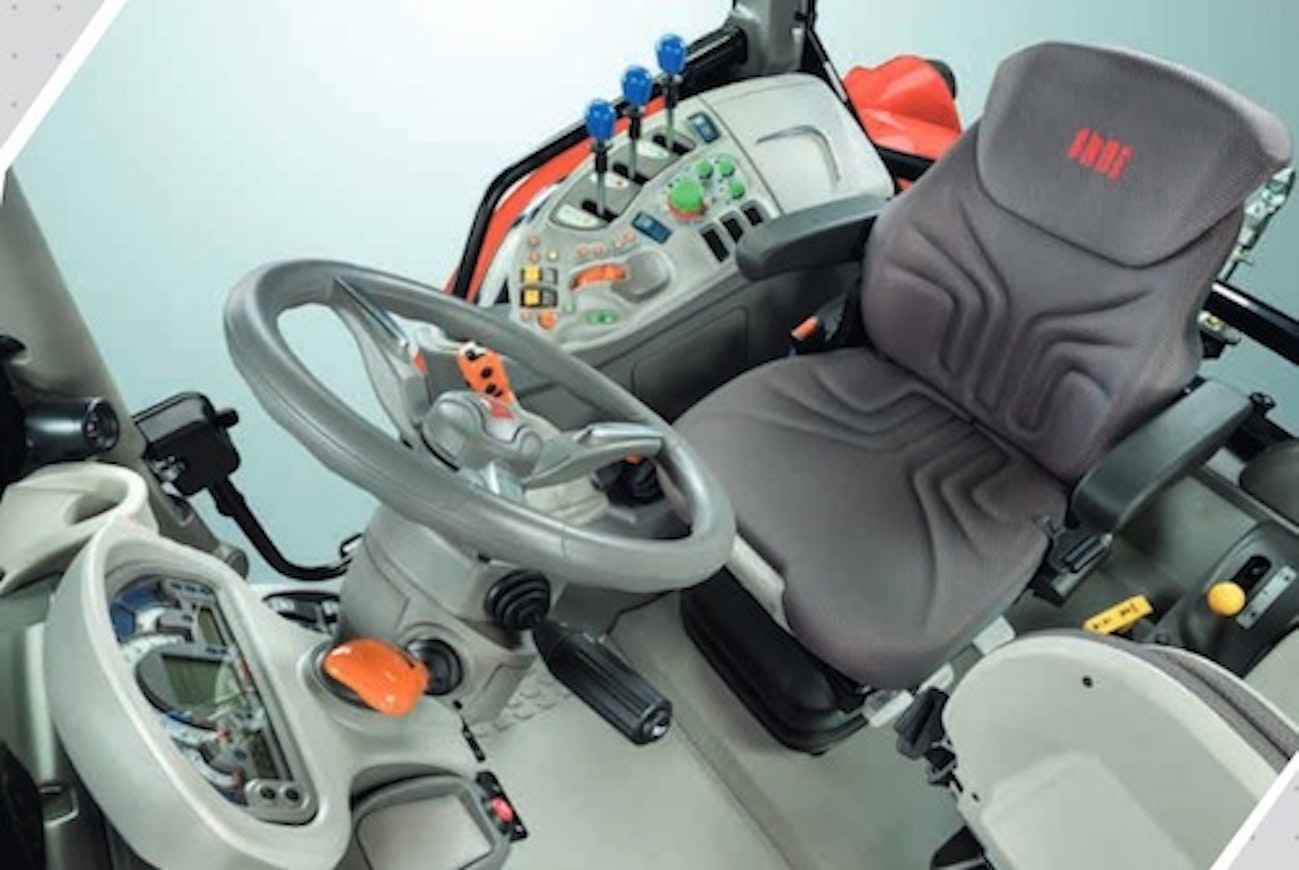

The hydraulic system was open. The standard flow was 55 liters, and with an additional pump, 90 l/min. The lifting device was either mechanical or electrical, with a minimum lifting capacity of 3600 kg. The front axle had oil-immersed disc brakes. The cab was standardly mounted on hydraulic damping elements. As an option, a double-power steering pump was available, which could reduce the required number of steering wheel turns by half.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelSame Explorer 95Lamborghini Strike 95Same Explorer 100Lamborghini Strike 100Same Explorer 105Lamborghini Strike 105Same Explorer 115Lamborghini Strike 115Same Explorer 125Lamborghini Strike 125
Imported to FinlandNoNoNoNoNoNoNoNoNoNo
Years2021-2021-2021-2021-2021-2021-2021-2021-2021-2021-
Engine modelFARMotion 45FARMotion 45FARMotion 35FARMotion 35FARMotion 45FARMotion 45FARMotion 45FARMotion 45FARMotion 45FARMotion 45
Cyl/Turbo/Intercooler4TI4TI4TI4TI4TI4TI4TI4TI4TI4TI
Displacement3849 cm³3849 cm³2887 cm³2887 cm³3849 cm³3849 cm³3849 cm³3849 cm³3849 cm³3849 cm³
Bore x stroke103×115,5 mm103×115,5 mm103×115,5 mm103×115,5 mm103×115,5 mm103×115,5 mm103×115,5 mm103×115,5 mm103×115,5 mm103×115,5 mm
Rated power----------
Max power----------
Torque----------
Gears10+10/20+20/30+3010+10/20+20/30+3010+10/20+20/30+3010+10/20+20/30+3010+10/20+20/30+3010+10/20+20/30+3010+10/20+20/30+3010+10/20+20/30+3010+10/20+20/30+3010+10/20+20/30+30
Synchronized gears10+10/20+20/30+3010+10/20+20/30+3010+10/20+20/30+3010+10/20+20/30+3010+10/20+20/30+3010+10/20+20/30+3010+10/20+20/30+3010+10/20+20/30+3010+10/20+20/30+3010+10/20+20/30+30
Powershift gears-/x/3-step.-/x/3-step.-/x/3-step.-/x/3-step.-/x/3-step.-/x/3-step.-/x/3-step.-/x/3-step.-/x/3-step.-/x/3-step.
Reversermech./hydr.mech./hydr.mech./hydr.mech./hydr.mech./hydr.mech./hydr.mech./hydr.mech./hydr.mech./hydr.mech./hydr.
Max. speed 40 km/h40 km/h40 km/h40 km/h40 km/h40 km/h40 km/h40 km/h40 km/h40 km/h
Hydr. flow l/min55 (90) l/min55 (90) l/min55 (90) l/min55 (90) l/min55 (90) l/min55 (90) l/min55 (90) l/min55 (90) l/min55 (90) l/min55 (90) l/min
Hydraulic pressure185 bar185 bar185 bar185 bar185 bar185 bar185 bar185 bar185 bar185 bar
Lift controlsmech./elec.mech./elec.mech./elec.mech./elec.mech./elec.mech./elec.mech./elec.mech./elec.mech./elec.mech./elec.
Lift capacity3600 (4525) kg3600 (4525) kg3600 (4525) kg3600 (4525) kg3600 (4525) kg3600 (4525) kg3600 (4855) kg3600 (4855) kg4855 (5410) kg4855 (5410) kg
PTO speeds540/750540/750540/750540/750540/750540/750540/750540/750540/750540/750
Brakeswet discwet discwet discwet discwet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD7.947.947.947.947.947.947.947.947.947.94
Front tyres 4WD380/85R24380/85R24380/85R24380/85R24380/85R24380/85R24420/70R24420/70R24420/70R24420/70R24
Rear tyres 4WD420/85R34420/85R34420/85R34420/85R34420/85R34420/85R34480/70R34480/70R34480/70R34480/70R34
Weight 4WD3950 kg3950 kg3800 kg3800 kg3950 kg3950 kg4250 kg4250 kg4350 kg4350 kg
Height with cab268 cm268 cm268 cm268 cm268 cm268 cm272 cm272 cm272 cm272 cm
Length (2WD/4WD)441 cm441 cm436 cm436 cm441 cm441 cm444 cm444 cm444 cm444 cm
Wheelbase (2WD/4WD)240 cm240 cm235 cm235 cm240 cm240 cm240 cm240 cm240 cm240 cm
Fuel tank135+AB8 l135+AB8 l135+AB8 l135+AB8 l145+AB10 l145+AB10 l145+AB10 l145+AB10 l145+AB10 l145+AB10 l
Cab noise level75 dB75 dB75 dB75 dB75 dB75 dB75 dB75 dB75 dB75 dB
Solid cabxxxxxxxxxx
Diff. lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lockfriction lock
Creeper gearopt.opt.opt.opt.opt.opt.opt.opt.opt.opt.
