Same Drago, Buffalo, Hercules

82SameHercules
80SameBuffalo130
82SameHercules
80SameBuffalo130
Manufacturer
Models
Same Drago 120, Same Buffalo 130, Same Hercules 160
Years
1978-86
Info

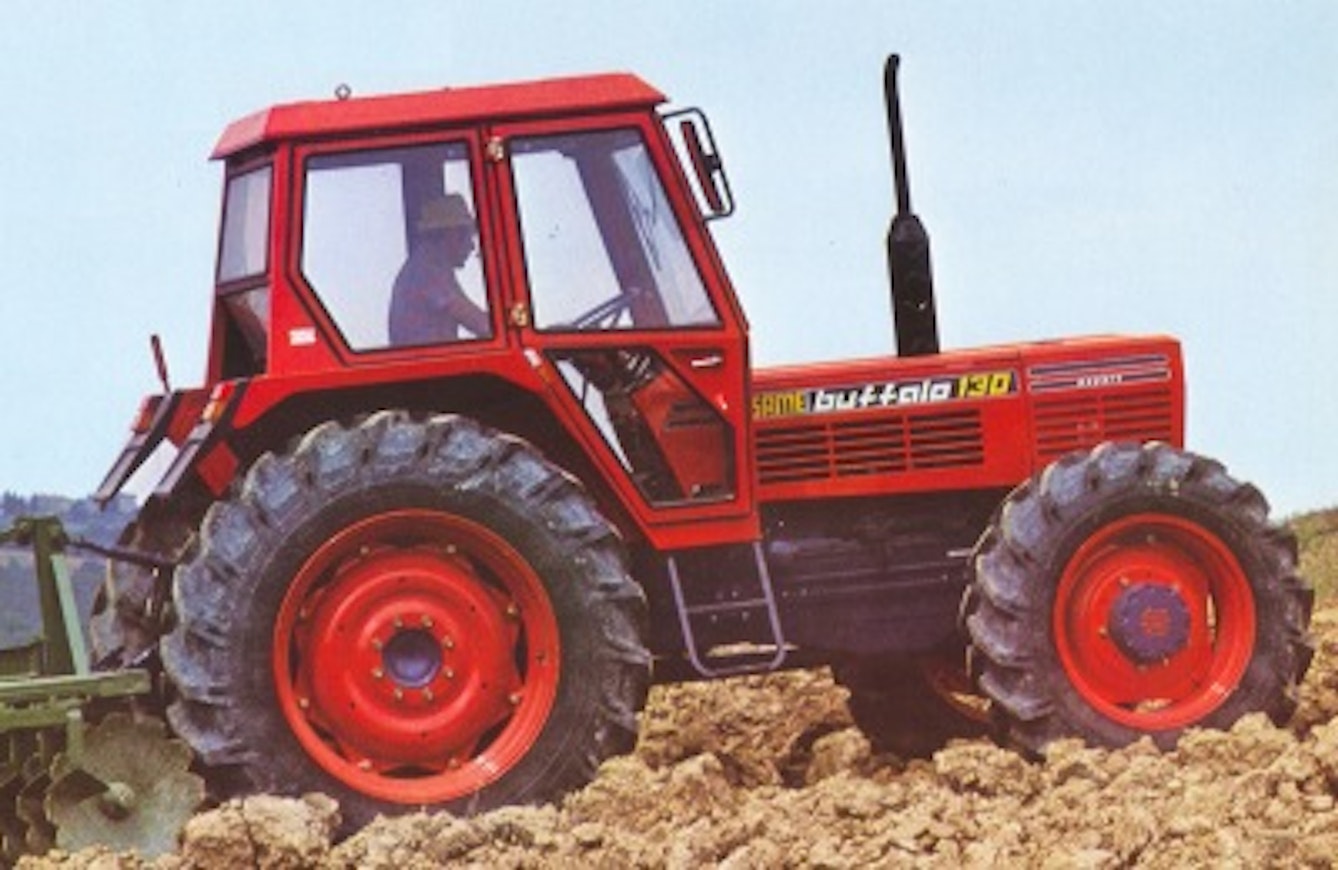

In the angular Same lineup of 1978, the Drago model name was raised to the 115 horsepower class and received the same 6.2-liter engine as the Buffalo, whose power in turn rose to 125 horsepower. Like the other Same models, the engines were air- and oil-cooled. The transmission was the same fully synchronized 12+4 as in the earlier Buffalo, and the top speed remained at 25 km/h. The tractors were relatively light compared to their power and were also available as rear-wheel drive models.

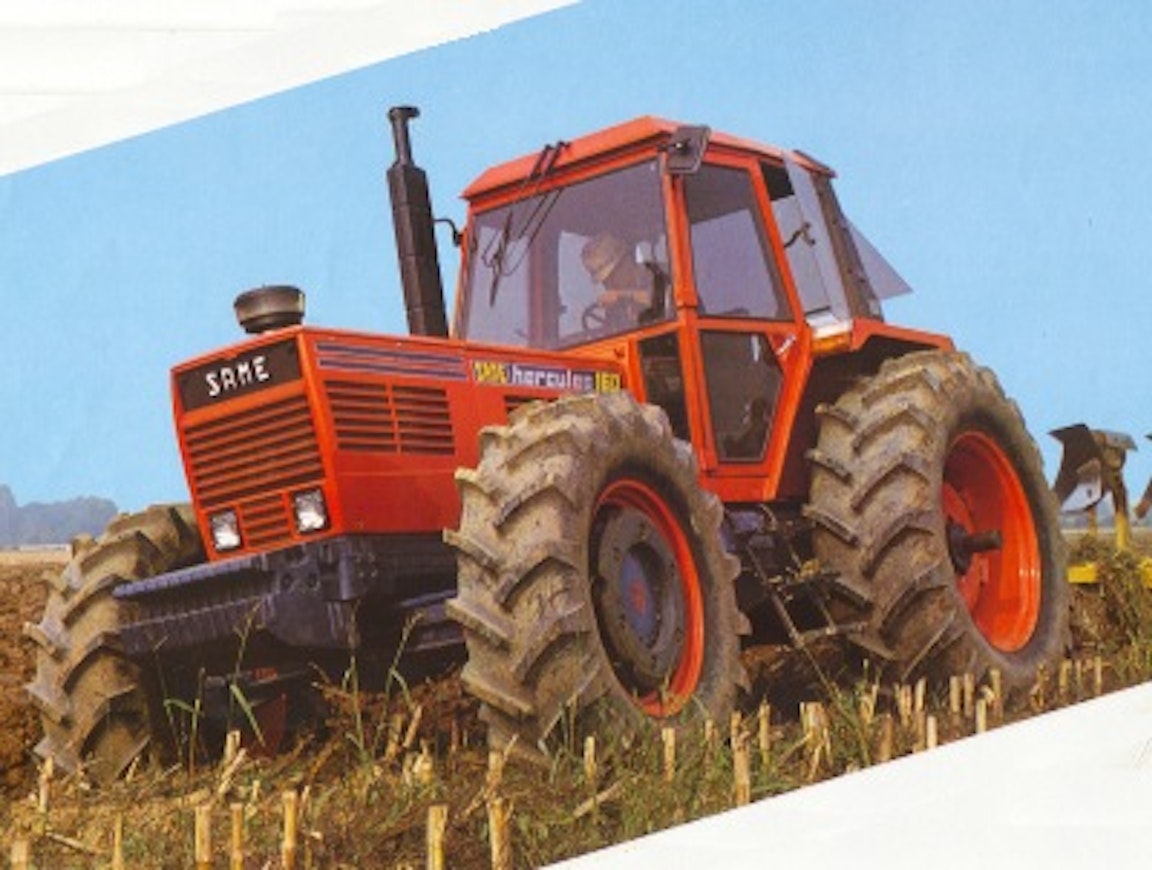

In the summer of 1979, the top model of the lineup, the turbocharged Hercules 160, was introduced, with 160 hp. It had a lifting capacity of 6 tons, and the 60-liter hydraulic pump, which was an optional accessory in the smaller models, was standard. The Hercules was otherwise more robust in construction, weighing over 1000 kg more than the Buffalo. The Hercules cabin was different from the smaller models, and the doors opened from the rear edge. In 1983, the Galaxy, which was aligned with other brands in the group, replaced the Hercules. The Drago continued alongside the Lasers for a while.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelSame Drago 120Same Buffalo 130Same Hercules 160
Options
Manufacturer nameSameSameSame
Imported to FinlandNoNoNo
Years1978-861978-821979-83
First year sold197819781979
Last year sold198619821983
Engine model1056P1056P1056PT
Cyl/Turbo/Intercooler666T
Displacement6234 cm³6234 cm³6234 cm³
Bore x stroke105×120 mm105×120 mm105×120 mm
Rated power hp/rpm DIN115/2070125/2200160/2200
Rated power115125160
Rated speed207022002200
Torque Nm/rpm DIN-420/1600614/1500
Gears12+412+412+4
Synchronized gears12+412+412+4
Speeds in km/h2,1-24,91,9-24,32,5-30,0
Max. speed 25 km/h25 km/h25/30 km/h
Hydr. flow l/min25 l/min35 (60) l/min33/60 l/min
Hydraulic pressure175 bar175 bar175 bar
Lift controlsmech.mech.mech.
Lift capacity2590 kg3400/4240 kg5000/5970 kg
PTO speeds540/1000540/1000540/1000
Brakeswet discwet discwet disc
Steeringhydrost.hydrost.hydrost.
Turning circle m 2WD88.2-
Turning circle m 4WD8,6 jarrulla8,8 jarrulla9,0 jarrulla
Front tyres 2WD9.50-209.50-20-
Front tyres 4WD13.6-2813.6-2816.9-30
Rear tyres 2WD18.4-3818.4-38-
Rear tyres 4WD18.4-3818.4-3820.8-38
Weight 2WD4150 kg4460 kg-
Weight 4WD4570 kg4870 kg6150 kg
Height with cab278 cm283 cm288 cm
Length (2WD/4WD)395/409 cm432/448 cm468 cm
Wheelbase (2WD/4WD)266/266 cm266/266 cm286 cm
Fuel tank130 l120/150 l240 l
Cab noise level86 dB86 dB-
Solid cabxxx
Diff. lock--opt.
Creeper gearopt.opt.opt.
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information. There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed. Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
