Same Dorado 60-70

95SameDoradoOhjaamo
95SameDorado70
95SameDoradoOhjaamo
95SameDorado70
Manufacturer
Models
Same Dorado 60, Same Dorado 70
Years
1995-2000
Info

In the fall of 1995, the first Same Dorados were introduced, with 60 and 70 horsepower. The air-cooled engine was a 3-cylinder in the smaller model and a 4-cylinder in the larger one. The engine control was electronic. Torque increase of 17 and 18% was promised. The basic transmission was 20+10 gears, but the 40 km/h versions had 30+15 gears. As an option, there was the Agroshift system equipped with a 3-step hydraulic quick shift and a direction reverser, offering 45+45 gears.

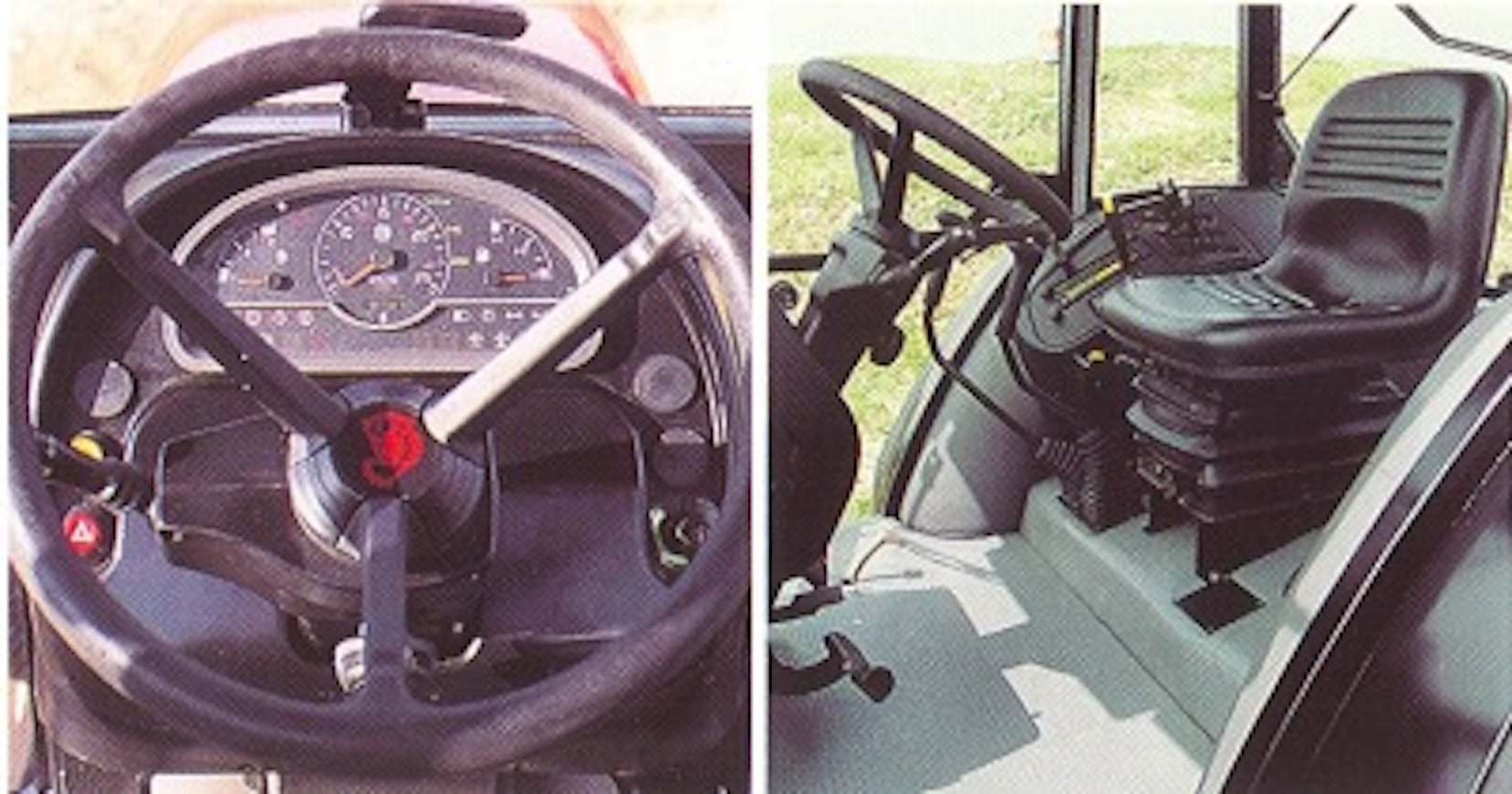

The exterior design, styled by Giugiaro, was more rounded than previous small Same models. The cab was low (240 cm), but had a flat floor. The glass surfaces were curved and the doors were fully glazed. The noise level was 81-82 dB. The turning radius was very small, and the wheel steering angle was 55 degrees. Like the larger Same models, the Dorado also had disc brakes on all four wheels. The power take-off had 3 speeds as well as a driving power take-off, and the PTO engagement was electro-hydraulic. The steering pump was separate, but with the standard pump the hydraulic output remained at 36 liters.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelSame Dorado 60Same Dorado 70
Manufacturer nameSameSame
Imported to FinlandNoNo
Years1995-20001995-2000
Engine model1000.3A51000.4A5
Cyl/Turbo/Intercooler34
Displacement3000 cm³4000 cm³
Bore x stroke105×115,5 mm105×115,5 mm
Rated power60/2350 hp DIN/rpm70/2350 hp DIN/rpm
Torque--
Gears30+1530+15
Synchronized gears30+1530+15
Powershift gearsmech.mech.
Reverseropt.opt.
Speeds in km/h0,23-39,90,23-39,9
Hydr. flow l/min36 (48) l/min36 (48) l/min
Hydraulic pressure180 bar180 bar
Lift controlsmech.mech.
Lift capacity2900 kg2900 kg
PTO speeds540/750/ 1000/ajo540/750/ 1000/ajo
Brakeswet discwet disc
Steeringhydrost.hydrost.
Turning circle m 2WD6.126.4
Turning circle m 4WD7.37.6
Front tyres 2WD7.50-167.50-16
Front tyres 4WD12.4R2011.2R24
Rear tyres 2WD420/70R28420/70R30
Rear tyres 4WD14.9R3016.9R30
Weight 2WD2550 kg2660 kg
Weight 4WD2700 kg2890 kg
Height with cab240 cm242 cm
Length (2WD/4WD)372 cm385 cm
Wheelbase (2WD/4WD)211/206 cm224/219 cm
Fuel tank90 l90 l
Cab noise level82 dB81 dB
Solid cabxx
Diff. lockdifferential lock with cogsdifferential lock with cogs
Creeper gearxx
