Same D.A. 38 – D.A. 67

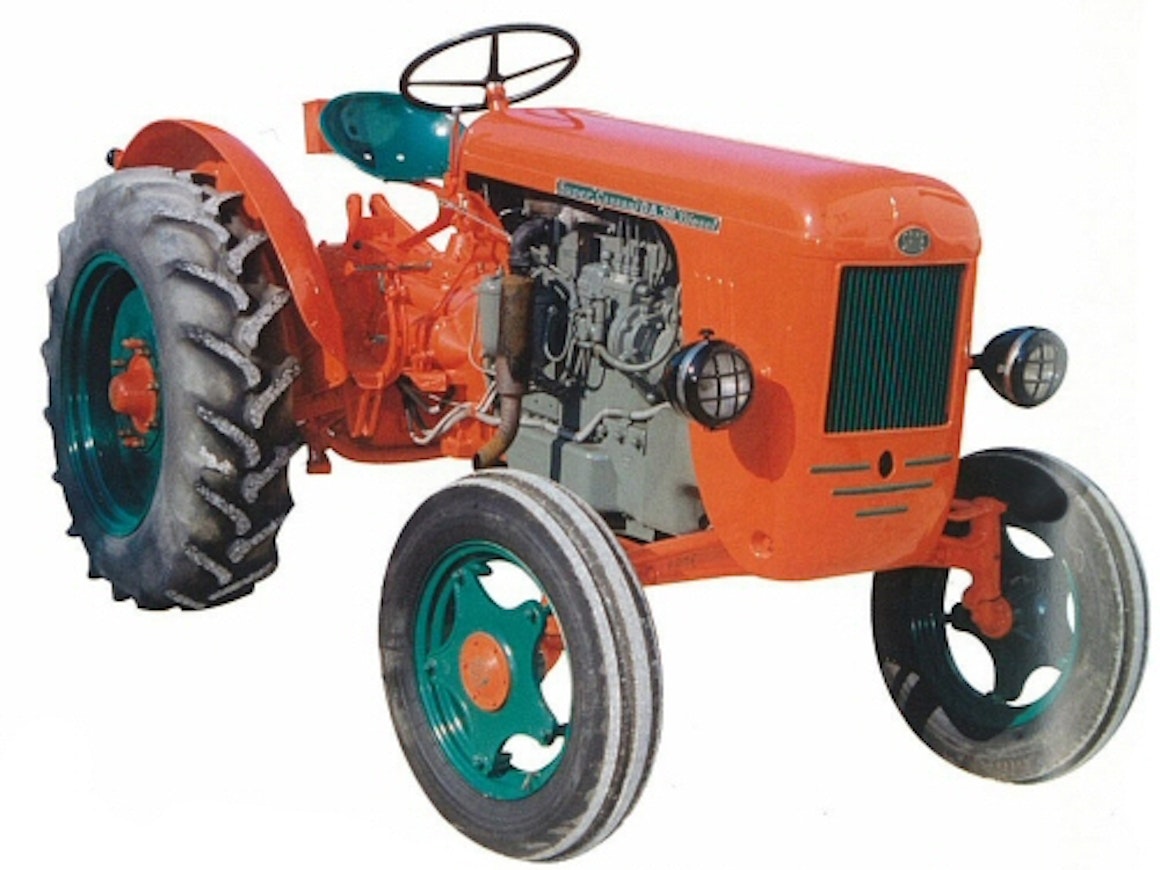

Same’s predecessor, Cassani, had already built large tractors back in the 1920s, but after the war Same stuck with 1- and 2-cylinder models until the D.A. 38 Super Cassani was introduced in 1952. Same’s air-cooled diesel engine series was modular, and this model used the 3-cylinder version. The gearbox was a 5+1 configuration without a very low gear. In 1954 a 4-cylinder model appeared, named the D.A. 55 Super Same. Both models were offered in two-wheel-drive and four-wheel-drive versions.
In 1956 the D.A. 38 was replaced by the D.A. 47. Engine output was increased, and a differential lock was fitted as standard equipment. The four-wheel-drive version featured larger front tires. With similar updates, the D.A. 55 was succeeded by the D.A. 67.
This is an automated translation. Please report any issues in the translation.
| Model | Same D.A. 38 Super Cassani | Same D.A. 47 Super Cassani | Same D.A. 55 Super Same | Same D.A. 67 Super Same |
|---|---|---|---|---|
| Options | ||||
| Manufacturer name | Same | Same | Same | Same |
| Imported to Finland | No | No | No | No |
| Years | 1952-57 | 1956-59 | 1954-57 | 1956-60 |
| First year sold | 1952 | 1956 | 1954 | 1956 |
| Last year sold | 1957 | 1959 | 1957 | 1960 |
| Engine model | D.A. 1103 | D.A. 1103 | D.A. 1104 | D.A. 1104 |
| Cyl/Turbo/Intercooler | 3 | 3 | 4 | 4 |
| Displacement | 3420 cm³ | 3420 cm³ | 4560 cm³ | 4560 cm³ |
| Bore x stroke | 110×120 mm | 110×120 mm | 110×120 mm | 110×120 mm |
| Rated power hp/rpm DIN | 38-40/1700 | 47/1700 | 55/1800 | 67/1800 |
| Rated power | - | 47 | 55 | 67 |
| Rated speed | 1700 | 1700 | 1800 | 1800 |
| Gears | 5+1 | 5+1 | 5+1 | 5+1 |
| Speeds in km/h | 4,4-24,5 | 4,4-24,0 | 4,9-26,2 | 4,9-26,2 |
| Lift controls | mech. | mech. | mech. | mech. |
| PTO speeds | 585 | 660 | 660 | 660 |
| Brakes | drum brakes | drum brakes | drum brakes | drum brakes |
| Steering | mech. | mech. | mech. | mech. |
| Turning circle m 2WD | 7.1 | 6.4 | 7.8 | 7.8 |
| Turning circle m 4WD | 9 | 9 | 9 | 8.9 |
| Front tyres 2WD | 6.00-19 | 6.00-19 | 7.50-18 | 7.50-18 |
| Front tyres 4WD | 7.50-20 | 8.3/8-24 | 8.3/8-24 | 11.2/10-24 |
| Rear tyres 2WD | 13.6/12-28 | 13.6/12-28 | 14.9/13-30 | 14.9/13-30 |
| Rear tyres 4WD | 13.6/12-28 | 13.6/12-28 | 14.9/13-30 | 14.9/13-30 |
| Weight 2WD | (2200) kg | (2300) kg | (2400) kg | (2600) kg |
| Weight 4WD | (2500) kg | (2600) kg | (2700) kg | (3100) kg |
| Height with cab | (173) cm | (173) cm | (181) cm | (181) cm |
| Length (2WD/4WD) | 299/302 cm | 299/307 cm | 332 cm | 332 cm |
| Wheelbase (2WD/4WD) | 190/187 cm | 190/185 cm | 209/204 cm | 209/204 cm |
| Fuel tank | 36 l | 36 l | 52 l | 52 l |
