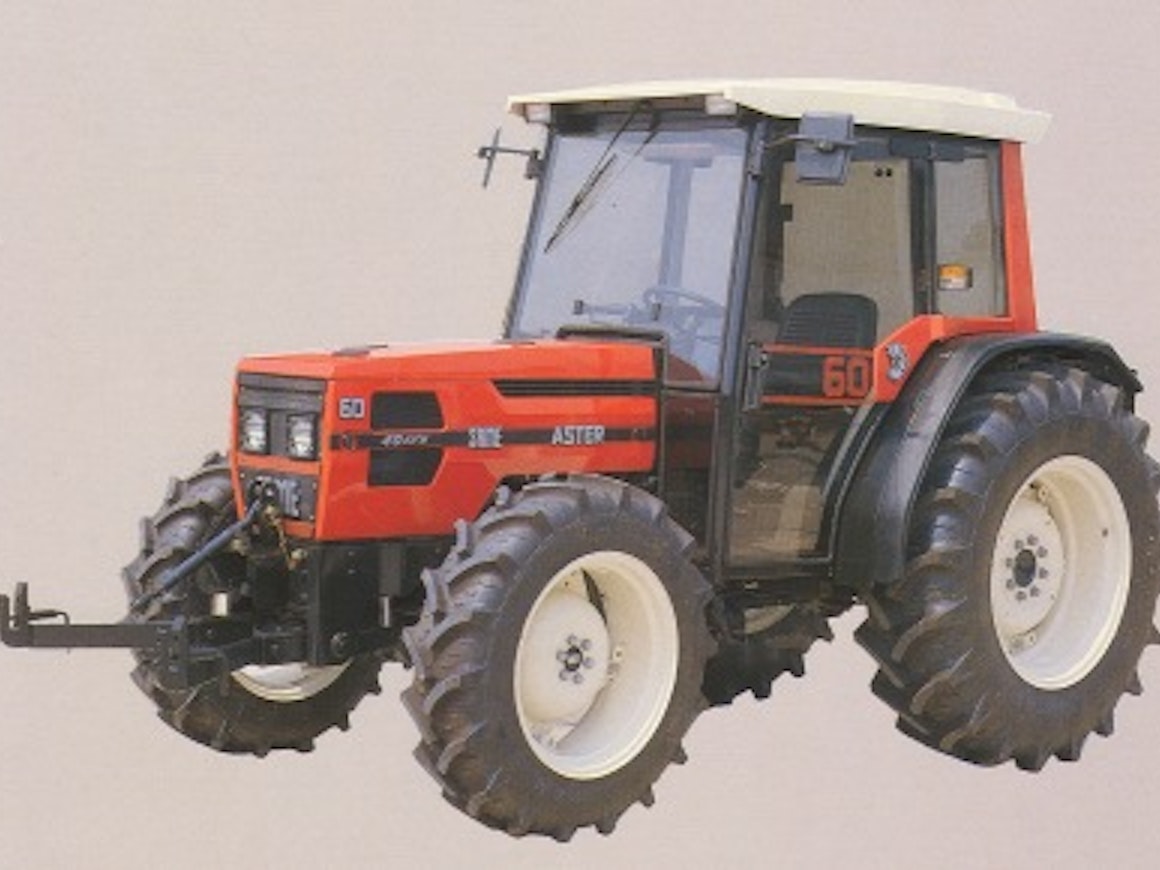

The same Aster was positioned below the Explorer in the lineup, and the price was about 10% cheaper. The Aster 60 had the same 60-horsepower three-cylinder engine as the Explorer, while the 70 had a turbocharged version of the same engine. In terms of other technology and the cab, the Aster was slightly simpler. The transmission was 12+12 (with creeper gears, 16+16). Surprisingly, the hydraulic output and lifting capacity were slightly higher than those of the Explorer. Unlike the Explorer, the Aster was equipped with draft sensing on the lift arms. The narrow Frutteto and Vigneron models were close relatives of the Aster.

This is an automated translation. Please report any issues in the translation.

Same Aster 60

Malli

Hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Rated power

Max power

Torque

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

Sylinterien lukumäärä

Iskutilavuus

Iskusuhde

Suurin vääntömomentti, Nm

Suurin vääntömomentti, r/min

Vääntömomentin nousu

Polttonesteen kulutus suurimman tehon pisteessä

Kytkimen tyyppi

Ajovoimanotto

Nopeus eteenpäin moottorin nimellisnopeudella, pienin

Nopeus eteenpäin moottorin nimellisnopeudella, suurin

Jarrut

Hydrauliikan suurin paine

Hydrauliikan suurin tuotto

Nostolaitehydrauliikan hallinta

Ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

Nostovoima (kN=100 kg)

Hydrauliikan tyyppi

Kääntöympyrän halkaisija ilman ohjausjarrua

Eturenkaat

Takarenkaat

Kokonaismassa säiliöt täynnä vakiovarustein

Etuakselipaino

Taka-akselipaino

Suurin korkeus (ohjaamon ylimpään kohtaan)

Kokonaispituus

Akseliväli

Maavara, pienin

Polttoainesäiliön tilavuus

Korkein melutaso

Etuakselin tasauspyörästön lukko

Etunostolaite

Etulokasuojat

Ilmastointilaite

Perävaunun jarruventtiili

Ilmaistuin

Ohjauksen tyyppi

Same Aster 70

Same Aster

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Koneviesti

Lehdet

Konedata

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Same Aster 60	Same Aster 70
Manufacturer name	Same	Same
Imported to Finland	No	No
Years	1989-96	1989-96
Engine model	1000.3A	1000.3AT
Cyl/Turbo/Intercooler	3	3T
Displacement	3000 cm³	3000 cm³
Bore x stroke	105×115,5 mm	105×115,5 mm
Rated power	60/2500 hp DIN/rpm	70/2350 hp DIN/rpm
Torque	-	-
Gears	12+12/16+16	12+12/16+16
Synchronized gears	12+12/16+16	12+12/16+16
Reverser	mech.	mech.
Speeds in km/h	0,95-33,8/ 0,39-36,8	0,95-33,8/ 0,38-36,2
Hydr. flow l/min	50 l/min	50 l/min
Lift controls	mech.	mech.
Lift capacity	2800 kg	2800 kg
PTO speeds	540/1000/ajo	540/1000/ajo
Brakes	wet disc	wet disc
Steering	hydrost.	hydrost.
Turning circle m 2WD	7.2	-
Turning circle m 4WD	7.3	7.3
Front tyres 2WD	7.50-16	-
Front tyres 4WD	9.5R20	11.2R24
Rear tyres 2WD	14.9R30	-
Rear tyres 4WD	14.9R30	16.9R30
Weight 2WD	2580 kg	-
Weight 4WD	2730 kg	2750 kg
Height with cab	241 cm	239 cm
Length (2WD/4WD)	369/373 cm	379 cm
Wheelbase (2WD/4WD)	212/206 cm	220 cm
Fuel tank	71 l	78 l
Cab noise level	82 dB	82 dB
Solid cab	x	x
Diff. lock	differential lock with cogs	differential lock with cogs
Creeper gear	-/x	-/x
