Renault 50-12 LB – 80-14 LB

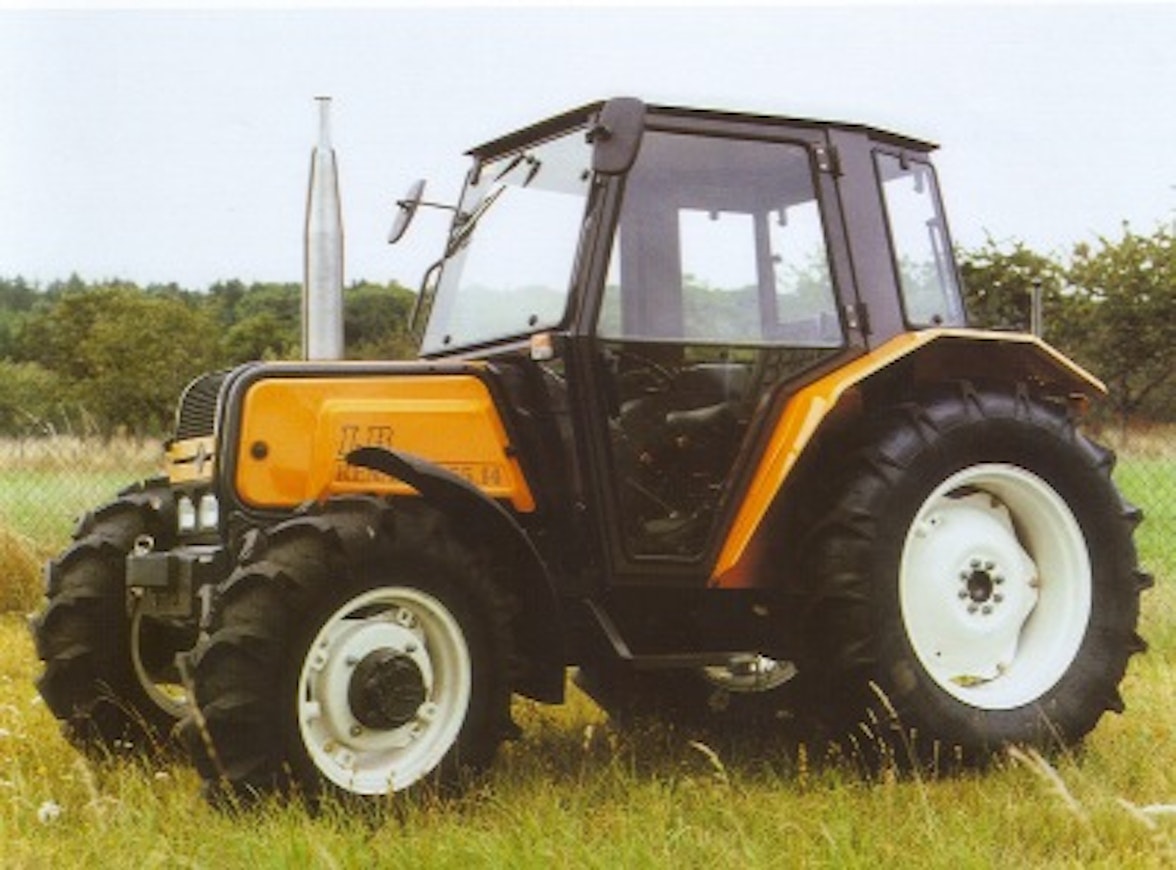

87Renault55-14LB
Manufacturer
Models
Renault 50-12 LB, Renault 55-12 LB 55-14 LB
Years
1987-98
Info

In 1986, Renault introduced a new series of tractors for viticulture and fruit growing developed together with Carraro. The engine was an air-cooled Deutz with a power output of 45-76 hp. In 1987, conventional agricultural tractors were also made from the two smallest models in the series, which were named the LB series. Technically, these models had little in common with Renault’s larger tractors. The hydraulics were quite powerful relative to their power class, and the transmission was equipped with a mechanical shuttle shift. The LB models were available either with a roll bar or a cab. A new cab was introduced in 1995.

In 1991, the 67-horsepower 70-12/14 LB was introduced, and in 1995 the 76-horsepower 80-14 LB. Production volumes of these larger models remained low.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelRenault 50-12 LBRenault 55-12 LB 55-14 LB
Options
Manufacturer nameRenaultRenault
Imported to FinlandNoNo
Years1987-931987-98
First year sold19871987
Last year sold19931998
Engine modelDeutz F3 L 912Deutz F3 L 912
Cyl/Turbo/Intercooler33
Displacement2827 cm³2827 cm³
Bore x stroke100×120 mm100×120 mm
Rated power hp/rpm DIN45/235052/2350
Rated power4552
Rated speed23502350
Torque Nm/rpm DIN154/1500177/1500
Gears8+812+12
Synchronized gears-12+12
Reversermech.mech.
Speeds in km/h2,9-30,00,5-30,0
Hydr. flow l/min36.5 l/min36.5 l/min
Lift controlsmech.mech.
Lift capacity3410 kg3410 kg
PTO speeds540540/ajo
Brakeswet discwet disc
Steeringhydrost.hydrost.
Turning circle m 2WD6.76.7
Turning circle m 4WD-6.7
Front tyres 2WD6.00-167.50-16
Front tyres 4WD-12.4-20
Rear tyres 2WD13.6-2814.9-28
Rear tyres 4WD-14.9-28
Weight 2WD1930 kg1990 kg
Weight 4WD-2260 kg
Height with cab223 cm225 cm
Length (2WD/4WD)330 cm333/361 cm
Fuel tank62 l62 l
Cab noise level88 dB88 dB
Solid cab(x)(x)
Diff. lock-friction lock
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information. There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed. Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
