Oliver 1600-1900

Manufacturer
Models
Oliver 1600, Oliver 1600, Oliver 1600 Diesel, Oliver 1800, Oliver 1800, Oliver 1800 Diesel, Oliver 1800 Diesel, Oliver 1900 Diesel, Oliver 1900 Diesel
Years
1960-64
Info

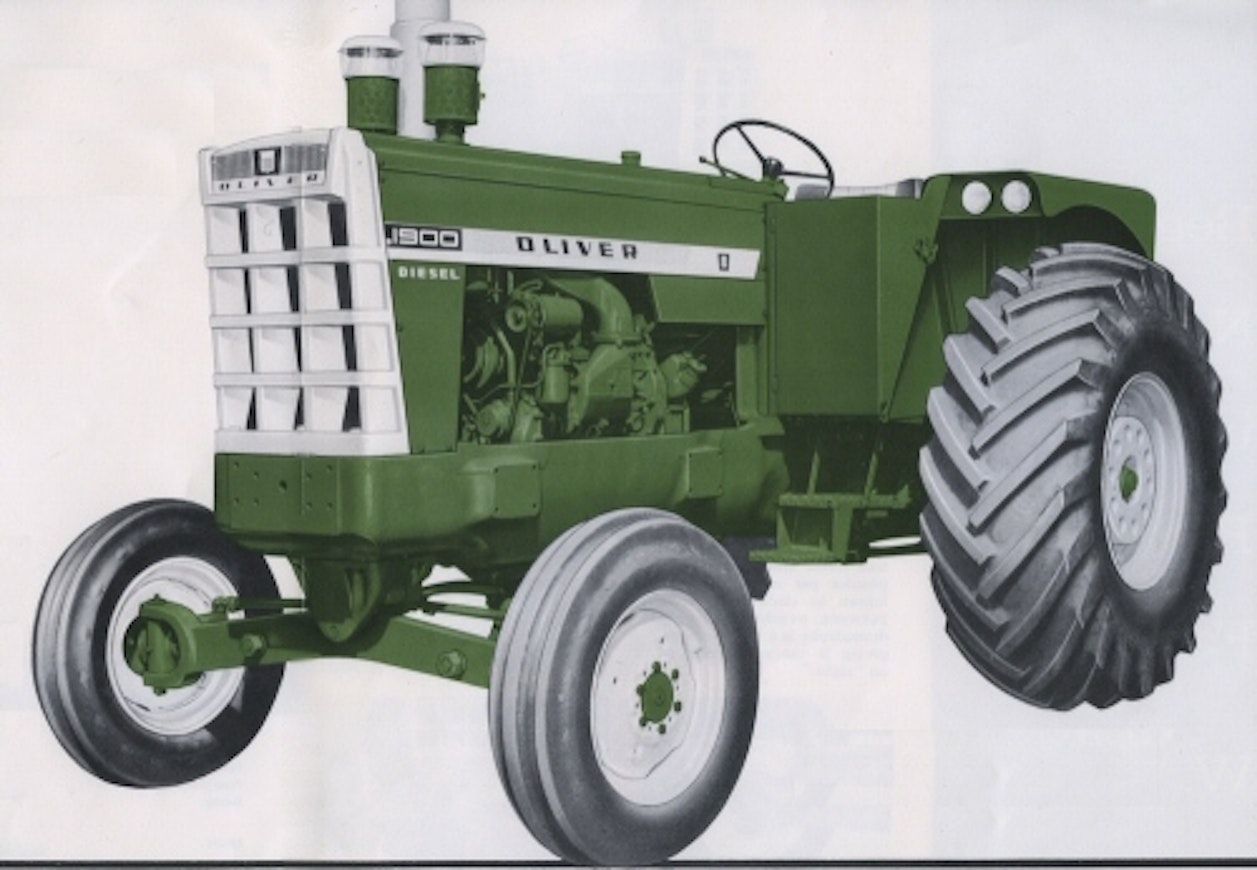

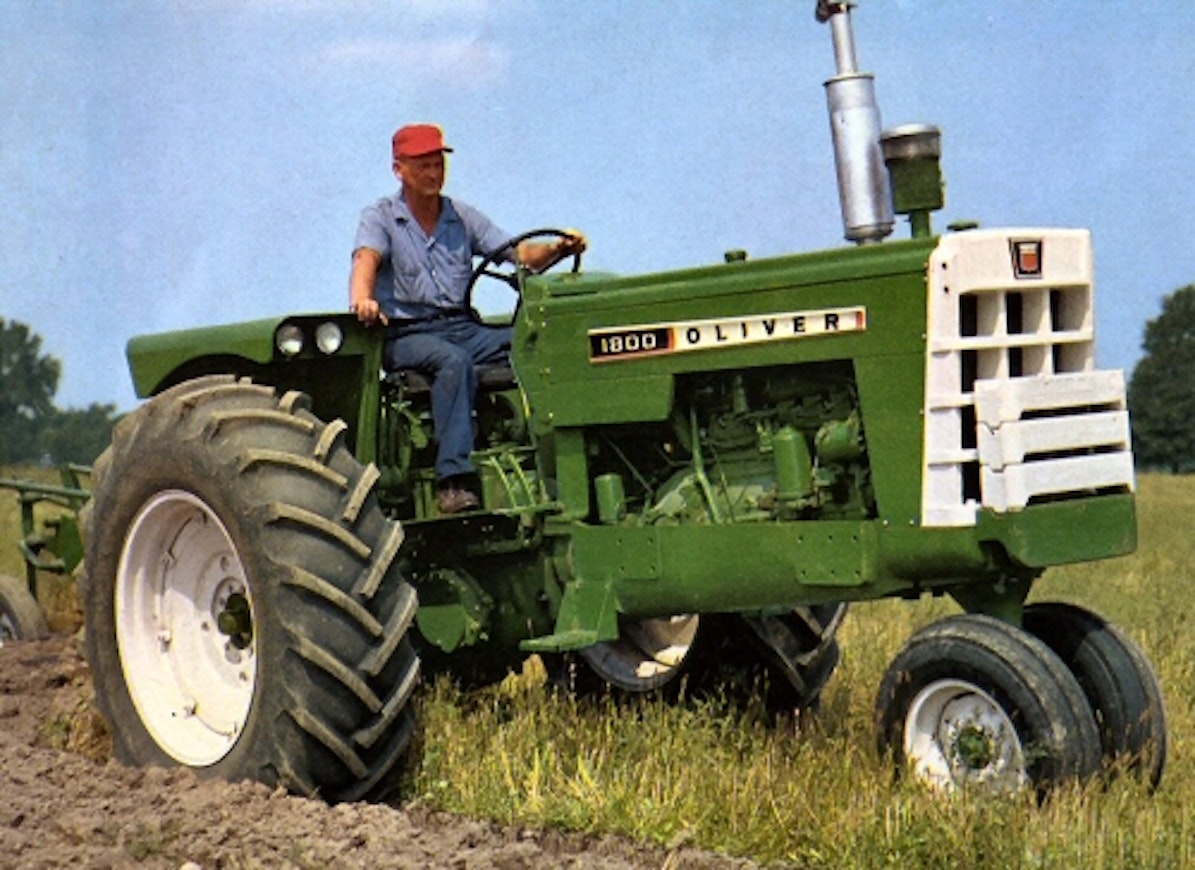

Introduced in 1960, the Oliver 1800 and 1900 met the need for increasingly larger tractors. For the first time, engine power exceeded 100 hp. The design was advanced and angular, characterized by an intentionally heavy cast iron grille. The 1800 was primarily a Row Crop tractor, but the 1900 was only available as the short wheelbase Wheatland version. The engine in the 1900 was now a 4-cylinder GM two-stroke diesel. New technology included draft sensing, a hydraulic PTO clutch, and an optional Hydro-Power hydraulic power shift. The tractor design considered the possibility of a cab, but one was not yet offered. Hydrostatic steering became available a little later.

In 1962, European-style four-wheel drive models of the 1800 and 1900 were introduced, followed by the 1600 in 1964. The four-wheel drive models were equipped with Goodyear's newly launched Terra low-pressure tires.

For 1963, Series B models of the 1800 and 1900 were introduced, featuring increased power and higher engine RPMs. The 1964 Series C models had improved hydraulics and a steering wheel adjustable for both length and height.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelOliver 1600Oliver 1600Oliver 1600 DieselOliver 1800Oliver 1800Oliver 1800 DieselOliver 1800 DieselOliver 1900 DieselOliver 1900 Diesel
Options
Manufacturer nameOliverOliverOliverOliverOliverOliverOliverOliverOliver
Imported to FinlandNoNoNoNoNoNoNoNoNo
Years1962-631963-641962-641960-621962-651960-621962-651960-621962-64
First year sold196219631962196019621960196219601962
Last year sold196319641964196219651962196519621964
Engine model-------GM 4-53GM 4-53N
Cyl/Turbo/Intercooler66666664 mech.4 mech.
Displacement3784 cm³4059 cm³4344 cm³4344 cm³4638 cm³4638 cm³5073 cm³3479 cm³3479 cm³
Bore x stroke88,9×101,6 mm92,1×101,6 mm95,3×101,6 mm95,3×101,6 mm98,4×101,6 mm98,4×101,6 mm98,4×111,1 mm98,4×114,3 mm98,4×114,3 mm
Power66666585908085102108
Power speed190019001900200022002000220020002200
Rated power hp/rpm SAE66/190066/190065/190085/200090/220080/200085/2200102/2000108/2200
Torque Nm/rpm SAE--------366/1800
Gears6+2/12+46+2/12+46+2/12+46+2/12+46+2/12+46+2/12+46+2/12+46+2/12+46+2/12+4
Powershift gears-/hydr.-/hydr.-/hydr.-/hydr.-/hydr.-/hydr.-/hydr.-/hydr.-/hydr.
Speeds in km/h3,0-21,83,0-21,83,0-21,82,6-23,01,9-23,12,6-23,01,9-23,12,6-23,01,7-21,3/ 2,8-24,7
Hydr. flow l/min-------49 l/min49 l/min
Lift controlsmech.mech.mech.mech.mech.mech.mech.mech.mech.
PTO speeds540/ajo540/ajo540/ajo540/ajo540/ajo540/ajo540/ajo540/ajo540/ajo
Brakesdisc brakesdisc brakesdisc brakesdisc brakesdisc brakesdisc brakesdisc brakesdisc brakesdisc brakes
Steering-/power-/hydrost.-/hydrost.-/power-/hydrost.-/power-/hydrost.powerhydrost.
Turning circle m 2WD---6,4/9,756,4/9,756,4/9,756,4/9,759.759.75
Front tyres 2WD6.50-166.50-166.50-167.50-187.50-187.50-187.50-187.50-187.50-18
Front tyres 4WD----13.6-24-13.6-24--
Rear tyres 2WD16.9-3416.9-3416.9-3418.4-3418.4-3418.4-3418.4-3418.4-3423.1-26
Rear tyres 4WD----18.4-34-18.4-34--
Weight 2WD(3356) kg(3356) kg(3356) kg(3570/4436) kg(4073/) kg(3894/) kg(4175/) kg(4899) kg(5423) kg
Weight 4WD(3692) kg(3692) kg(3692) kg-(4606) kg-(4842) kg-(5854) kg
Height with cab(195) cm(195) cm(195) cm(203/198) cm(203/198) cm(203/198) cm(203/198) cm(198) cm(198) cm
Length (2WD/4WD)392 cm392 cm392 cm405/398 cm405/398 cm405/398 cm405/398 cm398 cm398 cm
Wheelbase (2WD/4WD)252/208 cm252/208 cm252/208 cm262/247 cm277/247 cm262/247 cm277/247 cm247 cm247 cm
Fuel tank104 l104 l129 l138 l138 l119 l119 l119 l119 l
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information. There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed. Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
