Normag

The last technical and design updates to Normag tractors were made in 1956. The Kornett I and II were succeeded by the K 15 a and K 18 a models. The successors to Faktor II and III were respectively the F 22 and F 30. In addition to these, the lineup included the small F 12 and the large NG 35 M and NG 45 L.

In 1955, O&K became the owner of Normag. The production capacity of the Normag factory was needed for manufacturing O&K machines, so unprofitable tractor production was discontinued in 1957. A Luxembourg agricultural machinery dealer assembled a small number of tractors from Normag components under the name NH and later Lux-Trac until around 1960.

Tractors

Normag K 15 a - K 18 a - F 22 - F 30

In the summer of 1953, Normag introduced a small 2-stroke air-cooled F 12 model, which soon received the name Kornett I. The 1-cylinder diesel engine had an output of 12 hp. Fuel consumption was promised to be lower than that of four-stroke engines. The gearbox was Normag's own 5+1.

The following year, a similar Kornett II was introduced, with 16 hp and a suspension on the front axle.

At this stage, Normag expanded its manufacturing capacity with the goal of producing 60 tractors daily.

Normag Kornett I II

Small 1-cylinder tractors sold very well in Germany, and in spring 1952 Normag introduced the earlier smaller C 10, with only 10 horsepower. The diesel engine was manufactured by Farymann. The transmission offered 5 forward and 2 reverse gears. Power was transmitted to the rear axle by two V-belts. Equipment included a differential lock and electric start. Almost everything else, such as the power take-off and lifting device, was optional. The portal-type front axle improved ground clearance.

The later small Normag tractor was the short-lived N 12. It was equipped with either a 2-stroke ILO or a 4-stroke Farymann diesel engine producing 12 hp. The transmission had 6 forward and 2 reverse gears.

Normag C 10 - N 12

At the beginning of 1951, the NG 15 was replaced by the Faktor I model (NG 16). The 1-cylinder 15-horsepower engine remained unchanged. The transmission was replaced with a ZF 5+1-speed, and the rear axle was completely new. Standard equipment included front axle suspension, power take-off, and differential lock. A hydraulic lift was available as an optional extra.

Just a year later, the model changed to Faktor I (F 16), which featured a larger cylinder bore, longer wheelbase, and a 12-volt electrical system.

The Faktor II (NG 20) was developed from the NG 23. In addition to the updated appearance, differences included a ZF transmission and lower power output. Initially, the power was 20 hp, increasing to 22 hp from 1953 onwards.

The Faktor III (NG 28) was most commonly equipped with an 8+2-speed transmission. The 2.58-liter 2-cylinder engine produced 28 hp.

Normag Faktor I II III

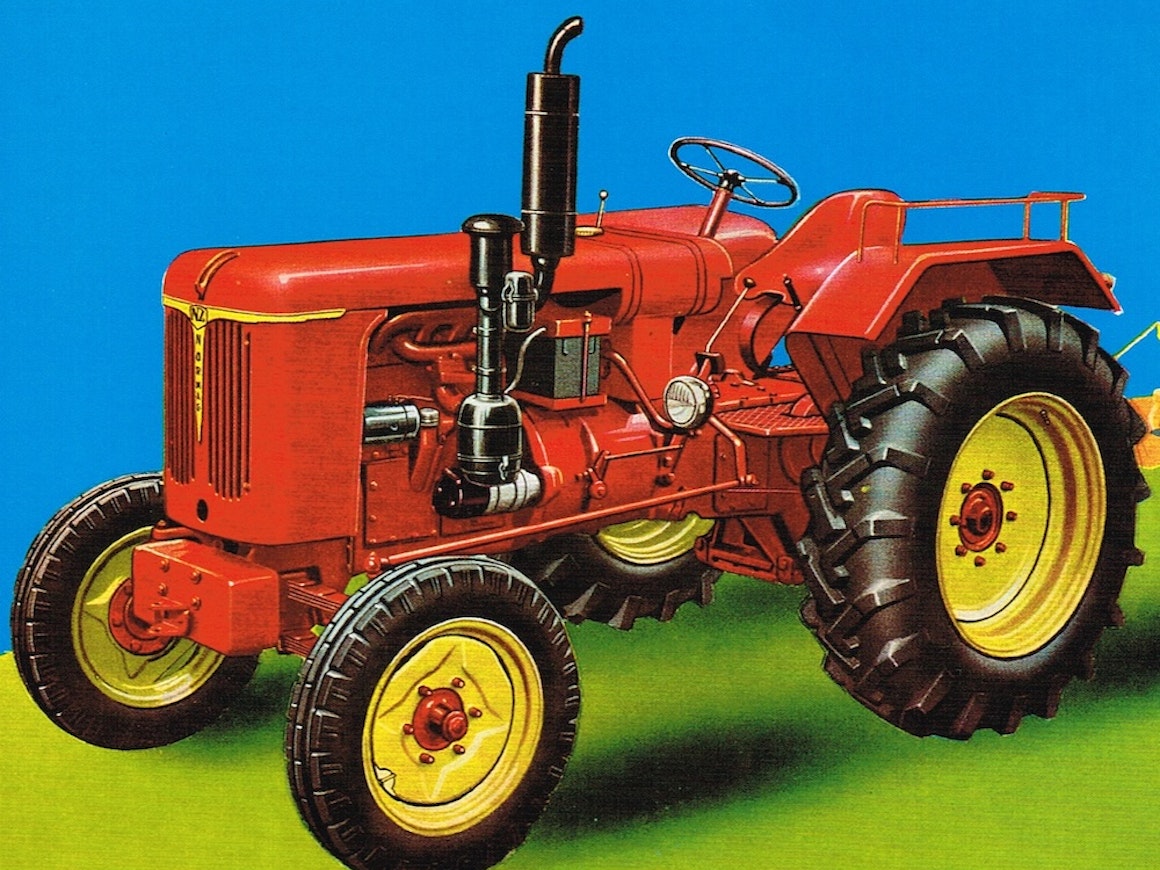

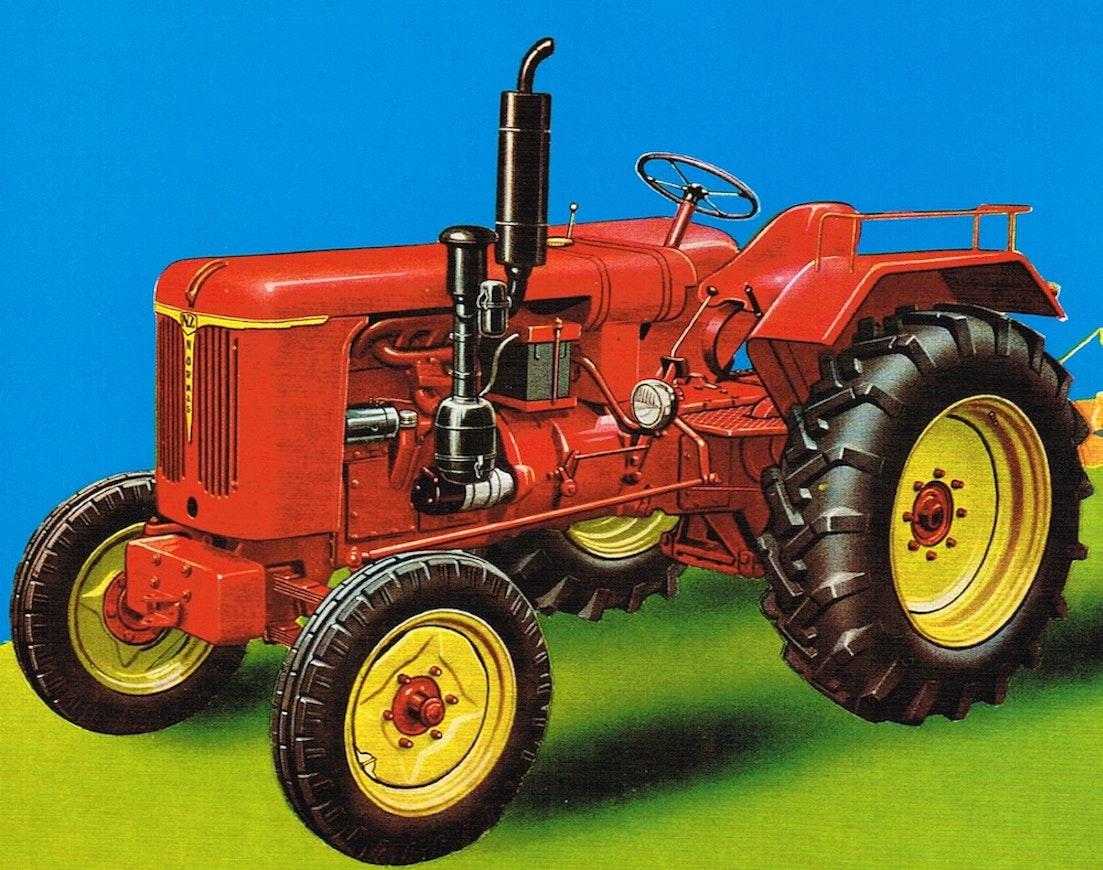

At the DLG exhibition in 1950, Normag introduced a larger model, the NG 35. Its engine was initially a 2.85-liter MWM, but the same year it was replaced by their own 3.1-liter 2-cylinder pre-chamber diesel. The transmission was also produced in-house, and over the years options of 4+1, 5+1, and 8+2 speeds were seen. Wheelbases and other dimensions also varied quite a bit, at least between different brochures. The PTO was available as standard with 560 rpm and optionally with 1020 rpm. Additionally, many versions had a central PTO, for example for side-mounted mowers.

In spring 1952, the NG 45 equipped with a 4-cylinder Hanomag engine was introduced. The transmission was a ZF 5+1. The standard model had a 176 cm wheelbase and the L-model 206 cm. Sales remained in the dozens.

Normag NG 35 - NG 45

Schmidt, Krantz & Co. AG, which engaged in mining industry and mining machine manufacturing, established a subsidiary Normag GmbH in Nordhausen in 1936 for tractor production. It managed to produce about 5,000 units of 20…25-horsepower tractors before the factory, located in the Soviet occupation zone, relocated west to Zorge in 1946. Most of the factory’s machinery was brought along.

Already in Nordhausen, the NG 23 model was introduced in 1944, which became Normag-Zorge's main product in its early years. The engine was a 2.1-liter MWM, but in 1948 it was replaced by Normag’s own 2.36-liter pre-chamber diesel largely based on MWM technology, producing 24 hp. The first models had no hood at all, the next featured a box-shaped design, but from 1949 onwards, the tractor was equipped with a modernly styled hood.

The NG 23 transmission was 4+1. Some versions also featured 5+1 and 8+2 transmissions. The electrical system was either 6 or 12 volts. The optional lift device operated with compressed air. Technical specifications varied considerably in different years. In 1949, the single-cylinder NG 15 was introduced, differing little from the NG 23 except for the engine.

About 120 Normag units were imported to Finland by Suomen Autoteollisuus Oy. The Vakola test report noted numerous deficiencies both in technical performance and tractor durability, and Normag gained a poor reputation in Finland. However, in Germany, it is somewhat appreciated as a collector’s tractor.

Normag NG 15 - NG 23

More from this manufacturer

<p>At the DLG exhibition in 1950, Normag introduced a larger model, the NG 35. Its engine was initially a 2.85-liter MWM, but the same year it was replaced by their own 3.1-liter 2-cylinder pre-chamber diesel. The transmission was also produced in-house, and over the years options of 4+1, 5+1, and 8+2 speeds were seen. Wheelbases and other dimensions also varied quite a bit, at least between different brochures. The PTO was available as standard with 560 rpm and optionally with 1020 rpm. Additionally, many versions had a central PTO, for example for side-mounted mowers.</p>
<p>In spring 1952, the NG 45 equipped with a 4-cylinder Hanomag engine was introduced. The transmission was a ZF 5+1. The standard model had a 176 cm wheelbase and the L-model 206 cm. Sales remained in the dozens.</p>


Normag NG 35

Malli

Hinta (sis. alv)

Series specifier

Manufacturer name

Model specifier

Imported to Finland

Years

First year sold

Last year sold

Engine model

Cyl/Turbo/Intercooler

Displacement

Bore x stroke

Power

Power speed

Rated power hp/rpm DIN

Rated power

Rated speed

Max power hp/rpm DIN

Max power

Max speed

Rated power hp/rpm ISO

Max power hp/rpm ISO

Max power hp/rpm

Rated power hp/rpm ECE

Max power	hp/rpm ECE

Rated power hp/rpm SAE

Rated power hp/rpm PTO

Rated power hp/rpm engine pulley

Rated power hp/rpm

Torque Nm/rpm

Torque Nm/rpm ECE

Torque Nm/rpm ISO

Torque Nm/rpm SAE

Torque Nm/rpm DIN

Gears

Creeper speeds

Synchronized gears

Powershift gears

Reverser

Speeds in km/h

Max. speed

Hydr. flow l/min

Hydraulic pressure

Lift controls

Lift capacity

PTO speeds

Brakes

Steering

Turning circle m 2WD

Turning circle m 4WD

Front tyres 2WD

Front tyres 4WD

Rear tyres 2WD

Rear tyres 4WD

Weight 2WD

Weight 4WD

Height with cab

Length (2WD/4WD)

Wheelbase (2WD/4WD)

Fuel tank

Cab noise level

Solid cab

Diff. lock

Autom. differential locks

Air suspension seat

Air conditioning

Trip computer

Creeper gear

Sylinterien lukumäärä

Iskutilavuus

Iskusuhde

Suurin vääntömomentti, Nm

Suurin vääntömomentti, r/min

Vääntömomentin nousu

Polttonesteen kulutus suurimman tehon pisteessä

Kytkimen tyyppi

Ajovoimanotto

Nopeus eteenpäin moottorin nimellisnopeudella, pienin

Nopeus eteenpäin moottorin nimellisnopeudella, suurin

Jarrut

Hydrauliikan suurin paine

Hydrauliikan suurin tuotto

Nostolaitehydrauliikan hallinta

Ulkopuolinen hydrauliikka, venttiililohkoja

1-toimisia

2-toimisia

Nostovoima (kN=100 kg)

Hydrauliikan tyyppi

Kääntöympyrän halkaisija ilman ohjausjarrua

Eturenkaat

Takarenkaat

Kokonaismassa säiliöt täynnä vakiovarustein

Etuakselipaino

Taka-akselipaino

Suurin korkeus (ohjaamon ylimpään kohtaan)

Normag NG 35 M

Normag NG 45

Normag NG 45 L

Etusivu

Ajoneuvot ja ympäristö

Huolto ja tekniikka

Lukijan idea

Maarakennus

Maatalous

Videot

Osastot

Metsä

Pääkirjoitus

Uutiset

Weteraani

Yritykset ja tapahtumat

Lukijan kuvat

Koneviesti

Lehdet

Konedata

Pelit

Palvelut

Tilaa Koneviesti

Asiakaspalvelu

Jätä ilmoitus

Tilaa uutiskirje

Lähetä uutisvinkki

Lähetä palautetta

Lähetä oikaisupyyntö

Toimituksen yhteystiedot

Mediamyynnin yhteystiedot

Ota yhteyttä

Subscribe

Paywall

Send feedback

Welcome to the beta version of Koneviesti's new Konedata service! The service offers technical data for over 8000 tractors and combines. We are actively developing the service, so we appreciate your feedback.

Give feedback

Model	Normag NG 35	Normag NG 35 M	Normag NG 45	Normag NG 45 L
Options
Imported to Finland	No	No	No	No
Years	1950	1950-57	1952-57	1952-57
First year sold	1950	1950	1952	1952
Last year sold	1950	1957	1957	1957
Engine model	MWM TD 15	BM 35	Henschel 516 DF	Henschel 516 DF
Cyl/Turbo/Intercooler	2	2	4	4
Displacement	2850 cm³	3120 cm³	3180 cm³	3180 cm³
Bore x stroke	110x150 mm	115x150 mm	90x125 mm	90x125 mm
Rated power hp/rpm DIN	33/1600	35/1500	45/2000	45/2000
Rated power	33	35	45	45
Rated speed	1600	1500	2000	2000
Gears	4+1	4+1/5+1/8+2	5+1	5+1
Speeds in km/h	3,3-18,0	3,3-18,0/1,9-24,0	4,3-26,9	4,1-26,1
PTO speeds	560 (1020)	560 (1020)	654	654
Brakes	paisuntaj.	paisuntaj.	paisuntaj.	paisuntaj.
Steering	mek.	mek.	mek.	mek.
Front tyres 2WD	6.00-16	6.00-16	6.00-20	6.00-20
Rear tyres 2WD	11.25-24	11.25-24	13-30	13-30
Weight 2WD	(1750) kg	(1750-2060) kg	(1850) kg	(2265) kg
Height with cab	(166) cm	(164-176) cm	182 cm	182 cm
Length (2WD/4WD)	271 cm	271-328 cm	305 cm	337 cm
Wheelbase (2WD/4WD)	167 cm	177-200 cm	176 cm	206 cm
Fuel tank	45 l	45 l	-	-
