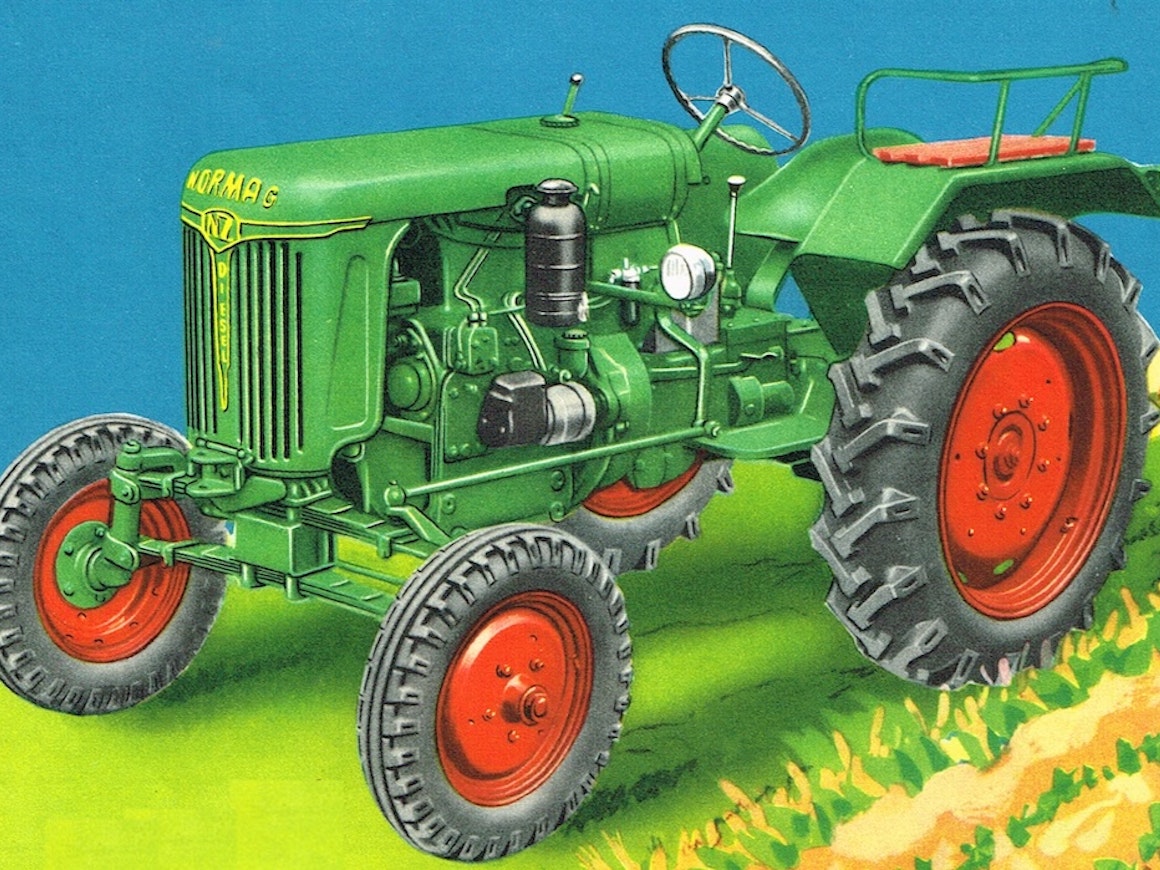

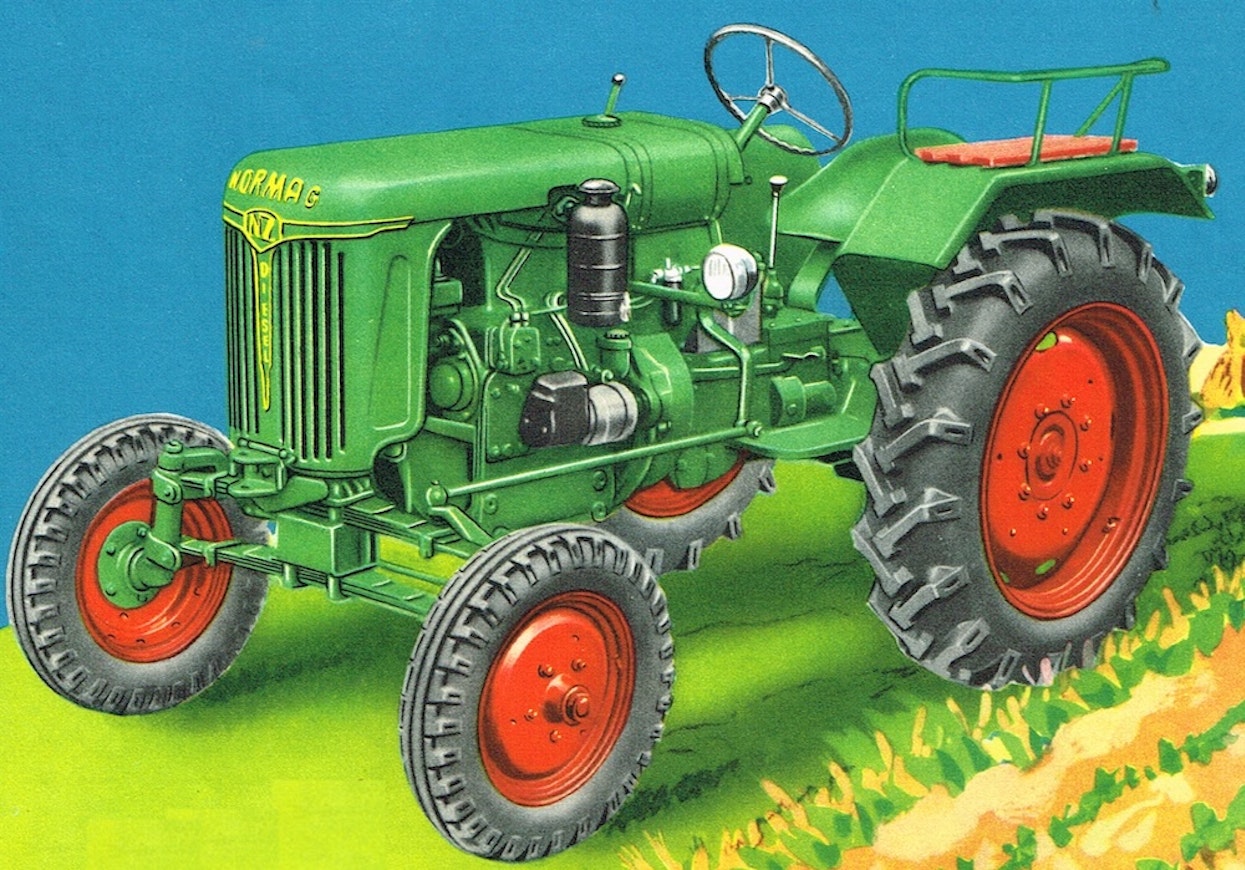

Normag Faktor I II III
At the beginning of 1951, the NG 15 was replaced by the Faktor I model (NG 16). The 1-cylinder 15-horsepower engine remained unchanged. The transmission was replaced with a ZF 5+1-speed, and the rear axle was completely new. Standard equipment included front axle suspension, power take-off, and differential lock. A hydraulic lift was available as an optional extra.
Just a year later, the model changed to Faktor I (F 16), which featured a larger cylinder bore, longer wheelbase, and a 12-volt electrical system.
The Faktor II (NG 20) was developed from the NG 23. In addition to the updated appearance, differences included a ZF transmission and lower power output. Initially, the power was 20 hp, increasing to 22 hp from 1953 onwards.
The Faktor III (NG 28) was most commonly equipped with an 8+2-speed transmission. The 2.58-liter 2-cylinder engine produced 28 hp.
| Model | Normag Faktor I | Normag Faktor I | Normag Faktor II | Normag Faktor II | Normag Faktor III |
|---|---|---|---|---|---|
| Options | |||||
| Imported to Finland | No | No | No | No | No |
| Years | 1951-52 | 1952-56 | 1950-53 | 1953-56 | 1953-56 |
| First year sold | 1951 | 1952 | 1950 | 1953 | 1953 |
| Last year sold | 1952 | 1956 | 1953 | 1956 | 1956 |
| Engine model | BM 15 L | BM 15 | BM 24a | BM 24a | BM 24c |
| Cyl/Turbo/Intercooler | 1 | 1 | 2 | 2 | 2 |
| Displacement | 1178 cm³ | 1299 cm³ | 2356 cm³ | 2356 cm³ | 2580 cm³ |
| Bore x stroke | 100x150 mm | 105x150 mm | 100x150 mm | 100x150 mm | 105x150 mm |
| Rated power hp/rpm DIN | 15/1500 | 15/1500 | 20/1500 | 22/1500 | 28/1500 |
| Rated power | 15 | 15 | 20 | 22 | 28 |
| Rated speed | 1500 | 1500 | 1500 | 1500 | 1500 |
| Gears | 5+1 | 5+1 | 5+1 | 5+1 | 4+1/8+2 |
| Speeds in km/h | 2,8-19,7 | 2,5-18,6 | 3,3-20,0 | 3,3-20,0 | 1,5-18,7 |
| Lift controls | (mek.) | (mek.) | - | - | - |
| PTO speeds | 540 | 540 | 540 | 540 | 540 |
| Brakes | paisuntaj. | paisuntaj. | paisuntaj. | paisuntaj. | paisuntaj. |
| Steering | mek. | mek. | mek. | mek. | mek. |
| Turning circle m 2WD | 6,0 | 6,0 | - | - | - |
| Front tyres 2WD | 4.50-16 | 4.50-16 | 5.50-16 | 5.50-16 | 5.50-16 |
| Rear tyres 2WD | 7-24 | 9-24 | 9-24 | 10-28 | 11-28 |
| Weight 2WD | (1050) kg | (1235) kg | (1420) kg | (1500) kg | (1515-1600) kg |
| Height with cab | (147) cm | (151) cm | (160) cm | (160) cm | (158-163) cm |
| Length (2WD/4WD) | 240 cm | 245 cm | 265 cm | 265 cm | 267-280 cm |
| Wheelbase (2WD/4WD) | 157 cm | 163 cm | 171 cm | 171 cm | 171 cm |
