Siirry sivupalkkiinSiirry alaosaanNew Holland T7.175-T7.300 Auto Command




Here is the translation of the provided text into English:
In the fall of 2015, the T7 series AutoCommand lineup, which had been renewed, was divided in many respects into short wheelbase models (175-225) and long wheelbase models (230-270). All of them featured a Tier 4B-compliant 6.7-liter engine with SCR technology. The AutoCommand transmission was operated by pedal, control lever, or via speed memories. The three speed memories were selected by buttons and adjusted by turning a dial. Direction changes were controlled either by the direction change lever or by the control lever located on the armrest. Acceleration and the sharpness of the direction change could be adjusted in three steps using buttons. In the long wheelbase versions, the nominal top speed was reached at 1450 rpm for the 40 km/h version and at 1550 rpm for the 50 km/h version. A new feature was a braking function that allowed adjusting the intensity of engine braking when towing a trailer.
The long wheelbase AC models had five hydraulic electric valves, while the smaller models had four. The four-post cab was fundamentally the same as the one used previously in the TSA series. The noise level in the AutoCommand models was 69 dB. The AutoCommand models always included an ISOBUS touchscreen and a SideWinder armrest, which had all the right-hand controls except for the PTO (power take-off). Automatic functions for engagement of four-wheel drive, differential locks, and PTO were standard. Additionally, the AutoCommand models were equipped with a trip computer, turn automation, and cab coil spring suspension. The long wheelbase models in Finland also featured automatic climate control. A new optional feature for the long wheelbase models was ABS brakes.

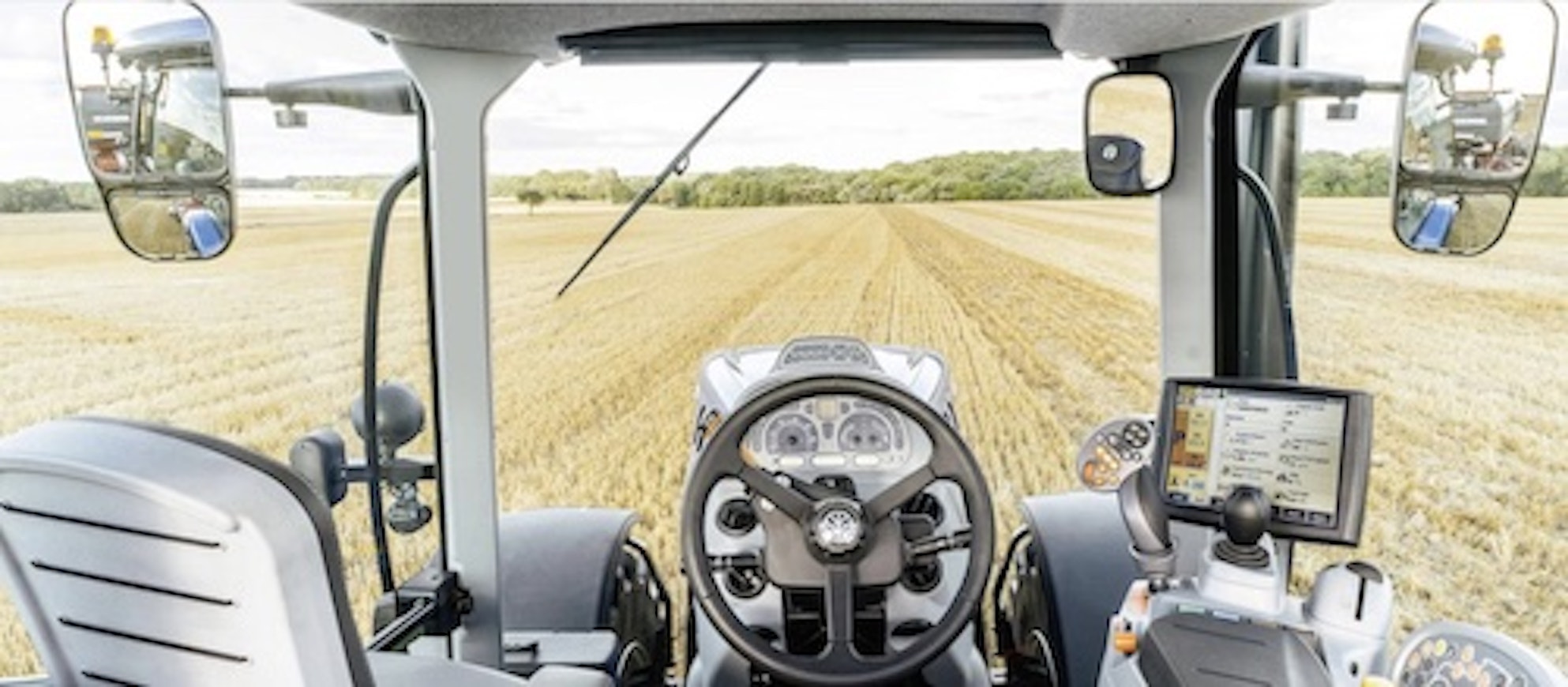

For 2023, PLM models were introduced starting from the T7.230. The top of the model range became the T7.300 PLM. These models featured the larger Horizon Ultra cab, which had a noise level of 66 dB. The operating system included the IntelliView 12 monitor, and the gauges were positioned in the center of the steering wheel. The T7.300 had increased axle load capacities, which were also available as options for the T7.260 and T7.270 models. The maximum wheel diameter was 205 cm. In line with the PLM Connect concept, the latest brand precision farming solutions and digital connections were available.
This is an automated translation. Please report any issues in the translation.
| Model | New Holland T7.175 AutoCommand | New Holland T7.190 AutoCommand | New Holland T7.210 AutoCommand | New Holland T7.225 AutoCommand | New Holland T7.230 AutoCommand | New Holland T7.245 AutoCommand | New Holland T7.260 AutoCommand | New Holland T7.270 AutoCommand | New Holland T7.300 AutoCommand |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer name | New Holland | New Holland | New Holland | New Holland | New Holland | New Holland | New Holland | New Holland | New Holland |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 2015- | 2015- | 2015- | 2015- | 2015- | 2015- | 2015- | 2015- | 2023- |
| Engine model | NEF | NEF | NEF | NEF | NEF | NEF | NEF | NEF | NEF |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI |
| Displacement | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ |
| Bore x stroke | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm |
| Rated power | - | - | - | - | - | - | - | - | - |
| Max power | - | - | - | - | - | - | - | - | - |
| Torque | - | - | - | - | - | - | - | - | - |
| Gears | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless |
| Synchronized gears | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless |
| Powershift gears | powershift | powershift | powershift | powershift | powershift | powershift | powershift | powershift | powershift |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 0,03-40 | 0,03-40 | 0,03-40 | 0,03-40 | 0,03-40 | 0,03-40 | 0,03-40 | 0,03-40 | 0,03-50 |
| Max. speed | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 50 km/h |
| Hydr. flow l/min | 140 l/min | 140 l/min | 140 l/min | 140 l/min | 150 (PLM 170) l/min | 150 (PLM 170) l/min | 150 (PLM 170) l/min | 150 (PLM 170) l/min | 170 l/min |
| Hydraulic pressure | 210 bar | 210 bar | 210 bar | 210 bar | 215 bar | 215 bar | 215 bar | 215 bar | 215 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 8257 kg | 8257 kg | 8257 kg | 8257 kg | 10463 kg | 10463 kg | 10463 kg | 10463 kg | 10463 kg |
| PTO speeds | 540/750/1000 | 540/750/1000 | 540/750/1000/ ajo | 540/750/1000/ ajo | 750/1000 | 750/1000 | 750/1000 | 750/1000 | 750/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 11,4 (SS 8,7) | 11,4 (SS 8,7) | 12,5 (SS 8,7) | 12,5 (SS 8,7) | 13,4 (SS 10,8) | 13,4 (SS 10,8) | 13,4 (SS 10,8) | 13,4 (SS 10,8) | 12.2 |
| Front tyres 4WD | 16.9R28 | 16.9R28 | 16.9R28 | 16.9R28 | 540/65R30 | 540/65R30 | 540/65R30 | 540/65R30 | 600/70R30 |
| Rear tyres 4WD | 20.8R38 | 20.8R38 | 20.8R38 | 20.8R38 | 650/65R42 | 650/65R42 | 650/65R42 | 650/65R42 | 710/70R42 |
| Weight 4WD | 7000 kg | 7100 kg | 7100 kg | 7100 kg | 8200/PLM 9100 kg | 8200/PLM 9100 kg | 8200/PLM 9100 kg | 8200/PLM 9200 kg | 9600 kg |
| Height with cab | 305 cm | 305 cm | 305 cm | 305 cm | 302/PLM 326 cm | 302/PLM 326 cm | 302/PLM 326 cm | 302/PLM 326 cm | 331 cm |
| Length (2WD/4WD) | 535 cm | 535 cm | 535 cm | 535 cm | 577/559 cm | 577/559 cm | 577/559 cm | 577/559 cm | 559 cm |
| Wheelbase (2WD/4WD) | 273 (SS 288) cm | 273 (SS 288) cm | 273 (SS 288) cm | 273 (SS 288) cm | 288 (SS 298) cm | 288 (SS 298) cm | 288 (SS 298) cm | 288 (SS 298) cm | 288 cm |
| Fuel tank | 270+AB48 (330+AB48) l | 330+AB48 l | 330+AB48 l | 330+AB48 l | 395+AB48 (PLM 465+AB54) l | 395+AB48 (PLM 465+AB54) l | 395+AB48 (PLM 465+AB54) l | 395+AB48 (PLM 465+AB54) l | 465+AB54 l |
| Cab noise level | 69 dB | 69 dB | 69 dB | 69 dB | 69/66 dB | 69/66 dB | 69/66 dB | 69/66 dB | 66 dB |
| Solid cab | x | x | x | x | x | x | x | x | x |
| Diff. lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock |
| Autom. differential locks | x | x | x | x | x | x | x | x | x |
| Air suspension seat | x | x | x | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x | x | x | x |
| Trip computer | x (without radar) | x (without radar) | x (without radar) | x (without radar) | x | x | x | x | x |
| Creeper gear | x | x | x | x | x | x | x | x | x |
