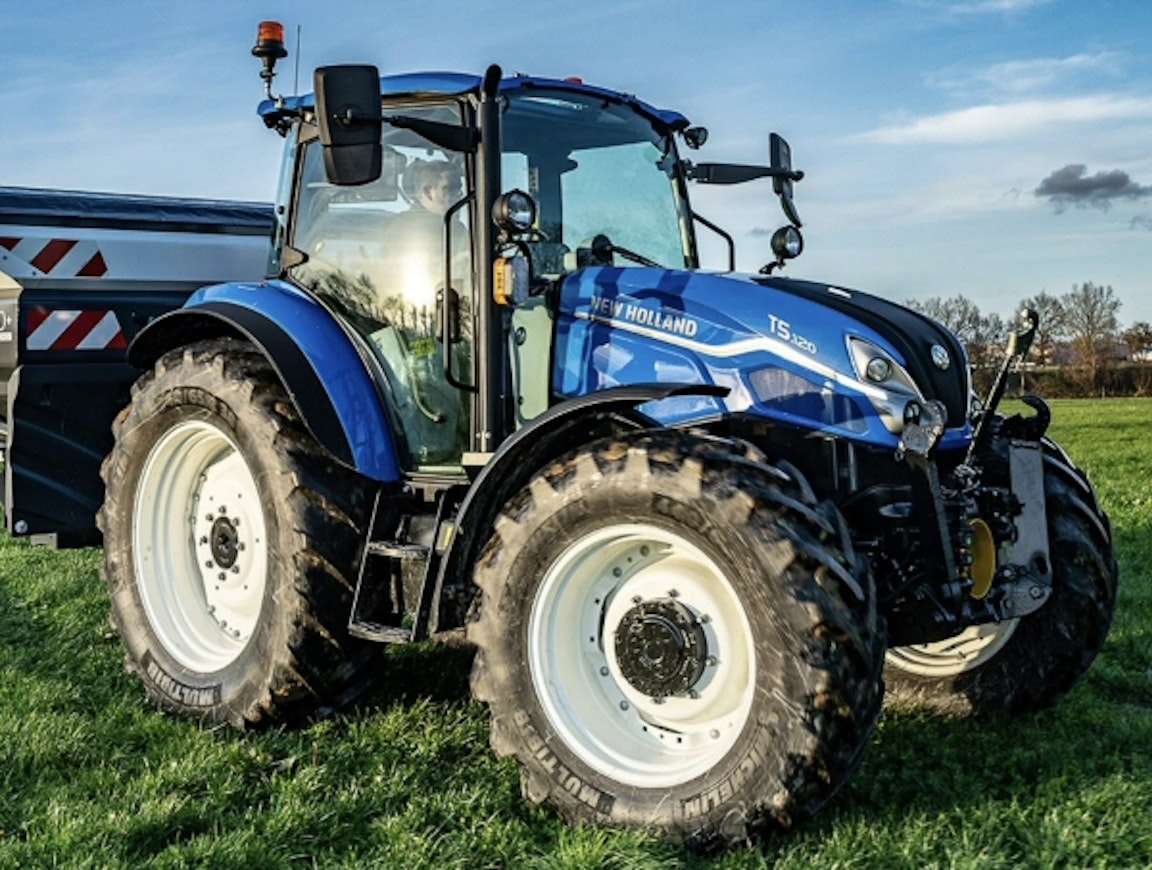

Siirry sivupalkkiinSiirry alaosaanNew Holland T5.80-T5.120 Dual Command




For 2025, the T5 Dual Command range was introduced. The model, built in Italy, differed only slightly from the T5 Utility series unveiled in 2017. However, its styling was noticeably fresher. Many of the models were powered by the 3.6-liter FPT four-cylinder engines that had been used in several other ranges, meeting emissions level V. The oil change interval was 600 hours. The standard gearbox was a 24+24 synchronized transmission with the namesake two-speed powershift. A top speed of 40 km/h was reached at 1,950 rpm. As an option for the hydraulics, an 82-liter pump was offered instead of the standard 64-liter unit. Lift capacity was increased to 4.7 tonnes. A rear linkage electronic draft control was available as an option. The three middle models could also be specified with the SuperSteer front axle.
Inside the cab there was a new steering column and a digital instrument display. Noise level was rated at 76 dB. Optional equipment included a steering speed assist function, cab suspension, and an ISOBUS-compatible IntelliView color screen. The range also featured a version with a rollover protective structure (ROPS). The maximum rear tyre size was increased to 540/65R38.
This is an automated translation. Please report any issues in the translation.
| Model | New Holland T5.80 Dual Command | New Holland T5.90 Dual Command | New Holland T5.100 Dual Command | New Holland T5.110 Dual Command | New Holland T5.120 Dual Command |
|---|---|---|---|---|---|
| Manufacturer name | New Holland | New Holland | New Holland | New Holland | New Holland |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes |
| Years | 2025- | 2025- | 2025- | 2025- | 2025- |
| Engine model | FPT F36 | FPT F36 | FPT F36 | FPT F36 | FPT F36 |
| Cyl/Turbo/Intercooler | 4TI | 4TI | 4TI | 4TI | 4TI |
| Displacement | 3600 cm³ | 3600 cm³ | 3600 cm³ | 3600 cm³ | 3600 cm³ |
| Bore x stroke | 102×110 mm | 102×110 mm | 102×110 mm | 102×110 mm | 102×110 mm |
| Rated power | - | - | - | - | - |
| Torque | - | - | - | - | - |
| Gears | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 |
| Synchronized gears | 24+24 | 24+24 | 24+24 | 24+24 | 24+24 |
| Powershift gears | hydr. | hydr. | hydr. | hydr. | hydr. |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 1,5-42,2 | 1,5-42,2 | 1,5-42,2 | 1,5-42,2 | 1,5-42,2 |
| Max. speed | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h |
| Hydr. flow l/min | 64 (82) l/min | 64 (82) l/min | 64 (82) l/min | 64 (82) l/min | 64 (82) l/min |
| Hydraulic pressure | 190 bar | 190 bar | 190 bar | 190 bar | 190 bar |
| Lift controls | mech./elec. | mech./elec. | mech./elec. | mech./elec. | mech./elec. |
| Lift capacity | 4700 kg | 4700 kg | 4700 kg | 4700 kg | 4700 kg |
| PTO speeds | 540/1000 | 540/1000 | 540/1000 | 540/1000 | 540/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 8.47 | 8.47 | 8.47 | 8.47 | 8.47 |
| Front tyres 4WD | 280/85R24 | 340/85R24 | 420/65R24 | 420/65R24 | 420/65R24 |
| Rear tyres 4WD | 420/85R30 | 420/85R34 | 540/65R34 | 540/65R34 | 540/65R34 |
| Weight 4WD | 4030 kg | 4030 kg | 4030 kg | 4030 kg | 4030 kg |
| Height with cab | 249 cm | 257 cm | 257 cm | 257 cm | 257 cm |
| Length (2WD/4WD) | 398 cm | 398 cm | 398 cm | 398 cm | 398 cm |
| Wheelbase (2WD/4WD) | 229 cm | 229 cm | 229 cm | 229 cm | 229 cm |
| Fuel tank | 130+AB13 l | 130+AB13 l | 130+AB13 l | 130+AB13 l | 130+AB13 l |
| Cab noise level | 76 dB | 76 dB | 76 dB | 76 dB | 76 dB |
| Solid cab | x | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Creeper gear | opt. | opt. | opt. | opt. | opt. |
