Siirry sivupalkkiinSiirry alaosaanNew Holland T7.170-T7.270 Auto Command




The T7 series AutoCommand lineup, announced in the fall of 2010, was divided in many ways into short wheelbase 170-210 and long wheelbase 220-270 models. All featured a 6.7-liter engine with SCR technology. The AutoCommand transmission operated via a pedal, a drive lever, or speed memories. Between three speed memories, selection was made with buttons and adjustments were made by turning a dial. Direction changes were controlled either by a direction change lever or the drive lever located on the armrest. Acceleration and the sharpness of direction changes could be adjusted in three steps using buttons. In the long wheelbase versions, the nominal top speed was reached at 1450 rpm in the 40 km/h model and at 1550 rpm in the 50 km/h model.

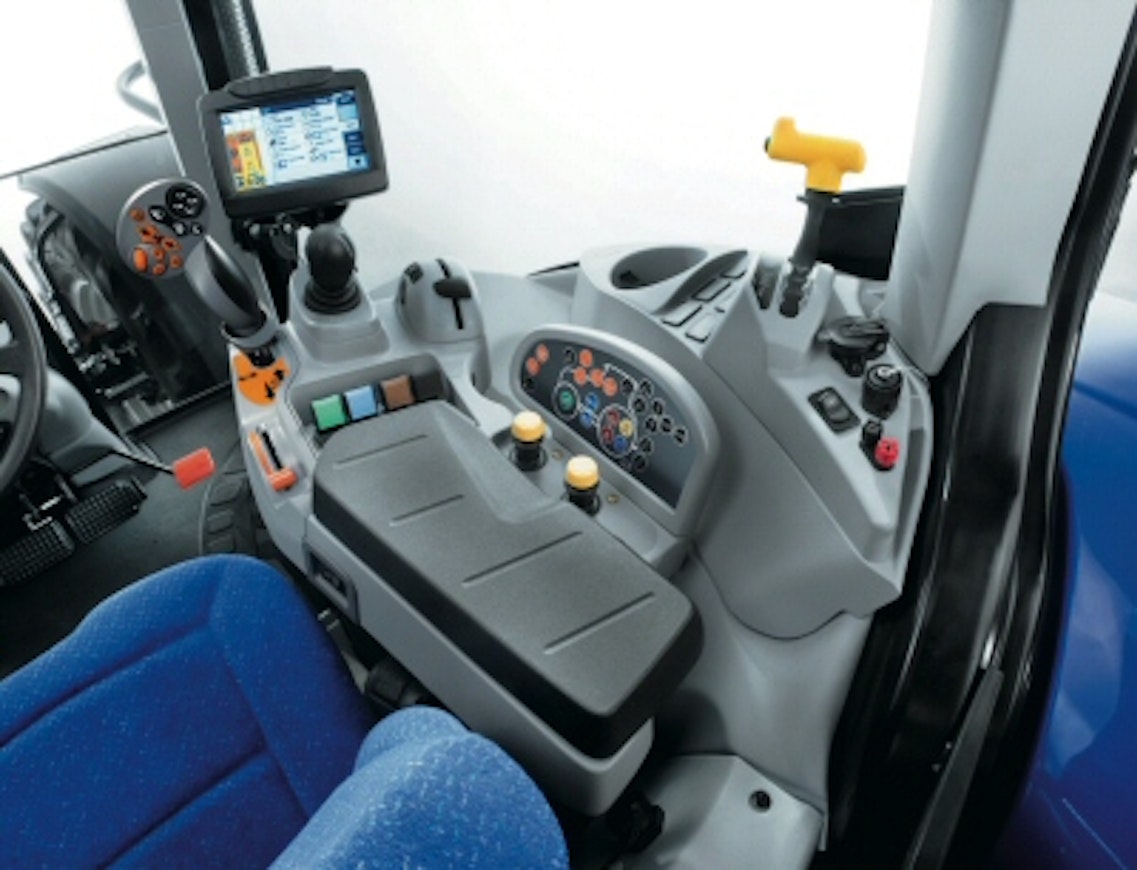

The long wheelbase AC models had five electrical hydraulic valves, and the smaller models had four. The four-post cab was essentially the same basic design as the one previously used in the TSA series. Noise level in the AutoCommand models was 69 dB. AutoCommand always included a touchscreen and a SideWinder armrest, which contained all right-side controls except for the power take-off. Automatic functions were standard for engaging four-wheel drive, locks, and the power take-off. Additionally, the AutoCommand models were equipped with a trip computer and cab suspension with coil springs. In Finland, the long wheelbase models also featured headland automation and automatic climate control.
Controls and the armrest were updated in the spring of 2013.
This is an automated translation. Please report any issues in the translation.
| Model | New Holland T7.170 AutoCommand | New Holland T7.185 AutoCommand | New Holland T7.200 AutoCommand | New Holland T7.210 AutoCommand | New Holland T7.220 AutoCommand | New Holland T7.235 AutoCommand | New Holland T7.250 AutoCommand | New Holland T7.260 AutoCommand | New Holland T7.270 AutoCommand |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer name | New Holland | New Holland | New Holland | New Holland | New Holland | New Holland | New Holland | New Holland | New Holland |
| Imported to Finland | No | Yes | Yes | Yes | Yes | No | Yes | No | Yes |
| Years | 2011-15 | 2011-15 | 2011-15 | 2011-15 | 2011-15 | 2011-15 | 2011-15 | 2011-15 | 2011-15 |
| Engine model | NEF | NEF | NEF | NEF | NEF | NEF | NEF | NEF | NEF |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI | 6TI |
| Displacement | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ | 6728 cm³ |
| Bore x stroke | 104×150 mm | 104×150 mm | 104×150 mm | 104×150 mm | 104×150 mm | 104×150 mm | 104×150 mm | 104×150 mm | 104×150 mm |
| Rated power | - | - | - | - | - | - | - | - | - |
| Max power | - | - | - | - | - | - | - | - | - |
| Torque | - | - | - | - | - | - | - | - | - |
| Gears | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless |
| Synchronized gears | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless | stepless |
| Powershift gears | powershift | powershift | powershift | powershift | powershift | powershift | powershift | powershift | powershift |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 0,03-40 | 0,03-40 | 0,03-40 | 0,03-40 | 0,03-40 | 0,03-40 | 0,03-40 | 0,03-40 | 0,03-40 |
| Max. speed | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h |
| Hydr. flow l/min | 125 (113) l/min | 125 (113) l/min | 125 (113) l/min | 125 (113) l/min | 170 (120) l/min | 170 (120) l/min | 170 (120) l/min | 170 (120) l/min | 170 (120) l/min |
| Hydraulic pressure | 210 bar | 210 bar | 210 bar | 210 bar | 215 bar | 215 bar | 215 bar | 215 bar | 215 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 8257 kg | 8257 kg | 8257 kg | 8257 kg | 8647 (10463) kg | 8647 (10463) kg | 10463 kg | 10463 kg | 10463 kg |
| PTO speeds | 540/750/1000 | 540/750/1000 | 540/750/1000/ ajo | 540/750/1000/ ajo | 750/1000 | 750/1000 | 750/1000 | 750/1000 | 750/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 11,4 (SS 8,7) | 11,4 (SS 8,7) | 12,5 (SS 8,7) | 12,5 (SS 8,7) | 13,4 (SS 10,8) | 13,4 (SS 10,8) | 13,4 (SS 10,8) | 13,4 (SS 10,8) | 13,4 (SS 10,8) |
| Front tyres 4WD | 16.9R28 | 16.9R28 | 16.9R28 | 16.9R28 | 540/65R30 | 540/65R30 | 540/65R30 | 540/65R30 | 540/65R30 |
| Rear tyres 4WD | 20.8R38 | 20.8R38 | 20.8R38 | 20.8R38 | 650/65R42 | 650/65R42 | 650/65R42 | 650/65R42 | 650/65R42 |
| Weight 4WD | 6280 kg | 6280 kg | 6590 kg | 6590 kg | 7700 kg | 7700 kg | 7700 kg | 7700 kg | 7750 kg |
| Height with cab | 300 cm | 300 cm | 300 cm | 300 cm | 302 cm | 302 cm | 302 cm | 302 cm | 302 cm |
| Length (2WD/4WD) | 535 cm | 535 cm | 535 cm | 535 cm | 577 cm | 577 cm | 577 cm | 577 cm | 577 cm |
| Wheelbase (2WD/4WD) | 273 (SS 288) cm | 273 (SS 288) cm | 273 (SS 288) cm | 273 (SS 288) cm | 288 (SS 298) cm | 288 (SS 298) cm | 288 (SS 298) cm | 288 (SS 298) cm | 288 (SS 298) cm |
| Fuel tank | 270+AB48 (330+AB48) l | 270+AB48 (330+AB48) l | 330+AB48 l | 330+AB48 l | 395+AB48 l | 395+AB48 l | 395+AB48 l | 395+AB48 l | 395+AB48 l |
| Cab noise level | 69 dB | 69 dB | 69 dB | 69 dB | 69 dB | 69 dB | 69 dB | 69 dB | 69 dB |
| Solid cab | x | x | x | x | x | x | x | x | x |
| Diff. lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock | disc lock |
| Autom. differential locks | x | x | x | x | x | x | x | x | x |
| Air suspension seat | x | x | x | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x | x | x | x |
| Trip computer | x (without radar) | x (without radar) | x (without radar) | x (without radar) | x | x | x | x | x |
| Creeper gear | x | x | x | x | x | x | x | x | x |
