New Holland T7.170-T7.260 Range Command / Power Command

12NHT7
12NHT7ohjaamo
12NHT7kasinoja
12NHT7nopeudet
12NHT7
12NHT7ohjaamo
12NHT7kasinoja
12NHT7nopeudet
Manufacturer
Models
New Holland T7.170 RC/PC, New Holland T7.185 RC/PC, New Holland T7.200 RC/PC, New Holland T7.210 RC, New Holland T7.220 PC, New Holland T7.235 PC, New Holland T7.250 PC, New Holland T7.260 PC
Years
2011-15
Info

At the end of 2010, the NH T7 lineup was announced, with the distinction between the T6 and T7 series harmonized with the Case IH Maxxum and Puma, meaning the T7 series now included smaller models than before. The lineup covered as many as nine power classes, with the four smallest models featuring a shorter wheelbase. At the same time, more powerful models were added to the top end of the series. Only part of the models was selected for the Finnish import program. All models in the UK-manufactured series were equipped with a 6.7-liter Fiat Powertrain Technologies NEF engine with SCR technology. Extra power ranged from 41 to 51 horsepower, depending on the model, either at road speeds or when sufficient power was drawn to the PTO or hydraulics.

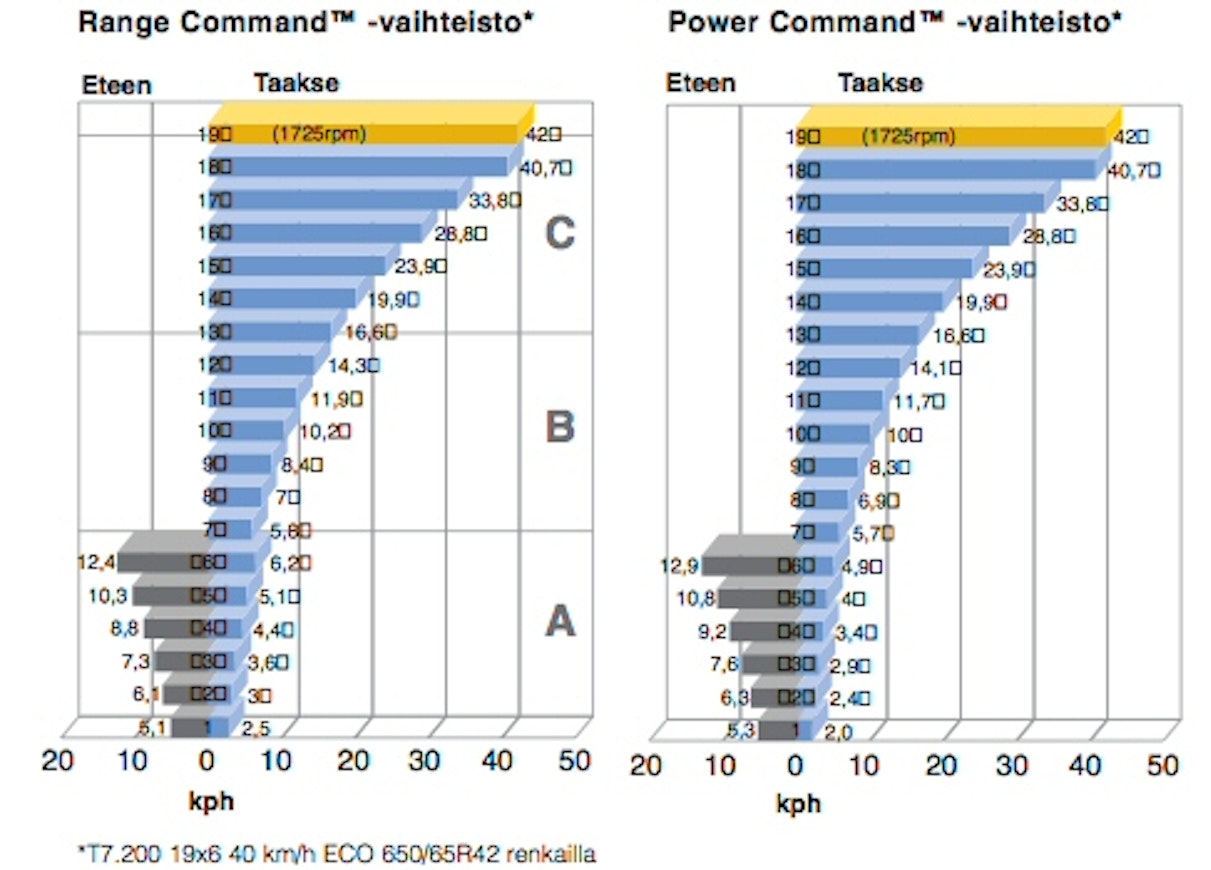

As a basic transmission, the short wheelbase models featured a Range Command with a 4-speed powershift. The 40 km/h version had 18+6 gears. The 50 km/h version had an additional gear powered independently from the main gearbox. The Range Command included a 6-speed powershift and the range shift was done using electric buttons. In the Power Command transmission, the range shift was integrated into the shift automation. The starting gear was programmable, and after changing direction, the transmission returned to the last used gear. Hydraulic output varied depending on the model, between 113 and 150 liters per minute. Up to nine hydraulic valves (5 at the rear and 4 in the mid-mount position) were available if needed. Lift capacity ranged from 8,257 to 10,463 kilograms. In Finland, even the smaller long-wheelbase models—unlike in most other countries—had only 8,647 kilograms of lift capacity. The T7 featured a 100% disc lock on the front axle, and equipment included automatic locking and four-wheel-drive based on the steering angle. In Finland, a more robust Heavy Duty front axle was standard.

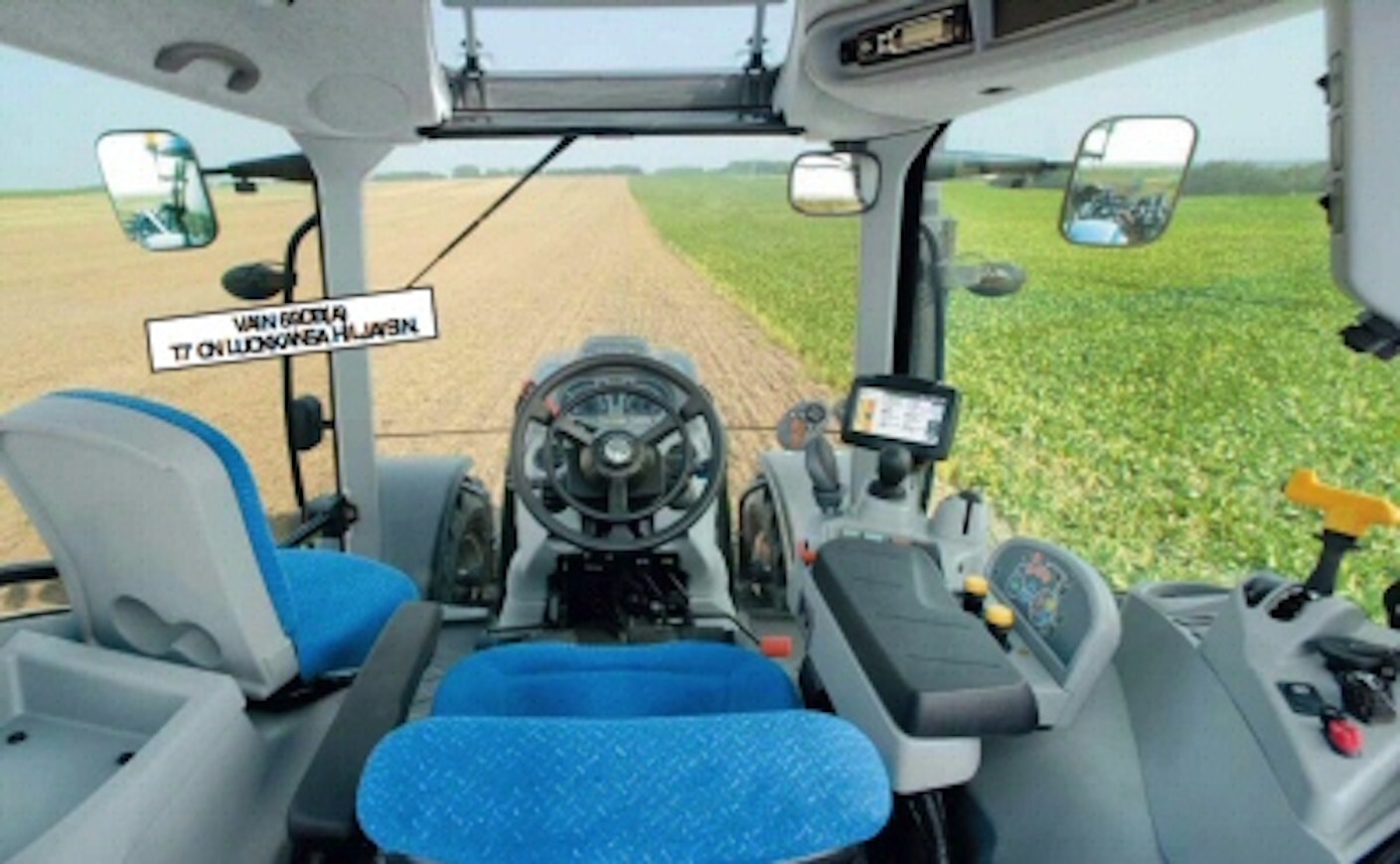

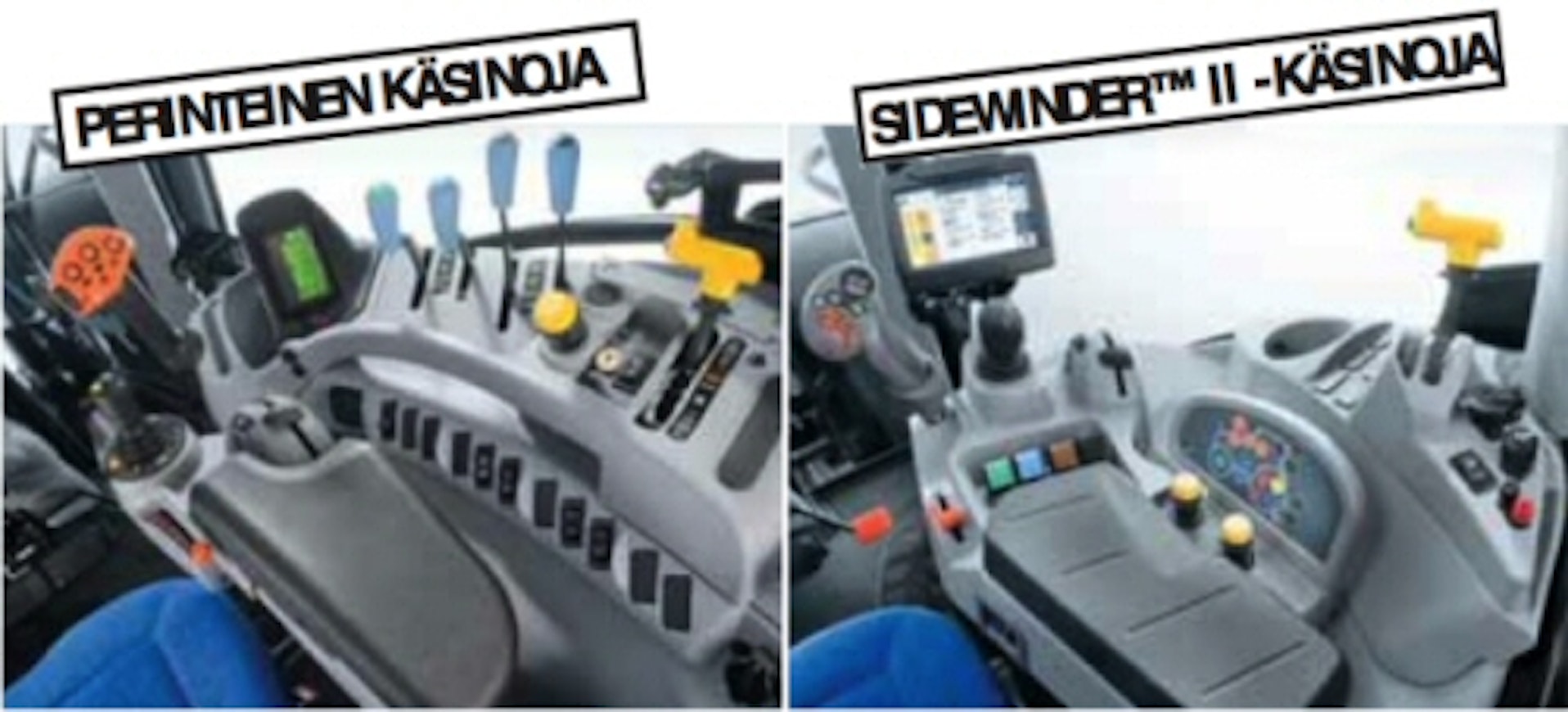

The cab noise level was 70 dB. The cab was available with a new SideWinder II armrest. In most countries, the trim levels were Standard and SideWinder II. In Finland, the equipment package was called PCE and included, in addition to the armrest, 4 electrically controlled hydraulic valves, cab coil suspension, front weights, and PTO automation based on implement lift and lower functions. Standard equipment on all models included air conditioning, an air-suspension seat, a trip computer without radar, a trailer brake valve, and front mudguards.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelNew Holland T7.170 RC/PCNew Holland T7.185 RC/PCNew Holland T7.200 RC/PCNew Holland T7.210 RCNew Holland T7.220 PCNew Holland T7.235 PCNew Holland T7.250 PCNew Holland T7.260 PC
Manufacturer nameNew HollandNew HollandNew HollandNew HollandNew HollandNew HollandNew HollandNew Holland
Imported to FinlandNoYesYesNoYesNoYesNo
Years2011-152011-152011-152011-152011-152011-152011-152011-15
Engine modelNEFNEFNEFNEFNEFNEFNEFNEF
Cyl/Turbo/Intercooler6TI6TI6TI6TI6TI6TI6TI6TI
Displacement6728 cm³6728 cm³6728 cm³6728 cm³6728 cm³6728 cm³6728 cm³6728 cm³
Bore x stroke104×132 mm104×132 mm104×132 mm104×132 mm104×132 mm104×132 mm104×132 mm104×132 mm
Rated power--------
Max power--------
Torque--------
Gears18+6 (19+6)18+6 (19+6)18+6 (19+6)18+6 (19+6)18+6 (19+6)18+6 (19+6)18+6 (19+6)18+6 (19+6)
Synchronized gears18+6 (19+6)18+6 (19+6)18+6 (19+6)18+6 (19+6)18+6 (19+6)18+6 (19+6)18+6 (19+6)18+6 (19+6)
Powershift gears6-step/powershift6-step/powershift6-step/powershiftpowershiftpowershiftpowershiftpowershiftpowershift
Reverserhydr.hydr.hydr.hydr.hydr.hydr.hydr.hydr.
Speeds in km/h1,9-401,9-401,8-401,8-402,0-40,72,0-40,72,0-40,72,0-40,7
Max. speed 40 (50) km/h40 (50) km/h40 (50) km/h40 (50) km/h40 (50) km/h40 (50) km/h40 (50) km/h40 (50) km/h
Hydr. flow l/min113 l/min113 l/min113 l/min113 l/min120 (150) l/min120 (150) l/min150 (120) l/min150 (120) l/min
Hydraulic pressure210 bar210 bar210 bar210 bar215 bar215 bar215 bar215 bar
Lift controlselec.elec.elec.elec.elec.elec.elec.elec.
Lift capacity8257 kg8257 kg8257 kg8257 kg8647 (10463) kg8647 (10463) kg8647 (10463) kg10463 kg
PTO speeds540/750/1000540/750/1000540/750/1000540/750/1000750/1000750/1000750/1000750/1000
Brakeswet discwet discwet discwet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD12,5 (SS 10,8)12,5 (SS 10,8)12,5 (SS 10,8)12,5 (SS 10,8)12,5 (SS 10,8)12,5 (SS 10,8)12,5 (SS 10,8)12,5 (SS 10,8)
Front tyres 4WD16.9R2816.9R2816.9R2816.9R28480/70R28540/65R30540/65R30540/65R30
Rear tyres 4WD20.8R3820.8R3820.8R3820.8R38580/70R38650/65R42650/65R42650/65R42
Weight 4WD6250 kg6250 kg6300 kg6300 kg7500 kg7500 kg7700 kg7700 kg
Height with cab300 cm300 cm300 cm300 cm297 cm302 cm302 cm302 cm
Length (2WD/4WD)535 cm535 cm535 cm535 cm577 cm577 cm577 cm577 cm
Wheelbase (2WD/4WD)273 (SS 288) cm273 (SS 288) cm273 (SS 288) cm273 (SS 288) cm288 (SS 298) cm288 (SS 298) cm288 (SS 298) cm288 (SS 298) cm
Fuel tank270+AB48 (330+AB48) l270+AB48 (330+AB48) l330+AB48 l330+AB48 l395+AB48 l395+AB48 l395+AB48 l395+AB48 l
Cab noise level70 dB70 dB70 dB70 dB70 dB70 dB70 dB70 dB
Solid cabxxxxxxxx
Diff. lockdisc lockdisc lockdisc lockdisc lockdisc lockdisc lockdisc lockdisc lock
Autom. differential locksxxxxxxxx
Air suspension seatxxxxxxxx
Air conditioningxxxxxxxx
Trip computerx (without radar)x (without radar)x (without radar)x (without radar)x (without radar)x (without radar)x (without radar)x (without radar)
Creeper gearopt.opt.opt.opt.opt.opt.opt.opt.
