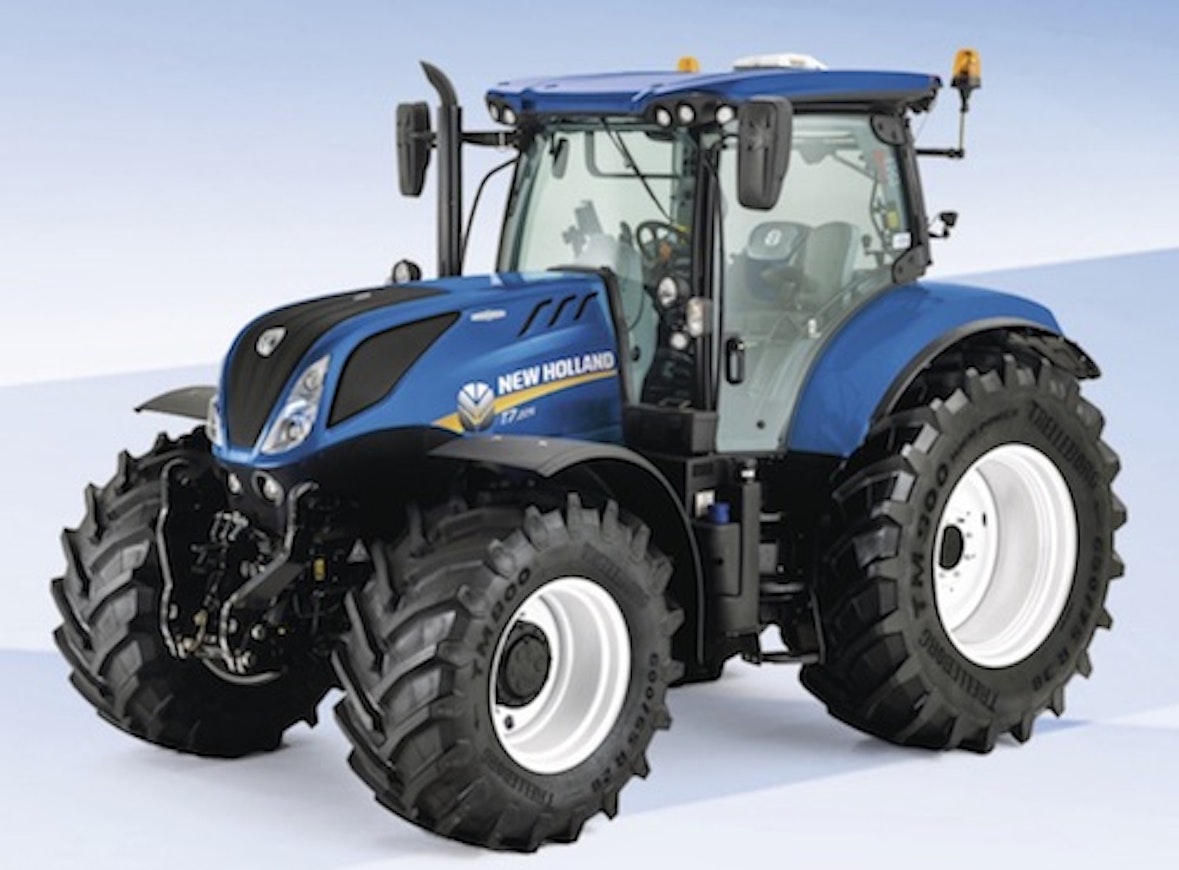

Siirry sivupalkkiinSiirry alaosaanNew Holland T7.165S-T7.215S




In spring 2017, a starting price model T7.165S was introduced to the T7 series. It had the same engine as the T7.190, but without the additional power feature. The transmission was a Range Command with a 6-speed powershift and an electronic range shift, but without gear automation. The maximum speed in this model was always 40 km/h. In the 19+6-speed Eco version, this speed was achieved at 1660 RPM. The transmission shifted the gear in use to the lowest ratio of the powershift when the tractor was stopped. The output of the load-sensing hydraulics was 113 liters per minute. Only four hydraulic valves were available, and they were mechanical. The front axle had a 100% disc lock. The cab was equivalent to that of the T6 series. Front axle and cab suspension, as well as a SuperSteer front axle, were available as optional extras. Most other T7 series optional features were not available.
At Agritechnica in autumn 2017, similar economy models were introduced for the long-wheelbase series as well. The T7.195S and T7.215S mainly corresponded to the T7.230 without the additional power feature. These models had the PowerCommand powershift transmission but otherwise had a stripped-down equipment level similar to the T7.165S.
This is an automated translation. Please report any issues in the translation.
| Model | New Holland T7.165S RC | New Holland T7.195S PC | New Holland T7.215S PC |
|---|---|---|---|
| Manufacturer name | New Holland | New Holland | New Holland |
| Imported to Finland | Yes | Yes | Yes |
| Years | 2017- | 2017- | 2017- |
| Engine model | NEF | NEF | NEF |
| Cyl/Turbo/Intercooler | 6TI | 6TI | 6TI |
| Displacement | 6728 cm³ | 6728 cm³ | 6728 cm³ |
| Bore x stroke | 104×132 mm | 104×132 mm | 104×132 mm |
| Rated power | - | - | - |
| Max power | - | - | - |
| Torque | - | - | - |
| Gears | 18+6 (19+6) | 18+6 (19+6) | 18+6 (19+6) |
| Synchronized gears | 18+6 (19+6) | 18+6 (19+6) | 18+6 (19+6) |
| Powershift gears | 6-step | powershift | powershift |
| Reverser | hydr. | hydr. | hydr. |
| Speeds in km/h | 2,0-40 | 2,0-40,0 | 2,0-40,0 |
| Max. speed | 42 km/h | 42 km/h | 42 km/h |
| Hydr. flow l/min | 110 l/min | 120 l/min | 120 l/min |
| Hydraulic pressure | 210 bar | 215 bar | 215 bar |
| Lift controls | elec. | elec. | elec. |
| Lift capacity | 8257 kg | 8647 (10463) kg | 8647 (10463) kg |
| PTO speeds | 540/750/1000 | 750/1000 | 750/1000 |
| Brakes | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 12,5 (SS 10,8) | 12,5 (SS 10,8) | 12,5 (SS 10,8) |
| Front tyres 4WD | 16.9R28 | 540/65R30 | 540/65R30 |
| Rear tyres 4WD | 20.8R38 | 650/65R42 | 650/65R42 |
| Weight 4WD | 7000 kg | 7790 kg | 7790 kg |
| Height with cab | 304 cm | 307 cm | 307 cm |
| Length (2WD/4WD) | 535 cm | 577 cm | 577 cm |
| Wheelbase (2WD/4WD) | 273 (SS 288) cm | 288 (SS 298) cm | 288 (SS 298) cm |
| Fuel tank | 312+AB48 l | 312+AB48 l | 312+AB48 l |
| Cab noise level | 70 dB | 70 dB | 70 dB |
| Solid cab | x | x | x |
| Diff. lock | disc lock | disc lock | disc lock |
| Autom. differential locks | x | x | x |
| Air suspension seat | x | x | x |
| Air conditioning | x | x | x |
| Creeper gear | opt. | opt. | opt. |
