Siirry sivupalkkiinSiirry alaosaanNew Holland T6.145-T6.180 Auto Command




The updated New Holland T6 series was introduced in the summer of 2016. There were now four models equipped with the stepless Auto Command transmission, all featuring a 4.5-liter engine equipped with urea injection, an oxidation catalyst, and a boost function. The wheelbase was longer than before.

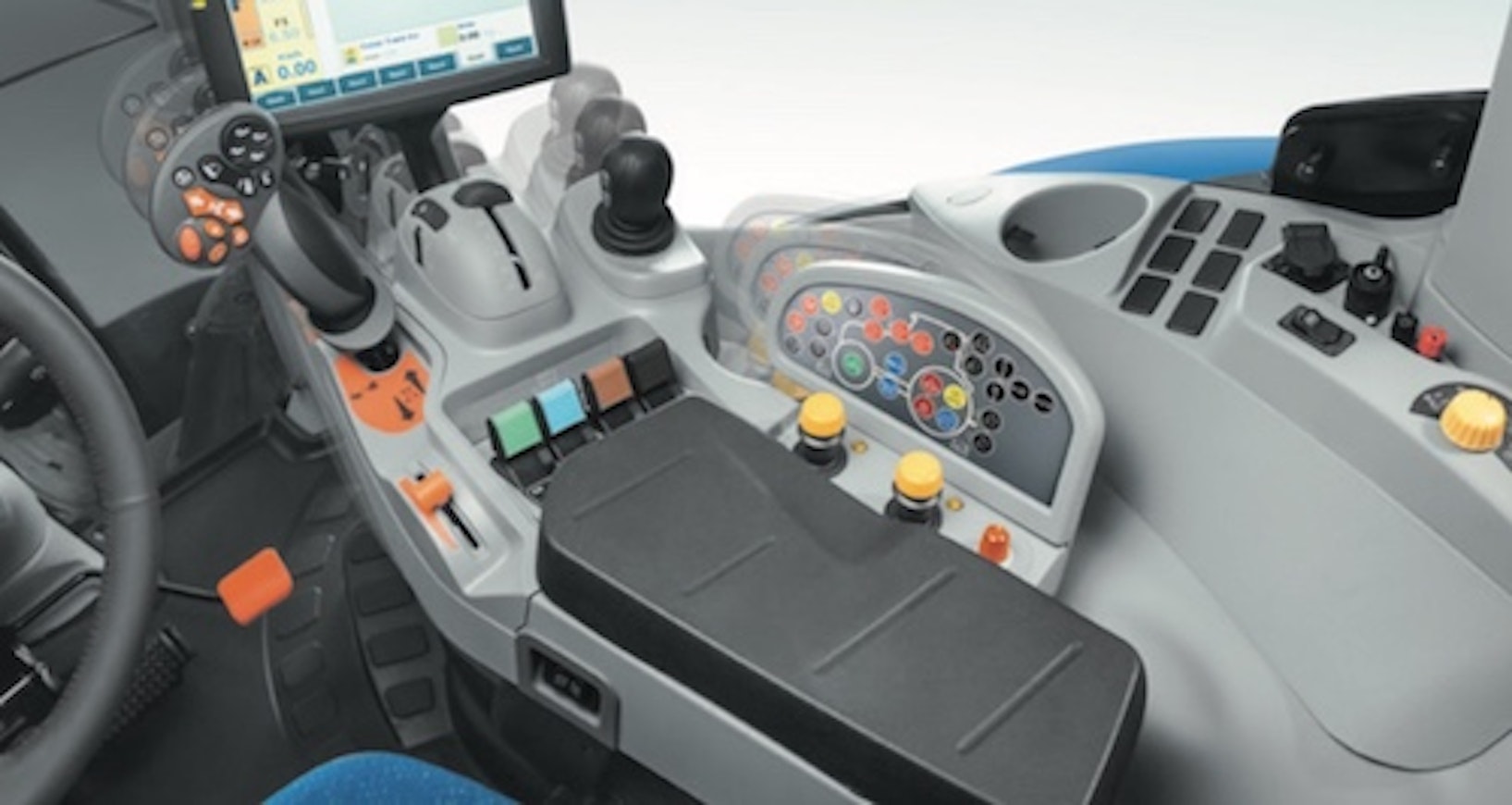

In the Auto Command transmission, speed could be controlled using the foot pedal, hand lever, or by storing a desired speed in memory. The selected speed memory could be changed by pressing a button. A speed of 40 km/h was reached already at 1550 rpm, and in the 50 km/h version, full speed was achieved at 1750 rpm. Auto Command models came standard with a control device armrest, which had been updated compared to the previous version, as well as electric valves for the hydraulics and automatic differential lock. The cab noise level had dropped to 69 decibels. Hydraulic output had increased to 140 liters per minute.
For 2021, Stage V models were introduced. Now, the Auto Command transmission was also available with two 6-cylinder models.
This is an automated translation. Please report any issues in the translation.
| Model | New Holland T6.145 Auto Command | New Holland T6.155 Auto Command | New Holland T6.160 Auto Command | New Holland T6.165 Auto Command | New Holland T6.175 Auto Command | New Holland T6.180 Auto Command |
|---|---|---|---|---|---|---|
| Manufacturer name | New Holland | New Holland | New Holland | New Holland | New Holland | New Holland |
| Imported to Finland | Yes | Yes | Yes | Yes | Yes | Yes |
| Years | 2016- | 2016- | 2021- | 2016- | 2016- | 2021- |
| Engine model | NEF | NEF | NEF | NEF | NEF | NEF |
| Cyl/Turbo/Intercooler | 4TI | 4TI | 6TI | 4TI | 4TI | 6TI |
| Displacement | 4485 cm³ | 4485 cm³ | 6728 cm³ | 4485 cm³ | 4485 cm³ | 6728 cm³ |
| Bore x stroke | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm | 104×132 mm |
| Rated power | - | - | - | - | - | - |
| Max power | - | - | - | - | - | - |
| Torque | - | - | - | - | - | - |
| Gears | stepless | stepless | stepless | stepless | stepless | stepless |
| Synchronized gears | stepless | stepless | stepless | stepless | stepless | stepless |
| Powershift gears | stepless | stepless | stepless | stepless | stepless | stepless |
| Reverser | hydr. | hydr. | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 0,02-40 | 0,02-40 | 0,02-40 | 0,02-40 | 0,02-40 | 0,02-40 |
| Max. speed | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h |
| Hydr. flow l/min | 140 l/min | 140 l/min | 140 l/min | 140 l/min | 140 l/min | 140 l/min |
| Hydraulic pressure | 210 bar | 210 bar | 210 bar | 210 bar | 210 bar | 210 bar |
| Lift controls | elec. | elec. | elec. | elec. | elec. | elec. |
| Lift capacity | 7864 kg | 7864 kg | 7864 kg | 7864 kg | 7864 kg | 7864 kg |
| PTO speeds | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 | 540/750/1000 |
| Brakes | wet disc | wet disc | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 9.2 | 9.2 | 9.2 | 9.2 | 9.2 | 9.2 |
| Front tyres 4WD | 14.9R28 | 14.9R28 | 14.9R28 | 14.9R28 | 14.9R28 | 16.9R28 |
| Rear tyres 4WD | 18.4R38 | 18.4R38 | 18.4R38 | 18.4R38 | 18.4R38 | 20.8R38 |
| Weight 4WD | 5800 kg | 5800 kg | 5800 kg | 5800 kg | 5800 kg | 5800 kg |
| Height with cab | 300 cm | 300 cm | 300 cm | 300 cm | 300 cm | 300 cm |
| Length (2WD/4WD) | 519 cm | 519 cm | 519 cm | 519 cm | 519 cm | 519 cm |
| Wheelbase (2WD/4WD) | 264 (SS 279) cm | 264 (SS 279) cm | 264 (SS 279) cm | 264 (SS 279) cm | 264 (SS 279) cm | 264 (SS 279) cm |
| Fuel tank | 230+AB40 l | 230+AB40 l | 230+AB40 l | 230+AB40 l | 230+AB40 l | 230+AB40 l |
| Cab noise level | 69 dB | 69 dB | 69 dB | 69 dB | 69 dB | 69 dB |
| Solid cab | x | x | x | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Autom. differential locks | x | x | x | x | x | x |
| Air suspension seat | x | x | x | x | x | x |
| Air conditioning | x | x | x | x | x | x |
| Creeper gear | x | x | x | x | x | x |
