New Holland T6.140-T6.160 Auto Command
Manufacturer
Models
New Holland T6.140 Auto Command, New Holland T6.150 Auto Command, New Holland T6.160 Auto Command
Years
2012-16
Info

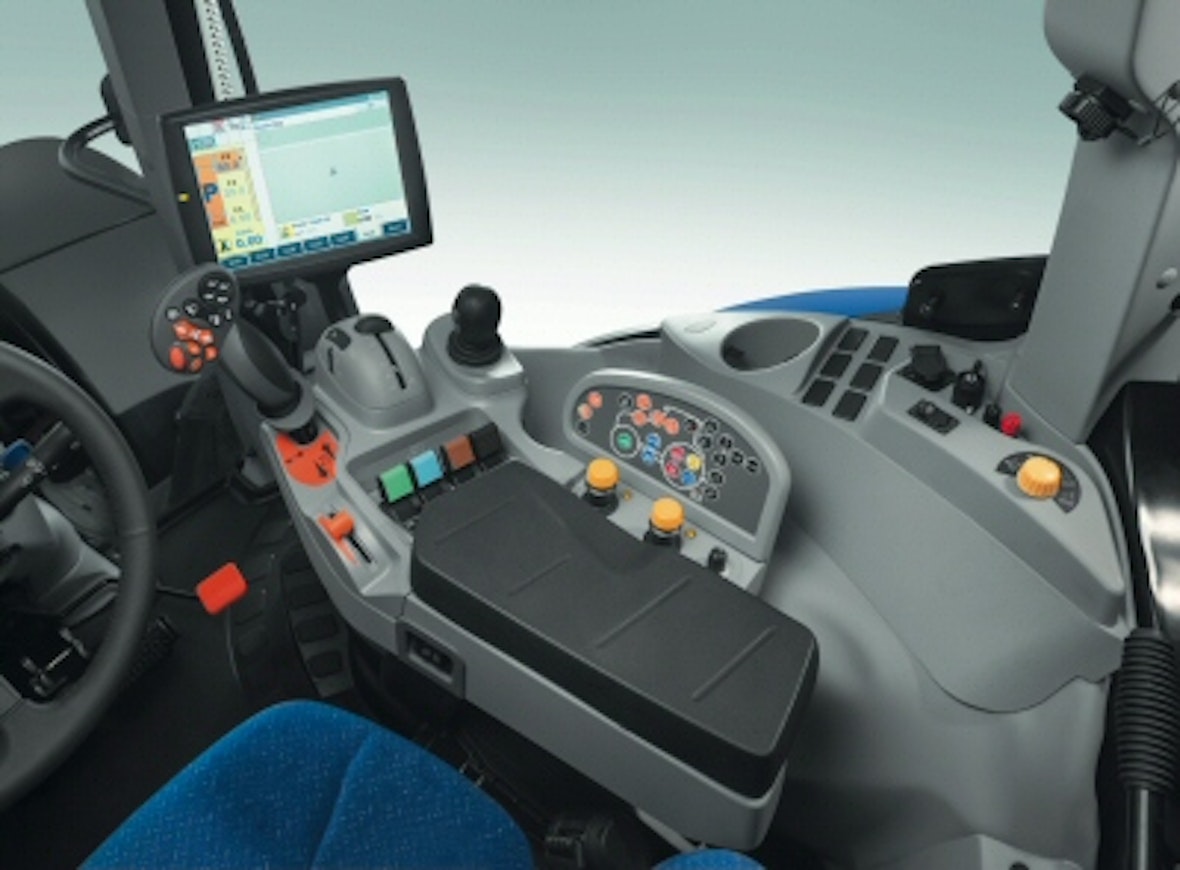

In the spring of 2013, four-cylinder Auto Command models with continuously variable transmissions were added to the New Holland T6 series. Speed could be controlled with a foot pedal, a hand lever, or by storing the desired speed in the memory. The selected speed memory was changed by pressing a button. A speed of 40 km/h was reached already at 1550 RPM, and the 50 km/h version reached full speed at 1750 RPM. Hydraulic output was increased to 127 liters. The cab was the recently improved Horizon, where most controls were grouped on the armrest. The T6.160 Auto Command was also available in a dark blue metallic color.
This is an automated translation. Please report any issues in the translation.
Technical data
| Model | New Holland T6.140 Auto Command | New Holland T6.150 Auto Command | New Holland T6.160 Auto Command |
|---|---|---|---|
| Manufacturer name | New Holland | New Holland | New Holland |
| Imported to Finland | Yes | Yes | Yes |
| Years | 2012-16 | 2012-16 | 2012-16 |
| First year sold | 2012 | 2012 | 2012 |
| Last year sold | 2016 | 2016 | 2016 |
| Engine model | NEF | NEF | NEF |
| Cyl/Turbo/Intercooler | 4TI | 4TI | 4TI |
| Displacement | 4485 cm³ | 4485 cm³ | 4485 cm³ |
| Bore x stroke | 104×132 mm | 104×132 mm | 104×132 mm |
| Rated power | - | - | - |
| Max power | - | - | - |
| Torque | - | - | - |
| Gears | stepless | stepless | stepless |
| Synchronized gears | stepless | stepless | stepless |
| Powershift gears | stepless | stepless | stepless |
| Reverser | hydr. | hydr. | hydr. |
| Speeds in km/h | 0,02-40 | 0,02-40 | 0,02-40 |
| Max. speed | 40 (50) km/h | 40 (50) km/h | 40 (50) km/h |
| Hydr. flow l/min | 127 l/min | 127 l/min | 127 l/min |
| Hydraulic pressure | 210 bar | 210 bar | 210 bar |
| Lift controls | elec. | elec. | elec. |
| Lift capacity | 7864 kg | 7864 kg | 7864 kg |
| PTO speeds | 540/750/1000 | 540/750/1000 | 540/750/1000 |
| Brakes | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. |
| Turning circle m 4WD | 8,08 (SS 7,51) | 8,08 (SS 7,51) | 8,08 (SS 7,51) |
| Front tyres 4WD | 14.9R28 | 14.9R28 | 14.9R28 |
| Rear tyres 4WD | 18.4R38 | 18.4R38 | 18.4R38 |
| Weight 4WD | 4950 kg | 4950 kg | 4950 kg |
| Height with cab | 293 (281) cm | 293 (281) cm | 293 (281) cm |
| Length (2WD/4WD) | 488 cm | 488 cm | 488 cm |
| Wheelbase (2WD/4WD) | 239 (SS 253) cm | 239 (SS 253) cm | 239 (SS 253) cm |
| Fuel tank | 175(+AB37) l | 175(+AB37) l | 175(+AB37) l |
| Cab noise level | 71 dB | 71 dB | 71 dB |
| Solid cab | x | x | x |
| Diff. lock | differential lock with cogs | differential lock with cogs | differential lock with cogs |
| Autom. differential locks | x | x | x |
| Air suspension seat | x | x | x |
| Air conditioning | x | x | x |
| Trip computer | x (without radar) | x (without radar) | x (without radar) |
| Creeper gear | x | x | x |
The data has been collected primarily from brochures. In some cases, sources contain conflicting information. In such cases, we have attempted to select the most reliable information.
There is particularly significant variation in speed data, which varies depending on factors such as tire size. For tires, only the size most commonly used in Finland is listed.
Other changes during the model history have been addressed in the text section. For the front axle lock, the Finnish term "hammaslukko" (gear lock) is used for all 100% locks.
