Massey Ferguson 6S.135-6S.180 Dyna-6

Manufacturer
Models
Massey Ferguson 6S.135 Dyna-6, Massey Ferguson 6S.145 Dyna-6, Massey Ferguson 6S.155 Dyna-6, Massey Ferguson 6S.165 Dyna-6, Massey Ferguson 6S.180 Dyna-6
Years
2021-
Info

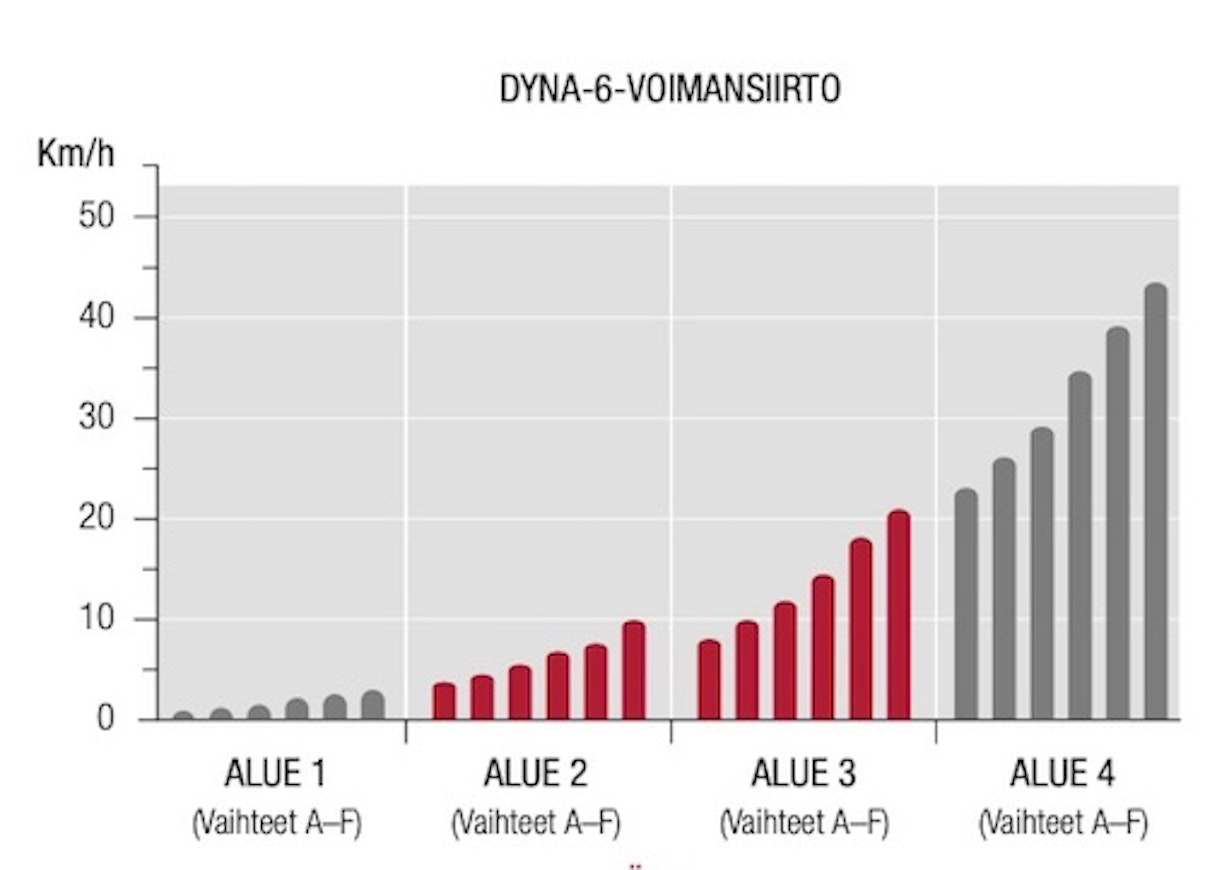

For the year 2022, the MF 6700 S was replaced by the 6S, whose design incorporated features from the 8S series. The tractor’s structure and technology remained largely unchanged. The Stage V emission level compliant engines were still 4.9-liter AGCO Powers. The rated power and torque had increased, while the significance of additional power had diminished. The transmission was a 24+24 speed Dyna-6. A top speed of 50 km/h was reached at 1800 RPM. Lifting capacity ranged from 7100 to 8100 kg. The two largest models were now available with 42″ rear wheels. The cab noise level had dropped to 70 decibels. The cab also featured updated controls, and starting from the Efficient model, a new control armrest with a multipad joystick was standard. The air conditioning system was new. The fuel tank had been enlarged to 285 liters. The turning radius of 9.5 meters was said to be the smallest in a 200-horsepower tractor.

There were three equipment levels. The base model, Essential, included, among other things, mechanically controlled hydraulics (4 sections), brake-activated clutch, air conditioning, air-suspended seat, and a passenger seat.

The Efficient model featured cruise control presets, mechanical cab suspension (active suspension was optional), front axle suspension, and electrically controlled hydraulic valves in two sections.

The Exclusive model came with automatic air conditioning, radar and traction control, Datatronic 5 ISOBUS terminal, section control, four electrically controlled hydraulic sections, power beyond, and steerable front fenders.

This is an automated translation. Please report any issues in the translation.

Technical data
ModelMassey Ferguson 6S.135 Dyna-6Massey Ferguson 6S.145 Dyna-6Massey Ferguson 6S.155 Dyna-6Massey Ferguson 6S.165 Dyna-6Massey Ferguson 6S.180 Dyna-6
Manufacturer nameMassey FergusonMassey FergusonMassey FergusonMassey FergusonMassey Ferguson
Imported to FinlandYesYesYesYesYes
Years2021-2021-2021-2021-2021-
Engine model49LFNT-D549LFNT-D549LFNT-D549LFNT-D549LFNT-D5
Cyl/Turbo/Intercooler4TI4TI4TI4TI4TI
Displacement4912 cm³4912 cm³4912 cm³4912 cm³4912 cm³
Bore x stroke108×134 mm108×134 mm108×134 mm108×134 mm108×134 mm
Rated power-----
Max power-----
Torque-----
Gears24+2424+2424+2424+2424+24
Synchronized gears24+2424+2424+2424+2424+24
Powershift gears6-step6-step6-step6-step6-step
Reverserhydr.hydr.hydr.hydr.hydr.
Speeds in km/h1,6-431,6-431,6-431,6-431,6-43
Max. speed 43/50 km/h43/50 km/h43/50 km/h43/50 km/h43/50 km/h
Hydr. flow l/min100/110 l/min100/110 l/min100/110 l/min100/110 l/min110 l/min
Hydraulic pressure200 bar200 bar200 bar200 bar200 bar
Lift controlselec.elec.elec.elec.elec.
Lift capacity7100 kg7100 kg7100 (8100) kg7100 (8100) kg8100 kg
PTO speeds540/1000540/1000540/1000540/1000540/1000
Brakeswet discwet discwet discwet discwet disc
Steeringhydrost.hydrost.hydrost.hydrost.hydrost.
Turning circle m 4WD9.59.59.59.59.5
Front tyres 4WD420/85R28420/85R28420/85R28480/70R28480/70R28
Rear tyres 4WD520/85R38520/85R38520/85R38580/70R38580/70R38
Weight 4WD7000 kg7000 kg7500 kg7500 kg7500 kg
Height with cab299 cm299 cm299 cm299 cm299 cm
Length (2WD/4WD)472 cm472 cm472 cm472 cm472 cm
Wheelbase (2WD/4WD)267 cm267 cm267 cm267 cm267 cm
Fuel tank285+AB35 l285+AB35 l285+AB35 l285+AB35 l285+AB35 l
Cab noise level70 dB70 dB70 dB70 dB70 dB
Solid cabxxxxx
Diff. lockdisc lockdisc lockdisc lockdisc lockdisc lock
Autom. differential locksxxxxx
Air suspension seatxxxxx
Air conditioningxxxxx
Trip computerExclusiveExclusiveExclusiveExclusiveExclusive
Creeper gearopt.opt.opt.opt.opt.
