Siirry sivupalkkiinSiirry alaosaanMassey Ferguson 592-595

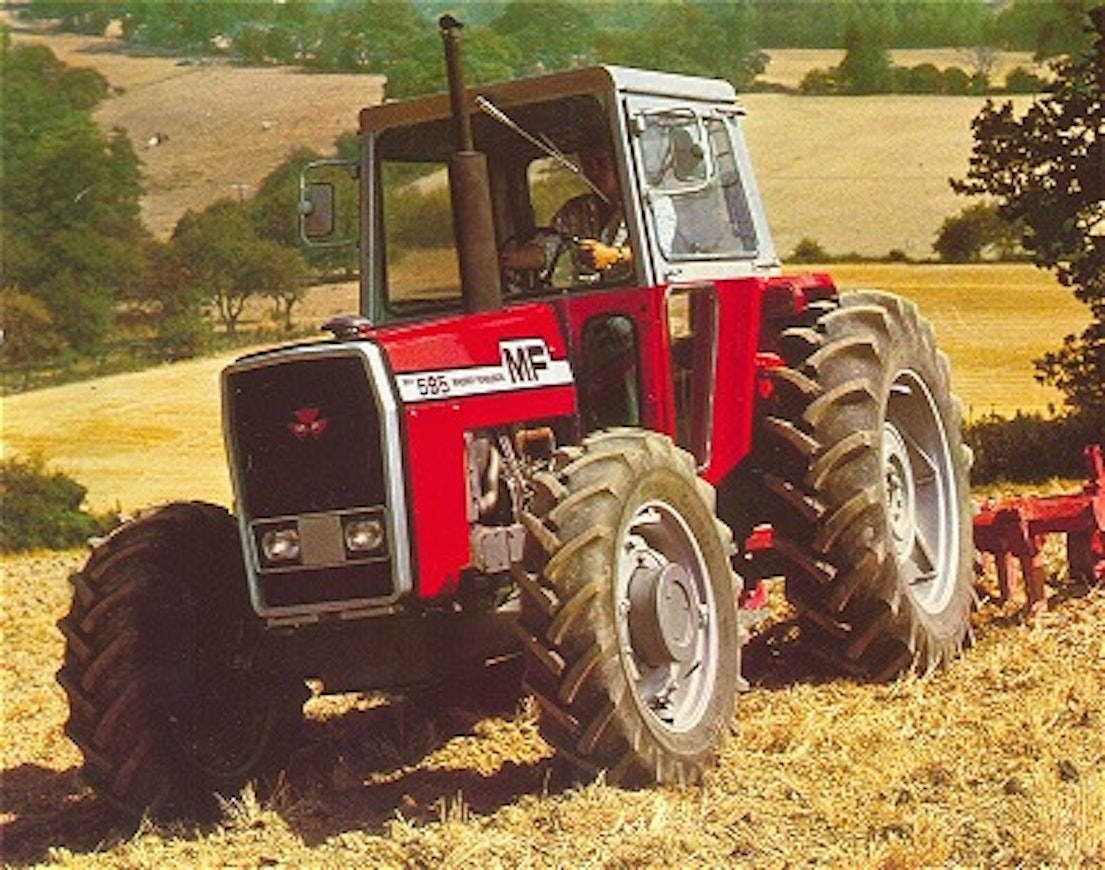

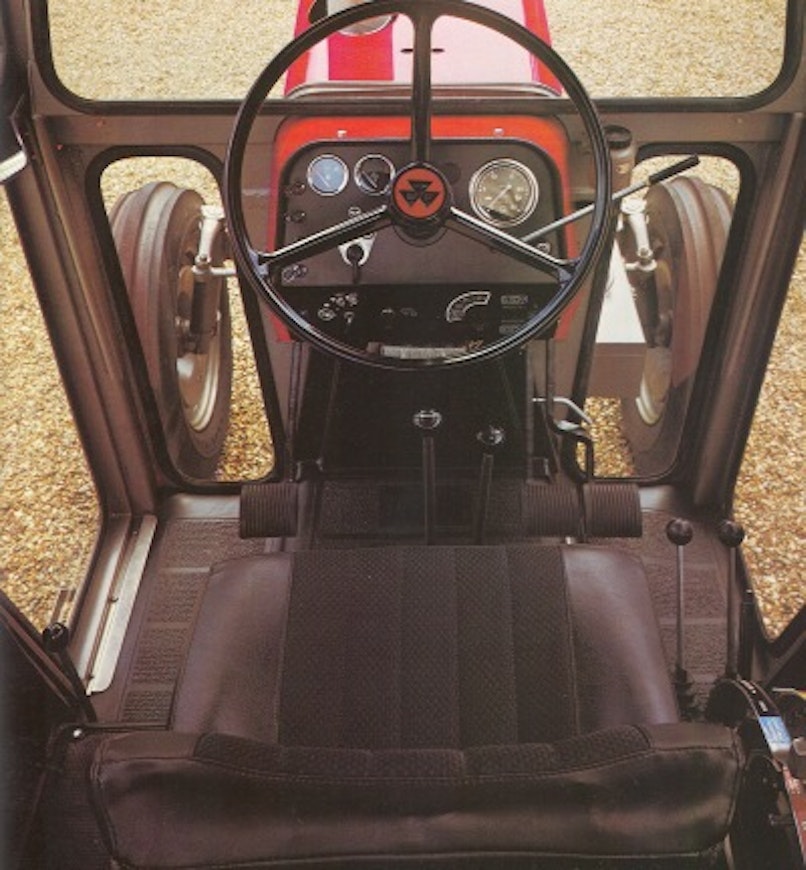

The first representative of the 500 series was the French-made 595, which replaced the 1080 at the end of 1974. In it, the tractor and the cab were designed as a unified whole. Except for the gear levers, the controls were connected indirectly from the cab to the tractor. The cab had one door, except in Finland and Sweden. In Finland, the top speed of the rear-wheel-drive model is reported as 33 km/h, but internationally a 25 km/h version is also known. An 8+2 transmission was also available in some countries. In America, a similar tractor was manufactured under the name MF 1085.
The power take-off was 2-speed, changed by swapping the shaft. Otherwise, the technical differences compared to its predecessor were minor. The 595 had an optional three-way valve, allowing the pump output to be combined for external hydraulics. Draft sensing on the lift arms was rare in this power class. The four-wheel-drive model was introduced in 1976.
In 1977, the 595 Mk II was introduced, featuring, among other things, greater lifting capacity, more powerful hydraulic pumps, and tinted windows. The gearbox was improved, and an external filter was added for the hydraulic oil. At this stage, all tractors sold in Finland were fitted with a turbocharger, increasing power to 110 horsepower. The Danish turbo version had only 102 hp.
From 1980 onward, the production lineup also included the 592, mainly for the French market, which corresponded to the non-turbo 595 except for the 8+2 transmission and the use of regular steel disc wheels instead of cast wheels. The 592/595 remained in the production lineup until the introduction of the 600 series, but imports to Finland ended already in 1980.
This is an automated translation. Please report any issues in the translation.
| Model | Massey Ferguson 592 | Massey Ferguson 595 | Massey Ferguson 595 Mk II | Massey Ferguson 595 Turbo |
|---|---|---|---|---|
| Manufacturer name | Massey Ferguson | Massey Ferguson | Massey Ferguson | Massey Ferguson |
| Imported to Finland | No | Yes | No | Yes |
| Years | 1980-82 | 1974-77 | 1977-82 | 1977-80 |
| Engine model | A4.318 | A4.318 | A4.318 | A4.318 |
| Cyl/Turbo/Intercooler | 4 | 4 | 4 | 4T |
| Displacement | 5210 cm³ | 5210 cm³ | 5210 cm³ | 5210 cm³ |
| Bore x stroke | 114,3×127 mm | 114,3×127 mm | 114,3×127 mm | 114,3×127 mm |
| Rated power | 85/2000 hp DIN/rpm | 88/2000 hp DIN/rpm | 88/2000 hp DIN/rpm | 110/2000 hp DIN/rpm |
| Torque | - | - | - | - |
| Gears | 12+4 | 12+4 | 12+4 | 12+4 |
| Powershift gears | hydr. | hydr. | hydr. | hydr. |
| Speeds in km/h | 1,7-23,8 | 2,0-33,0 | 2,3-33,3 | 2,2-32,6 |
| Hydr. flow l/min | 57 l/min | 30/57 l/min | 36/61 l/min | 36/61 l/min |
| Hydraulic pressure | 172 bar | 211 bar | 211 bar | 211 bar |
| Lift controls | mech. | mech. | mech. | mech. |
| Lift capacity | 2440 kg | 2440 kg | 2880 kg | 2880 kg |
| PTO speeds | 540 (1000) | 540 (1000) | 540 (1000) | 540 (1000) |
| Brakes | wet disc | wet disc | wet disc | wet disc |
| Steering | hydrost. | hydrost. | hydrost. | hydrost. |
| Turning circle m 2WD | 9.9 | 9.9 | 9.9 | 9.9 |
| Turning circle m 4WD | 11.5 | 11.5 | 11.5 | 11.5 |
| Front tyres 2WD | 7,50-18 | 11,00-16 | 11,00-16 | 11,00-16 |
| Front tyres 4WD | 11.2-28 | 12.4-28 | 12.4-28 | 11.0-28 |
| Rear tyres 2WD | 16,9-38 | 16,9-38 | 16,9-38 | 16,9-38 |
| Rear tyres 4WD | 16.9-38 | 16.9-38 | 16.9-38 | 16.9-38 |
| Weight 2WD | 3810 kg | 4100 kg | 4100 kg | 4100 kg |
| Weight 4WD | 4120 kg | 4480 kg | 4480 kg | 4480 kg |
| Height with cab | 263 cm | 263 cm | 263 cm | 263 cm |
| Length (2WD/4WD) | 446 cm | 446 cm | 446 cm | 446 cm |
| Wheelbase (2WD/4WD) | 263/261 cm | 265/260 cm | 265/260 cm | 265/260 cm |
| Fuel tank | 128 l | 128 l | 128 l | 128 l |
| Cab noise level | <90 dB | 87 dB | 87 dB | 87 dB |
| Solid cab | x | x | x | x |
| Max. speed | - | - | 4v. 2,2-25,4 km/h | 4v. 2,2-25,4 km/h |
